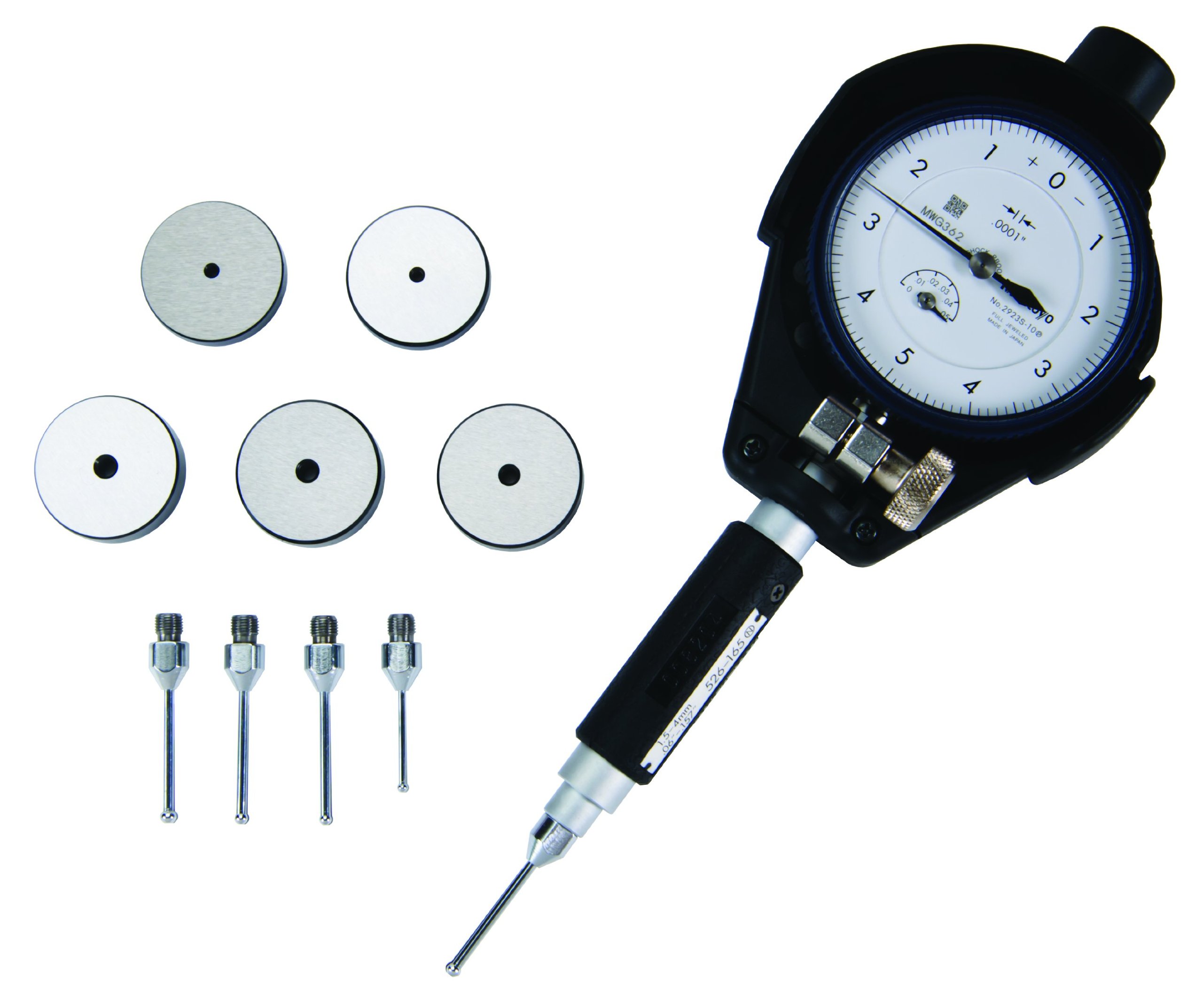

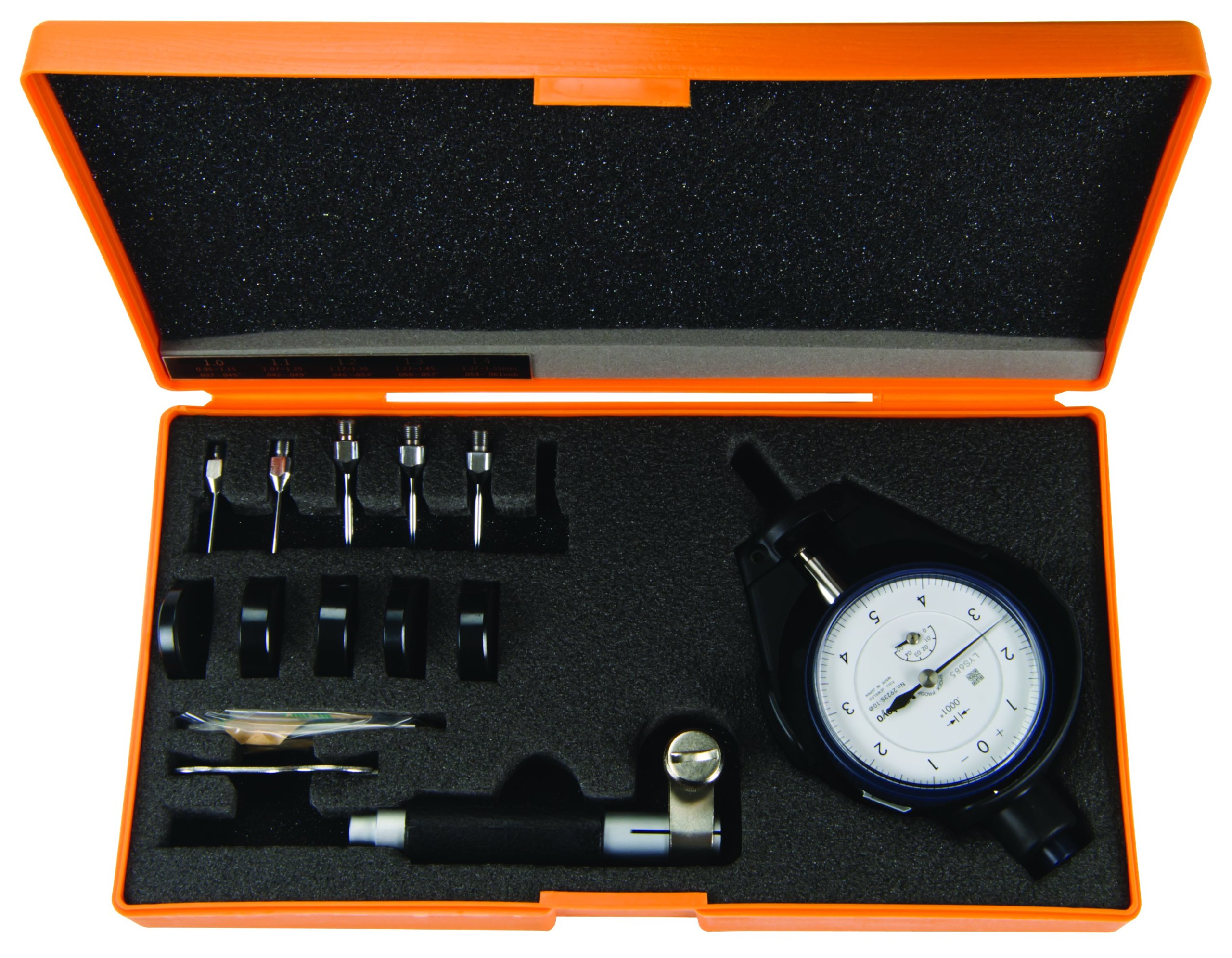

Mitutoyo Dial Bore Gauge for Extra Small Holes, Inch

Be the first to review this item

Product Specifications
Manufacturer Series Number
Bore Gage
Style Name
Dial
UNSPSC Code
41113901
Brand Name
Mitutoyo
System of Measurement
Inch

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-11 of 11
Range Accuracy Graduation Specifications Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-11 of 11
0.037-0.061" +/-0.00016"   Without Dial Gage Protector Cover 526-175 B003U9VYBW Usually ships in 1 to 2 months $2,760.00 Buy Options
0.037-0.061" +/-0.00016" 0.0001" - 526-176 B003U9VYC6 Usually ships in 1 to 2 months $2,890.00 Buy Options
0.06-0.157" +/-0.00016" 0.0001" - 526-166 B003U9VYAS Usually ships in 1 to 2 months $3,720.00 Buy Options
0.06-0.157" +/-0.00016"   Without Dial Gage Protector Cover 526-165 B003U9VYAI Usually ships in 1 to 2 months $3,125.00 Buy Options
0.145-0.29" +/-0.00016" N/A Without Dial Gage Protector Cover 526-155 B003U9VY8U Usually ships in 1 to 2 months $2,190.00 Buy Options
0.145-0.29" +/-0.00016" 0.0001" - 526-156 B003U9VY94 yes $2,320.00 Buy Options
0.3-0.4" +/-0.00016" 0.0001" - 526-122 B003U9VY6C yes $505.00 Buy Options
0.3-0.4" +/-0.00016"   Without Dial Gage Protector Cover 526-103 B003U9VY4Y yes $366.00 Buy Options
0.3-0.4" +/-0.00016" 0.0005" - 526-119 B003U9VY5I yes $450.00 Buy Options
0.4-0.7" +/-0.00016"   Without Dial Gage Protector Cover 526-104 B003U9VY58 yes $312.00 Buy Options
0.4-0.7" +/-0.00016" 0.0005" - 526-120 B003U9VY5S yes $409.00 Buy Options

Key Features

  • Accurate to + or - 0.00016"
  • Split ball design for inside diameter measurements and detection of out-of-roundness problems
  • Stainless steel contact points for high wear resistance

Product Description

The Mitutoyo Dial Bore Gauge for Extra Small Holes is accurate to + or - 0.00016". It uses a split ball design to measure the inside diameter of holes and identify out-of-roundness problems, with stainless steel contact points for high wear resistance.

Bore gauges measure holes, or bores, in a workpiece. They can measure the interior diameter of a hole at any depth, while internal micrometers can only measure to the depth of their teeth. Bore gauges are typically calibrated with a setting ring and come in two types: simple and direct-measuring. Simple bore gauges are used with a caliper to transfer the hole measurement, while the more complex gauges take the measurement directly, and display it through a vernier, dial, or digital display. Bore gauges have a two- or three-point contact, indicating how many points on the gauge head touch the inside of the bore. Two-point contacts are better at measuring ovality, while three-point contacts are used to measure lobing or triangular form error. Pistol-grip bore gauges are used for fast, single-handed operation with repeatable results from one operator to another. Bore gauges can also be used in special applications, such as measuring threads, spline pitch diameters, and deep bores.

Mitutoyo manufactures precision measuring tools, metrology equipment, and related systems. The company, founded in Tokyo in 1934, formed Mitutoyo America Corporation in 1963 with headquarters in Aurora, IL.
