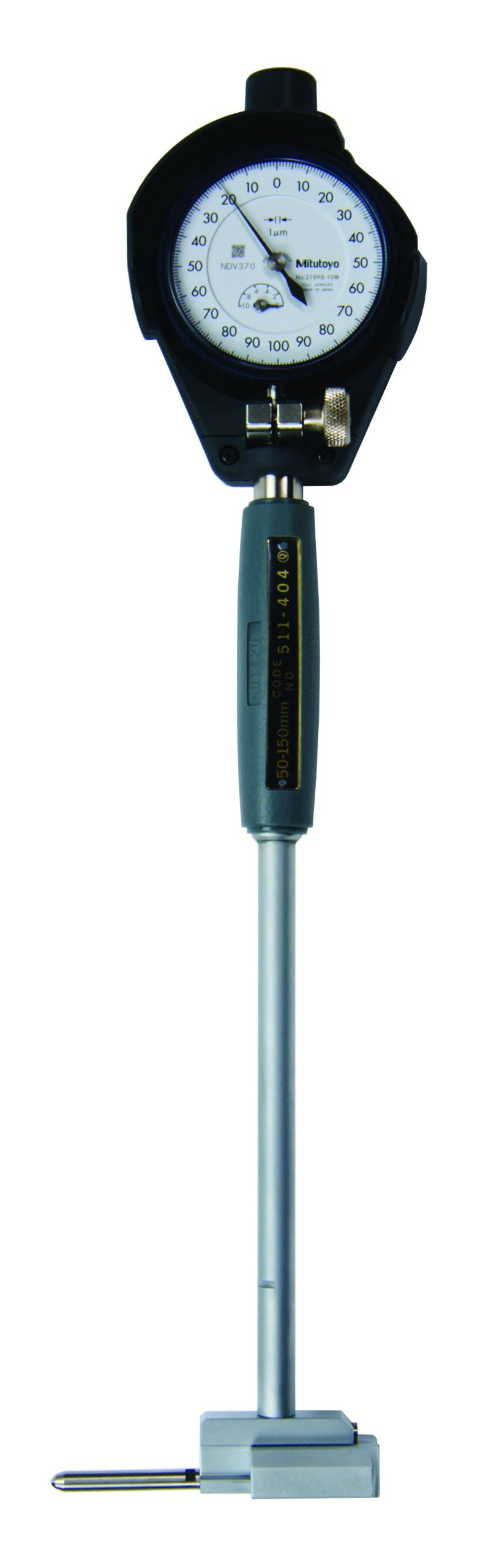

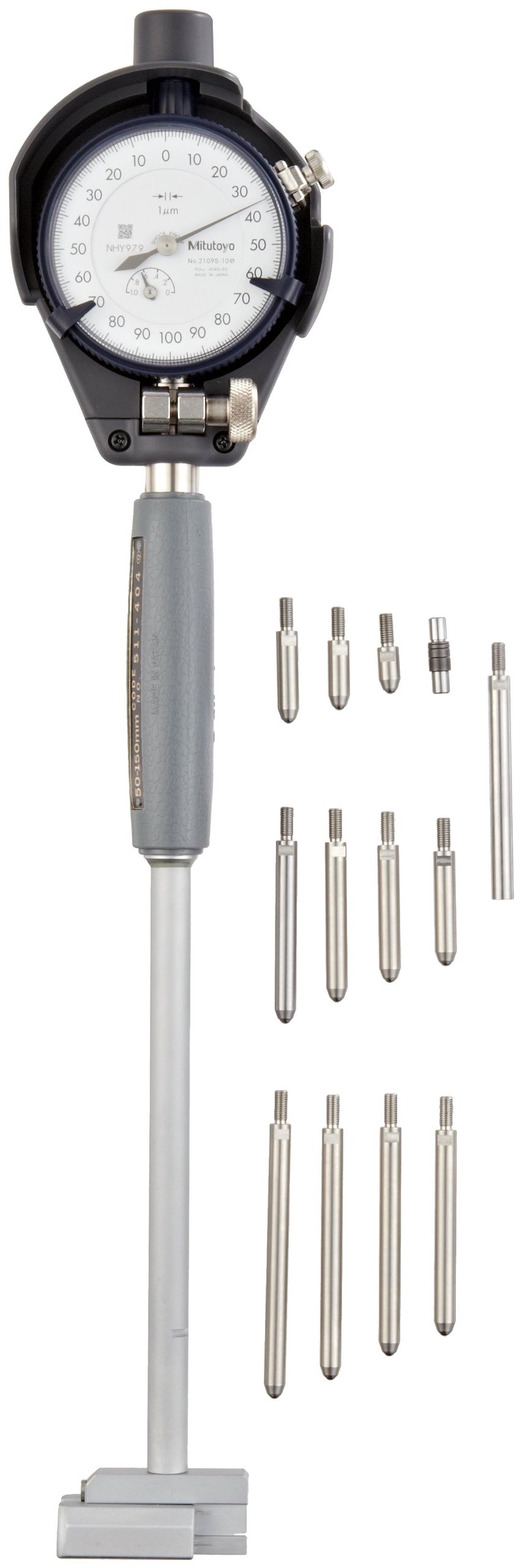

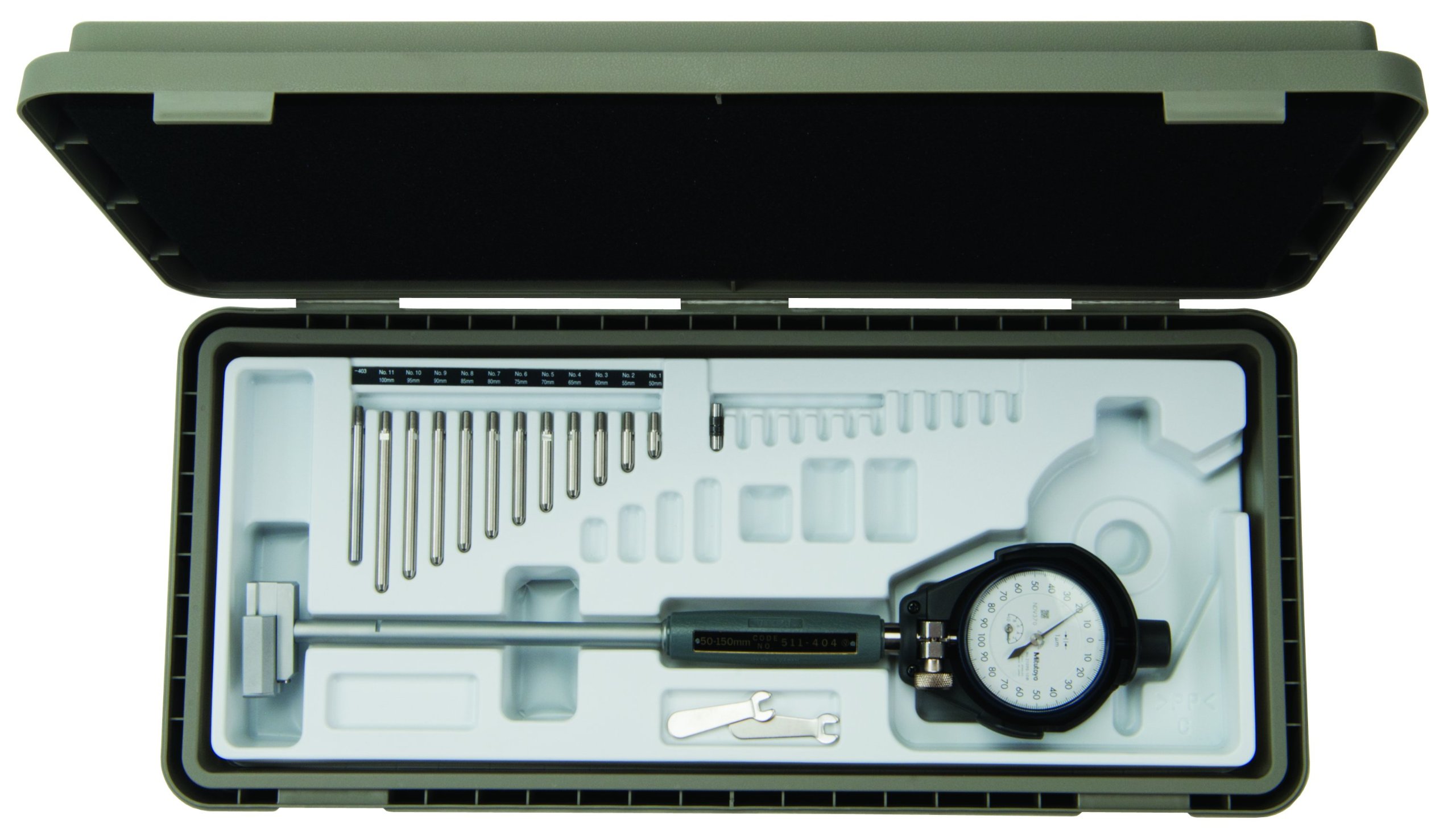

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Mitutoyo Dial Bore Gauge for Blind Holes, Metric

Be the first to review this item

Product Specifications
Manufacturer Series Number
Bore Gage
Style Name
Dial
Brand Name
Mitutoyo
System of Measurement
Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 18? Order in-stock items in the next 3 hrs 37 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-12 of 12
Range Accuracy Graduation Specifications Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-12 of 12
15-35mm +/-0.005mm 0.001mm - 511-421 B003U9VXZY 1 $573.00 Buy Options
15-35mm +/-0.005mm 0.01mm - 511-411 B003U9VXYU 1 $457.66 Buy Options
15-35mm N/A N/A Without Dial Gage or Protector Cover 511-401 B001D7PVS0 2 $381.67 Buy Options
35-60mm +/-0.005mm 0.001mm - 511-422 B003U9VY08 1 $573.00 Buy Options
35-60mm +/-0.005mm 0.01mm - 511-412 B003U9VXZ4 1 $462.35 Buy Options
35-60mm     Without Dial Gage or Protector Cover 511-402 B003M2OA6I 1 $385.13 Buy Options
50-100mm +/-0.005mm 0.001mm - 511-423 B003U9VY0I 1 $554.46 Buy Options
50-100mm +/-0.005mm 0.01mm - 511-413 B003U9VXZE 1 $500.40 Buy Options
50-100mm     Without Dial Gage or Protector Cover 511-403 B003M2KHNI 1 $474.00 Buy Options
50-150mm +/-0.005mm 0.001mm - 511-424 B003U9VY0S 1 $581.47 Buy Options
50-150mm +/-0.005mm 0.01mm - 511-414 B003U9VXZO 1 $519.80 Buy Options
50-150mm     Without Dial Gage or Protector Cover 511-404 B003M2OAAO 1 $497.00 Buy Options

Key Features

  • Two-point contact for detection of geometry problems such as ovality and taper
  • Carbide-tipped contact points for extended wear and improved abrasion resistance

Product Description

The Mitutoyo Dial Bore Gauge for Blind Holes can measure internal diameter at positions close to the bottom of blind holes and provides metric readings. This direct-measuring gauge uses a two-point contact system to detect geometry problems such as ovality and taper, and carbide-tipped contact points provide extended wear and improved abrasion resistance.

Bore gauges measure holes, or bores, in a workpiece. They can measure the interior diameter of a hole at any depth, while internal micrometers can only measure to the depth of their teeth. Bore gauges are typically calibrated with a setting ring and come in two types: simple and direct-measuring. Simple bore gauges are used with a caliper to transfer the hole measurement, while the more complex gauges take the measurement directly, and display it through a vernier, dial, or digital display. Bore gauges have a two- or three-point contact, indicating how many points on the gauge head touch the inside of the bore. Two-point contacts are better at measuring ovality, while three-point contacts are used to measure lobing or triangular form error. Pistol-grip bore gauges are used for fast, single-handed operation with repeatable results from one operator to another. Bore gauges can also be used in special applications, such as measuring threads, spline pitch diameters, and deep bores.

Mitutoyo manufactures precision measuring tools, metrology equipment, and related systems. The company, founded in Tokyo in 1934, formed Mitutoyo America Corporation in 1963 with headquarters in Aurora, IL.
