Mitutoyo Series 329 Digital LCD Depth Gauges, Interchangeable Rods, Micrometer Type, Metric

Be the first to review this item

Product Specifications
Manufacturer Series Number
Depth Micrometer
Output Type
SPC
Style Name
LCD
UNSPSC Code
41112401
Brand Name
Mitutoyo
System of Measurement
Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 12 hrs 27 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-2 of 2
Range Resolution Measurement accuracy Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-2 of 2
0-150mm 0.001mm +/-0.004mm 329-250-10 B003UATHBK yes $515.67 Buy Options
0-300mm 0.001mm +/-0.00535mm 329-251-10 B003UATHBU yes $698.00 Buy Options

Key Features

  • Measurement range for series of 0 up to 300mm, and resolution of 0.001mm
  • LCD screen displays in metric
  • Includes 6 or 12 interchangeable measuring rods that can be adjusted in 25mm increments
  • Origin-set, preset, zero, data hold, and data output functions for flexibility
  • Satin chrome finish on the body for readability and hardened steel base for durability and accuracy

Product Description

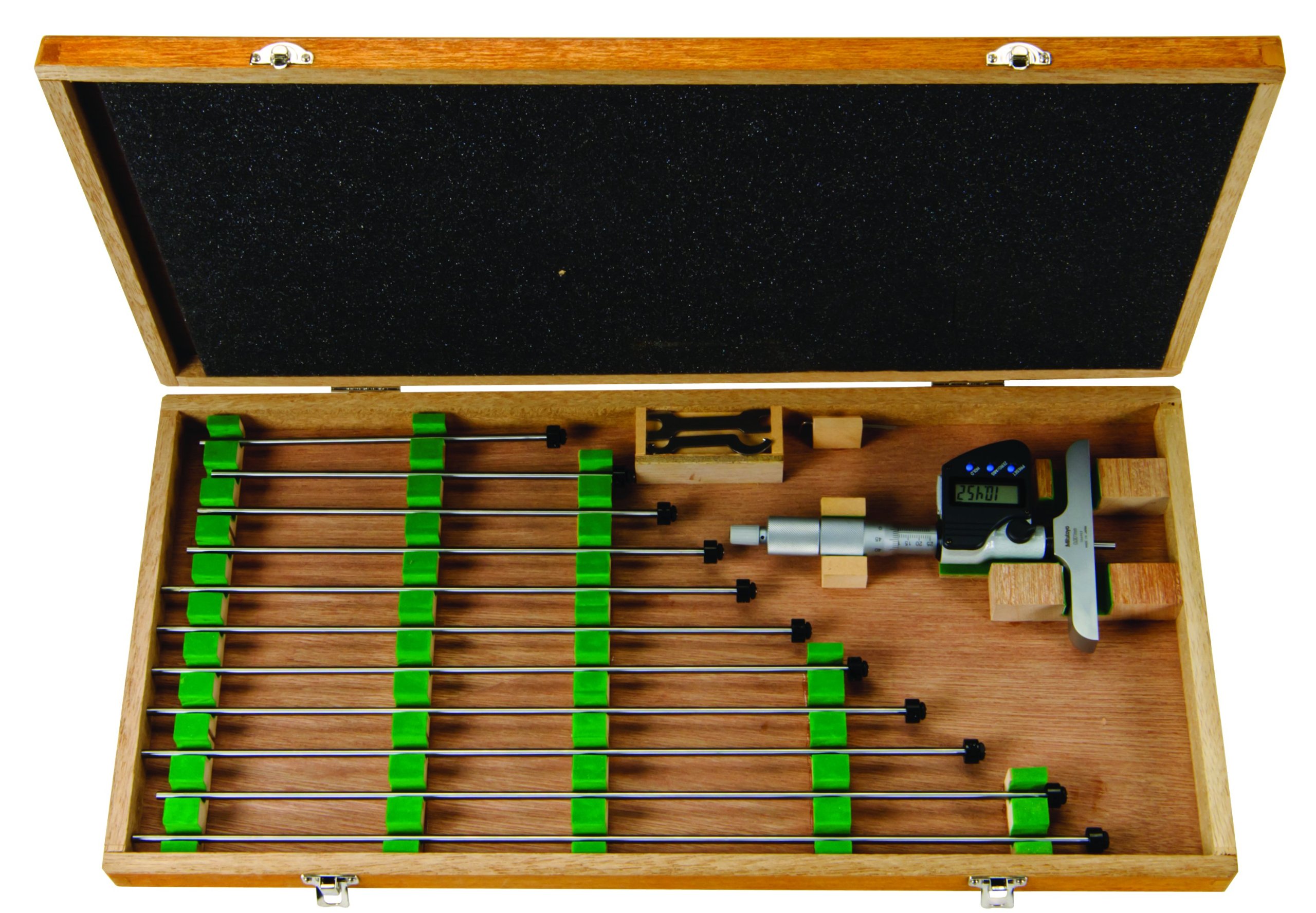

The Mitutoyo Series 329 Digital LCD Depth Gauges, Interchangeable Rods, Micrometer Type, Metric, depending on the model, has a range of either 0 to 150mm or 0 to 300mm and a resolution (or smallest graduation interval) of 0.001mm. (See the product catalog for information on accuracy.) Depending on the measuring range, these gauges include 6 or 12 measuring rods that can be adjusted in 25mm increments. The LCD screen display has origin-set, preset, zero, data hold, and data output functions for the users' convenience, and displays in metric measurements. The gauges have a ratchet stop and measuring rod clamp for precise measurements. They have a satin chrome finish for readability. The bases are 101.6mm long and made of hardened steel for durability and accuracy. These gauges conform to European Conformity (CE) marking. The gauges in this series include an SR44 battery and a fitted plastic case. Depth gauges are typically used in manufacturing, machining, and mechanical engineering.

Depth gauges are precision measuring instruments used to determine the depth of any shape that has a step, groove, or slot. These gauges often take the form of sliders that travel on a measuring beam or rods, are moved to position by hand, and then adjusted with a calibrated screw. The base of the gauge rests at the top of the shape whose recession is to be measured, while the beam or rods extend to the bottom of the recession to determine the measurement. Gauge position is read from a graduated scale, dial, counters, or an electronic display.

Mitutoyo manufactures precision measuring tools, metrology equipment, and related systems. The company, founded in Tokyo in 1934, formed Mitutoyo America Corporation in 1963 with headquarters in Aurora, IL.
