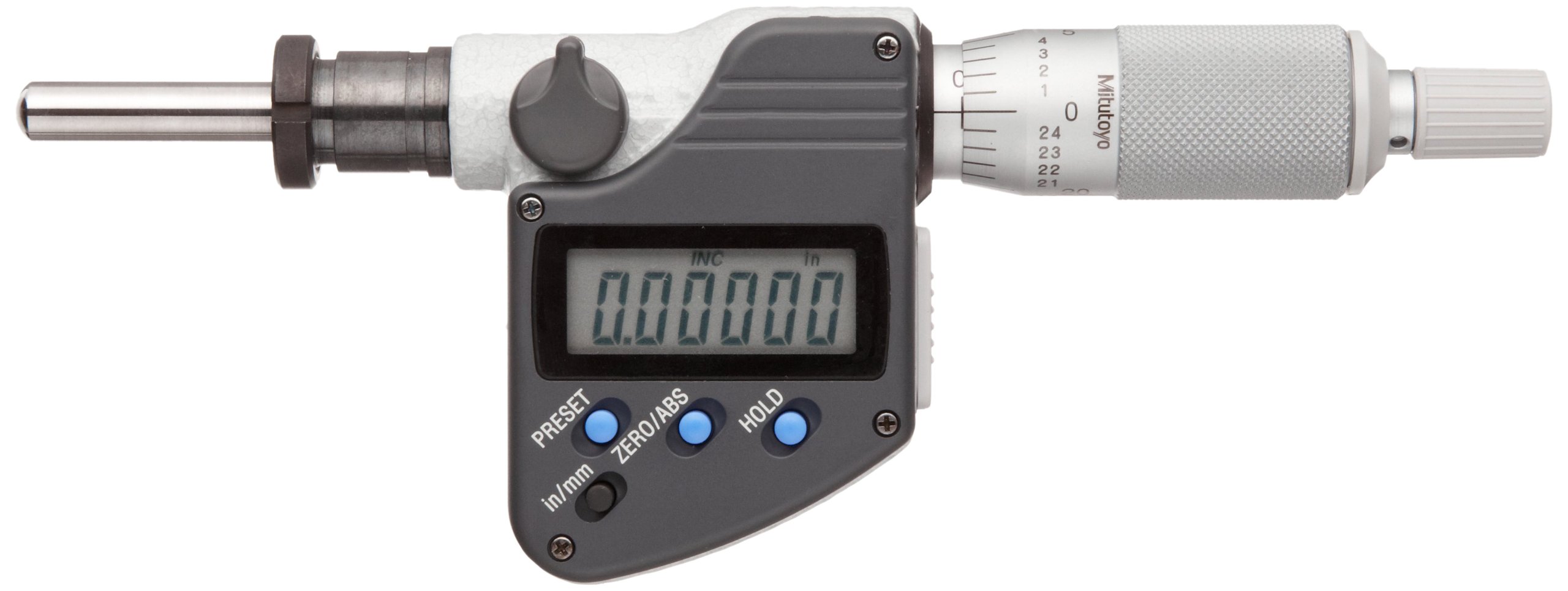

Mitutoyo Digimatic LCD Micrometer Head, Inch/Metric

Be the first to review this item

Product Specifications
Manufacturer Series Number
Digimatic Micrometer Heads
UNSPSC Code
41111600
Brand Name
Mitutoyo
System of Measurement
Inch and Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 22? Order in-stock items in the next 10 hrs 11 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Range Accuracy Graduation Stem Dia Thimble Stem Face Specifications Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All All All
Currently showing 1-8 of 8
0-1"/0-25.4mm +/-0.002mm and +/-0.0001" 0.001mm/0.00005" 0.5" 0-1"/0-25.4mm Clamp Nut Flat IP65 350-382-10 B003UATI5A yes $325.00 Buy Options
0-1"/0-25.4mm +/-0.002mm and +/-0.0001" 0.001mm/0.00005" 0.375" 0-1"/0-25.4mm Clamp Nut Spherical SR4 - 350-354-10 B003UATI4G yes $349.00 Buy Options
0-1"/0-25.4mm +/-0.002mm and +/-0.0001" 0.001mm/0.00005" 0.5" 0-1"/0-25.4mm Clamp Nut Spherical SR4 IP65 350-384-10 B003UATI5U yes $349.00 Buy Options
0-1"/0-25.4mm +/-0.002mm and +/-0.0001" 0.001mm/0.00005" 0.375" 0-1"/0-25.4mm Plain Flat - 350-351-10 B002SG7QI8 yes $250.47 Buy Options
0-1"/0-25.4mm +/-0.002mm and +/-0.0001" 0.001mm/0.00005" 0.5" 0-1"/0-25.4mm Plain Flat IP65 350-381-10 B003UATI50 yes $325.00 Buy Options
0-1"/0-25.4mm +/-0.002mm and +/-0.0001" 0.001mm/0.00005" 0.5" 0-1"/0-25.4mm Plain Flat IP65, Non-Rotating Device, 18mm Bushing 350-361-10 B003UATI4Q yes $319.00 Buy Options
0-1"/0-25.4mm +/-0.002mm and +/-0.0001" 0.001mm/0.00005" 0.375" 0-1"/0-25.4mm Plain Spherical SR4 - 350-353-10 B003UATI46 Usually ships in 1 to 4 months $323.00 Buy Options
0-1"/0-25.4mm +/-0.002mm and +/-0.0001" 0.001mm/0.00005" 0.5" 0-1"/0-25.4mm Plain Spherical SR4 IP65 350-383-10 B003UATI5K yes $325.00 Buy Options

Key Features

  • Digital, single-value readout LCD displays in inch and metric units for readability
  • Statistical Process Control (SPC) output transmits results to a computer or external device through an interface cable (sold separately)
  • Available with plain or clamp-nut stem for mounting in a fixture
  • Spindle lock to hold measurements in place
  • Satin chrome finish on thimble and sleeve helps resist rust and reduce glare

Product Description

The Mitutoyo 350 series Digimatic micrometer head has a single-value LCD readout that displays in inch and metric units with resolution to 0.00005” (0.001mm). It is available with a plain stem for mounting in a fixture with a split-body clamp or setscrew, or a clamp-nut stem for quick mounting.

The micrometer’s electronic microprocessor can hold measurements at any position, convert to absolute value, set a temporary zero position, and return to a true zero reading. It also has a function lock and two presets. The micrometer has Statistical Process Control (SPC) data output to transmit results to a computer or external device. The output jack transmits SPC results to a computer through an interface cable (sold separately). The micrometer has a satin chrome rust-resistant finish. A spindle lock helps hold measurements in place. The micrometer includes, and is powered by, a single SR44 silver oxide battery.

Micrometers are precision measuring instruments that use a calibrated screw to measure small distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot. Micrometer heads are for mounting in fixtures, where they are typically used for measurement, or as stops or feeds.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
