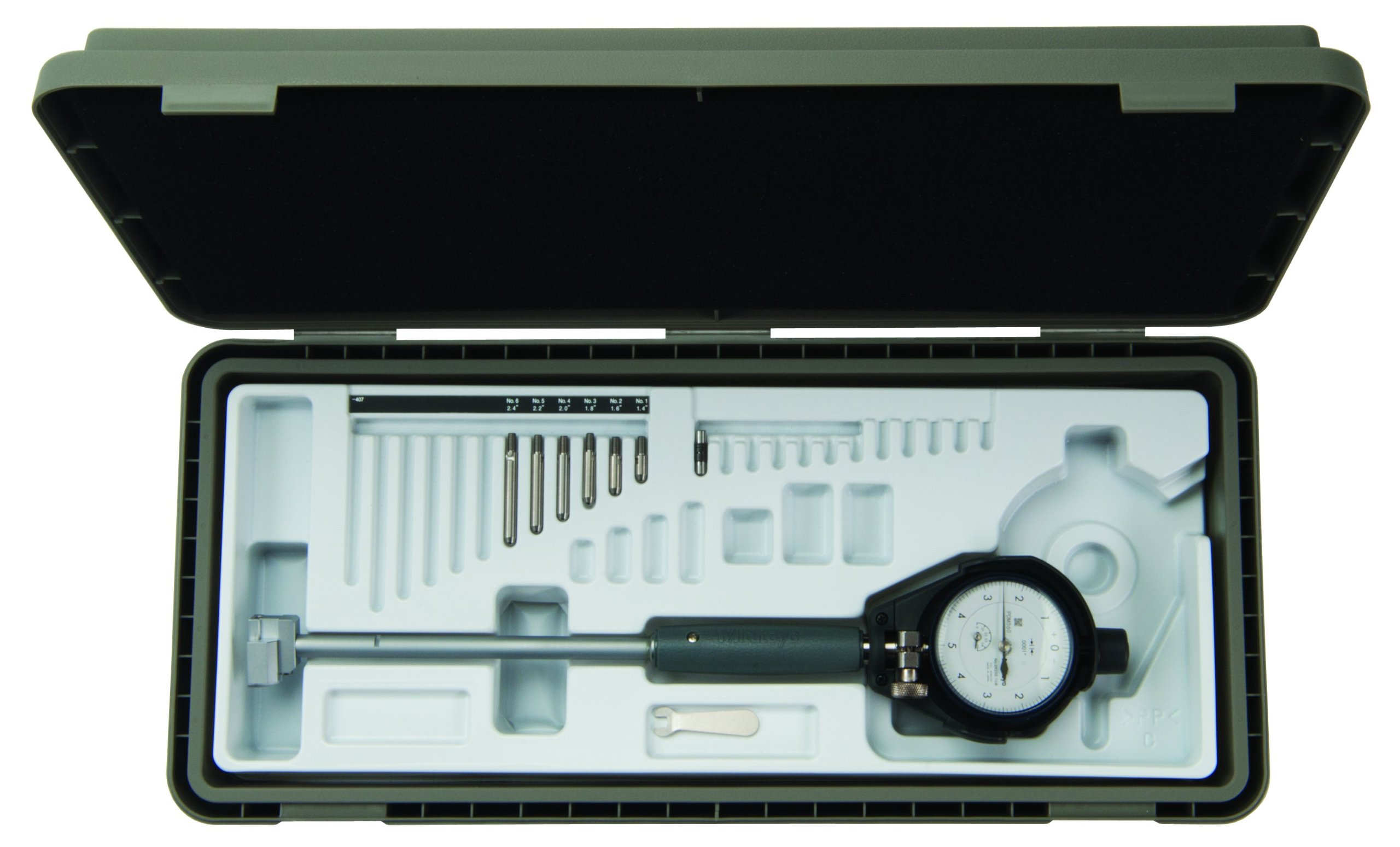

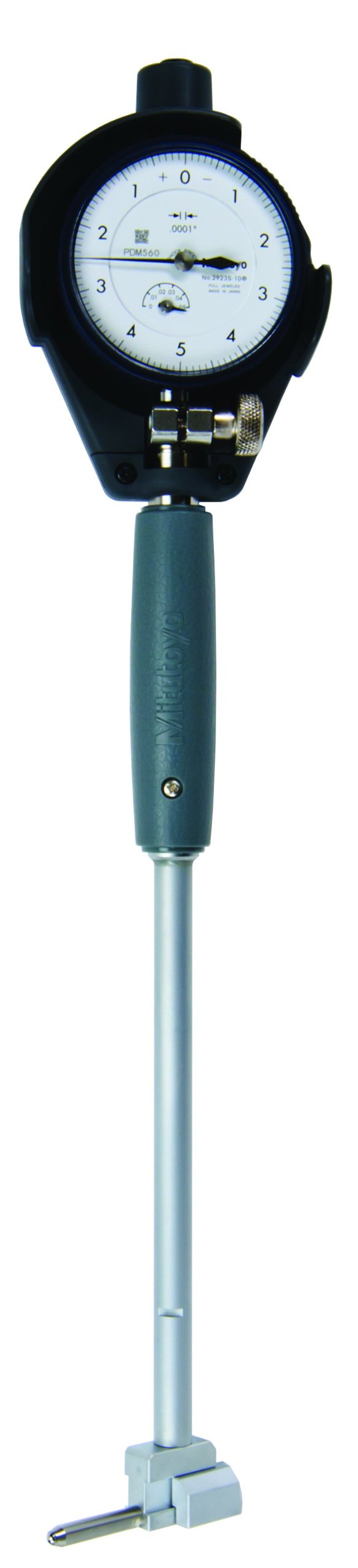

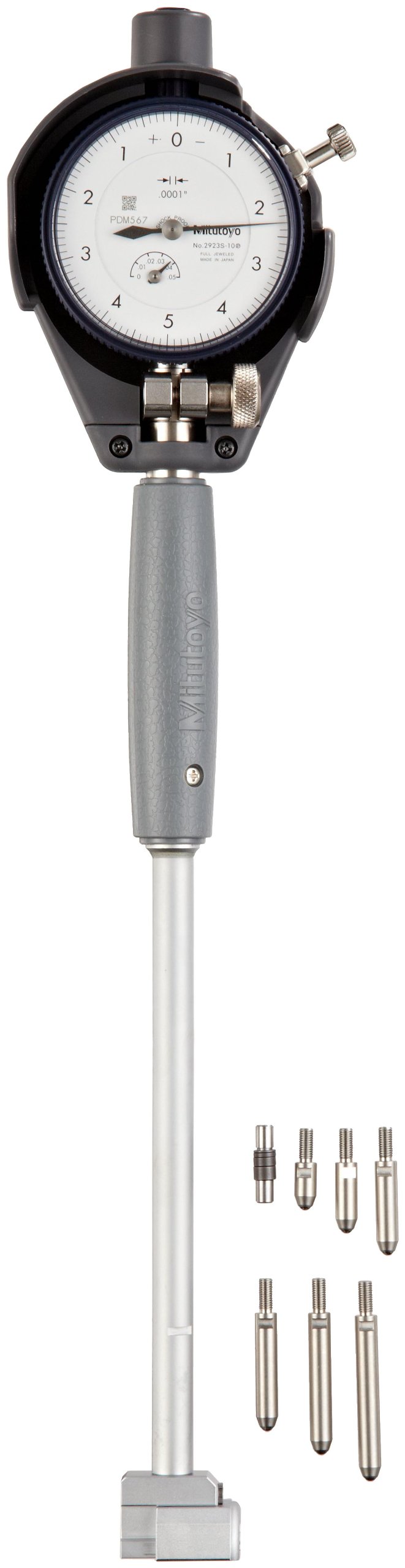

Mitutoyo Dial Bore Gauge for Blind Holes, Inch

Be the first to review this item

Product Specifications
Manufacturer Series Number
Bore Gage
Style Name
Brand Name
System of Measurement

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 21? Order in-stock items in the next 1 day 1 hr 36 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-12 of 12
Range Resolution Measurement accuracy Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All All
Currently showing 1-12 of 12
0.6-1.4" 0.0001" +/-0.0002" 511-441 B003U9VY26 yes $605.00 Buy Options
0.6-1.4" 0.0005" +/-0.0002" 511-431 B003U9VY12 yes $434.07 Buy Options
0.6-1.4" N/A 0.0002" 511-406 B003VM7XJ0 yes $388.20 Buy Options
1.4-2.4" 0.0001" +/-0.0002" 511-442 B003U9VY2G yes $515.67 Buy Options
1.4-2.4" 0.0005" +/-0.0002" 511-432 B003U9VY1C yes $525.00 Buy Options
1.4-2.4" N/A 0.0002" 511-407 B003U9VXXQ yes $462.00 Buy Options
2-4" 0.0001" +/-0.0002" 511-443 B003U9VY2Q yes $643.00 Buy Options
2-4" 0.0005" +/-0.0002" 511-433 B003U9VY1M yes $571.00 Buy Options
2-4" N/A 0.0002" 511-408 B003U9VXYA yes $500.00 Buy Options
2-6" 0.0001" +/-0.0002" 511-444 B003U9VY30 yes $534.54 Buy Options
2-6" 0.0005" +/-0.0002" 511-434 B003U9VY1W yes $593.00 Buy Options
2-6" N/A 0.0002" 511-409 B003U9VXYK Usually ships in 1 to 2 months $441.13 Buy Options

Key Features

  • Two-point contact for detection of geometry problems such as ovality and taper
  • Carbide-tipped contact points for extended wear and improved abrasion resistance

Product Description

The Mitutoyo Dial Bore Gauge for Blind Holes can measure internal diameter at positions close to the bottom of blind holes and provides readings in inches. This direct-measuring gauge uses a two-point contact system to detect geometry problems such as ovality and taper, and carbide-tipped contact points provide extended wear and improved abrasion resistance.

Bore gauges measure holes, or bores, in a workpiece. They can measure the interior diameter of a hole at any depth, while internal micrometers can only measure to the depth of their teeth. Bore gauges are typically calibrated with a setting ring and come in two types: simple and direct-measuring. Simple bore gauges are used with a caliper to transfer the hole measurement, while the more complex gauges take the measurement directly, and display it through a vernier, dial, or digital display. Bore gauges have a two- or three-point contact, indicating how many points on the gauge head touch the inside of the bore. Two-point contacts are better at measuring ovality, while three-point contacts are used to measure lobing or triangular form error. Pistol-grip bore gauges are used for fast, single-handed operation with repeatable results from one operator to another. Bore gauges can also be used in special applications, such as measuring threads, spline pitch diameters, and deep bores.

Mitutoyo manufactures precision measuring tools, metrology equipment, and related systems. The company, founded in Tokyo in 1934, formed Mitutoyo America Corporation in 1963 with headquarters in Aurora, IL.
