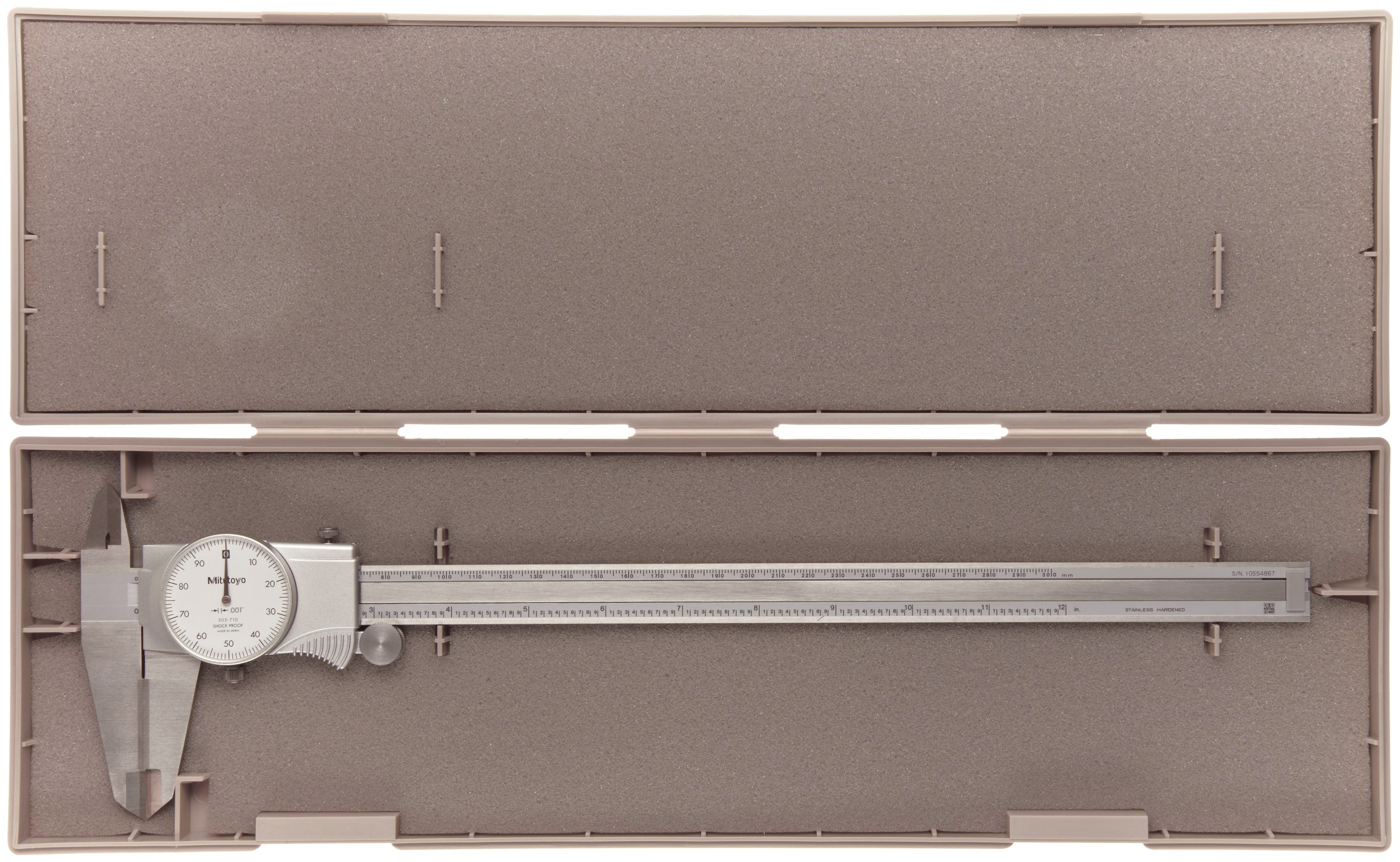

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

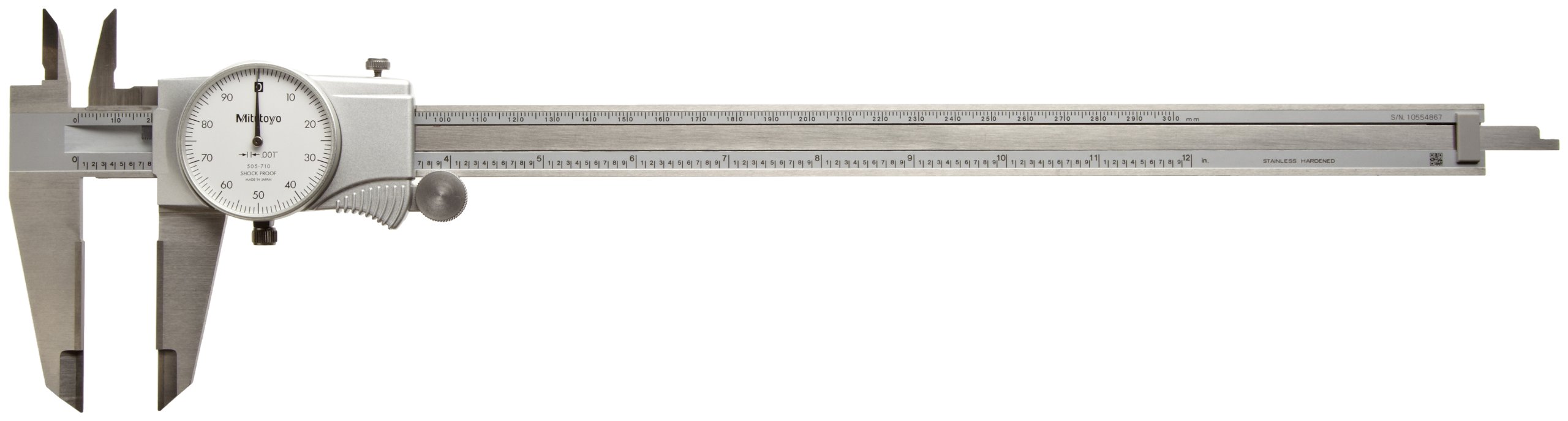

Mitutoyo Dial Caliper, 0.1" Per Rev., Inch

Be the first to review this item

Product Specifications
Manufacturer Series Number
Dial Caliper
Material Type
Stainless Steel
UNSPSC Code
41111600
Brand Name
Mitutoyo
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 22? Order in-stock items in the next 1 day 14 hrs and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-17 of 17
Range Resolution Measurement accuracy Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-17 of 17
12" 0.001" +/-0.002" 505-677 B001C0XVYE yes $185.18 Buy Options
12" 0.001" +/-0.002" 505-720 B001C11U0U yes $178.10 Buy Options
4" 0.001" +/-0.001" 505-716 B000VB8I6G yes $80.95 Buy Options
6" 0.001" +/-0.001" 505-675 B001C13UOY yes $94.40 Buy Options
6" 0.001" +/-0.001" 505-675-51 B000VBEGPS yes $91.21 Buy Options
6" 0.001" +/-0.001" 505-675-53 B002SG7QO2 yes $102.38 Buy Options
6" 0.001" +/-0.001" 505-675-54 B0002FSE7O yes $98.92 Buy Options
6" 0.001" +/-0.001" 505-675-55 B000VBAHBK yes $102.38 Buy Options
6" 0.001" +/-0.001" 505-675-66 B000VBAHCE yes $94.35 Buy Options
6" 0.001" +/-0.001" 505-689 B000VB74C0 yes $122.50 Buy Options
6" 0.001" +/-0.001" 505-708 B0002FS76W yes $148.86 Buy Options
6" 0.001" +/-0.001" 505-712 B001C13UU8 yes $169.95 Buy Options
6" 0.001" +/-0.001" 505-717 B001C15W4A yes $81.78 Buy Options
6" 0.001" +/-0.001" 505-718 B000VB8I7K yes $125.94 Buy Options
8" 0.001" +/-0.002" 505-676 B001C13UQM yes $117.89 Buy Options
8" 0.001" +/-0.002" 505-690 B000VB8I2A yes $165.77 Buy Options
8" 0.001" +/-0.002" 505-719 B001OBV03A yes $139.95 Buy Options

Key Features

  • Dial for measuring vernier scale for ease of reading
  • Hardened stainless steel construction for protection of caliper components
  • Four-way measurement capability for outside dimension (OD), inside dimension (ID), depth, and step measurements
  • Titanium nitride (TiN) coating on beam surfaces for resistance to wear
  • Inch system of measurement for high-precision readings

Product Description

The Mitutoyo 505 series dial caliper uses a combination of a vernier scale and a dial whose pointer travels one rotation for each 0.1” measured to perform precise outside diameter (OD), inside diameter (ID), depth, and step measurements.

The dial caliper has a fixed (main) scale and a movable dial, unlike the vernier caliper which has a second, movable vernier scale. The dial is circular and has a pointer; it is mounted on a toothed gear track which drives the pointer. As the dial moves over the main scale rule, the pointer rotates once to give the additional fractional reading. The second measurement is added to the main scale reading to obtain a final result accurate to the smallest graduation marked on the dial. The main scale and dial are marked in inches. The dial can be rotated beneath the pointer to measure size differential between two objects. The dial caliper is easier to read than the vernier caliper, thus safeguarding against user reading errors. Its standard of precise measurement complements the use of the vernier caliper; the dial provides an ease in reading and interpolating measurements which most vernier calipers, due to their need for direct observation of both scales, may not provide.

The dial uses a rack-and-pinion mechanism and is mounted on a gear track where each tooth equals one quarter of the dial revolution, and four teeth equal 0.1”. The smooth-moving dial is graduated to 0.001” and offers gear train shock protection. A thumbwheel permits fast operation with one hand. A clamping screw controls scale movement and a dial calibration lock holds the sliding jaw’s position. The caliper is made of hardened stainless steel construction with titanium nitride (TiN) coating on the beam wear surface helps extend caliper life. Two sets of jaws provide four-way measurement capability: outside dimension (OD), inside dimension (ID), depth, and step, where the butt end of the fixed jaw measures one end of a work piece before its upper/lower or inner/outer steps are measured.

Calipers measure the distance between two opposing sides of an object. They make inside, outside, depth, or step measurements, according to their type. Calipers are commonly used in architecture, metalworking, mechanical engineering, and machining. The simplest calipers have two legs to mark the two points and require a ruler to take the measurement. More complex calipers use two sets of jaws instead of legs and have up to two graduated scales. Vernier, dial, and digital calipers give direct and accurate readings and are functionally identical, having a calibrated scale with a fixed jaw, and another jaw with a movable pointer that slides along the scale. The vernier caliper has a scale sliding parallel to the main scale for an additional, fractional reading to improve measurement precision. The dial caliper has a circular dial with a pointer on a toothed gear rack replacing the second vernier scale. As with the vernier, this second measurement is added to the reading from the main scale to obtain the result. The digital caliper takes a differential by zeroing the display at any point along the slide, with an LCD that displays a single value in English and/or metric units.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
