ASIN B007OOL9QO

Specifications for this item
Manufacturer Series Number
Dial Depth Gage
Material Type
Stainless Steel
Style Name
Dial
UNSPSC Code
41112401
Brand Name
Mitutoyo
System of Measurement
Metric

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Measurement range for series of 0 up to 200mm, and resolution of 0.05mm
  • Dial gauge provides precise and easily readable measurements in fine units
  • Made of hardened stainless steel, and base and measuring faces are hardened and lapped for durability and accuracy
  • Has fine adjustment screw for precise measurements
  • Optional wider extension base sold separately

Product Description

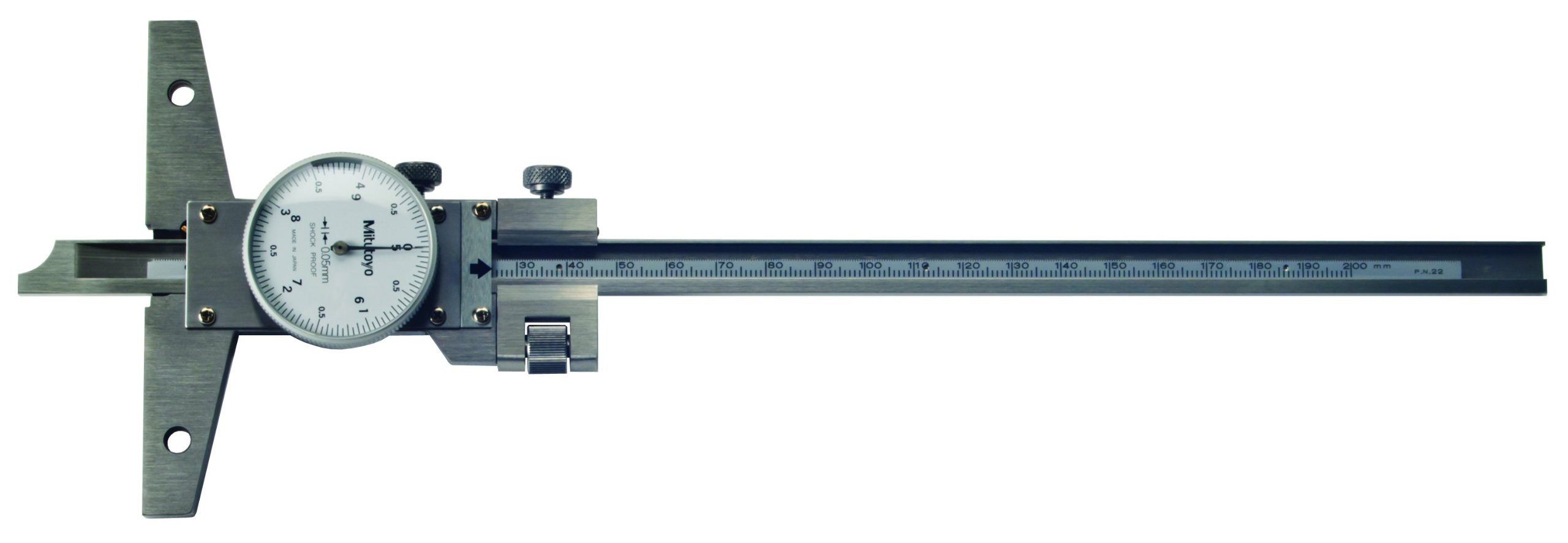

The Mitutoyo Series 527 Dial Depth Gauges with Fine Adjustment, Caliper Type, Metric, depending on the model, have a measurement range of either 0 to 150mm or 0 to 200mm, a resolution (or smallest graduation interval) of 0.05mm, with + or – 0.05mm of accuracy. The dial gauge interface provides precise and easily readable measurements. These gauges are made of hardened stainless steel. The bases of the units are 100mm long, and the measuring faces are hardened and lapped for durability and accuracy. The gauges have a fine adjustment screw for taking precise measurements. An optional wider extension base is sold separately. Depth gauges are typically used in manufacturing, machining, and mechanical engineering.

Depth gauges are precision measuring instruments used to determine the depth of any shape that has a step, groove, or slot. These gauges often take the form of sliders that travel on a measuring beam or rods, are moved to position by hand, and then adjusted with a calibrated screw. The base of the gauge rests at the top of the shape whose recession is to be measured, while the beam or rods extend to the bottom of the recession to determine the measurement. Gauge position is read from a graduated scale, dial, counters, or an electronic display.

Mitutoyo manufactures precision measuring tools, metrology equipment, and related systems. The company, founded in Tokyo in 1934, formed Mitutoyo America Corporation in 1963 with headquarters in Aurora, IL.
