Mitutoyo Ceramic Rectangular Micrometer Inspection Gage Block Set, ASME Grade 0, 1.0 - 25 mm Length (10 Blocks)

Be the first to review this item

ASIN B003U9W1ZA

Specifications for this item
Overall Width
30 and 35  millimeters
Item Shape
Rectangular
Part Number
516-152-26
Item Depth
9 millimeters
Brand Name
Mitutoyo
Grade
ASME Grade 0
Number of Items
10
Specific Uses For Product
Gage Block Set
Material Type
Ceramic
EAN
4946368493770
UNSPSC Code
41111618
Overall Length
1.0 - 25  millimeters
System of Measurement
Metric

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 23? Order in-stock items in the next 13 hrs 26 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Can be used for checking spindle wear on outside diameter (OD) micrometers
  • Sized to check different degrees of spindle rotation
  • CERA (ceramic) blocks are made from dimensionally stable ceramic
  • A certificate of inspection to ensure each block has been inspected
  • Laser-etched with individual serial numbers for traceability

Package Details

Shipping Weight: 2.15 pounds
Package Size: 12.2 x 3.4 x 2.8 inches

Product Description

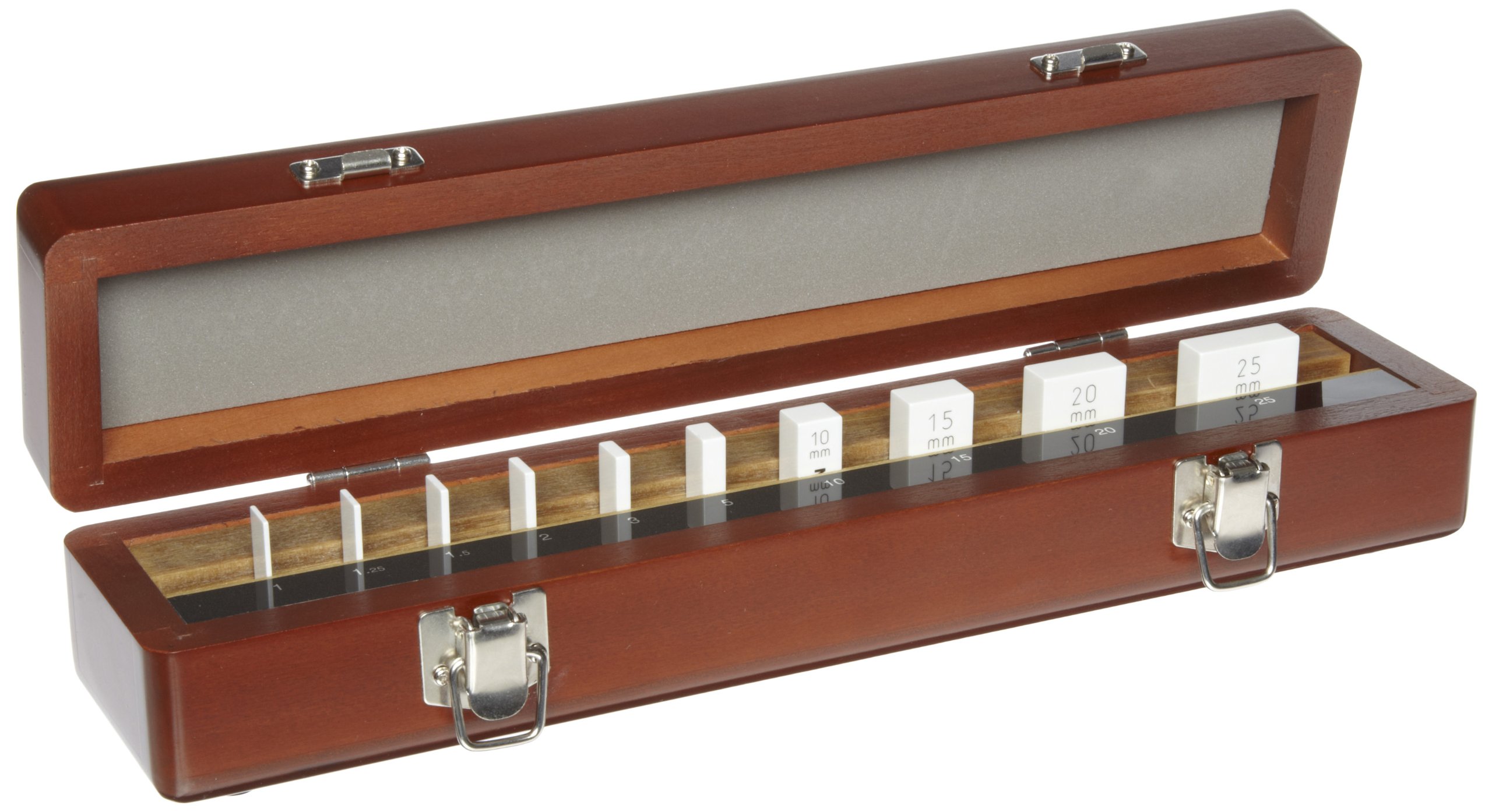

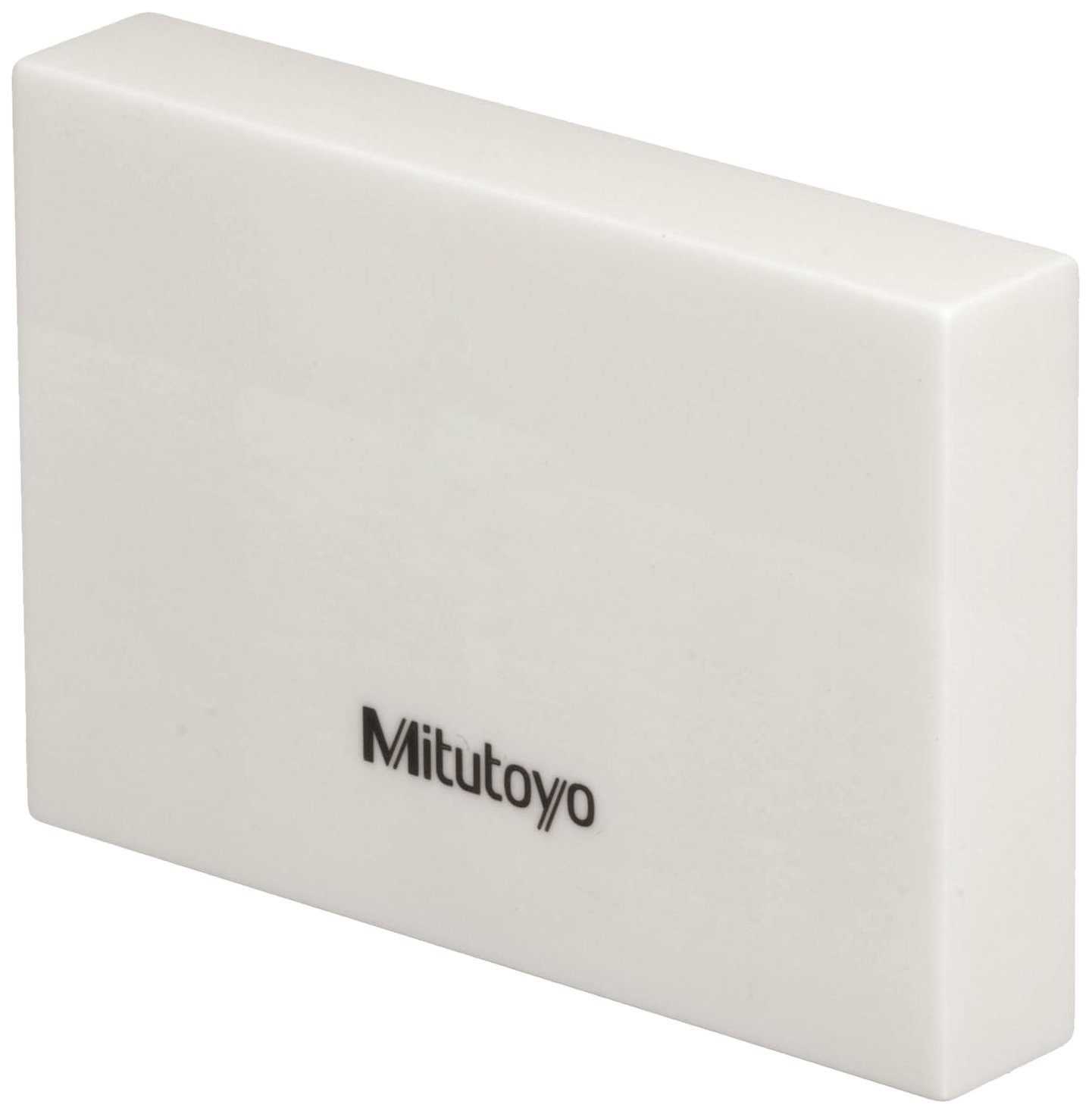

The Mitutoyo 516-152-26 micrometer inspection gage block set includes 10 ASME grade 0 ceramic rectangular gage blocks with nominal size engraved in millimeters.

Blocks included in the set are 1.00, 1.25, 1.50, 2, 3, 5, 10, 15, 20, and 25 mm. Grade 0 gage blocks are often used for calibrating and inspecting tools, instruments, and manufacturing gages.

Gage blocks (also called gauge blocks, Jo blocks, Hoke blocks, and Johansson gauges) are precision ground and lapped metal or ceramic blocks, used for calibrating precision measuring equipment and as a length standard in manufacturing. Gage blocks are square or rectangular in shape, with flat and parallel measuring surfaces, and usually have an engraved unique serial number and nominal length (provided in either inches or millimeters). They often come in sets with blocks of varying lengths, so that many different standard lengths can be created by stacking and wringing them. Wringing is the process of sliding blocks together with a small amount of pressure, in order to create a longer gage block stack.

Gage blocks are kept within a protective case, are cleaned thoroughly before wringing and after each use to prevent corrosion, and are kept free of burrs and other damage that would decrease their accuracy. Temperature is another important consideration. Blocks are susceptible to thermal expansion and must be used at 68 degrees F to ensure their accuracy.

Gage blocks are available in different grades, which refer to their tolerance or allowable deviation from their nominal dimension. Grades are defined by the American Society of Mechanical Engineers (ASME) B89.1.9M for both length and flatness. ASME B89.1.9M also defines standards for parallelism and surface finish. Different grades are available depending on the application and the required level of accuracy. Grade 00 blocks are generally used to calibrate and check the accuracy of instruments, grade 0 blocks for setting and checking gages in quality control, grade AS-1 blocks for tool rooms and production purposes, and grade AS-2 are similar to AS-1 blocks but are slightly less accurate. Grade K blocks are used for calibrating and checking the accuracy of other gage blocks within a temperature-controlled inspection or calibration room. A certificate of inspection and calibration is provided with each gage block or set, specifying the deviation of the individual block from its nominal length.

Founded in Tokyo in 1934, Mitutoyo is a leader in the metrology field, producing high-quality measurement products including mechanical, dimensional gauging products, focusing on micrometers, calipers, indicators, and other measurement tools, as well as output gauges, interfaces, data collectors, and analysis software. Mitutoyo formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, Illinois, with additional locations in the U.S. and Canada.
