Mitutoyo Ceramic Rectangular Wear Gage Block Set, ASME Grade AS-1, Inch

Be the first to review this item

Product Specifications
Overall Width
1.181  inches
Item Shape
Rectangular
Grade
ASME Grade AS-1
Material Type
Ceramic
UNSPSC Code
41111618
Item Depth
0.355 inches
Brand Name
Mitutoyo
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Aug 4? Order in-stock items in the next 12 hrs 53 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-2 of 2
Length Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-2 of 2
0.05" 2 516-837-26 B003U9W330 2 $109.00 Buy Options
0.1" 2 516-835-26 B003U9W32G 3 $109.00 Buy Options

Key Features

  • Wear gage blocks are wrung with frequently used gage blocks to prevent wear
  • Grade AS-1 gage blocks supplied with a Mitutoyo certificate of inspection that the blocks meet American Society of Mechanical Engineers (ASME) B89.1.9
  • Ceramic block for dimensional stability and thermal expansion resistance
  • Rectangular shape for accurate wringing
  • Nominal length (in inches) indicated with laser-etched, black characters

Product Description

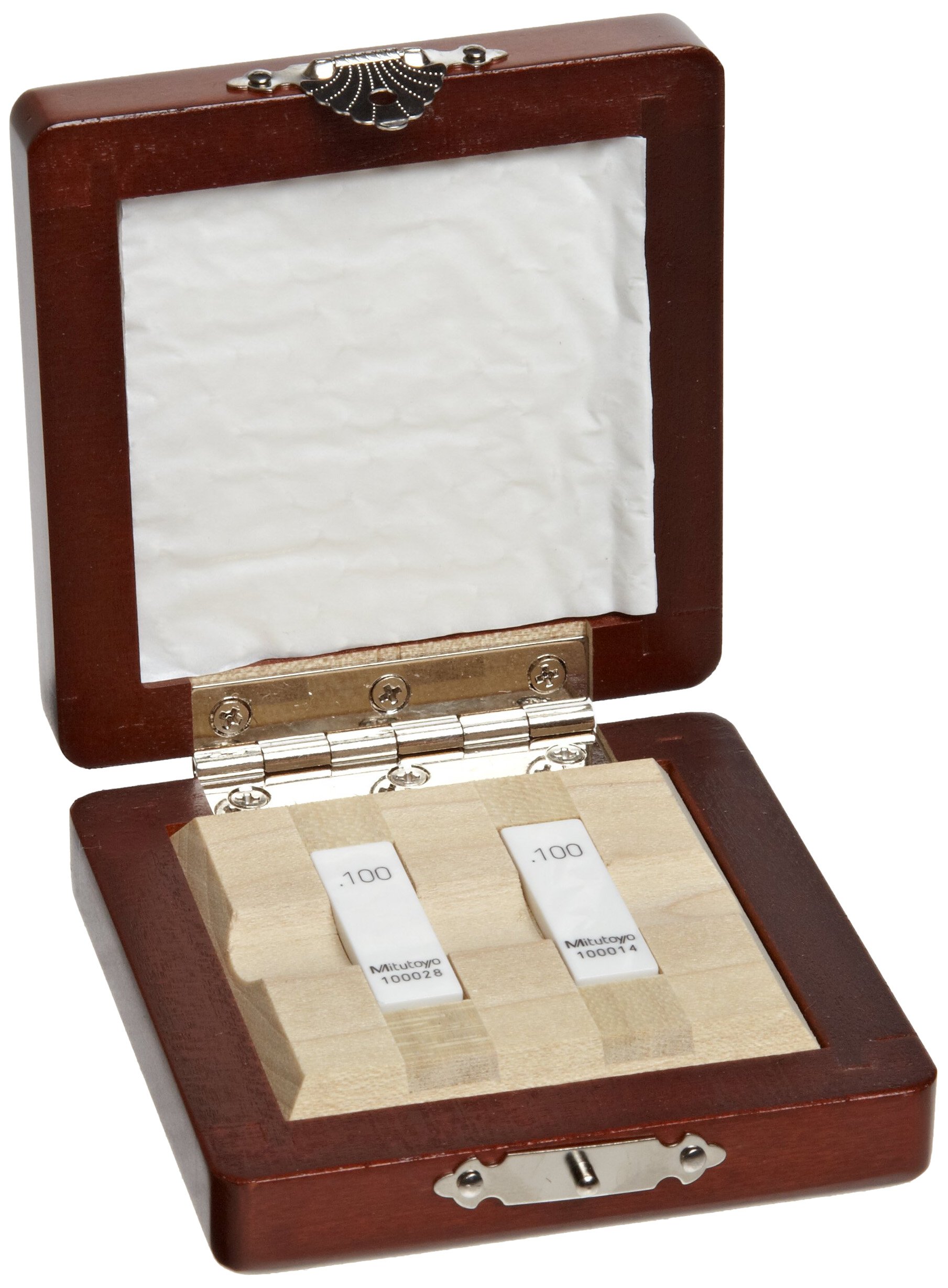

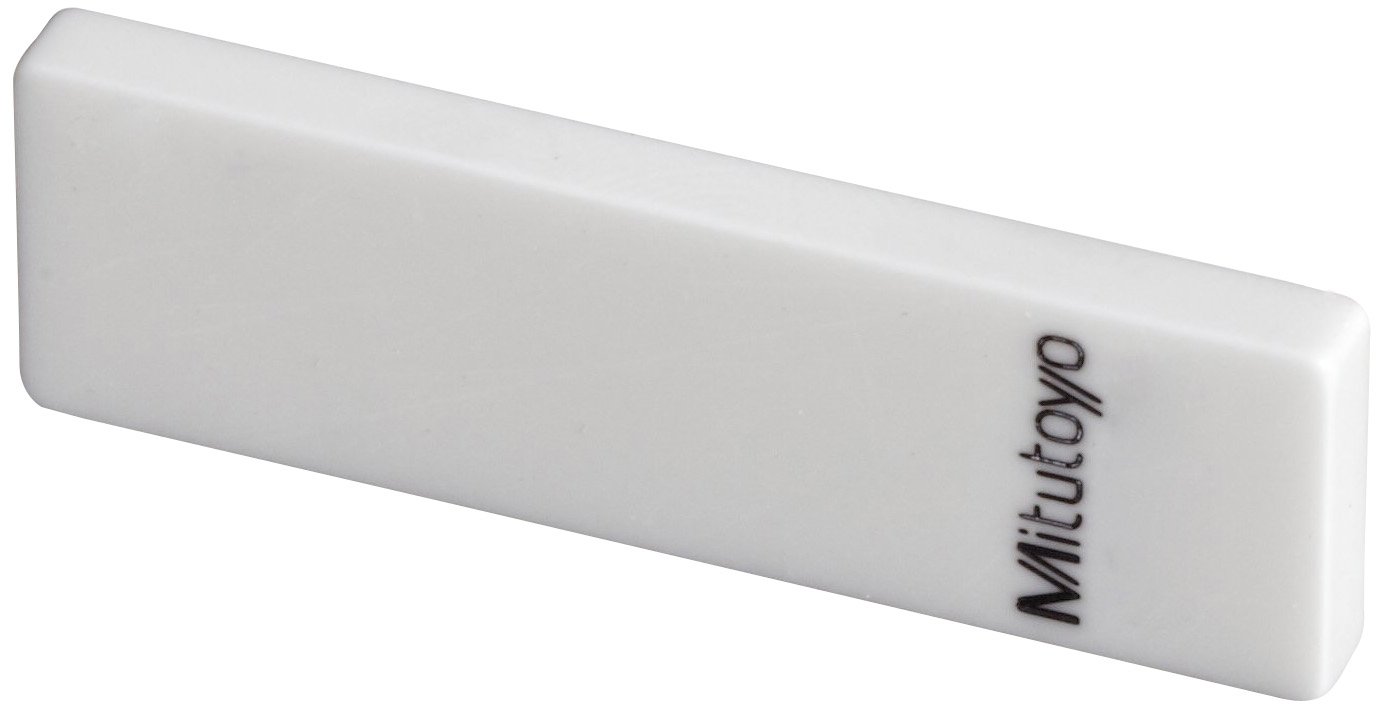

The Mitutoyo 516-series Grade AS-1 Ceramic Rectangular Inch Wear Gage Block Set includes a set of rectangular-shaped, white ceramic (CERA) wear gage blocks with nominal length engraved in inches on each, and is supplied with a Mitutoyo inspection certificate that states that the blocks meet American Society of Mechanical Engineers (ASME) B89.1.9-2002 grade AS-1 standard for flatness, length, parallelism, and surface finish. The inspection certificate specifies the deviation of each individual block from its nominal length. Gage blocks are commonly used to calibrate fixtures and precision instruments in workshop, inspection, and dimensional metrology applications, to inspect tools such as mounting tools, cutters, fixtures, and mechanical parts, and in the gage manufacturing process itself.

Wear gage blocks are wrung with frequently used gage blocks to prevent wear. Grade AS-1 gage blocks are commonly used in workshop and inspection applications to calibrate fixtures and precision instruments, to inspect a variety of tools such as mounting tools, cutters, fixtures, and mechanical parts, and for gage manufacturing applications. Ceramic blocks are harder than steel, and resist corrosion, abrasion, and burrs, withstand high temperatures without melting (high thermal expansion resistance), and provide dimensional stability. Rectangular-shaped blocks provide accurate wringing. The nominal length of each block is measured in inches, and is indicated with laser-etched, black characters. The length of a gage block is usually slightly shorter than its stamped nominal length, to account for the thin layer of oil or wring film used when two or more blocks are wrung together. An identification number is laser-etched on each block for traceability. The set comes with a fitted wooden case for storage.

The set includes a Mitutoyo inspection certificate [National Institute of Standards in Engineering (NIST)-traceable] that the blocks meets ASME B89.1.9-2002 standard for flatness, length, parallelism, and surface finish.

Gage blocks (also called gauge blocks, Hoke blocks, Jo blocks, slip gages, and Johansson gages) are blocks used to calibrate measuring equipment and to standardize the measurement of length in manufacturing industries. They are commonly made of precision-ground steel, ceramic, or carbide material, and have a square or rectangular base. Each block has a unique identification number. Length is in inch or millimeter measurement. They can be sold individually, and are also sold in sets with blocks of varying lengths. Gage blocks can be wrung together to create a required length. Wringing is the process of lapping blocks together with a small amount of oil. They are standardized by grade, which refers to the tolerance or deviation of an individual block from its nominal length. Gage block grades are defined for flatness, length, parallelism and surface finish. Some grades of gage blocks meet standards such as ASME, Association for Iron and Steel (AIST), and International Organization for Standards (ISO). Application and required level of accuracy dictate which grade of gage block should be used. Some manufacturers provide an internally-generated certificate of inspection to verify that a gage block meets grade standards. Gage blocks can also go through a calibration certification process to verify measurement accuracy. Calibration is performed by an accredited facility. Gage blocks are commonly recalibrated after use to ensure dimensional accuracy. If a gage block does not meet calibration standards, it should no longer be used. Both a certificate of inspection and a calibration certificate specify the deviation from the nominal length.
