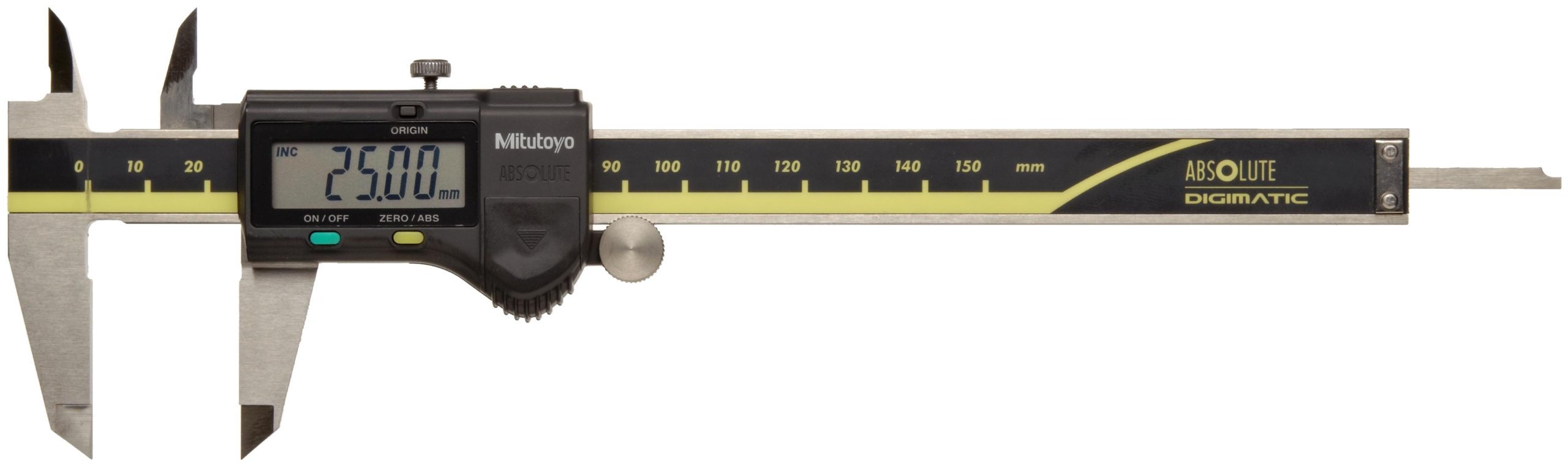

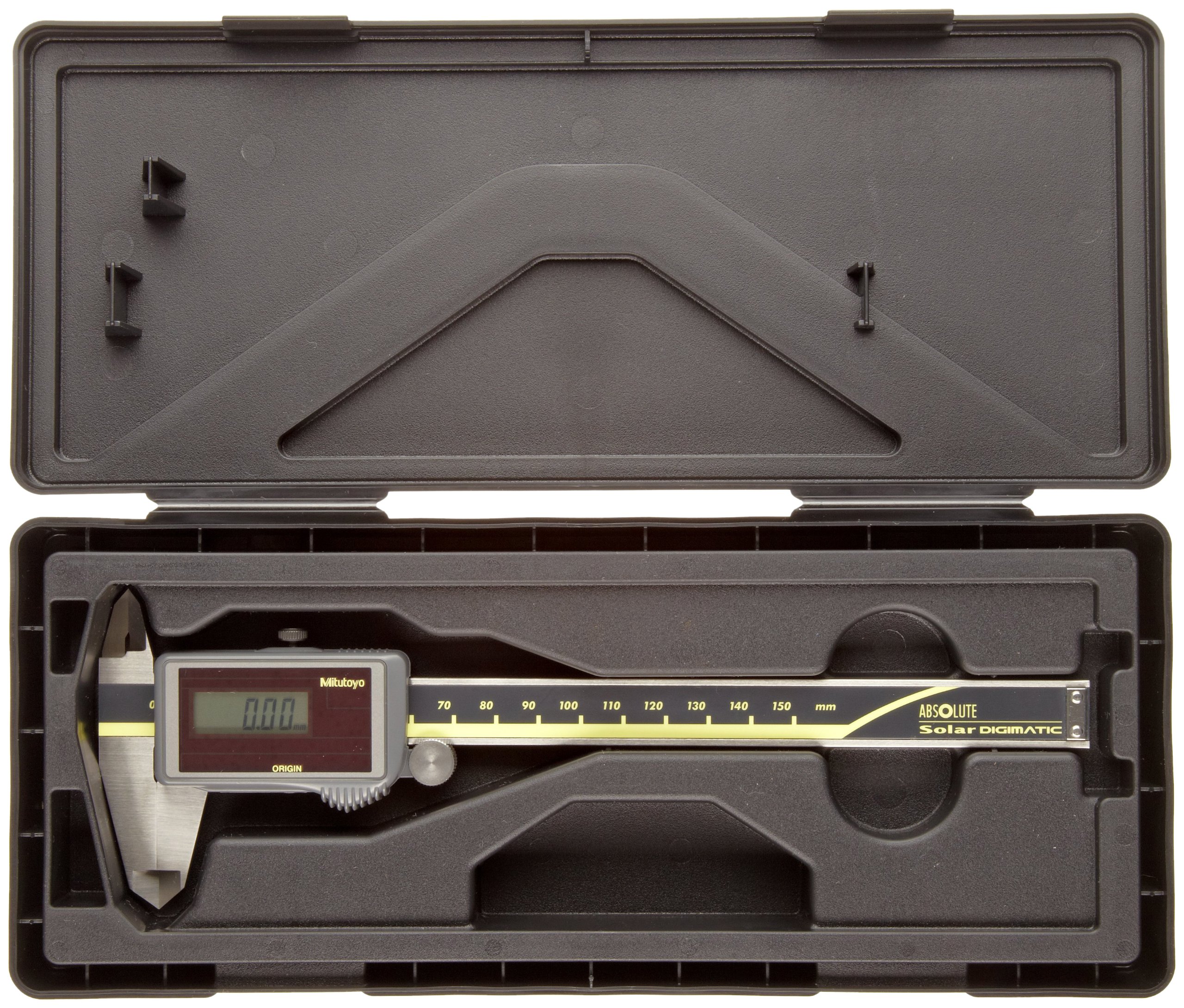

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Mitutoyo ABSOLUTE 500 Series Digital Caliper, Stainless Steel, Metric, For Depth/Inside/Outside/Step Measurements

Be the first to review this item

Product Specifications
Manufacturer Series Number
500 Series
Specific Uses For Product
Depth , Inside , Outside , Step
Tip Description
Standard
Material Type
Stainless Steel
Brand Name
Mitutoyo
System of Measurement
Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 25? Order in-stock items in the next 8 hrs 23 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 22 Next 2 »
Range Accuracy Resolution Output Depth A Specifications Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-20 of 22 Next 2 »
0-100mm +/-0.02mm 0.01mm SPC 40mm Fine-adjustment, thumb roller, data output, zero-setting 500-150-20 B000TGF1S6 2 $209.00 Buy Options
0-150mm +/-0.02mm 0.01mm SPC 40mm Fine-adjustment, thumb roller, data output, zero-setting 500-151-20 B000TGCPZS 12 $245.00 Buy Options
0-150mm +/-0.02mm 0.01mm SPC 40mm Fine-adjustment, thumb roller, data output 500-444 B000W9FN0G 3 $288.00 Buy Options
0-150mm +/-0.02mm 0.01mm N/A 40mm Thumb roller 500-702-10 B001D7DJ2K 8 $198.00 Buy Options
0-150mm +/-0.02mm 0.01mm SPC 21mm Thumb roller, origin-set 500-776 B002P8HMMO 2 $244.40 Buy Options
0-150mm +/-0.02mm 0.01mm SPC 40mm Fine-adjustment, thumb roller, data output, zero-setting 500-154-20 B000W9HDTK 1 $348.00 Buy Options
0-150mm +/-0.02mm 0.01mm SPC 21mm Thumb roller, origin-set 500-774 B002P8HMPQ 5 $192.36 Buy Options
0-150mm +/-0.02mm 0.01mm SPC 40mm Fine-adjustment, thumb roller, data output 500-719-10 B003U9VZLQ 2 $264.00 Buy Options
0-150mm +/-0.02mm 0.01mm N/A 40mm Fine-adjustment 500-454 B003U9VZJ8 2 $179.00 Buy Options
0-150mm +/-0.02mm 0.01mm SPC 40mm Fine-adjustment, thumb roller, data output 500-721-10 B003U9VZM0 2 $348.00 Buy Options
0-200mm +/-0.02mm 0.01mm SPC 50mm Thumb roller, zero-setting, data output 500-152-20 B002P8AX5C 1 $293.00 Buy Options
0-200mm +/-0.02mm 0.01mm N/A 50mm Thumb roller 500-703-10 B002P918V4 1 $248.00 Buy Options
0-200mm +/-0.02mm 0.01mm N/A 24.5mm Thumb roller 500-775 B002P8F9KQ 1 $254.15 Buy Options
0-200mm +/-0.02mm 0.01mm SPC 24.5mm Thumb roller, origin-set 500-777 B002P8ISKO 2 $273.70 Buy Options
0-200mm +/-0.02mm 0.01mm N/A 50mm Fine-adjustment 500-455 B003U9VZJI 2 $241.00 Buy Options
0-200mm +/-0.02mm 0.01mm SPC 50mm Fine-adjustment, thumb roller, data output 500-445 B000W9KR48 2 $337.00 Buy Options
0-200mm +/-0.02mm 0.01mm SPC 50mm Fine-adjustment, thumb roller, data output 500-713-10 B003U9VZL6 1 $295.00 Buy Options
0-300mm +/-0.03mm 0.01mm SPC 64mm Fine-adjustment, thumb roller, data output, zero-setting 500-153 B000TGCQ70 1 $631.00 Buy Options
0-300mm +/-0.03mm 0.01mm N/A 64mm Fine-adjustment 500-704-10 B003U9VZKM 2 $361.00 Buy Options
0-300mm +/-0.03mm 0.01mm SPC 64mm Fine-adjustment, thumb roller, data output 500-714-10 B003U9VZLG 1 $445.00 Buy Options

Key Features

  • Hardened stainless steel construction for protection of caliper components
  • Four-way measurement capability for multiple applications: outside diameter (OD), inside diameter (ID), depth, and step
  • Digital, single-value readout LCD display in metric units for readability
  • Position memory for retaining measurements
  • Function control buttons on the face, for ease of use: Origin, On/Off, and Zero/ABS (Absolute Scale)

Product Description

The Mitutoyo ABSOLUTE 500 series caliper is a Digimatic digital caliper that is made of durable hardened stainless steel and uses Mitutoyo’s ABSOLUTE linear encoder technology, which allows you to “set and forget” the origin and measure in awkward or difficult locations.

This digital caliper has LCD readout and function control buttons on the caliper face, including Origin to set and retain the original measuring point, On/Off to automatically shut off the caliper after 30 minutes, and Zero/ABS (Absolute Scale) to zero-set the LCD display. It uses the metric measuring system.

Although identical to dial and vernier calipers in its ability to make precise measurements, the digital caliper also has an LCD, which clearly shows values and increases reading reliability over the other types, and reflects all ABSOLUTE system activities. The Absolute Scale (ABS) function tracks the origin point you set, even after shutoff. Once on again, the caliper can immediately start measuring, without zero resetting or concern of overspeed errors. The LCD can be "zeroed out" before making and comparing incremental measurements without having to subtract the first measurement from the second.

The calipers use the ABSOLUTE electrostatic capacitance linear encoder which helps prevent overspeed errors. They measure outer diameter (OD), inner diameter (ID), depth, and step, where the butt end of the fixed jaw measures one end of a work piece before its upper/lower or inner/outer "steps" are measured. LCD Resolution is 0.01mm. Also included are origin-setting, zero-setting, and on/off automatic shutoff function buttons. A Digital LCD Data Reading Hold function is available with the optional Data Hold Unit (sold separately). An alarm alerts the user to low voltage and scale contamination and counting value composition errors. A rolling thumb wheel makes fine adjustments and a thumb screw locks the scale’s position. Response speed is unlimited. Each caliper includes, and is powered by, one SR44 silver oxide cell battery that lasts approximately 3.5 years with continuous normal use.

Calipers measure the distance between two opposing sides of an object. They make inside, outside, depth, or step measurements, according to their type. Calipers are commonly used in architecture, metalworking, mechanical engineering, and machining. The simplest calipers have two legs to mark the two points and require a ruler to take the measurement. More complex calipers use two sets of jaws instead of legs and have up to two graduated scales. Vernier, dial, and digital calipers give direct and accurate readings and are functionally identical, having a calibrated scale with a fixed jaw, and another jaw with a movable pointer that slides along the scale. The vernier caliper has a scale sliding parallel to the main scale for an additional, fractional reading to improve measurement precision. The dial caliper has a circular dial with a pointer on a toothed gear rack replacing the second vernier scale. As with the vernier, this second measurement is added to the reading from the main scale to obtain the result. The digital caliper takes a differential by zeroing the display at any point along the slide, with an LCD that displays a single value in English and/or metric units.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
