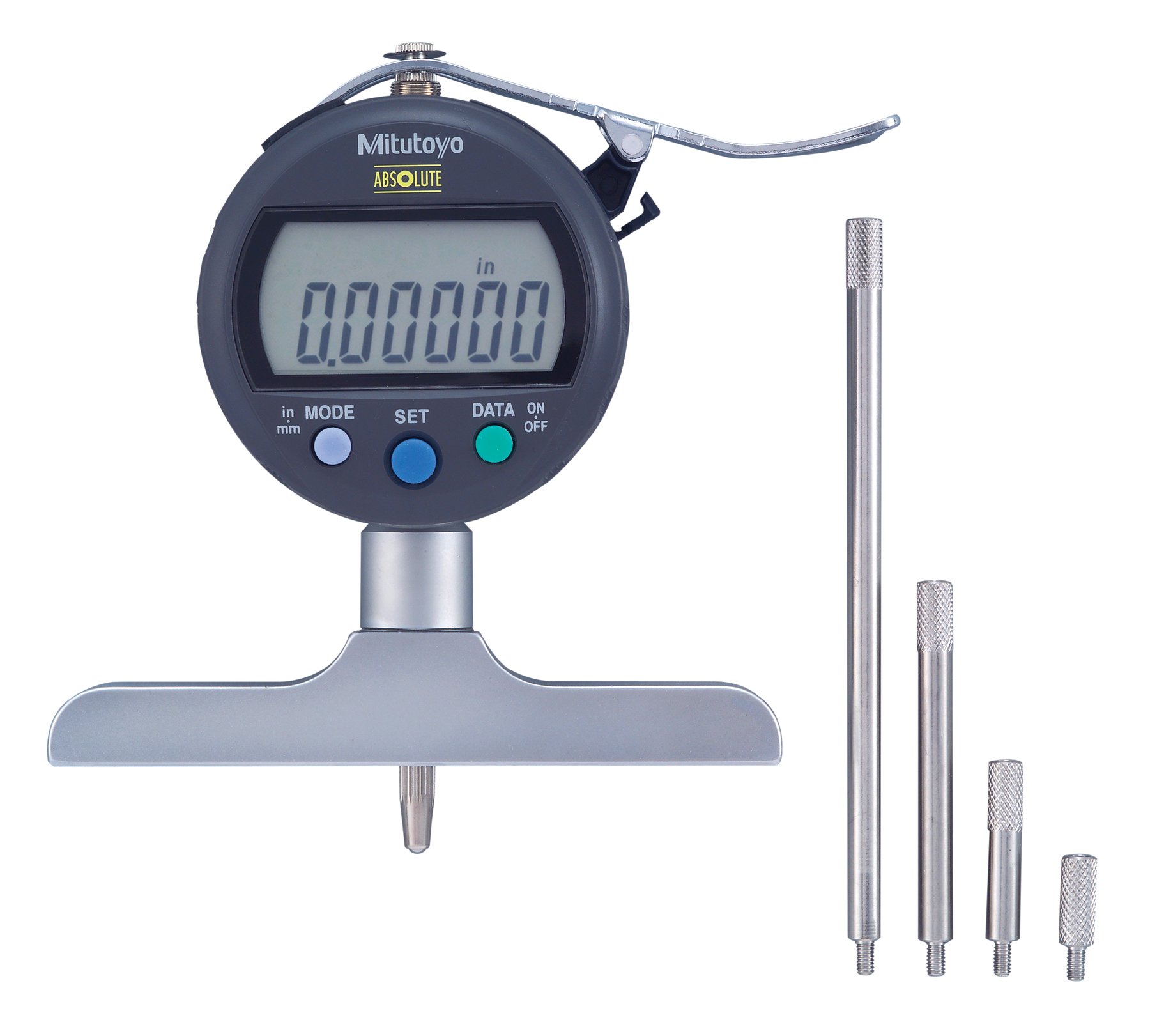

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Mitutoyo Series 547 ABSOLUTE Digimatic LCD Depth Gauges, Indicator Type, Inch/Metric, 0-8"/0-200mm Range

Be the first to review this item

Product Specifications
Manufacturer Series Number
ABSOLUTE Digimatic Depth Gage
Output Type
SPC
Style Name
LCD
UNSPSC Code
41112401
Brand Name
Mitutoyo
System of Measurement
Inch and Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 21? Order in-stock items in the next 11 hrs 25 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-4 of 4
Range Resolution Measurement accuracy Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-4 of 4
0-8"/0-200mm 0.00005"/0.001mm +/-0.0003" 547-257S B002SG7QWO yes $485.00 Buy Options
0-8"/0-200mm 0.00005"/0.001mm +/-0.0003" 547-258S B003U9W0TC yes $574.13 Buy Options
0-8"/0-200mm 0.0005"/0.01mm +/- 0.001" 547-218S B002SG7QWE yes $415.00 Buy Options
0-8"/0-200mm 0.0005"/0.01mm +/-0.001" 547-217S B002SG7QW4 yes $375.00 Buy Options

Key Features

  • Measurement range for each model in series of 0 to 8" (0 to 200mm), stroke of 0.5", and resolution of 0.00005" (0.001mm)
  • LCD screen displays in U.S./metric
  • Keeps track of the origin point once set for life of the battery (about 3.5 years) for accuracy
  • Includes four extension rods for flexibility
  • Base is hardened, ground, and lapped for durability and accuracy

Product Description

The Mitutoyo Series 547 ABSOLUTE Digimatic LCD Depth Gauges, Indicator Type, Inch/Metric, depending on the model, have a measurement range of 0 to 8" (0 to 200mm), a stroke (or travel distance of the indicator) of 0.5", and a resolution (or smallest graduation interval) of either 0.0005" (0.01mm) with + or - 0.001" of accuracy, or 0.00005" (0.001mm) with + or - 0.0003" of accuracy. The LCD screen displays in both inches and metric, and can keep track of the origin point for the life of the battery (about 3.5 years under normal use). The gauges come with four measuring extension rods for flexibility. The bases of the units (either 2.5" or 4"long) are hardened, ground, and lapped for durability and accuracy. The units support Mitutoyo's data output signal (SPC Output) for devices. Optional SPC cables for use with Mitutoyo devices and extension rods are sold separately. Depth gauges are typically used in manufacturing, machining, and mechanical engineering.

Depth gauges are precision measuring instruments used to determine the depth of any shape that has a step, groove, or slot. These gauges often take the form of sliders that travel on a measuring beam or rods, are moved to position by hand, and then adjusted with a calibrated screw. The base of the gauge rests at the top of the shape whose recession is to be measured, while the beam or rods extend to the bottom of the recession to determine the measurement. Gauge position is read from a graduated scale, dial, counters, or an electronic display.

Mitutoyo manufactures precision measuring tools, metrology equipment, and related systems. The company, founded in Tokyo in 1934, formed Mitutoyo America Corporation in 1963 with headquarters in Aurora, IL.
