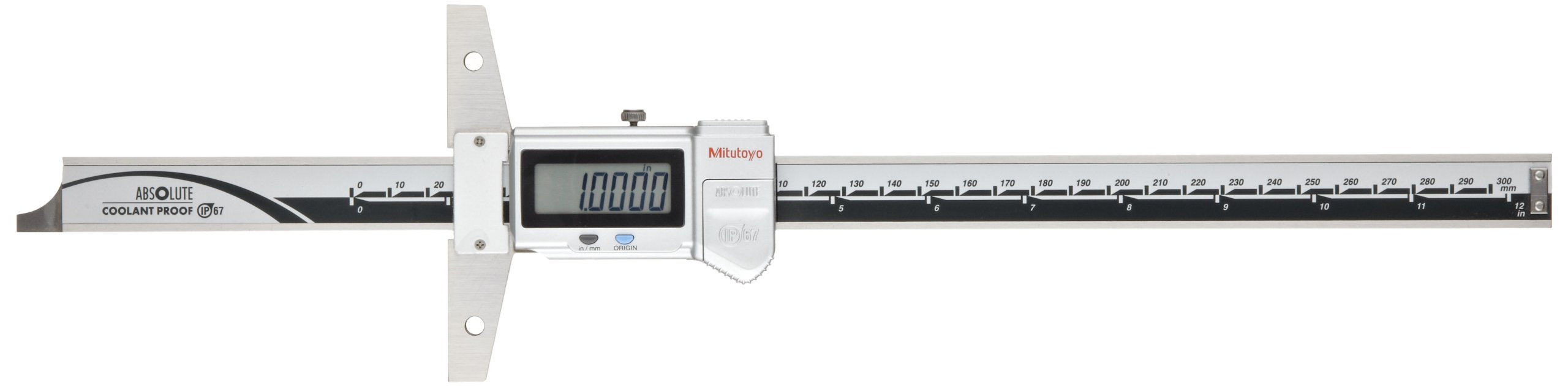

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Mitutoyo Series 571 ABSOLUTE Digimatic LCD Depth Gauges, Caliper Type, Inch/Metric

Be the first to review this item

Product Specifications
Manufacturer Series Number
ABSOLUTE Digimatic Depth Gage
Style Name
LCD
UNSPSC Code
41112401
Brand Name
Mitutoyo
System of Measurement
Inch and Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 31? Order in-stock items in the next 5 hrs 34 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-10 of 10
Range Resolution Measurement accuracy Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-10 of 10
0-12"/0-300mm 0.0005"/0.01" +/- 0.0015" 571-213-10 B0006J454C yes $442.20 Buy Options
0-12"/0-300mm 0.0005"/0.01mm +/-0.0015" 571-263-10 B003U9W0YW yes $525.87 Buy Options
0-18"/0-450mm 0.0005"/0.01mm +/-0.002" 571-214-10 B003U9W0VU Usually ships in 2 to 5 months $760.00 Buy Options
0-24"/0-600mm 0.0005"/0.01mm +/-0.002" 571-215-10 B003U9W0W4 yes $791.07 Buy Options
0-30"/0-750mm 0.0005"/0.01mm +/-0.0025" 571-216-10 B003U9W0WE yes $953.00 Buy Options
0-40"/0-1000mm 0.0005"/0.01mm +/-0.0025" 571-217-10 B003U9W0WO yes $1,110.00 Buy Options
0-6"/0-150mm 0.0005"/0.01mm +/-0.001" 571-211-20 B001OBQCRY yes $347.80 Buy Options
0-6"/0-150mm 0.0005"/0.01mm +/-0.001" 571-261-10 B003U9W0Y2 yes $413.68 Buy Options
0-8"/0-200mm 0.0005"/0.01mm +/-0.001" 571-212-20 B001OBX0VA yes $352.53 Buy Options
0-8"/0-200mm 0.0005"/0.01mm +/-0.001" 571-262-10 B003U9W0YC yes $459.57 Buy Options

Key Features

  • Measurement range for series of 0 up to 40" (0 to 1000mm), and resolution of 0.0005" (0.01mm)
  • LCD screen displays in U.S./metric
  • Keeps track of the origin point once set for life of the battery (about 3 years) for accuracy
  • Base and measuring faces are hardened, ground, and lapped for durability and accuracy
  • Certain models conform to IP67 standard

Product Description

The Mitutoyo Series 571 ABSOLUTE Digimatic LCD Depth Gauge, Caliper Type, Inch/Metric, depending on the model, have a measurement range of 0 up to 8" (0 to 1000mm), and a resolution (or smallest graduation interval) of 0.0005" (0.01mm), with up to + or - 0.001" of accuracy. The LCD screen displays in both inches and metric, and can keep track of the origin point for the life of the battery (about 3 years under normal use). The bases are either 100mm or 250mm long, and the measuring faces of the units are hardened, ground, and lapped for durability and accuracy. The gauge conforms to European Conformity (CE) marking and certain models in this series conform to the Ingress Protection 67 (IP67) standard. The display has origin-set, zero, and data output functions for convenience. The units support SPC output. The gauges in this series include an SR44 battery. Optional SPC cables, wider bases (for up to 450mm range models), and an LCD with data hold are sold separately. Depth gauges are typically used in manufacturing, machining, and mechanical engineering.

Depth gauges are precision measuring instruments used to determine the depth of any shape that has a step, groove, or slot. These gauges often take the form of sliders that travel on a measuring beam or rods, are moved to position by hand, and then adjusted with a calibrated screw. The base of the gauge rests at the top of the shape whose recession is to be measured, while the beam or rods extend to the bottom of the recession to determine the measurement. Gauge position is read from a graduated scale, dial, counters, or an electronic display.

Mitutoyo manufactures precision measuring tools, metrology equipment, and related systems. The company, founded in Tokyo in 1934, formed Mitutoyo America Corporation in 1963 with headquarters in Aurora, IL.
