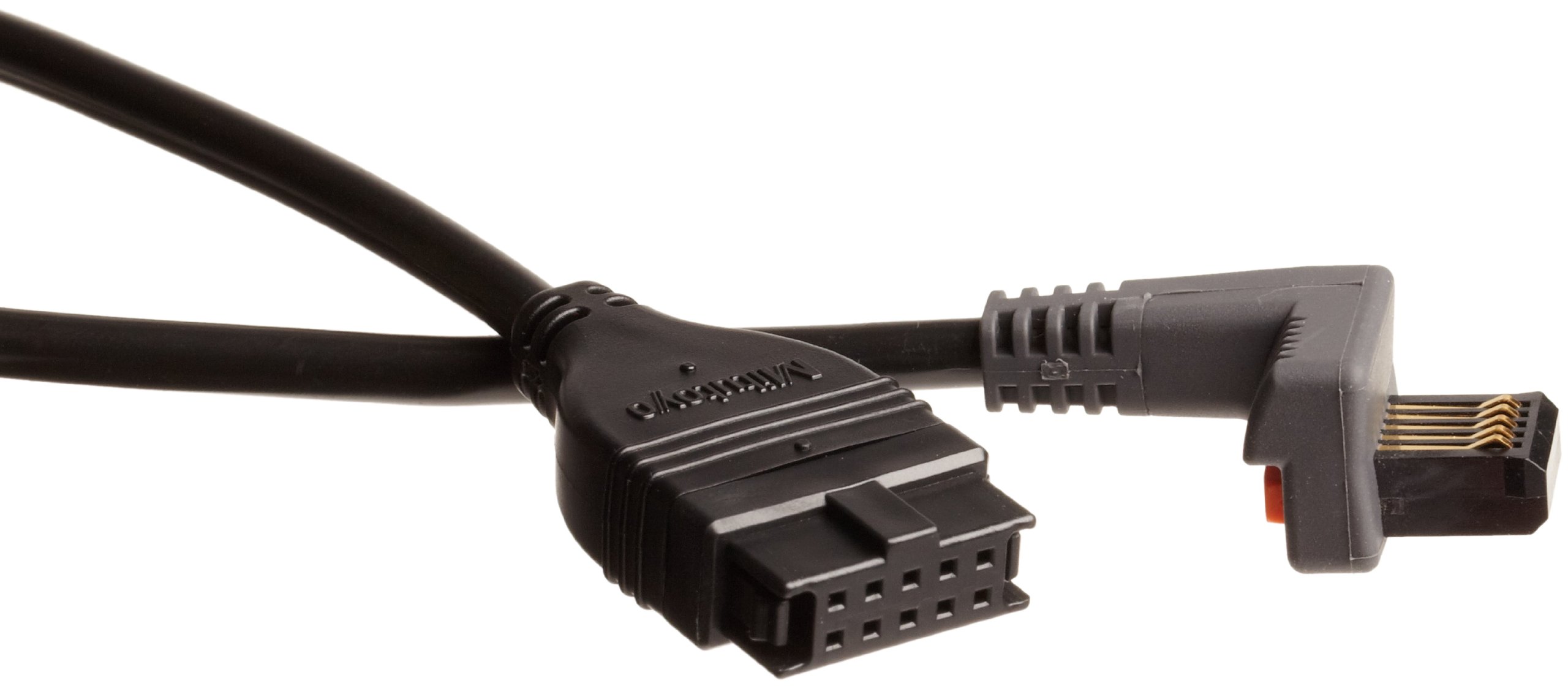

Mitutoyo 959149, Digimatic SPC Connecting Cable, 40", With Data Out Switch

Be the first to review this item

ASIN B00027957U

Specifications for this item
Number of Items
1
Inside Depth
6  inches
Part Number
959149
Item Volume
6  Cubic Inches
Item Weight
0.2 pounds
UPC
094717006660 , 603908201328 , 094703487206
Brand Name
Mitutoyo
EAN
0094717006660 , 0603908201328 , 0094703487206 , 4946368553023
UNSPSC Code
41111600
System of Measurement
Metric

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Jul 23? Order in-stock items in the next 1 hr 17 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Digimatic output cable outputs data from Digimatic gauges with a data output feature to a Digimatic mini-processor, display unit, multiplexer, or similar device
  • Data out switch type
  • Compatible with Mitutoyo Digimatic instruments with an output feature, including all Digimatic calipers with an Absolute encoder, 570-2XX series height gauges, 571-2XX series depth gauges, and 572-XXX series scale units
  • 40" length

Package Details

Shipping Weight: 0.11 pounds
Package Size: 7.5 x 1.6 x 1.3 inches

Product Description

The Mitutoyo 959149 Digimatic SPC connecting cable outputs data from Digimatic gauges that have data output capability to a Digimatic mini-processor, display unit, multiplexer, or similar device. The cable has a data out switch type and is compatible with Digimatic instruments with an output feature, including all Digimatic calipers with an Absolute encoder, 570-2XX series height gauges, 571-2XX series depth gauges, and 572-XXX series scale units. The cable is 40" long.

Compatible Mitutoyo Devices
CalipersAll Digimatic calipers with an Absolute encoder
Height gauges570-2XX series
Depth gauges571-2XX series
Scale units572-XXX series

Calipers measure the distance between two opposing sides of an object. They make inside, outside, depth, or step measurements, according to their type. Calipers are commonly used in architecture, metalworking, mechanical engineering, and machining. The simplest calipers have two legs to mark the two points and require a ruler to take the measurement. More complex calipers use two sets of jaws instead of legs and have up to two graduated scales. Vernier, dial, and digital calipers give direct and accurate readings and are functionally identical, having a calibrated scale with a fixed jaw, and another jaw with a movable pointer that slides along the scale. The vernier caliper has a scale sliding parallel to the main scale for an additional, fractional reading to improve measurement precision. The dial caliper has a circular dial with a pointer on a toothed gear rack replacing the second vernier scale. As with the vernier, this second measurement is added to the reading from the main scale to obtain the result. The digital caliper takes a differential by zeroing the display at any point along the slide, with an LCD that displays a single value in English and/or metric units.

Mitutoyo manufactures precision measuring tools, metrology equipment, and related systems. The company, founded in Tokyo in 1934, formed Mitutoyo America Corporation in 1963 with headquarters in Aurora, IL.
