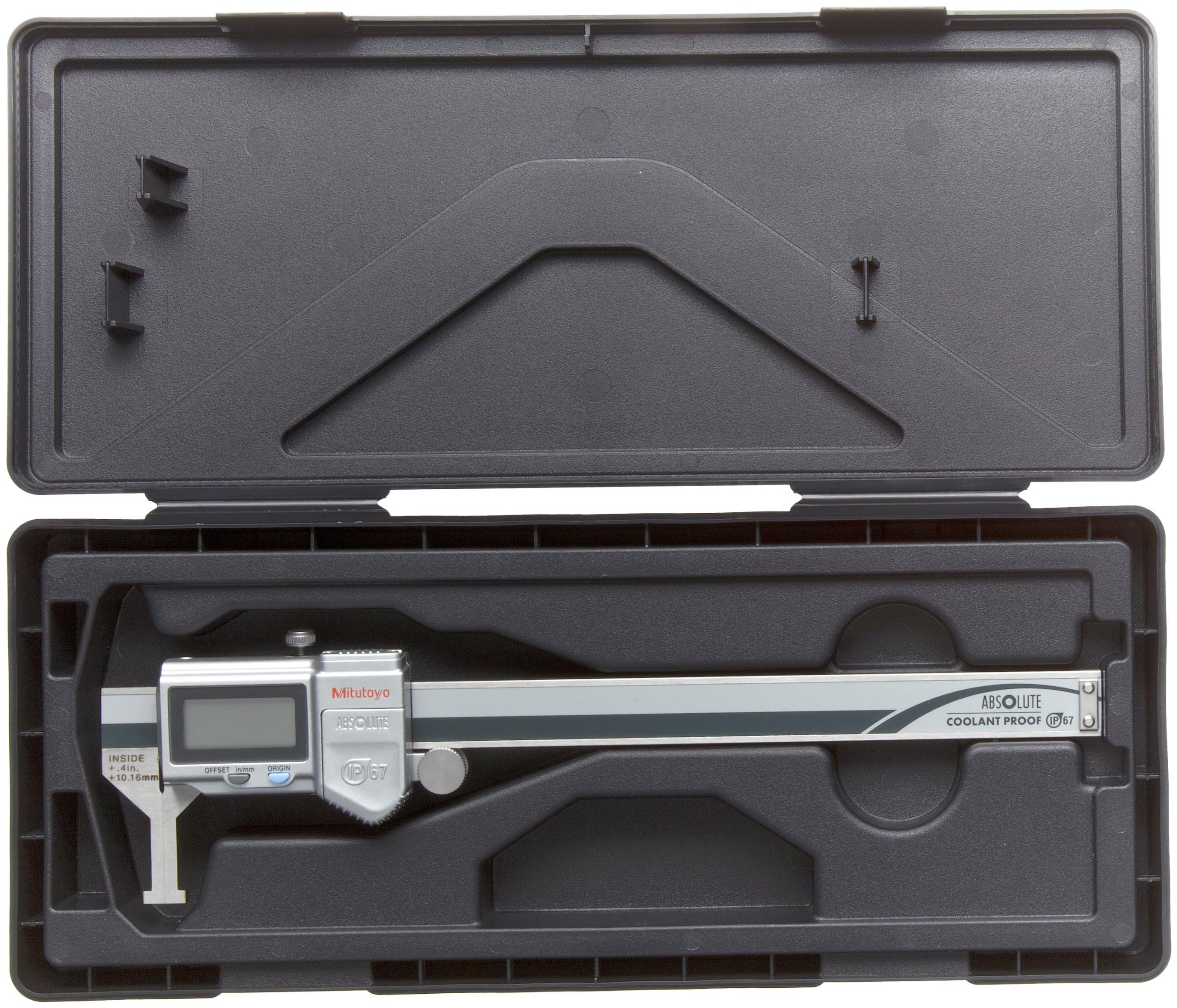

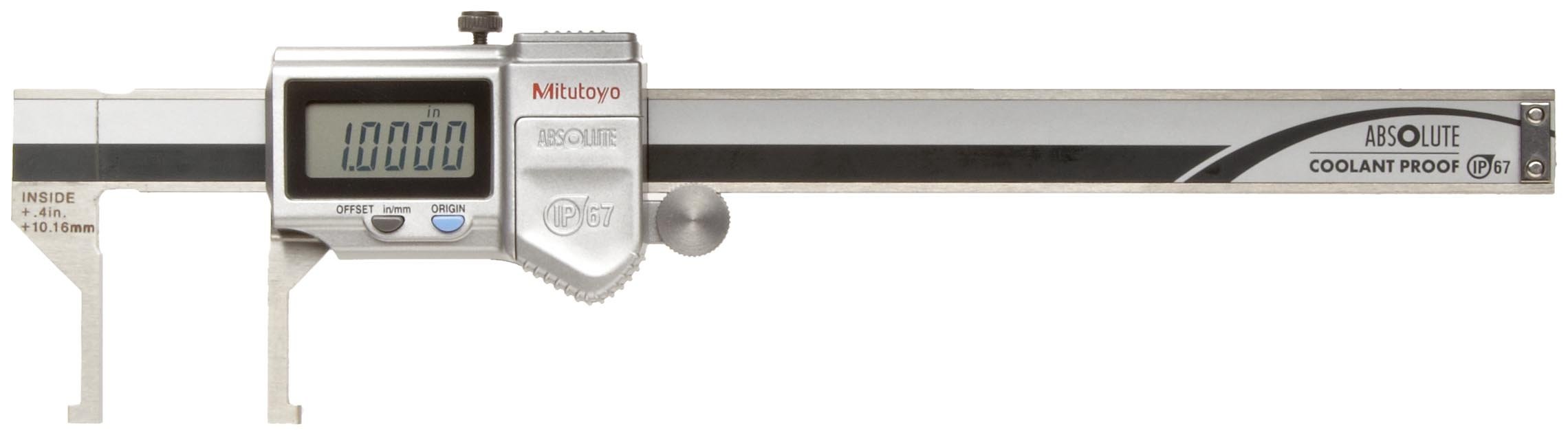

Mitutoyo ABSOLUTE 573-745 Digital Caliper, Stainless Steel, Battery Powered, Inch/Metric, Nib Style Jaw, 0-6" Range, +/-0.002" Accuracy, 0.0005" Resolution, Meets IP67 Specifications

Be the first to review this item

ASIN B003U9W0B0

Specifications for this item
Range
0-6"
Part Number
573-745
Resolution
0.0005"
Item Depth
1.38"
Brand Name
Mitutoyo
Specification Met
IP67
Measurement Accuracy
+/-0.002"
Maximum Measurement
0-6"
Power Source Type
Battery
Style Name
LCD
Special Features
Data output
Number of Items
1
Specific Uses For Product
Inside
Material Type
Stainless Steel
Manufacturer Series Number
573 Series
EAN
4946368567587
Tip Description
Nib Style
UNSPSC Code
41111600
Output Type
SPC
Overall Length
233  millimeters
System of Measurement
Inch/Metric

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 9 hrs 56 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Hardened stainless steel construction for protection of caliper components
  • Specialized jaws for obtaining difficult-to-reach inside measurements
  • Function control buttons on caliper face for ease of access: Origin-set, Zero-setting, Power On/Off, Data Output
  • IP67-certified for protection against dust and temporary submersion in water
  • Statistical process control (SPC) output transmits results to a Mitutoyo miniprocessor or computer

Package Details

Shipping Weight: 1.5 pounds
Package Size: 10.7 x 4.6 x 1.6 inches

Product Description

The Mitutoyo 573 series ABSOLUTE Digimatic digital caliper has specialized jaws for hard-to-reach inside measurements and uses Mitutoyo’s ABSOLUTE linear encoder technology. Jaws may be one of three types: knife-edge, inside groove, or point. This caliper has accessible function control buttons, such as Origin-set, Zero-setting, and Power On/Off, and uses both inch and metric measuring systems. Although identical to dial and vernier calipers in its ability to make precise measurements, this digital caliper’s LCD increases readability.

The 573 series caliper has the ABSOLUTE electrostatic capacitance type linear encoder to help reduce overspeed errors. LCD resolution is 0.0005” (0.01mm). Functions include origin-setting, zero-setting, and power on/off automatic shutoff. This caliper is Ingress Protection 67 (IP67)-certified, helping ensure that the electronic components are resistant to debris and to submersion in liquid under standard conditions for up to 30 minutes. . An alarm alerts the user to low voltage and counting value composition errors. A rolling thumbwheel makes fine adjustments and a thumbscrew locks the scale’s position. The caliper has Statistical Process Control (SPC) data output capability; it outputs data using a serial data interface to a computer or other dedicated recording device using SPC cable with data switch (sold separately). The caliper includes, and is powered by, a single SR44 silver oxide cell battery that lasts approximately 3 years with normal use.

Calipers measure the distance between two opposing sides of an object. They make inside, outside, depth, or step measurements, according to their type. Calipers are commonly used in architecture, metalworking, mechanical engineering, and machining. The simplest calipers have two legs to mark the two points and require a ruler to take the measurement. More complex calipers use two sets of jaws instead of legs and have up to two graduated scales. Vernier, dial, and digital calipers give direct and accurate readings and are functionally identical, having a calibrated scale with a fixed jaw, and another jaw with a movable pointer that slides along the scale. The vernier caliper has a scale sliding parallel to the main scale for an additional, fractional reading to improve measurement precision. The dial caliper has a circular dial with a pointer on a toothed gear rack replacing the second vernier scale. As with the vernier, this second measurement is added to the reading from the main scale to obtain the result. The digital caliper takes a differential by zeroing the display at any point along the slide, with an LCD that displays a single value in English and/or metric units.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
