Mitutoyo 568-978-10 Borematic LCD Bore Gauge Interchangeable Head Set, 1-2"/25.4-50.8mm Range, 0.00005"/0.001mm Graduation, +/-0.0003"/0.007mm Accuracy

Be the first to review this item

ASIN B0006J451U

Specifications for this item
Number of Items
1
Inside Depth
13  inches
Range
1-2"/25.4-50.8mm
Material Type
Carbide
Part Number
568-978-10
Resolution
0.00005"/0.001mm
UPC
603908407669
Item Weight
7.39 pounds
Brand Name
Mitutoyo
EAN
4946368520575 , 0603908407669
Manufacturer Series Number
Borematic
Measurement Accuracy
+/-0.0003"/0.007mm
Maximum Measurement
1-2"/25.4-50.8mm
Style Name
LCD
System of Measurement
Inch and Metric

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • TiN-coated measuring contact points for durability and impact resistance
  • Absolute linear encoder reduces error
  • Measurement range of 1 to 2" (25.4 to 50.8 mm) and precise to 0.00005" (0.001 mm)
  • SPC data output for recording and storing measurements on a computer
  • Set includes three interchangeable measuring heads, two setting rings, adaptor, extension rod, and fitted wooden case

Package Details

Shipping Weight: 6.85 pounds
Package Size: 12.7 x 9.4 x 4.9 inches

Product Description

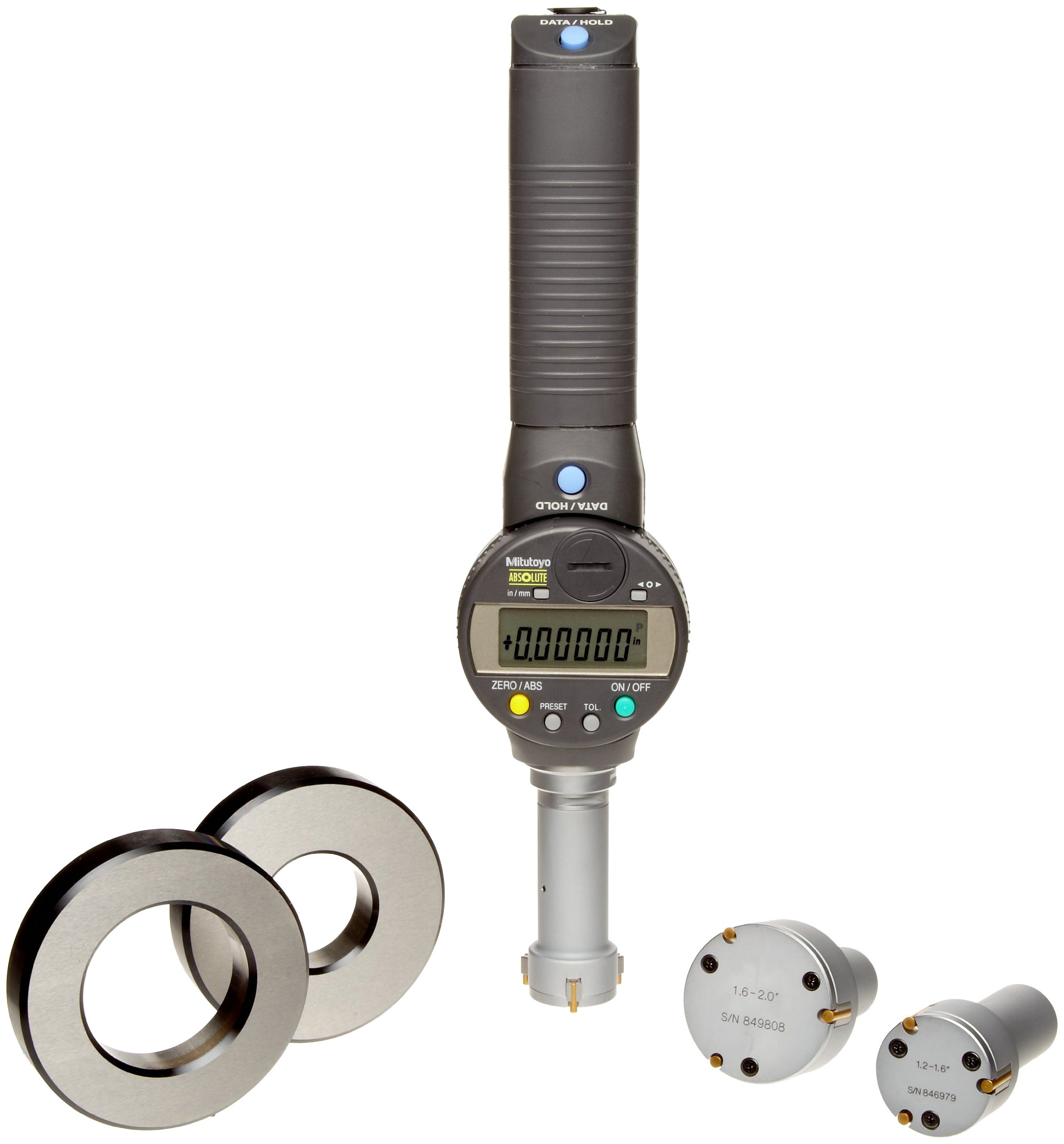

The Mitutoyo 568-978-10 Borematic electronic snap bore gage set includes three interchangeable measuring heads, two setting rings, adaptor, extension rod, and fitted wooden case. This gage has a measurement range of 1 to 2” (25.4 to 50.8 mm) and is precise to 0.00005” (0.001 mm). Measuring contact points coated with titanium nitride (TiN) offer increased durability and impact resistance over uncoated points, while the contact point geometry allows the instrument to measure to the bottom of a blind hole. The absolute linear encoder reduces measurement errors over non-electronic gages.

The Borematic electronic snap bore gage has a liquid-crystal display (LCD) with 8.5 mm digits for readability, and the 330-degree rotatable display unit allows reading at almost any angle. Three-point measuring method measures bore roundness or lobing. Functions include Zero/ABS, Go/No-Go judgment, inch/metric conversion, Statistical Process Control (SPC) data output, and data hold. SPC data can transfer from the gage and be stored on a computer for convenient data management (cable and input tool sold separately). Gage uses one SR44 battery (included). Estimated battery life under normal use is approximately one year.

Bore gages measure holes, or bores, in a workpiece. They can measure the interior diameter of a hole at any depth, while internal micrometers can only measure to the depth of their teeth. Bore gages are typically calibrated with a setting ring. Bore gages come in two types, one simple, and the other direct-measuring. Simple bore gages are used with a caliper to transfer the hole measurement, while the more complex gages take the measurement directly, and display the measurement through a vernier, dial, or digital display. Bore gages have a two- or three-point contact, which indicates how many points on the gage head touch the inside of the bore. Two-point contacts are better at measuring ovality, while three-point systems are used to measure lobing, or triangular form error. Pistol-grip bore gages are used for fast, single-handed operation with good repeatability from one operator to another. Bore gages, regardless of type, can be used in some special applications, such as measuring threads, spline pitch diameters, and deep bores.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.

What’s in the Box?

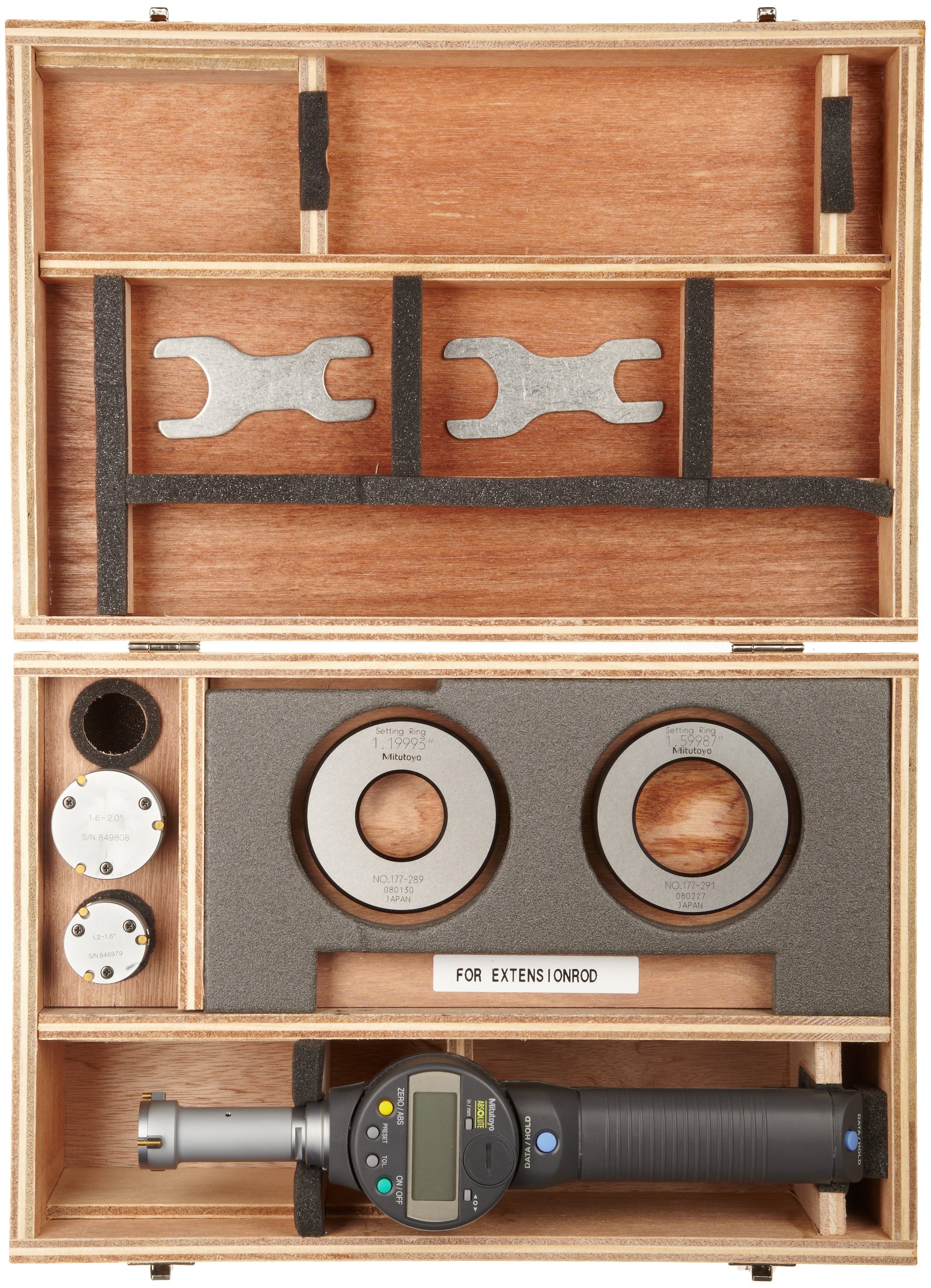

  • Mitutoyo Borematic electronic snap bore gage
  • 04AZA731 head
  • 04AZA739 head
  • 04AZA740 head
  • 177-289 1.2” diameter setting ring
  • 177-291 1.6” diameter setting ring
  • 216557 adaptor
  • SR44 battery
  • Fitted wooden case
