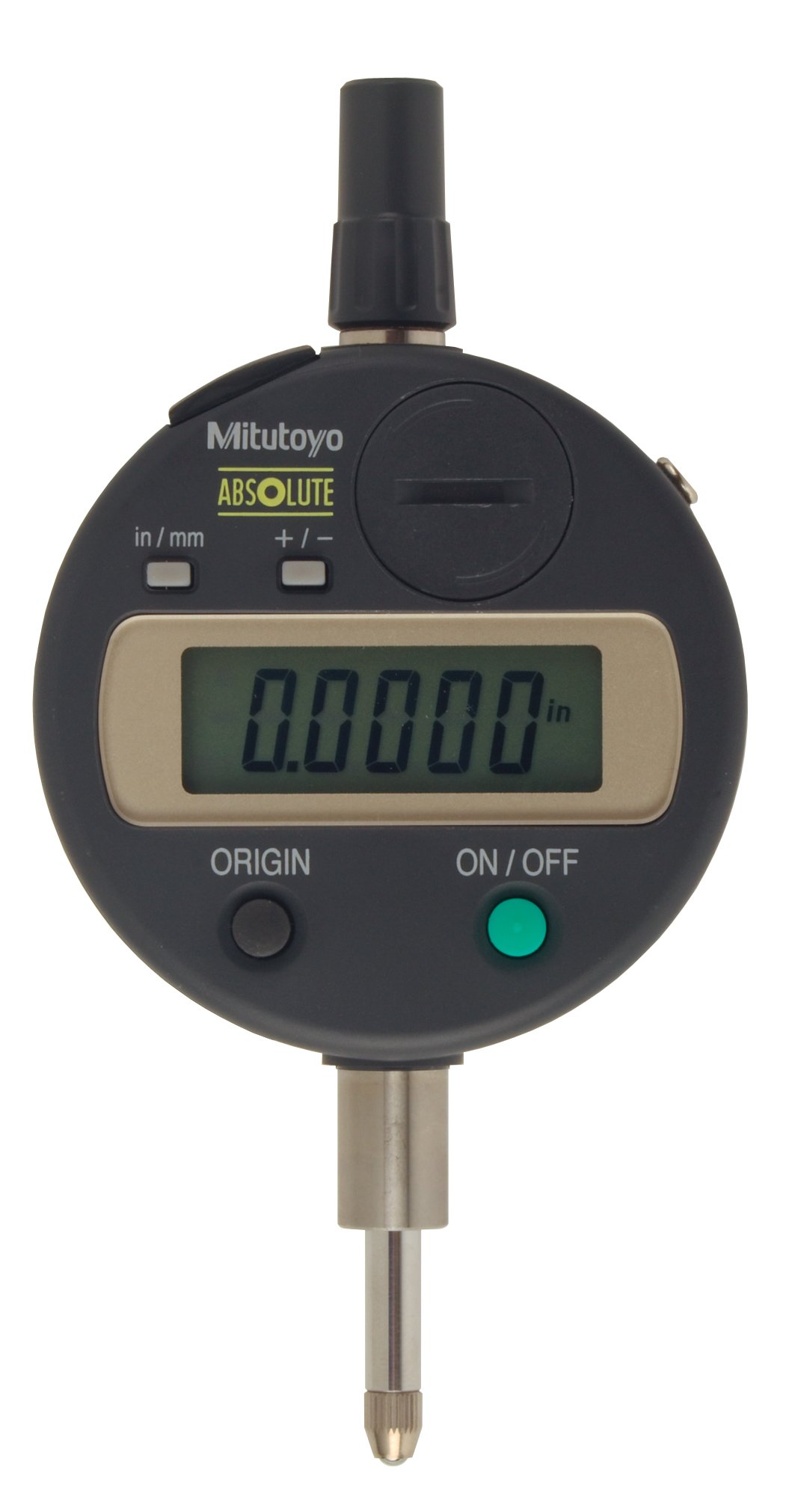

Mitutoyo 543-683B Absolute LCD Digimatic Indicator ID-S, #4-48 UNF Thread, 0.375" Stem Dia., Flat Back, 0-0.5"/0-12.7mm Range, 0.0005"/0.01mm Graduation, +/-0.0008" Accuracy

Be the first to review this item

ASIN B001OBV0EO

Specifications for this item

Accuracy: +/-0.0008"
Brand Name: Mitutoyo
Catalog Number: 504-543-683B
EAN: 0603908244837 , 0094717007100 , 0094700677693 , 0603908007487 , 4946368121826
Inside Depth: 7.8 inches
Item Shape: Flat Back
Item Weight: 0.5 pounds
Manufacturer Series Number: Absolute Digimatic Indicator ID-S
Material Type: Stainless Steel
Mfr Part #: 543-683B

Number of Items: 1
Output Type: SPC
Power Source Type: SR44(1pc)
Range: 0-0.5"/0-12.7mm
Resolution: 0.0005"/0.01mm
Stem Outside Diameter: 0.375 inches
Style Name: LCD
System of Measurement: Inch and Metric
Thread Style: #4-48 UNF
UPC: 094717007100 , 094700677693 , 603908244837 , 603908007487

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tuesday, May 21? Order in-stock items in the next 1 day 16 hours 9 minutes and choose One-Day Shipping at checkout.

Key Features

Electronic dial indicator has a choice of resolution and a 0.5"/12.7mm measuring range for measuring surface variations
Sealed housing Ingress Protection certified IP42 for dust and water protection, has a 0.375" diameter stem, a steel ball contact point, and a flat or lug back
LCD converts between inch and metric units and is automatically set to zero at the current spindle location when powered on for measuring in either or both directions
Alarm indicates low battery, scale contaminations, and data composition errors
SPC data output (requires RS-232 cable, not included)

Package Details

Shipping Weight: 0.51 pounds
Package Size: 7.5 x 4.25 x 3 inches

Product Description

Mitutoyo 543 series LCD Absolute Digimatic Indicator ID-S displays inch/metric measurements in a choice of resolution and 0.5"/12.7mm measuring range. The indicator is automatically set to zero when it is turned on for measuring in either or both directions (plus or minus), and has a 0.375" diameter stem, a steel ball contact point with a 4-48 UNF (Unified National Fine) thread, and a choice of flat or lug back. The LCD display is automatically set to zero when powered on at the current spindle location for measuring in either or both directions, and has a sealed housing that is Ingress Protection (IP) certified IP42 for protection against dust and water. An audible alarm indicates low battery, scale contaminations, and data composition errors. The indicator has SPC (statistical process control) data output for data analysis (requires cable, not included). The indicator is powered by an SR44 battery (included).

Specifications

Dial type	LCD
Dial reading	Inch and metric, selectable
Range	0.5"/12.7mm
Stem	0.375"
Contact point material	Steel
Contact point thread	4-48 UNF
Mounting	Flat or lug back
Data format	SPC
Data output	RS-232
Power	SR44 battery

Dial indicators may also be called dial gauges, dial calipers, and probe indicators. These precision measuring tools are used to accurately measure small linear distances and object sizes. The dial magnifies the measurement so that it can more easily be read by the human eye. Frequently used in manufacturing, laboratories, and other industrial or mechanical fields, dial indicators are used anywhere a small measurement must be found and recorded or transferred, such as checking the variation in tolerance of a workpiece. Dial test indicators are very similar to dial indicators, except that the axis of measurement is perpendicular to the axis of the indicator. Standard dial indicators measure the displacement along the axis of the indicator. Dial indicators can be analog, with a mechanical dial, or electronic, with a digital display. Some electronic models transfer the data electronically to a computer for recording and potential manipulation.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
