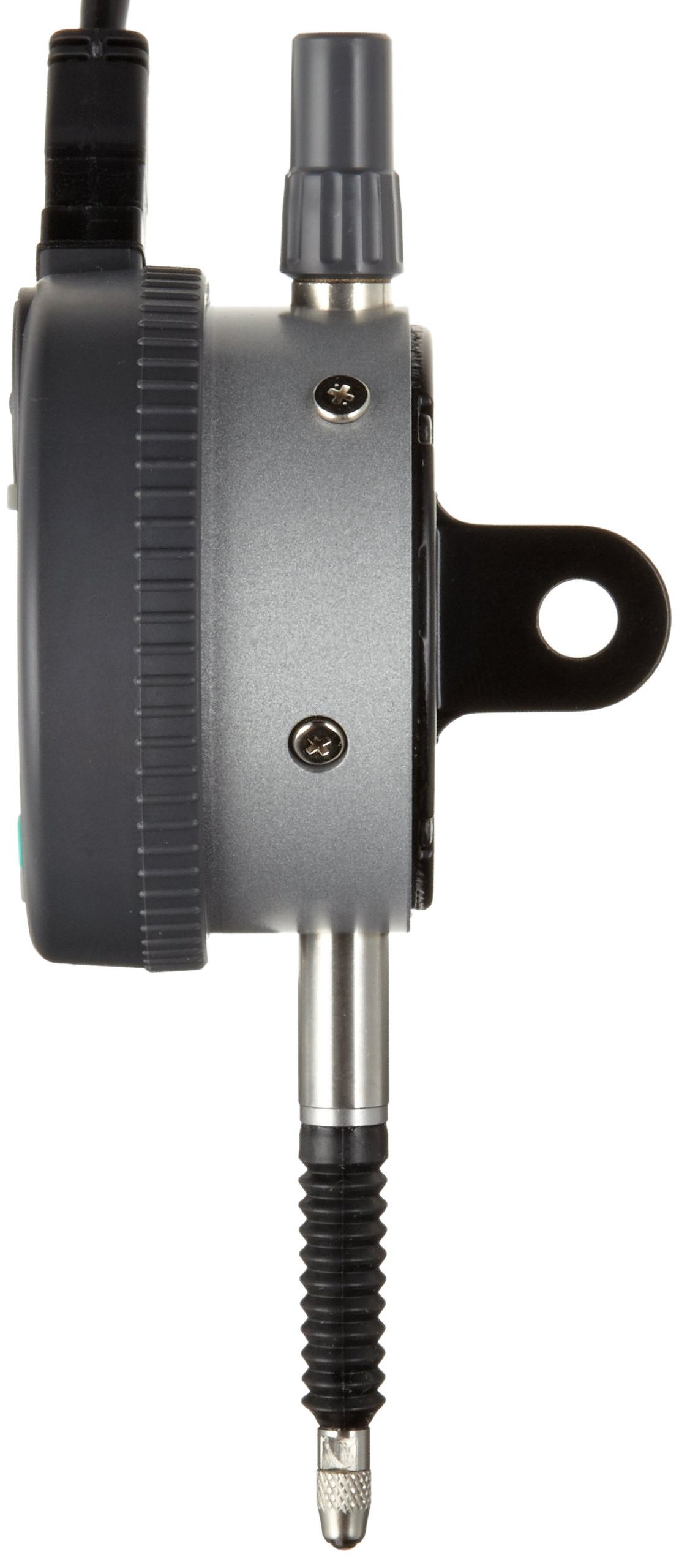

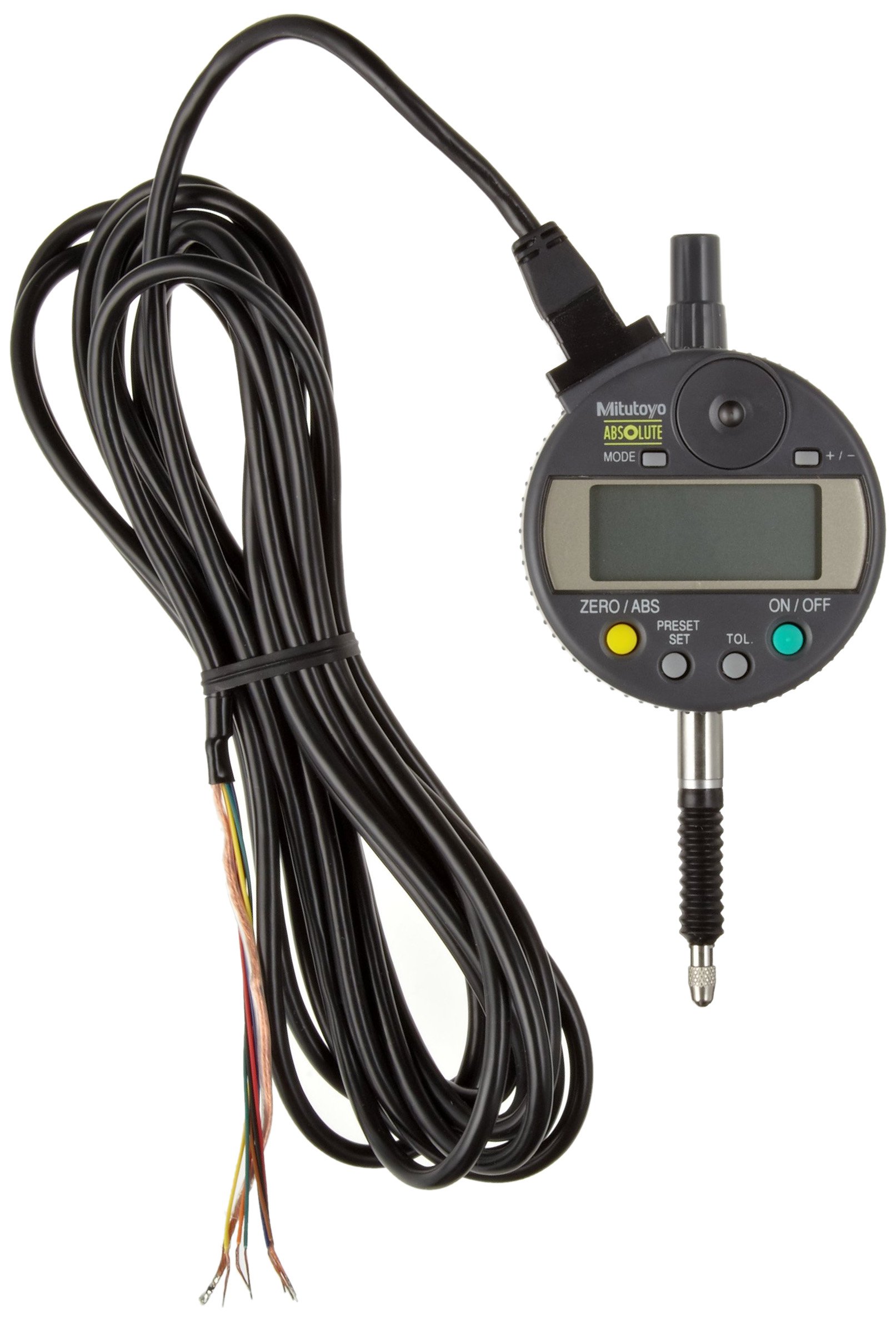

Mitutoyo 543-280 Absolute LCD Digimatic Indicator ID-C, M2.X0.45 Thread, 8mm Stem Dia., Lug Back, 0-12.7mm Range, 0.001mm Graduation, +/-0.003mm Accuracy

Be the first to review this item

ASIN B003UATPJ4

Specifications for this item
Range
0-12.7mm
Item Shape
Lug Back
Part Number
543-280
Resolution
0.001mm
Brand Name
Mitutoyo
Measurement Accuracy
+/-0.003mm
Maximum Measurement
0-12.7mm
Power Source Type
12-24V DC
Stem Outside Diameter
8  millimeters
Style Name
LCD
Thread Style
M2.X0.45
Number of Items
1
Material Type
Stainless Steel
Manufacturer Series Number
Absolute Digimatic Indicator ID-C
EAN
4946368364193
Output Type
SPC
UNSPSC Code
39121534
System of Measurement
Metric

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 15 hrs 49 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • With the max./min. Value holding function, the signal id-c can output the signal of the GO/+/-NG judgment result against the peak values set
  • The signal can be output to an external device like a sequencer through the npn open-collector
  • The go/+/-ng judgment result is also indicated by the green/red led and the "<, o, >" signs on led
  • Employing the absolute linear encoder, the signal id-c always displays the spindle "absolute position" from the origin at power-on
  • The signal id-c achieves the ip54 protection level to resist dust and contaminants for safe operation in harsh machine shop environments, stem diameter 8mm, M2.-0.45 thread size

Package Details

Shipping Weight: 0.95 pounds
Package Size: 6.2 x 6.1 x 3.1 inches

Product Description

Accuracy: Refer to the list of specifications. Length standard: ABSOLUTE electrostatic capacitance type linear encoder. Max. response speed: Unlimited. Data output (-NG/OK/NG signal, NPN open collector), Remote control (hold-preset, preset-recall, zero-set), Origin-set/Preset, Zeroset, GO/+/-NG judgment, Max/Min/ Runout value holding, Counting direction switching, Power ON/OFF, inch/mm conversion (on inch/metric models only). Alarm: Low voltage, Counting value composition error, Over-flow error, Tolerance limit setting error. Measuring force: 2.0N or less.
