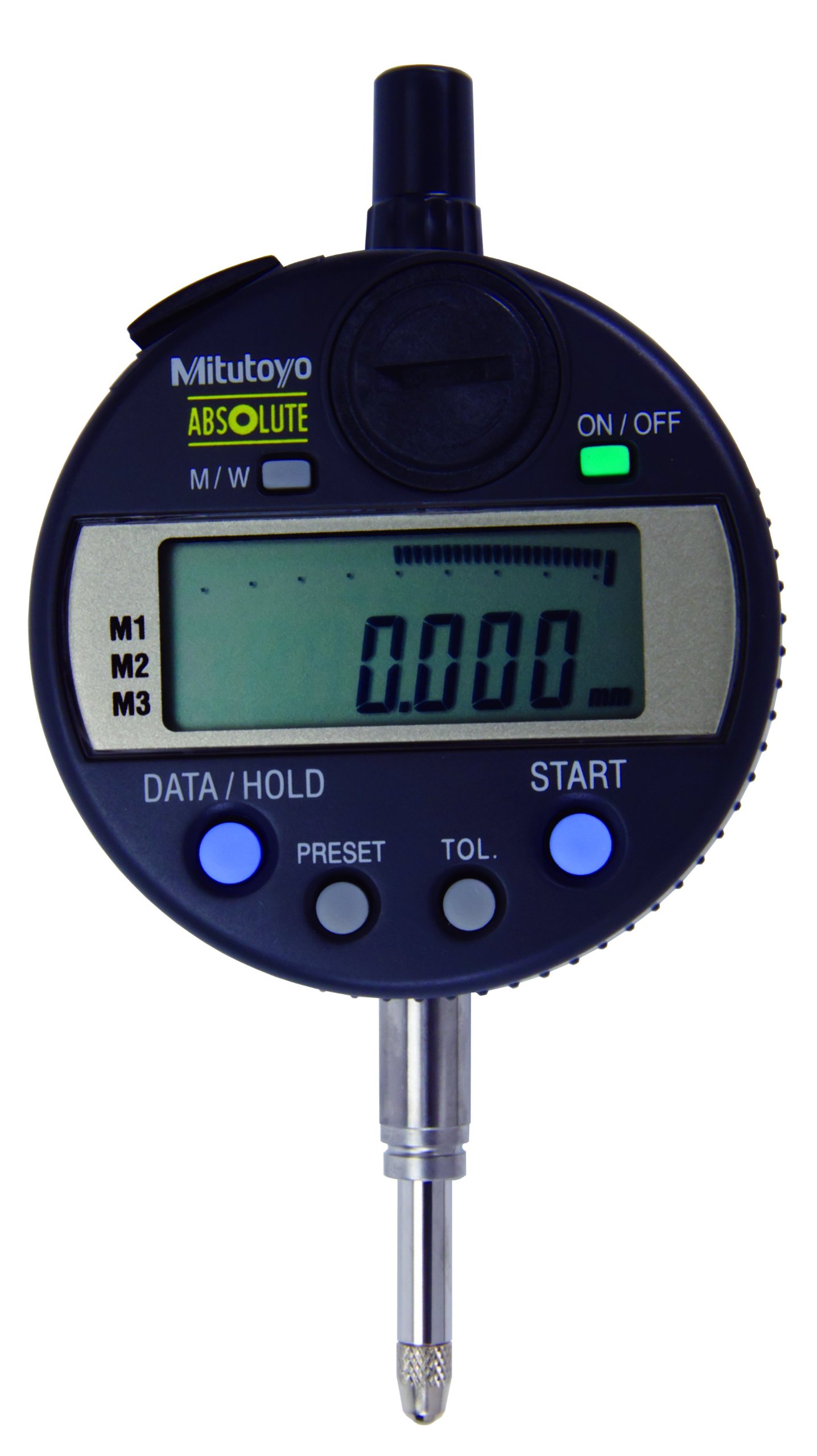

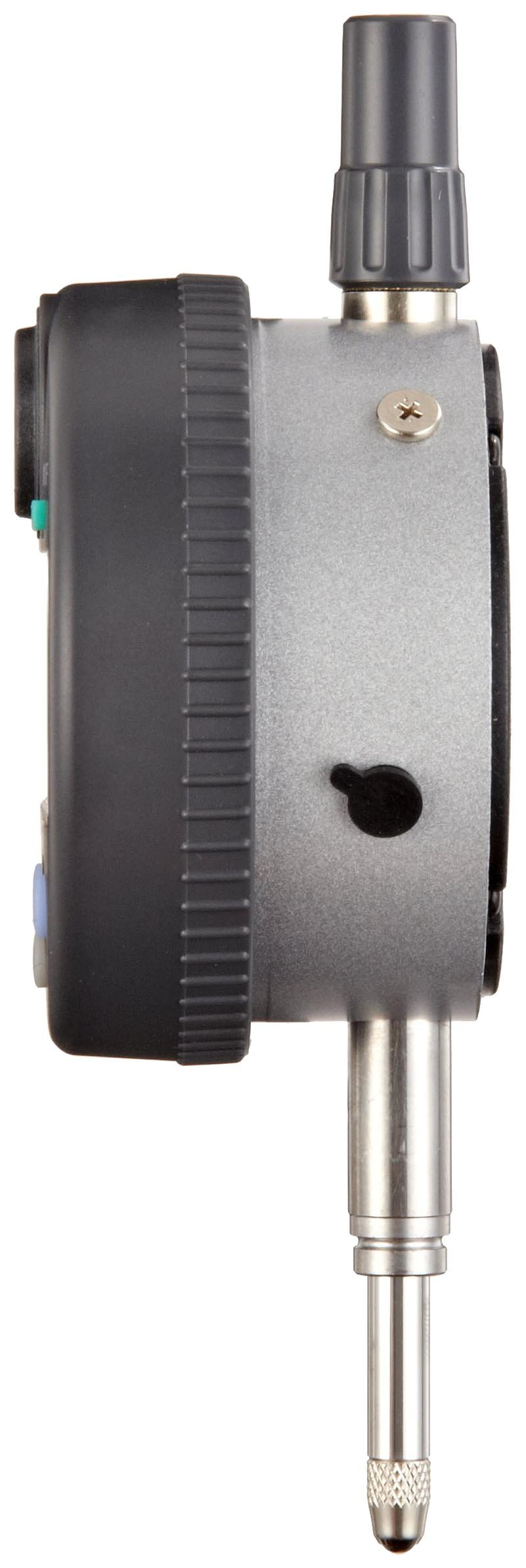

Mitutoyo 543-264B Absolute LCD Digimatic Indicator ID-C, for Bore Gage Application, M2.5X0.45 Thread, 8mm Stem Dia., Lug Back, 0-12.7mm Range, 0.001mm Graduation, +/-0.003mm Accuracy

Be the first to review this item

ASIN B003UATPIA

Specifications for this item
Range
0-12.7mm
Item Shape
Lug Back
Part Number
543-264B
Resolution
0.001mm
Brand Name
Mitutoyo
Measurement Accuracy
+/-0.003mm
Maximum Measurement
0-12.7mm
Power Source Type
SR44
Stem Outside Diameter
8  millimeters
Style Name
LCD
Thread Style
M2.5X0.45
Number of Items
1
Material Type
Stainless Steel
Manufacturer Series Number
Absolute Digimatic Indicator ID-C
EAN
4946368214863
Output Type
SPC
UNSPSC Code
39121534
System of Measurement
Metric

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 1? Order in-stock items in the next 5 hrs 29 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • The minimum value holding function provides the easy of detection of hole diameter
  • An analog bar indicator is integrated to enhance the intuition in reading
  • GO/+/-NG judgment is performed by setting the upper and lower tolerances, Stem diameter 8mm, M2.5 - 0.45 thread size
  • Up to three sets of master value and upper/lower tolerance value can be memorized, Stem diameter 8mm, M2.5 - 0.45 thread size
  • Employing the absolute linear encoder, the signal id-c always displays the spindle "absolute position" from the origin at power-on

Package Details

Shipping Weight: 0.65 pounds
Package Size: 7.6 x 4.3 x 3 inches

Product Description

Length standard: ABSOLUTE electrostatic capacitance type linear encoder, Max. response speed: Unlimited, Measuring force: 1.5N or less, Battery: SR44 (2 pieces.), 938882, Battery life: Approx. 2000 hours under normal use, Dust/Water protection level: IP42, This ID-C series digimatic indicators are exclusively designed for id measurement. Origin-set/preset, zeroset, GO/+/-NG judgment, counting direction switching, power on/off, data output, inch/mm conversion (on inch/metric models only) alarm: low voltage, counting value composition error, over-flow error, tolerance limit setting error.
