Mitutoyo 536-121 Vernier Caliper, Stainless Steel, Narrow Tip Jaw, 0-150mm Range, +/-0.05mm Accuracy, 0.05mm Resolution

Be the first to review this item

ASIN B003B2PMSY

Specifications for this item
Range
0-150mm
Part Number
536-121
Resolution
0.05mm
Item Depth
40mm
Brand Name
Mitutoyo
Measurement Accuracy
+/-0.05mm
Maximum Measurement
0-150mm
Special Features
Thumb roller
Number of Items
1
Specific Uses For Product
Inside
Material Type
Stainless Steel
Manufacturer Series Number
536 Series
EAN
4946368111117
Tip Description
Narrow Tip
UNSPSC Code
41111621
System of Measurement
Metric
Overall Length
229  millimeters

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 3? Order in-stock items in the next 2 hrs 49 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Simple metric measuring scales, for ease of use
  • Narrow jaw tips access small grooves and indentations, for obtaining difficult to reach outside (OD) measurements
  • Hardened stainless steel construction with satin chrome finish, for protection of caliper and easy reading
  • Raised sliding surfaces for preventing defacement and wear of scale graduations
  • With depth bar, for taking depth measurements

Package Details

Shipping Weight: 1.5 pounds
Package Size: 10.7 x 4.5 x 1.5 inches

Product Description

The Mitutoyo 536-121 offset centerline vernier caliper performs precise measurements to within 0.05 mm, for applications where the highest accuracy is required, especially in scientific research and in industries where parts must fit exactly. This caliper’s narrow jaw tips can access small grooves and tracks, making hard to reach outside measurements easier to obtain.

The vernier caliper has a fixed (main) scale and a movable (vernier) scale. The vernier scale moves over the main scale rule to give a fractional measurement which is added to the measurement of the main scale to achieve a more accurate result. The main scale may be marked in inches, millimeters, or both. The vernier scale may be marked in inches or millimeters. A thumbwheel permits fast measuring and a rotating screw controls the caliper’s movement.

The 536-121 measures in metric units. The vernier scale graduation is 0.05 mm. The scales are raised to slide easily and protect the graduation markings. A thumbwheel permits fast and easy measuring. A clamping screw rotates to control scale movement and locks to hold the sliding jaw’s position. The caliper weighs 150 g and is made of hardened stainless steel construction with a satin chrome finish. With its narrow tip jaws, the caliper can reach into hard to access grooves and indentations. Model 536-121 comes with depth bar. It has a main scale length of 229 mm, a lower jaw depth of 40 mm, a upper jaw length of 21.5 mm, a beam width of 16 mm, and a forward lower jaw tip thickness of 0.3 mm. Range is 0 - 150 mm is 0.05 mm, and Accuracy is rated at + or - 0.05 mm, which meets Federal Accuracy Specifications GGG-C-111B.

Calipers measure the distance between two opposing sides of an object. They make inside, outside, depth, or step measurements, according to their type. Calipers are commonly used in architecture, metalworking, mechanical engineering, machining, manufacturing, carpentry, and medicine. The simplest calipers have two legs to mark the two points and require a ruler to take the measurement. More complex calipers use two sets of jaws instead of legs and have up to two graduated scales. Vernier, dial, and digital calipers all give direct and accurate readings and are functionally identical, having a calibrated scale with a fixed jaw, and another jaw with a movable pointer that slides along the scale. The vernier caliper has a scale sliding parallel to the main scale for an additional, fractional reading to improve measurement precision. The dial caliper has a circular dial with a pointer on a toothed gear rack replacing the second vernier scale. As with the vernier, this second measurement is added to the reading from the main scale to obtain the result. The dial caliper is used for measuring size differential between two objects, as well. The digital caliper takes the same sort of differential measurements as the dial caliper by zeroing the display at any point along the slide, with an LCD (replacing the dial) that displays a single, easily read value in both English and metric units. Some digital calipers can hold data readings between measurements and send them to data collection devices.

Founded in Tokyo in 1934, Mitutoyo is a leader in the metrology field, producing high-quality measurement products, including mechanical, dimensional gauging products, focusing on micrometers, calipers, indicators, and other measurement tools, as well as output gauges, interfaces, data collectors, and analysis software. Mitutoyo formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, Illinois, with additional locations in the U.S. and Canada.

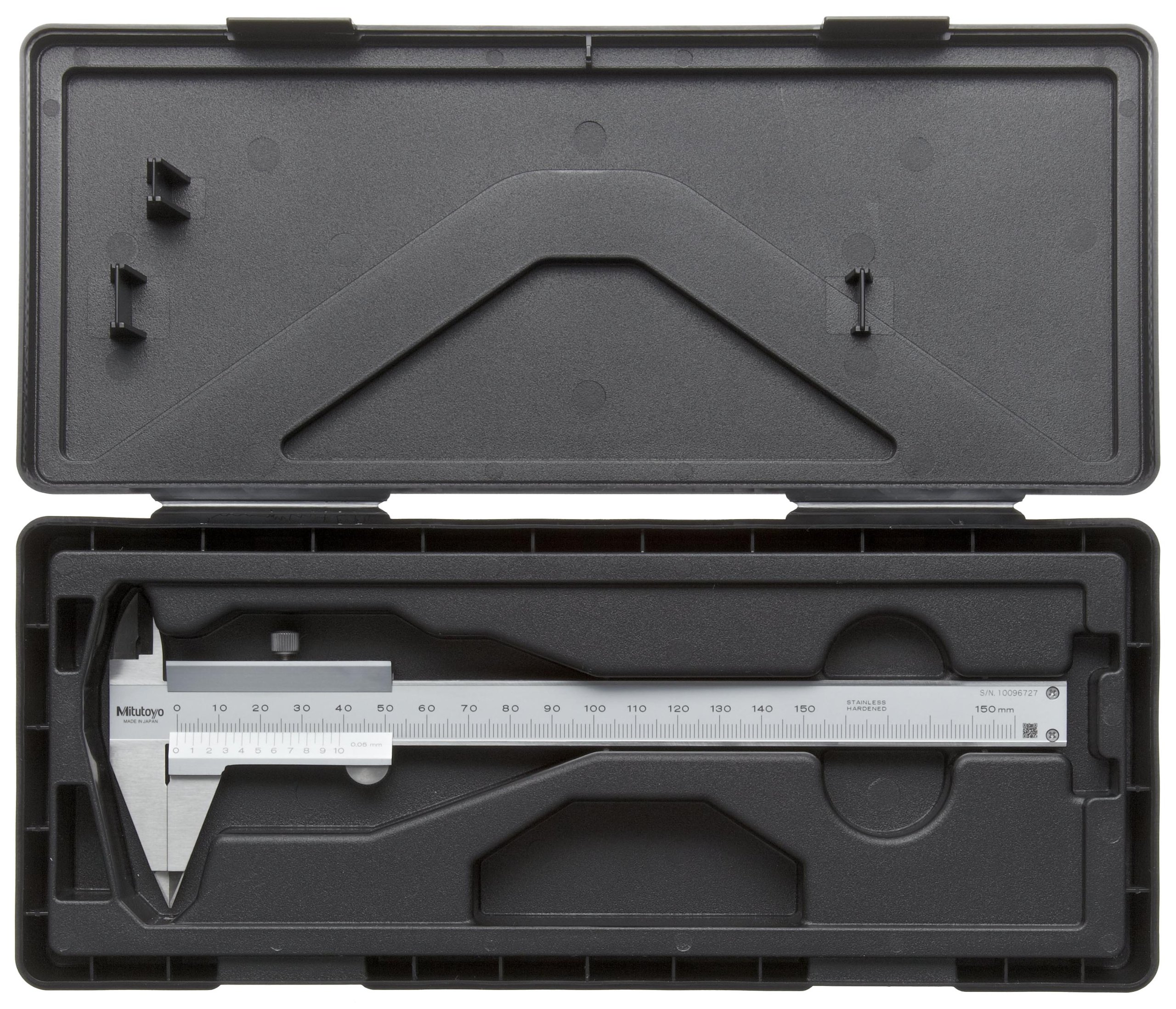

The Mitutoyo 536-121 is supplied in a fitted plastic case.
