Mitutoyo 515-575 Depth Micro Checker, 0-6" Range, +/-0.002mm Accuracy

Be the first to review this item

ASIN B003U9W0II

Specifications for this item
Number of Items
1
Range
0-6"
Part Number
515-575
Brand Name
Mitutoyo
EAN
4946368096971
Manufacturer Series Number
Depth Micro Checker
Measurement Accuracy
+/-0.002mm
Maximum Measurement
0-6"
Stem Outside Diameter
0.375  inches
System of Measurement
Inch
Price:
$1,220.00
Quantity:

In Stock (2)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 24? Order in-stock items in the next 1 hr 50 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Accessory for checking the zero point of a depth micrometer
  • For use with Mitutoyo metric depth micrometers (sold separately)
  • Supports confirmation measurements from 0 to 6 inches in 1-inch increments

Package Details

Shipping Weight: 8.4 pounds
Package Size: 14.4 x 8.4 x 7.8 inches

Product Description

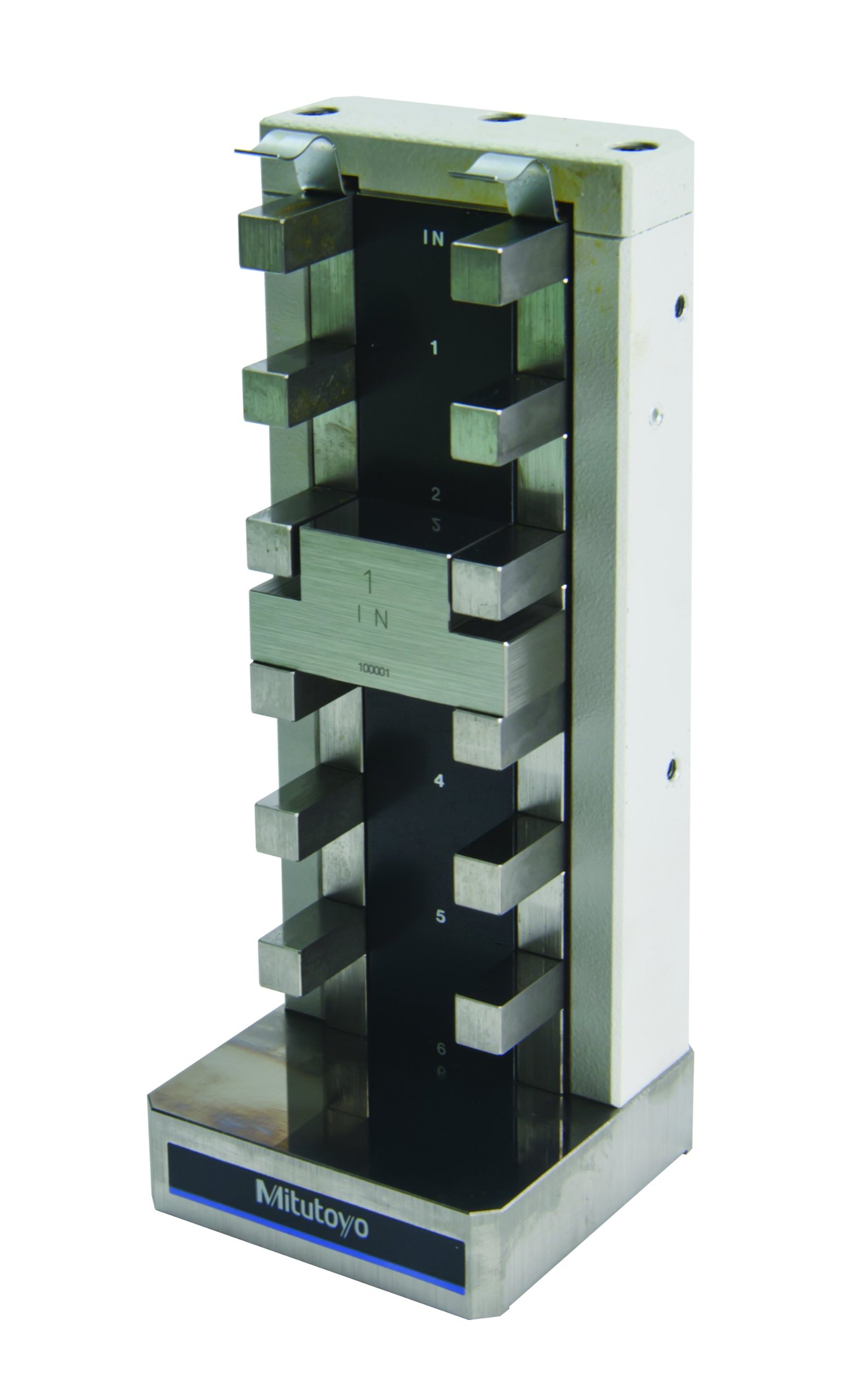

The Mitutoyo 515-575 depth micro checker is a reference gauge that supports checking the zero point of a depth micrometer in the range of 0 to 6 inches. The accessory is used to make confirmation reference measurements in 1-inch increments with a metric depth micrometer up to 6 inches for verifying and adjusting the micrometer’s base zero position. Depth micrometers measure the height or depth of any shape that has a step, groove, or slot.

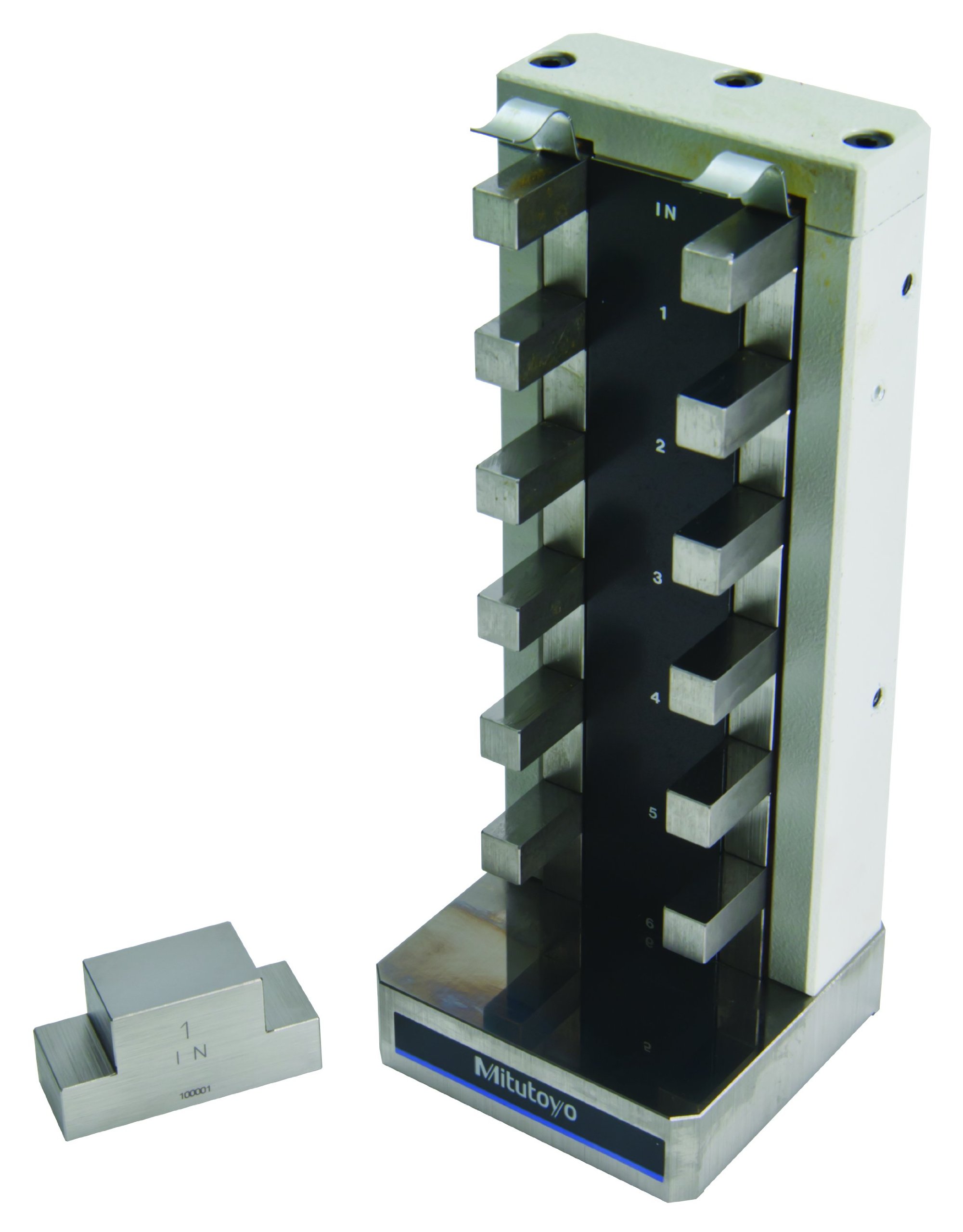

The depth micro checker measures 180 x 72 x 72 mm (H x W x D) and has reference measuring blocks laddered every 1 inch against which confirmation measurements can be made. Block pitch accuracy is + or - (.00004 + L/150000)" where L is the length to check from 0 to 6 inches, in 1-inch increments. The anvil block accuracy is + or - 0.5 micrometers. The unit weighs 6.6 lbs (3.0 kg), and comes with a certificate of inspection.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
