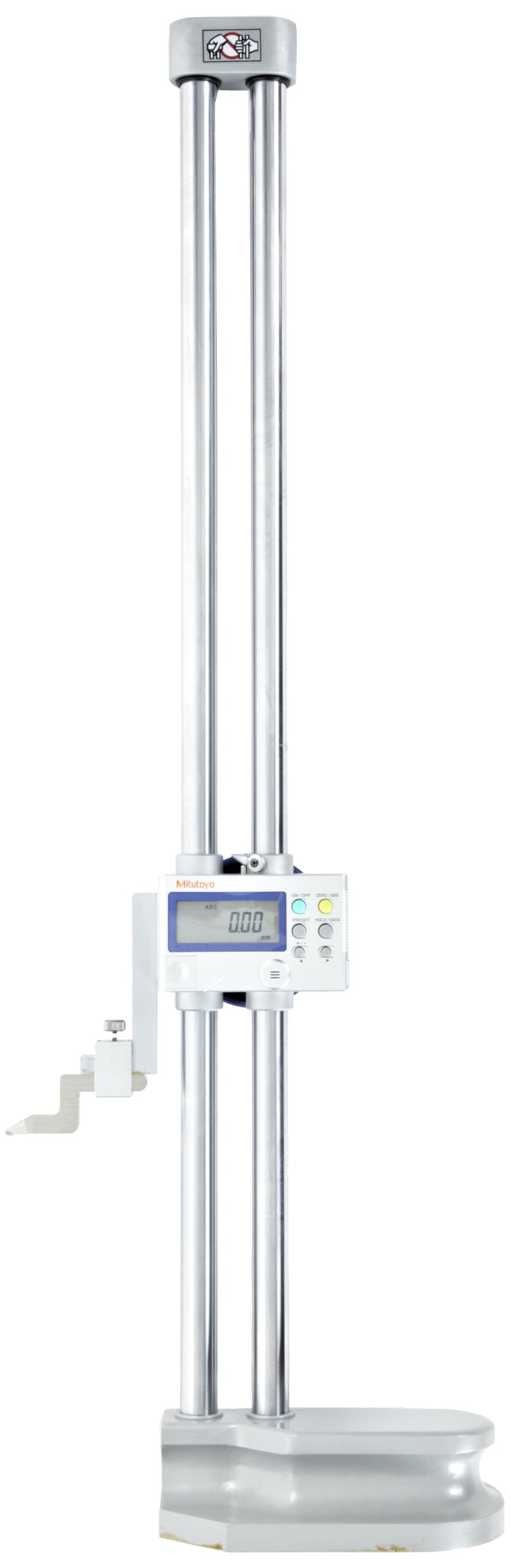

Mitutoyo 514-106 Vernier Height Gauge, 0-600mm Range, 0.02mm Resolution, +/-0.05mm Accuracy, 7.4kg Mass

Be the first to review this item

ASIN B003MUNXV8

Specifications for this item
Number of Items
1
Range
0-600mm
Part Number
514-106
Brand Name
Mitutoyo
Gradient Spacing
0.02  millimeters
EAN
4946368096278
Maximum Measurement
0-600mm
Style Name
Vernier
System of Measurement
Metric
List price:
$1,500.00
Price:
$1,370.58
You save:
$129.42 (9%)
Quantity:

In Stock (1)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 21? Order in-stock items in the next 8 hrs 56 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Measurement range of 0 - 600 mm, and graduated to 0.02 mm
  • Vernier scale for precise measurement
  • Adjustable zero reference point for manual change of the base position
  • Hand-operated slider with fine-adjustment carriage for precise feed
  • Carbide-tipped scriber for hardness and to help prolong life

Package Details

Shipping Weight: 20.25 pounds
Package Size: 39.5 x 14.4 x 8.7 inches

Product Description

The Mitutoyo 514-106 vernier height gauge has a measurement range of 0 - 600 mm, and is graduated to 0.02 mm, with + or - 0.05 mm of accuracy.

The scriber, used to mark a position on a workpiece, is 32 mm x 80 mm (H x W), carbide-tipped for hardness and to help prolong life, and is held to the gauge by a screw clamp for secure fastening. The grip-base helps hold the unit in position by hand. An adjustable beam with a ring-type lock nut supports repositioning of the zero reference point for manual change of the base position. The slider and beam are made of hardened stainless steel, with a glare-free satin chrome finish that helps resist rust. The height gauge weighs 16.31 lbs/7.4 kg.

A vernier scale provides precise measurement through a second sliding scale that indicates where measurement lies between marks on the main scale. A calibrated screw mechanism supports fine, uniform slider adjustments.

Height gauges, also called gages, are precision measuring instruments that travel on a vertical column (also called the beam) to measure and/or mark the vertical distance from the base of an object in fine units. The vertical position of the gauge and its attached pointer are changed by turning a calibrated screw, or one or more feed wheels. Recorded rotations are read from a scale, a dial, counters, and/or an electronic display. A screw clamp holds the pointer to the gauge. The pointer is typically sharpened to act as a scriber, and can be used to mark a position on a workpiece by scratching its surface. On compatible units, the scriber may be replaced by an electronic touch-signal probe. Height gauges are typically used in manufacturing, machining, and mechanical engineering.
