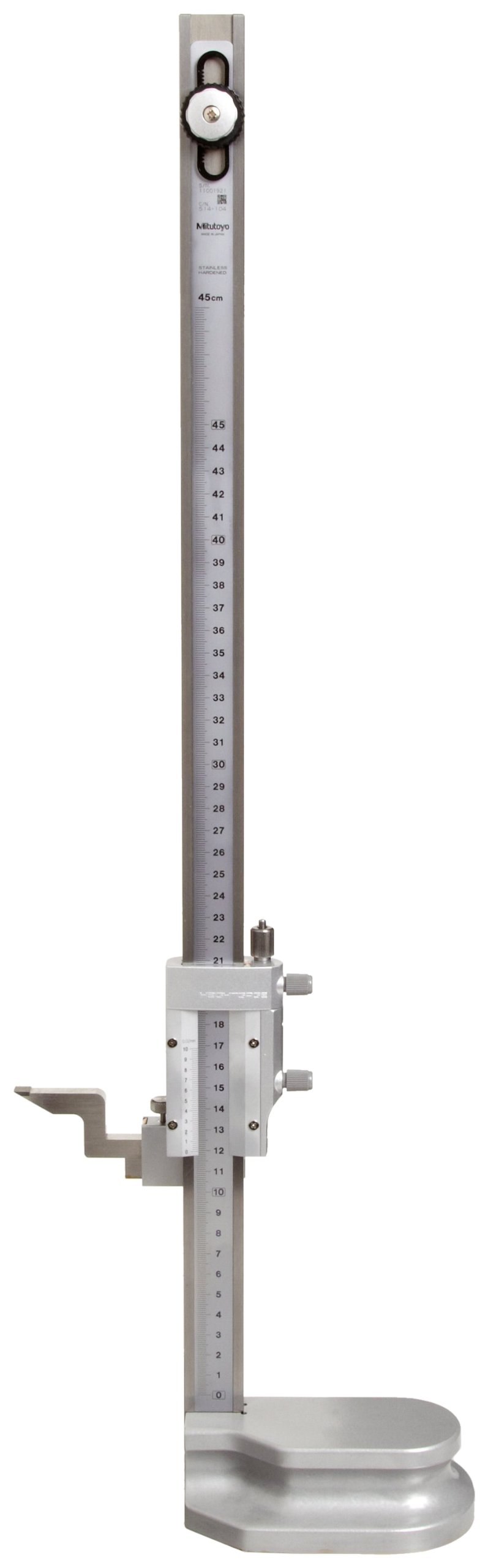

The Mitutoyo 514-104 vernier height gauge has a measurement range of 0 - 450 mm, and is graduated to 0.02 mm, with + or - 0.05 mm of accuracy.
The scriber, used to mark a position on a workpiece, is 32 mm x 80 mm (H x W), carbide-tipped for hardness and to help prolong life, and is held to the gauge by a screw clamp for secure fastening. The grip-base helps hold the unit in position by hand. An adjustable beam with a ring-type lock nut supports repositioning of the zero reference point for manual change of the base position. The slider and beam are made of hardened stainless steel, with a glare-free satin chrome finish that helps resist rust. The height gauge weighs 7.5 lbs/3.4 kg.
A vernier scale provides precise measurement through a second sliding scale that indicates where measurement lies between marks on the main scale. A calibrated screw mechanism supports fine, uniform slider adjustments.
Height gauges, also called gages, are precision measuring instruments that travel on a vertical column (also called the beam) to measure and/or mark the vertical distance from the base of an object in fine units. The vertical position of the gauge and its attached pointer are changed by turning a calibrated screw, or one or more feed wheels. Recorded rotations are read from a scale, a dial, counters, and/or an electronic display. A screw clamp holds the pointer to the gauge. The pointer is typically sharpened to act as a scriber, and can be used to mark a position on a workpiece by scratching its surface. On compatible units, the scriber may be replaced by an electronic touch-signal probe. Height gauges are typically used in manufacturing, machining, and mechanical engineering.
