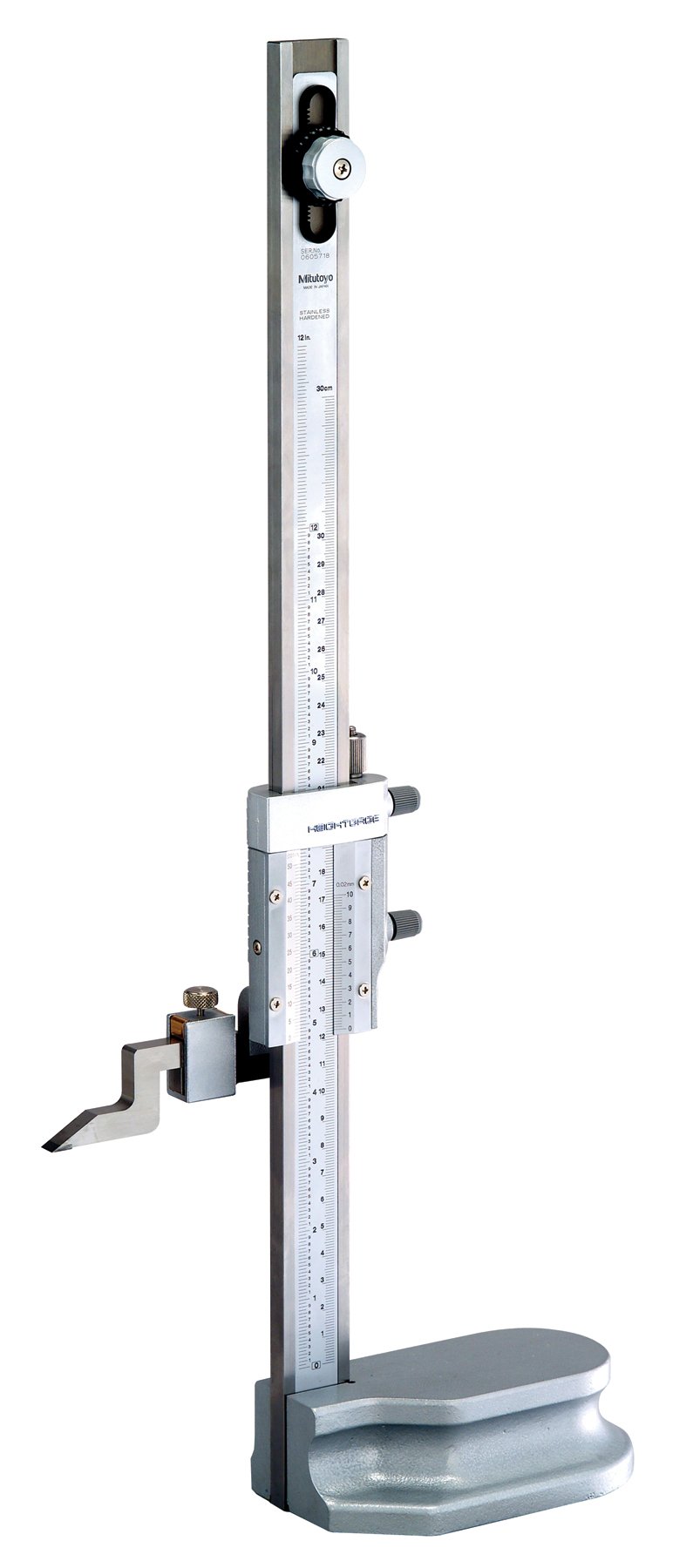

Mitutoyo 514-103 Vernier Height Gauge, 0-12" Range, 0.001" Resolution, +/-0.002" Accuracy, 3.1kg Mass

Be the first to review this item

ASIN B003UATAH6

Specifications for this item
Number of Items
1
Range
0-12"
Part Number
514-103
Brand Name
Mitutoyo
Gradient Spacing
0.001  inches
EAN
4946368096230
Maximum Measurement
0-12"
UNSPSC Code
41111614
Style Name
Vernier
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 22? Order in-stock items in the next 16 hrs 31 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Measurement range of 0" - 12"/0 - 300 mm, and graduated to 0.001"/0.02 mm
  • Vernier scale for precise measurement
  • Adjustable zero reference point for manual change of the base position
  • Hand-operated slider with fine-adjustment carriage for precise feed
  • Carbide-tipped scriber for hardness and to help prolong life

Package Details

Shipping Weight: 10.75 pounds
Package Size: 24.2 x 11.1 x 7.3 inches

Product Description

The Mitutoyo 514-103 vernier height gauge has a measurement range of 0” - 12"/0 - 300 mm, and is graduated in both inches and metric to 0.001”/0.02 mm, with + or - 0.002”/0.04 mm of accuracy.

The scriber, used to mark a position on a workpiece, is 32 mm x 80 mm (H x W), carbide-tipped for hardness and to help prolong life, and is held to the gauge by a screw clamp for secure fastening. The grip-base helps hold the unit in position by hand. An adjustable beam with a ring-type lock nut supports repositioning of the zero reference point for manual change of the base position. The slider and beam are made of hardened stainless steel, with a glare-free satin chrome finish that helps resist rust. The height gauge weighs 6.83 lbs/3.1 kg.

A vernier scale provides precise measurement through a second sliding scale that indicates where measurement lies between marks on the main scale. A calibrated screw mechanism supports fine, uniform slider adjustments.

Height gauges, also called gages, are precision measuring instruments that travel on a vertical column (also called the beam) to measure and/or mark the vertical distance from the base of an object in fine units. The vertical position of the gauge and its attached pointer are changed by turning a calibrated screw, or one or more feed wheels. Recorded rotations are read from a scale, a dial, counters, and/or an electronic display. A screw clamp holds the pointer to the gauge. The pointer is typically sharpened to act as a scriber, and can be used to mark a position on a workpiece by scratching its surface. On compatible units, the scriber may be replaced by an electronic touch-signal probe. Height gauges are typically used in manufacturing, machining, and mechanical engineering.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
