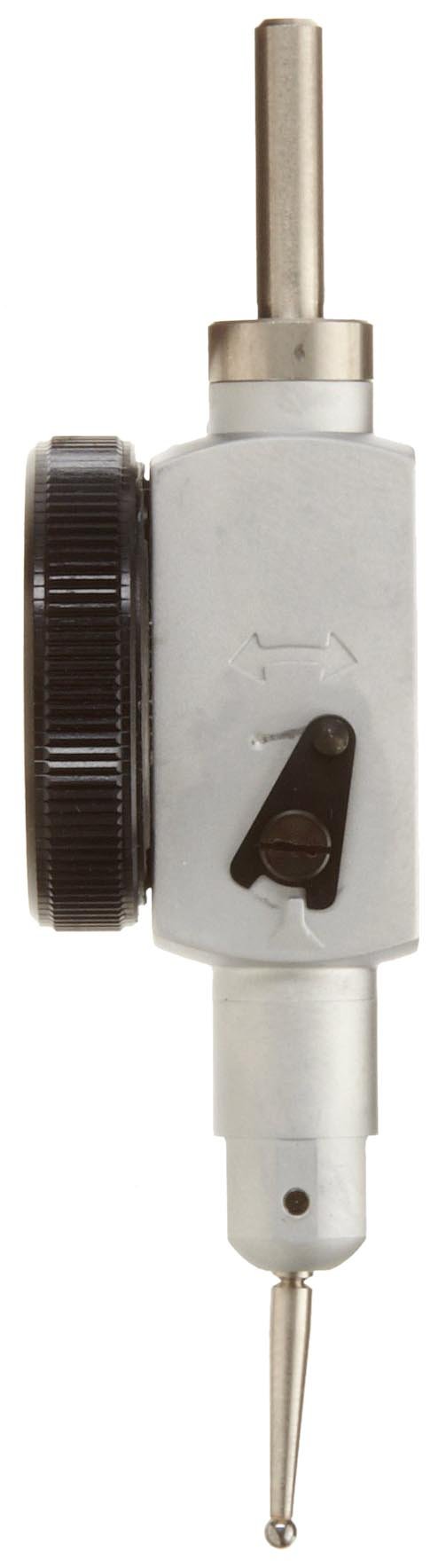

Mitutoyo 513-528T Pocket Type Dial Test Indicator, Full Set, Horizontal Type, 0.375" Stem Dia., White Dial, 0-20-0 Reading, 1.3" Dial Dia., 0-0.04" Range, 0.001" Graduation, +/-0.001" Accuracy

Be the first to review this item

ASIN B003UATPG2

Specifications for this item
Range
0-0.04"
Part Number
513-528T
Resolution
0.001"
Brand Name
Mitutoyo
Measurement Accuracy
+/-0.001"
Maximum Measurement
0-0.04"
Stem Outside Diameter
0.375  inches
Special Features
Jeweled Bearing
Number of Items
1
Material Type
Steel
Color Name
White
Outside Diameter
1.3  inches
Manufacturer Series Number
Pocket Type Dial Test Indicator
EAN
4946368383767
UNSPSC Code
41110000
Display
0-20-0
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 1 day 18 hrs 9 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Jeweled bearings assure higher sensitivity and accuracy. reversible measuring direction
  • Two holding bars are supplied (full sets only)
  • Fully adjustable bezel/dial face
  • Contact point is adjustable within 220 degree
  • Bezel is sealed with on o-ring to keep out water/oil

Package Details

Shipping Weight: 0.6 pounds
Package Size: 5.4 x 3.5 x 1.4 inches

Product Description

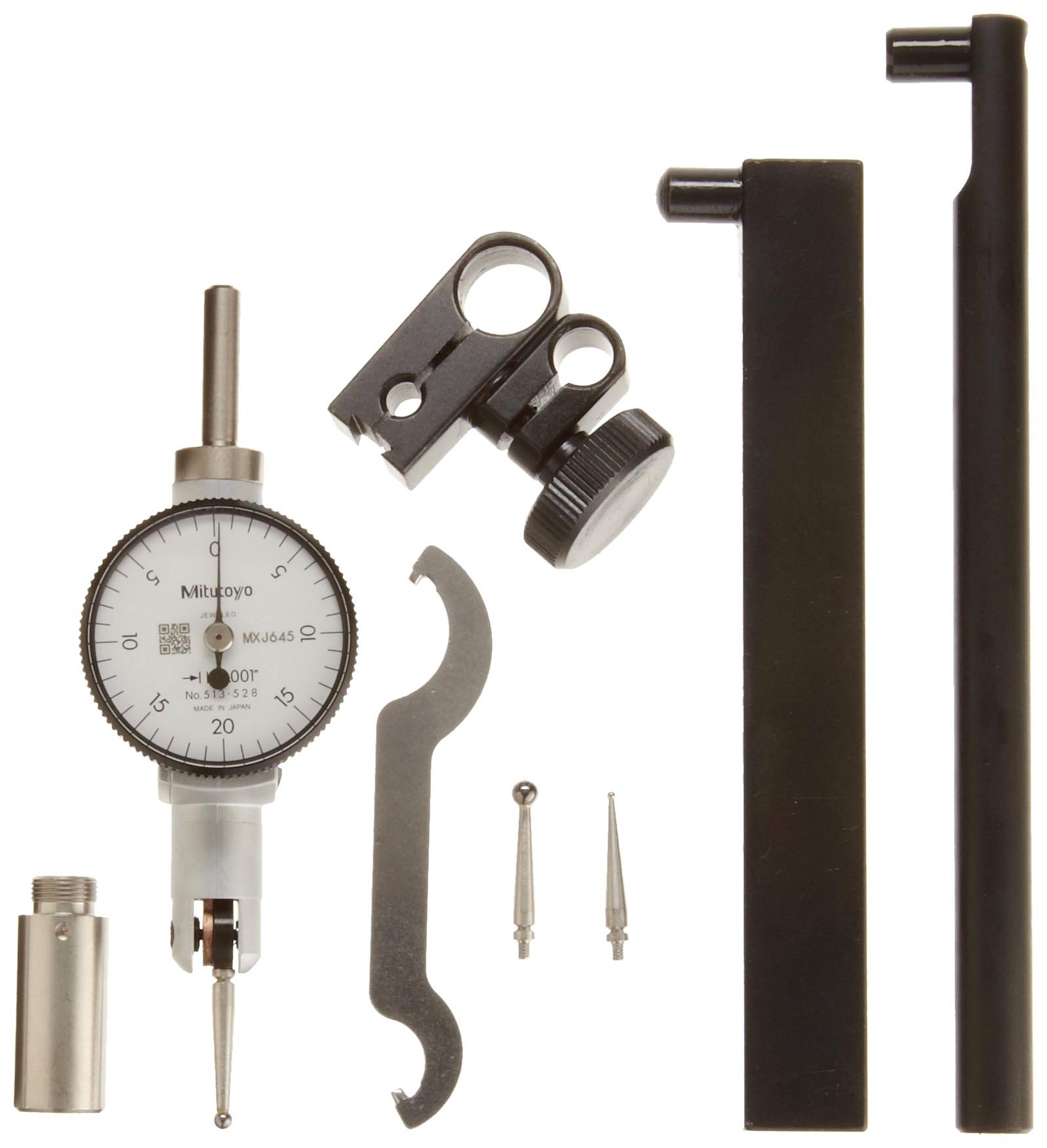

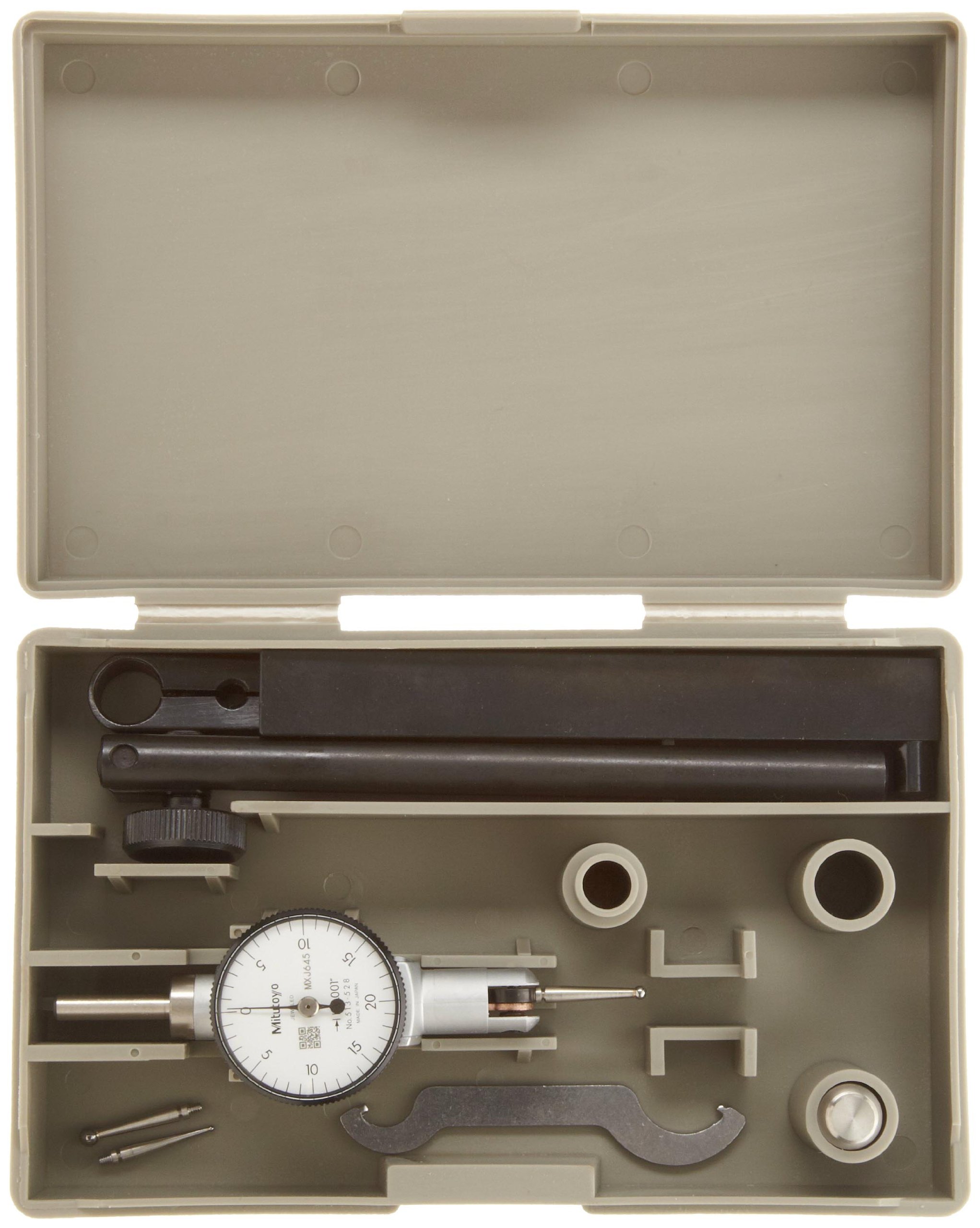

Measuring force: 0.3N or less. It is Jeweled bearing type and Compact, Length: 18.7mm. Full Set includes Indicator, Spanner (part number 301336), 3/8" Diameter Stem (part number 102081) and .079" Diameter Carbide Contact Point, as well as .039" Diameter Carbide Contact Point and .118" Diameter Carbide Contact Point, .157" Diameter Stem (part number 102036), .315" Diameter Holding Rod (part number 900211), 4" Length Holding Bar and Swivel Clamp for .157" Diameter, 3/8" Diameter, Dovetail (part number 900322).
