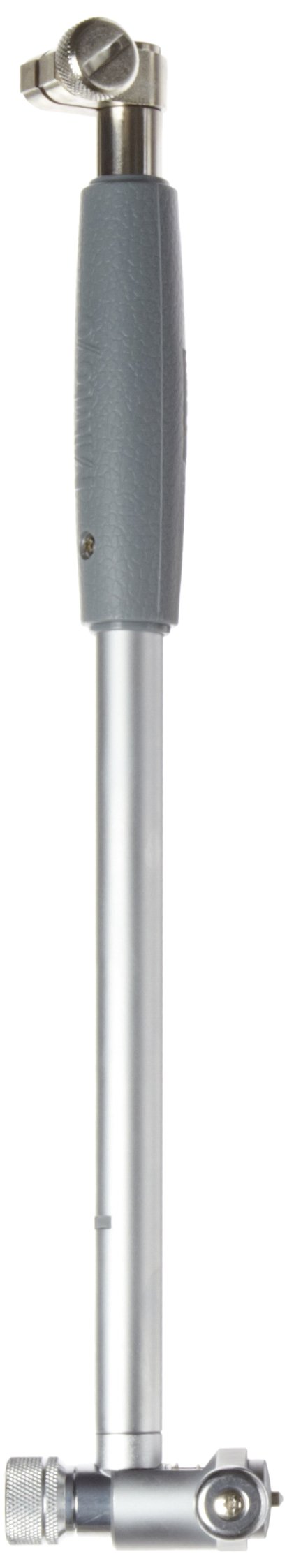

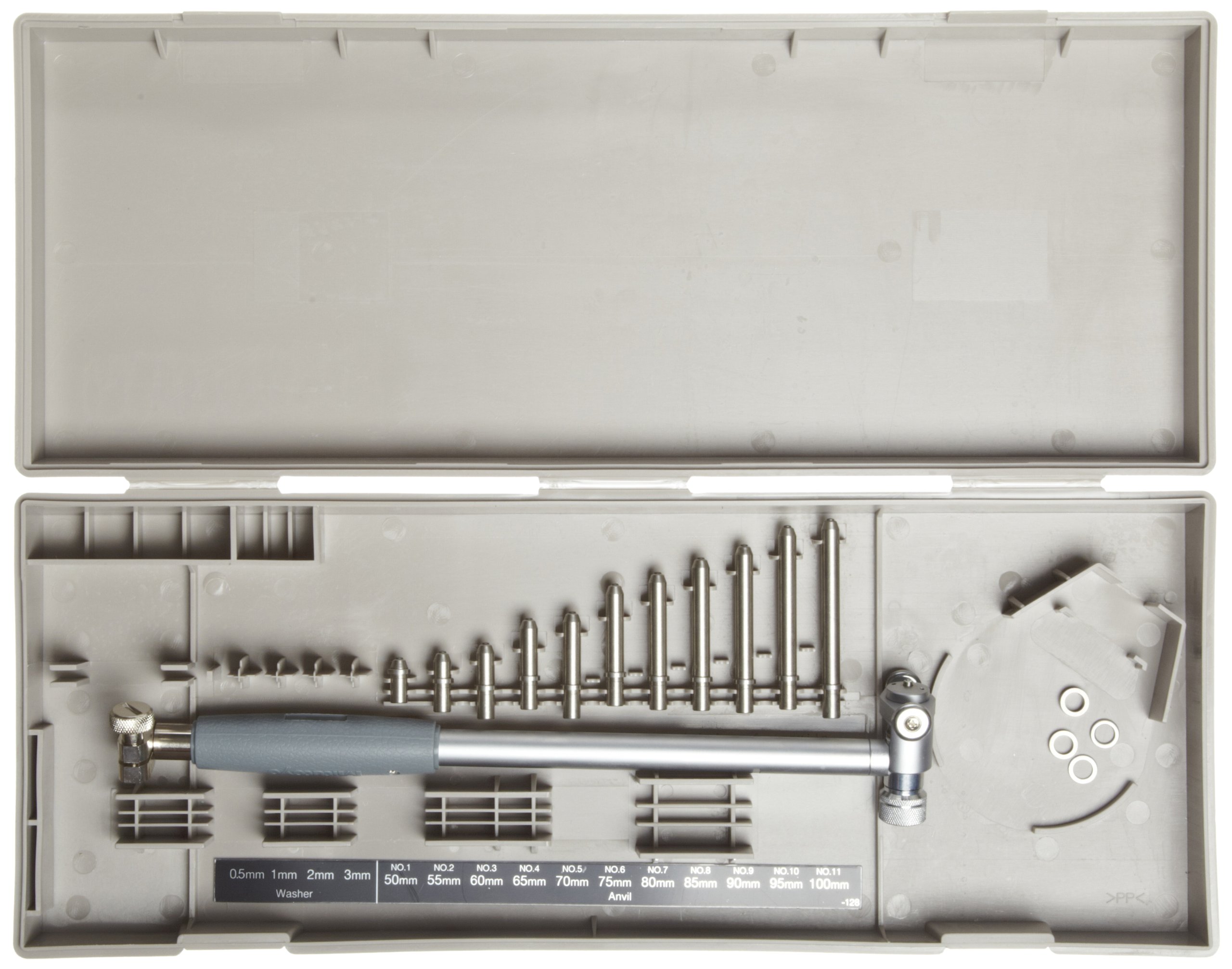

Mitutoyo 511-128-05 Bore Gauge, 50mm-100mm Range, Without Dial Gauge or Protector Cover

Be the first to review this item

ASIN B007FFSOZQ

Specifications for this item
Number of Items
1
Inside Depth
16.4  inches
Range
50mm-100mm
Part Number
511-128-05
Item Volume
292.7  Cubic Inches
Item Weight
2.4 pounds
UPC
603908124733
Brand Name
Mitutoyo
EAN
0603908124733
Manufacturer Series Number
Bore Gage
Maximum Measurement
50mm-100mm
Stem Outside Diameter
8  millimeters
Special Features
Without Dial Gage or Protector Cover
System of Measurement
Metric
Price:
$246.00
Quantity:

In Stock (2)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 24? Order in-stock items in the next 12 hrs 50 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Total measurement range of 50 to 100 mm
  • Outside stem diameter of 8 mm
  • Two-point contact for detection of geometry problems such as ovality and taper

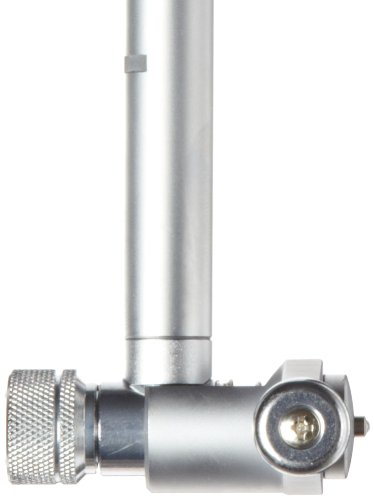

  • Carbide-tipped contact points for extended wear and improved abrasion resistance

Package Details

Shipping Weight: 1.95 pounds
Package Size: 15 x 6 x 2.2 inches

Product Description

The Mitutoyo 511-128-05 Dial Bore Gauge has a measurement range of 50 to 100mm. This direct-measuring gauge uses a two-point contact system can be used to detect geometry problems such as ovality and taper and carbide-tipped contact points offer extended wear and improved abrasion resistance. This gauge is for use with Mitutoyo dial indicators (sold separately).

Bore gauges measure holes, or bores, in a workpiece. They can measure the interior diameter of a hole at any depth, while internal micrometers can only measure to the depth of their teeth. Bore gauges are typically calibrated with a setting ring and come in two types: simple and direct-measuring. Simple bore gauges are used with a caliper to transfer the hole measurement, while the more complex gauges take the measurement directly, and display it through a vernier, dial, or digital display. Bore gauges have a two- or three-point contact, indicating how many points on the gauge head touch the inside of the bore. Two-point contacts are better at measuring ovality, while three-point contacts are used to measure lobing or triangular form error. Pistol-grip bore gauges are used for fast, single-handed operation with repeatable results from one operator to another. Bore gauges can also be used in special applications, such as measuring threads, spline pitch diameters, and deep bores.

Mitutoyo manufactures precision measuring tools, metrology equipment, and related systems. The company, founded in Tokyo in 1934, formed Mitutoyo America Corporation in 1963 with headquarters in Aurora, IL.
