Mitutoyo Holtest (Type ll) Vernier Inside Micrometer, Three-Point, Inch

Be the first to review this item

Product Specifications
Manufacturer Series Number
Series 368
Style Name
Vernier
UNSPSC Code
41111601
Brand Name
Mitutoyo
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Jul 29? Order in-stock items in the next 12 hrs 33 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-18 of 18
Range Accuracy Graduation Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-18 of 18
0.5-0.65" +/-0.0001" 0.0002" 368-864 B003UATIKK 1 $450.00 Buy Options
0.65-0.8" +/-0.0001" 0.0002" 368-865 B003UATIKU 1 $459.07 Buy Options
0.8-1" +/-0.00015" 0.0002" 368-866 B003UATIL4 1 $489.67 Buy Options
1-1.2" +/-0.00015" 0.0002" 368-867 B003UATILO 1 $436.63 Buy Options
1.2-1.6" +/-0.00015" 0.0002" 368-868 B002SG7QIS 1 $595.00 Buy Options
1.6-2" +/-0.00015" 0.0002" 368-869 B002SG7QJ2 1 $649.70 Buy Options
2-2.5" +/-0.00015" 0.0002" 368-870 B003UATILY 2 $637.56 Buy Options
2.5-3" +/-0.00015" 0.0002" 368-871 B003UATIM8 Usually ships in 1 to 2 months $828.00 Buy Options
3-3.5" +/-0.00015" 0.0002" 368-872 B003UATIMI 1 $740.08 Buy Options
3.5-4" +/-0.00015" 0.0002" 368-873 B003UATIMS Usually ships in 1 to 2 months $871.00 Buy Options
4-5" +/-0.00025" 0.0002" 368-874 B003UATIN2 1 $950.00 Buy Options
5-6" +/-0.00025" 0.0002" 368-875 B003UATINC 1 $1,005.28 Buy Options
6-7" +/-0.00025" 0.0002" 368-876 B003UATINM Usually ships in 1 to 2 months $1,330.00 Buy Options
7-8" +/-0.00025" 0.0002" 368-877 B003UATIO6 1 $1,450.00 Buy Options
8-9" +/-0.00025" 0.0002" 368-878 B003UATIOG 1 $1,510.00 Buy Options
9-10" +/-0.00025" 0.0002" 368-879 B003UATIOQ 1 $1,600.00 Buy Options
10-11" +/-0.00025" 0.0002" 368-880 B003UATIP0 Usually ships in 1 to 2 months $1,700.00 Buy Options
11-12" +/-0.00025" 0.0002" 368-881 B003UATIPA Usually ships in 1 to 2 months $1,890.00 Buy Options

Key Features

  • Three-point contacts for self-centering measurement of the inside dimension (ID) of bores
  • Vernier scale in inch units for taking precise inside dimension (ID) measurements
  • Ratchet-stop mechanism helps provide uniform pressure for precise, repeatable measurements
  • Satin chrome finish helps resist rust and reduce glare
  • High-grade tool steel construction for durability

Product Description

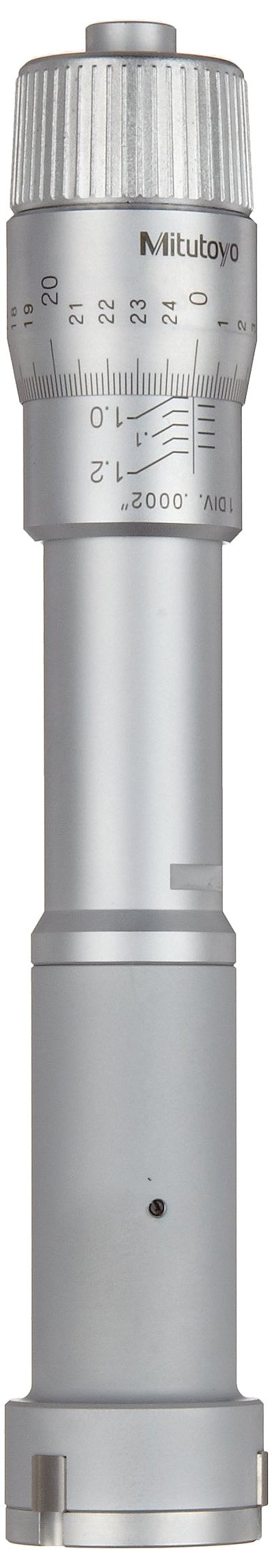

The Mitutoyo 368 series Holtest (Type II) vernier inside micrometer has three-point contacts for self-centering measurement of the inside dimension (ID) of bores, and a vernier scale in inch units for taking precise ID measurements. It also has a ratchet-stop mechanism that helps provide uniform pressure for precise, repeatable measurements.

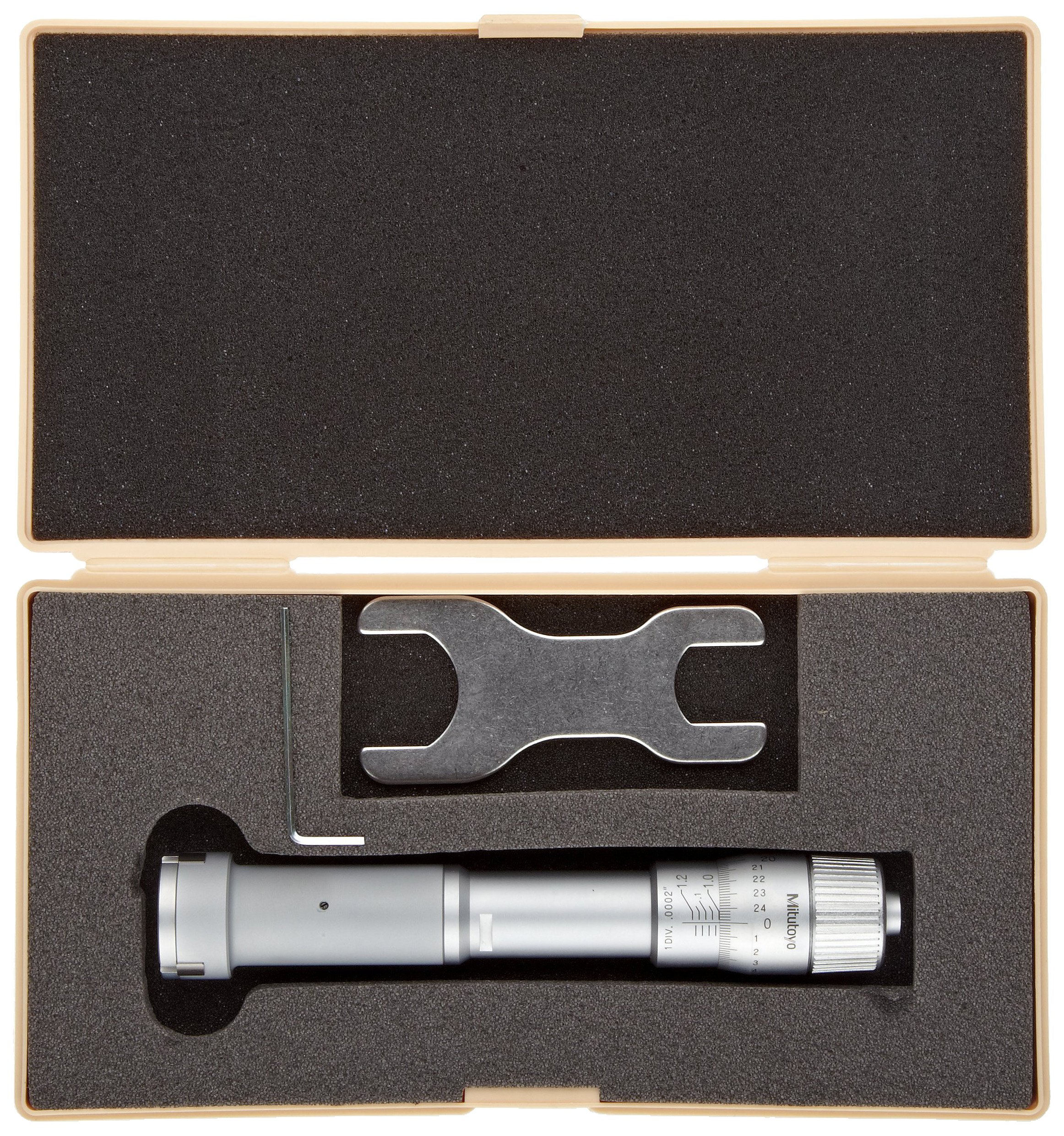

The micrometer is made of high-grade tool steel for durability, and has a satin chrome rust- and glare-resistant finish. The vernier scale is graduated to 0.0002”. The measuring faces are made of hardened steel and the micrometer comes with a fitted case for storage.

Micrometers are precision measuring instruments that use a calibrated screw to measure small distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
