Mitutoyo LCD Point Micrometer, Ratchet Stop, Inch/Metric

Be the first to review this item

Product Specifications
Manufacturer Series Number
Point Micrometers
Specification Met
IP65
Material Type
Carbide
UNSPSC Code
41111601
Brand Name
Mitutoyo
System of Measurement
Inch and Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 29? Order in-stock items in the next 7 hrs 31 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-3 of 3
Range Accuracy Graduation Specifications Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-3 of 3
2-3"/50.8-76.2mm +/-0.0001" 0.00005"/0.001mm 15 Deg. Point 342-353 B003UATHQU yes $485.08 Buy Options
3-4"/76.2-101.6mm +/-0.00015" 0.00005"/0.001mm 30 Deg. Point 342-364 B003UATHUG yes $571.00 Buy Options
3-4"/76.2-101.6mm +/-0.00015" 0.00005"/0.001mm 15 Deg. Point 342-354 B003UATHS8 yes $515.67 Buy Options

Key Features

  • Pointed spindle and anvil for measuring grooves and keyways
  • Digital, single-value readout LCD displays in metric units for readability
  • Statistical Process Control (SPC) output transmits results to a computer or external device through an interface cable (sold separately)
  • Ratchet-stop mechanism helps provide uniform pressure for precise, repeatable measurements
  • Rated IP65 for resistance to penetration by dust and liquid up to the force of a low-pressure water jet

Product Description

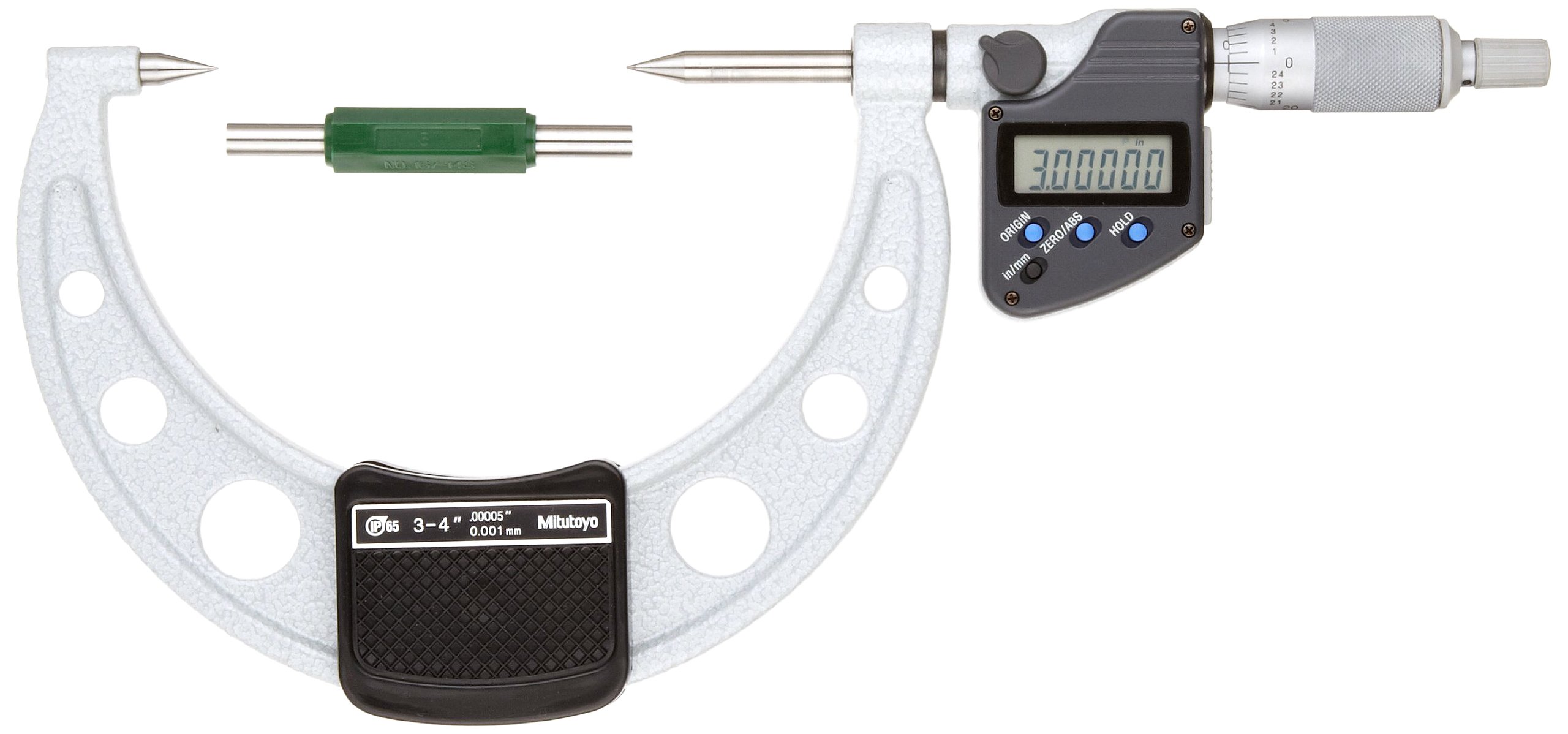

The Mitutoyo 342 series LCD point micrometer has a pointed spindle and anvil for measuring grooves and keyways, and an LCD digital readout that displays in inch and metric units with resolution to 0.00005” (0.001mm) for outside diameter (OD) measurement. It has a ratchet-stop mechanism for uniform pressure during adjustment, and Statistical Process Control (SPC) data output to transmit results to a computer or external device. The output jack transmits SPC results to a computer through an interface cable (sold separately).

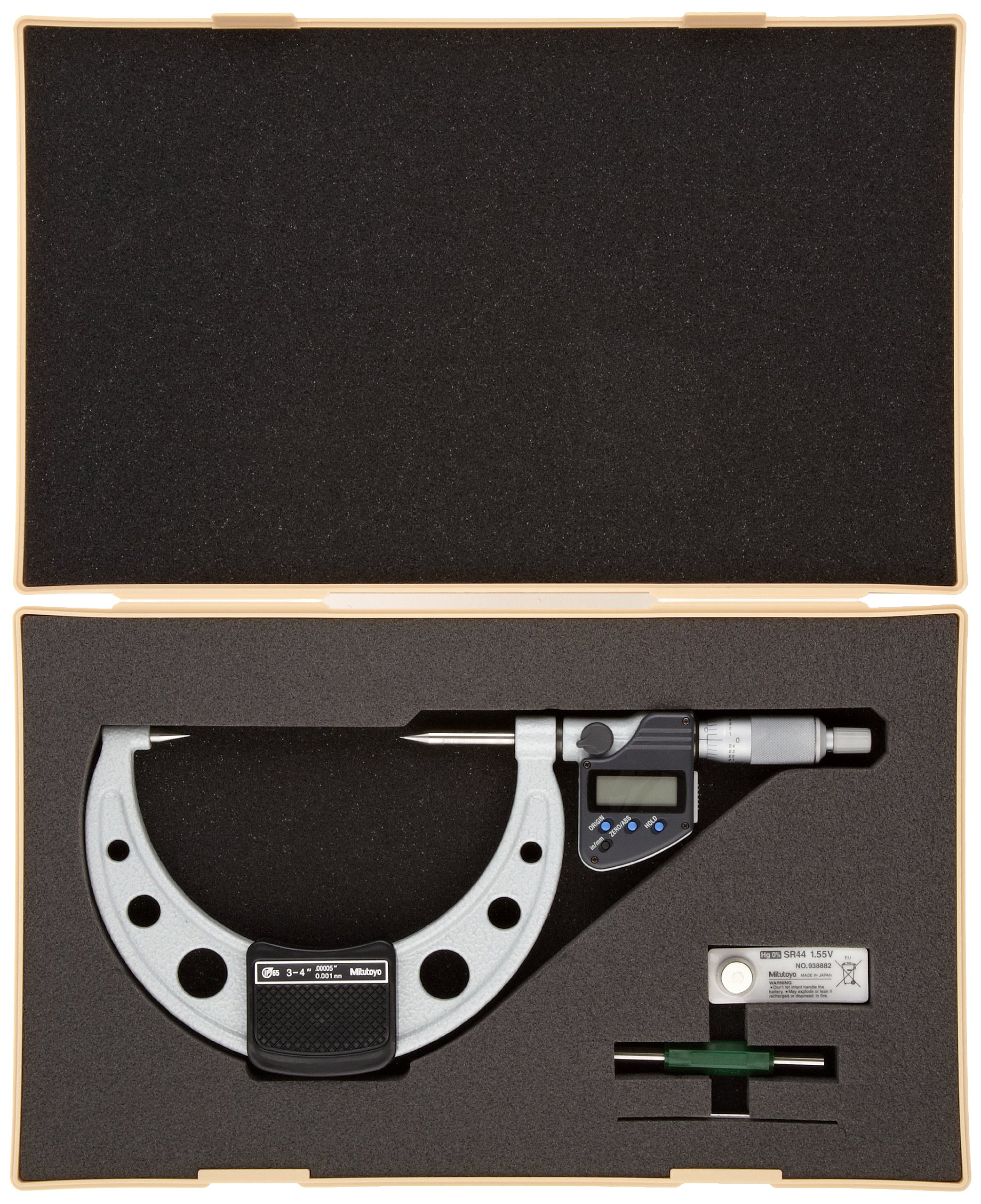

The micrometer’s electronic microprocessor can hold measurements at any position, convert to absolute value, set a temporary zero position, and return to a true zero reading. The micrometer has an Ingress Protection 65 (IP65) rating, which means that components are resistant to penetration by dust and debris, and resistant to penetration by liquids and coolant up to the force of a low-pressure (to 30 kilonewtons/meter-squared) water jet. The frame is made of high-grade tool steel, and the spindle and anvil have carbide-tipped faces. A spindle lock helps provide secure locking of the measurement position. The unit comes with an SR44 battery and a fitted plastic case.

Micrometers are precision measuring instruments that use a calibrated screw to measure small distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
