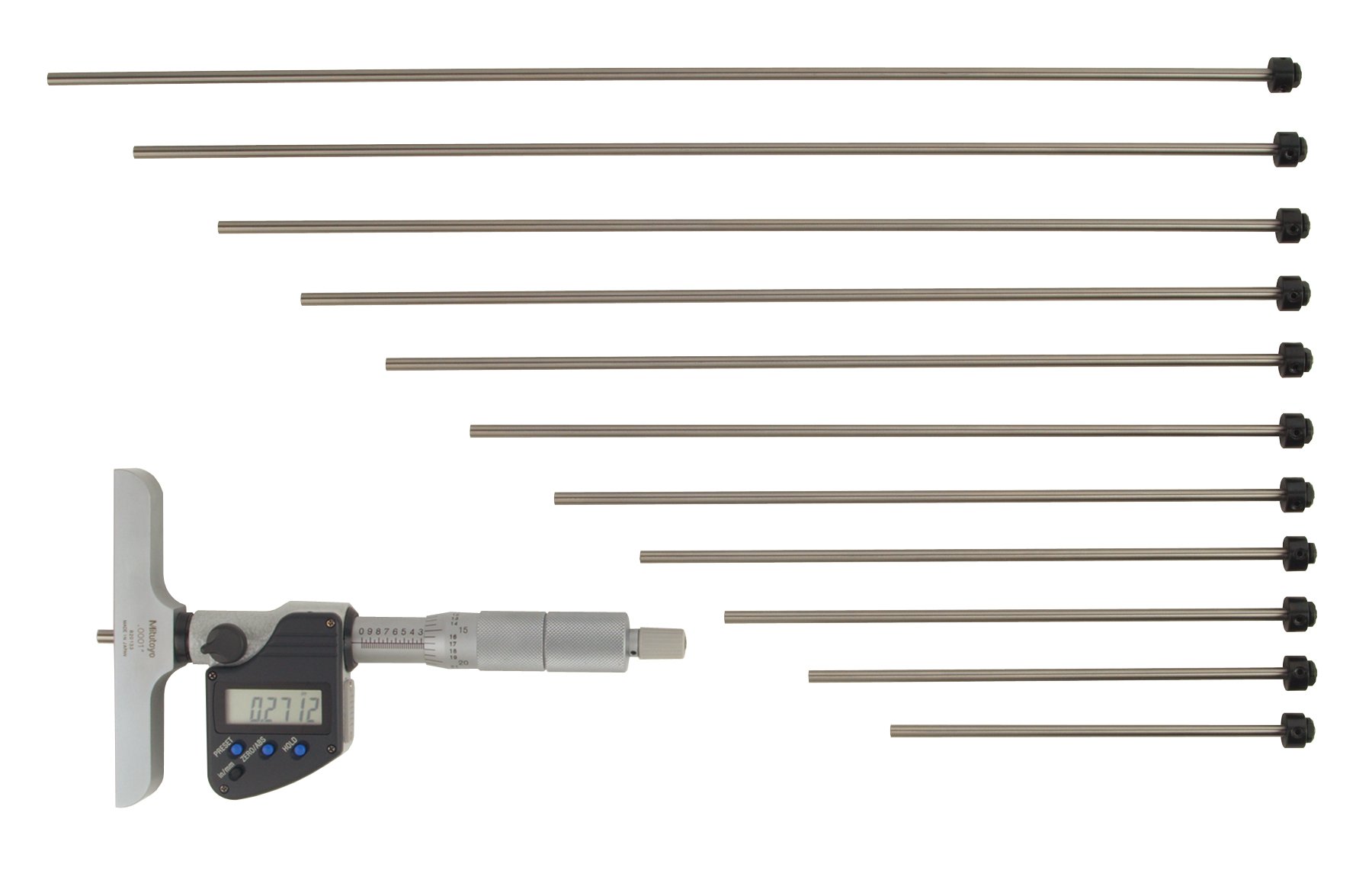

Mitutoyo 329-351-10 LCD Depth Micrometer, Interchangeable Rod Type, 4" Base, With Output, 0-12"/0-304.8mm Range, 0.00005"/0.001mm Resolution

Be the first to review this item

ASIN B002SG7QGU

Specifications for this item
Number of Items
1
Inside Depth
19.6  inches
Range
0-12"/0-304.8mm
Part Number
329-351-10
Resolution
0.0001"/0.001mm
UPC
603908516538 , 094706094180
Item Weight
3.61 pounds
Brand Name
Mitutoyo
EAN
4946368580784 , 0603908516538 , 0094706094180
Manufacturer Series Number
Depth Micrometer
Measurement Accuracy
+/-0.00024"
Maximum Measurement
0-12"/0-304.8mm
UNSPSC Code
41112401
Style Name
LCD
System of Measurement
Inch and Metric

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Measurement range of 0 to 12" (0 to 304.8mm), and resolution of 0.00005" (0.001mm)
  • LCD screen displays in U.S./metric
  • Includes 12 interchangeable measuring rods that can be adjusted in 1" (25mm) increments
  • Origin-set, preset, zero, data hold, and data output functions for flexibility
  • Satin chrome finish on the body for readability and hardened steel base for durability and accuracy

Package Details

Shipping Weight: 3.85 pounds
Package Size: 19.1 x 10.6 x 2 inches

Product Description

The Mitutoyo 329-351-10 LCD Depth Micrometer, Interchangeable Rod Type, has a range of 0 to 12" (0 to 304.8mm), and a resolution (or smallest graduation interval) of 0.00005" (0.001mm). (See the product catalog for information on accuracy.) The LCD interface displays in both inches and metric. The gauge includes six measuring rods that can be adjusted in 1" (25mm) increments. The display has origin-set, preset, zero, data hold, and data output functions for the users' convenience. It has a satin chrome finish on the body for readability. The base is 4" (101.6mm) long and is made of hardened steel for durability and accuracy. This gauge has a ratchet stop and measuring rod clamp for precise measurements. The gauge conforms to European Conformity (CE) marking. The unit includes an SR44 battery and a protective plastic case, and the shipping weight is 3.61 lb. Depth gauges are typically used in manufacturing, machining, and mechanical engineering.

Depth gauges are precision measuring instruments used to determine the depth of any shape that has a step, groove, or slot. These gauges often take the form of sliders that travel on a measuring beam or rods, are moved to position by hand, and then adjusted with a calibrated screw. The base of the gauge rests at the top of the shape whose recession is to be measured, while the beam or rods extend to the bottom of the recession to determine the measurement. Gauge position is read from a graduated scale, dial, counters, or an electronic display.

Mitutoyo manufactures precision measuring tools, metrology equipment, and related systems. The company, founded in Tokyo in 1934, formed Mitutoyo America Corporation in 1963 with headquarters in Aurora, IL.

What's in the Box?
  • Mitutoyo 329-351-10 depth micrometer
  • (12) Measuring rods
  • SR44 battery
  • Spanner
  • Plastic case
  • Instructions
