Mitutoyo 192-133 Dial Height Gauge, 0-1000mm Range, 0.01mm Resolution, +/-0.07mm Accuracy, 17.0kg Mass

Be the first to review this item

ASIN B003MUO0CY

Specifications for this item
Number of Items
1
Range
0-1000mm
Part Number
192-133
Brand Name
Mitutoyo
Gradient Spacing
0.01  millimeters
EAN
4946368049106
Maximum Measurement
0-1000mm
UNSPSC Code
41111614
Style Name
Dial
System of Measurement
Metric

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Measurement range of 0 - 1000 mm, and precise to 0.01 mm
  • Dial display with resettable up and down counters to help provide precise measurements
  • Hand-operated feed wheel for measurement ease
  • Carbide-tipped scriber for hardness and to help prolong life
  • The grip-base helps hold the unit in position by hand

Package Details

Shipping Weight: 50 pounds
Package Size: 58 x 17.5 x 11.5 inches

Product Description

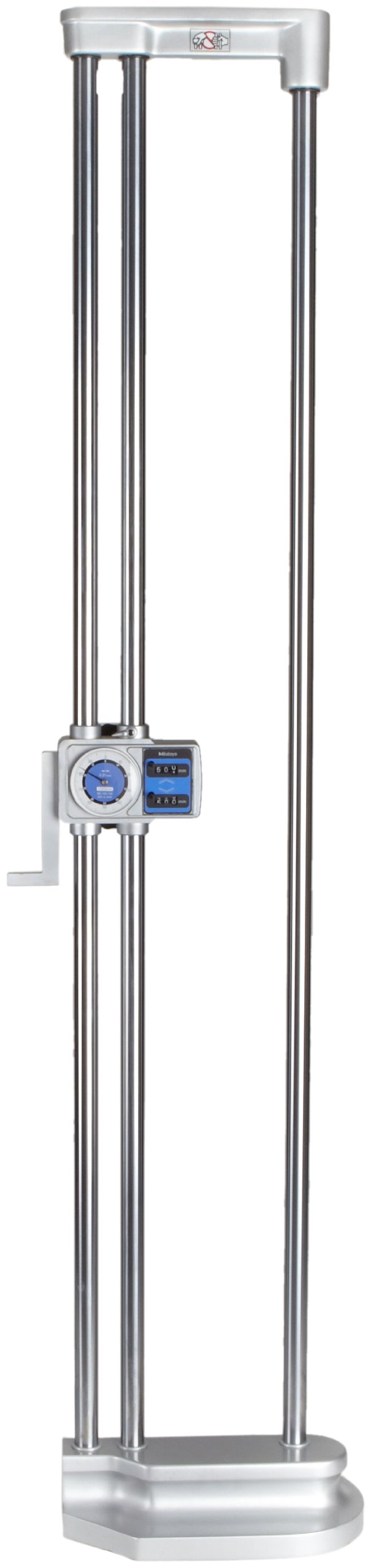

The Mitutoyo 192-133 dial height gauge has a measurement range of 0 - 1000 mm, and is precise to 0.01 mm, with + or - 0.07 mm of accuracy.

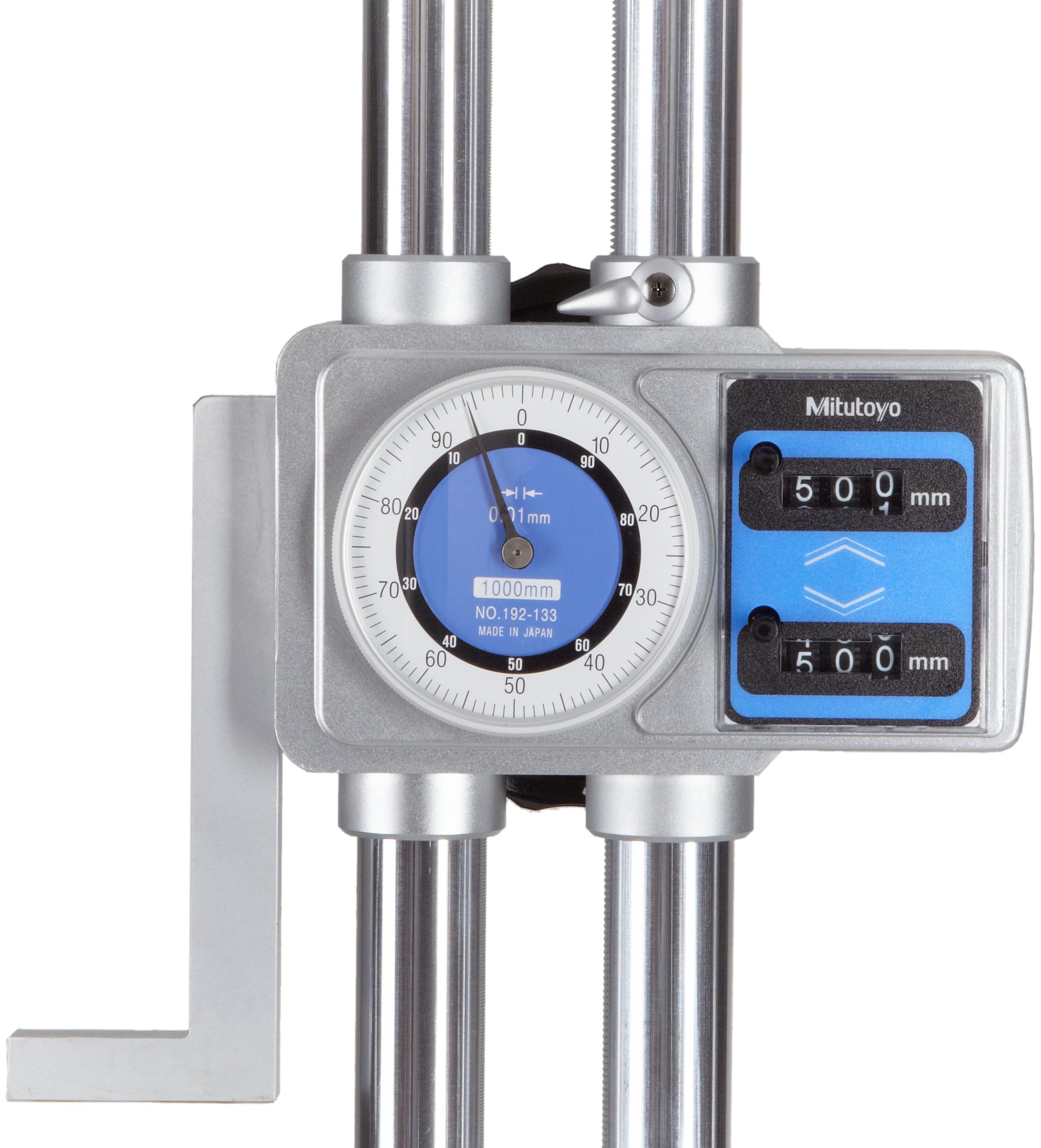

This height gauge has dual, resettable counters that additionally measure up and down distance changes, in 0.1 mm increments. A hand-operated feed wheel raises and lowers the gauge on the parallel beams, for ease of measurement. The scriber, used to mark a position on a workpiece, is 32 mm x 80 mm (H x L), carbide-tipped for hardness and to help prolong life, and is held to the gauge by a screw clamp for fastening ease. The grip-base helps hold the unit in position by hand. The height gauge weighs 37.48 lbs/17.0 kg.

Height gauges, also called gages, are precision measuring instruments that travel on a vertical column (also called the beam) to measure and/or mark the vertical distance from the base of an object in fine units. The vertical position of the gauge and its attached pointer are changed by turning a calibrated screw, or one or more feed wheels. Recorded rotations are read from a scale, a dial, counters, and/or an electronic display. A screw clamp holds the pointer to the gauge. The pointer is typically sharpened to act as a scriber, and can be used to mark a position on a workpiece by scratching its surface. On compatible units, the scriber may be replaced by an electronic touch-signal probe. Height gauges are typically used in manufacturing, machining, and mechanical engineering.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
