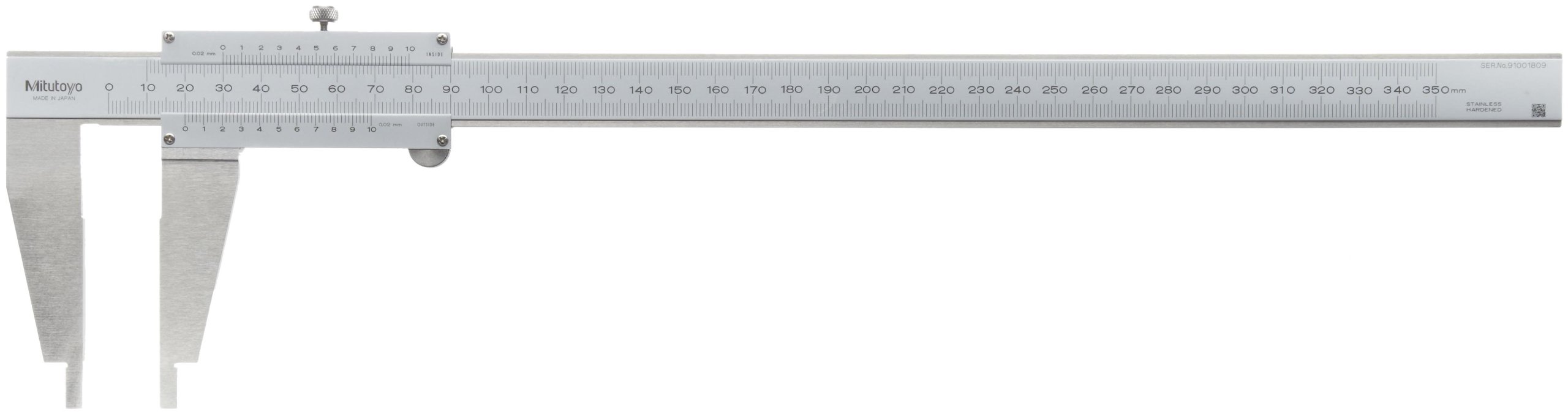

Mitutoyo 160-180 Vernier Calipers, Steel, for Inside Measurements, Metric, 0"/0mm-300mm Range, +/-0.04mm Accuracy, 0.02mm Resolution, 75mm Jaw Depth

Be the first to review this item

ASIN B003UATQG6

Specifications for this item
Range
300mm
Part Number
160-180
Resolution
0.02mm
Item Depth
75mm
Brand Name
Mitutoyo
Measurement Accuracy
+/-0.04mm
Maximum Measurement
300mm
Special Features
Fine-adjustment
Number of Items
1
Specific Uses For Product
Inside
Material Type
Steel
Manufacturer Series Number
160 Series
EAN
4946368024615
Tip Description
Nib style
UNSPSC Code
41111621
System of Measurement
Metric
Overall Length
445  millimeters

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 21? Order in-stock items in the next 4 hrs 49 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Dual reading scales on vernier scale, for measurement flexibility
  • Rounded nib-style jaw faces, for accurate ID measurement
  • Inside (ID) and outside (OD) measurements can be directly read from the upper and lower scales
  • Hardened, corrosion-free steel construction with satin chrome finish, for protection of caliper and ease of reading
  • Parallax-free vernier scale for easy and positive measurements

Package Details

Shipping Weight: 1.55 pounds
Package Size: 17.4 x 5.5 x 0.9 inches

Product Description

The Mitutoyo 160-180 vernier caliper performs precise ID measurements to within 10 mm, for applications where the highest accuracy is required, especially in scientific research and in industries where parts must fit exactly. This caliper takes inside and outside readings.

The vernier caliper has a fixed (main) scale and a movable (vernier) scale. The vernier scale moves over the main scale rule to give a fractional measurement which is added to the measurement of the main scale to achieve a more accurate result. The main scale may be marked in inches, millimeters, or both. The vernier scale may be marked in inches or millimeters. The 160-180 has a dual vernier scale, with both inch and metric measurements, on the upper and lower edges, respectively. The dual scale enables this caliper to measure a greater diversity of item types. A thumbwheel permits fast measuring, and a rotating screw controls the caliper’s movement. Model 160-180 has a parallax-free vernier scale for easy and positive measurements.

The 160-180 has a dual vernier scale, with an Upper Scale measuring in inches and a Lower Scale measuring in millimeters. The scales are graduated in 0.02 mm and raised to slide easily and protect the graduation markings. A clamping screw on the upper scale rotates to control scale movement and locks to hold the sliding jaw’s position.

The caliper weighs 350g and is made of hardened, corrosion-free steel construction with a satin chrome finish. It has two-way measurement capability: outer diameter (OD) and inner diameter (ID), with round jaw measuring faces accurate ID measurements. No depth bar. It has a Main Slide Length of 445 mm, a Jaw Depth of 75 mm, an Jaw Tip Length of 12 mm, and a Beam Width of 20 mm. Range is 0 – 300 mm/10 – 300 mm is and 0.02 mm, and Accuracy is rated at + or - 0.04 mm, which meets Federal Accuracy Specifications GGG-C-111B.

Calipers measure the distance between two opposing sides of an object. They make inside, outside, depth, or step measurements, according to their type. Calipers are commonly used in architecture, metalworking, mechanical engineering, machining, manufacturing, carpentry, and medicine. The simplest calipers have two legs to mark the two points and require a ruler to take the measurement. More complex calipers use two sets of jaws instead of legs and have up to two graduated scales. Vernier, dial, and digital calipers all give direct and accurate readings and are functionally identical, having a calibrated scale with a fixed jaw, and another jaw with a movable pointer that slides along the scale. The vernier caliper has a scale sliding parallel to the main scale for an additional, fractional reading to improve measurement precision. The dial caliper has a circular dial with a pointer on a toothed gear rack replacing the second vernier scale. As with the vernier, this second measurement is added to the reading from the main scale to obtain the result. The dial caliper is used for measuring size differential between two objects, as well. The digital caliper takes the same sort of differential measurements as the dial caliper by zeroing the display at any point along the slide, with an LCD (replacing the dial) that displays a single, easily read value in both English and metric units. Some digital calipers can hold data readings between measurements and send them to data collection devices.

Founded in Tokyo in 1934, Mitutoyo is a leader in the metrology field, producing high-quality measurement products, including mechanical, dimensional gauging products, focusing on micrometers, calipers, indicators, and other measurement tools, as well as output gauges, interfaces, data collectors, and analysis software. Mitutoyo formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, Illinois, with additional locations in the U.S. and Canada.

The Mitutoyo 160-180 is supplied in a fitted plastic case.
