Mitutoyo Vernier Inside Micrometer, Caliper Type, Metric

Be the first to review this item

Product Specifications
Manufacturer Series Number
Series 145
Style Name
Vernier
UNSPSC Code
41111601
Brand Name
Mitutoyo
System of Measurement
Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Jul 23? Order in-stock items in the next 7 hrs 11 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-12 of 12
Range Accuracy Graduation Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-12 of 12
5-30mm +/-0.005mm 0.01mm 145-185 B000TG8MAU 2 $238.00 Buy Options
25-50mm +/-0.006mm 0.01mm 145-186 B000TGF6CC 2 $255.00 Buy Options
50-75mm +/-0.007mm 0.01mm 145-187 B000TGAJTW 2 $260.02 Buy Options
75-100mm +/-0.008mm 0.01mm 145-188 B001D7RJ9O 2 $285.00 Buy Options
100-125mm +/-0.009mm 0.01mm 145-189 B000TG8MAA 2 $302.00 Buy Options
125-150mm +/-0.009mm 0.01mm 145-190 B003MUNAFW 2 $330.00 Buy Options
150-175mm +/-0.01mm 0.01mm 145-191 B003MUNXIQ 1 $374.00 Buy Options
175-200mm +/-0.01mm 0.01mm 145-192 B003MURXW8 1 $399.00 Buy Options
200-225mm +/-0.011mm 0.01mm 145-217 B003UATEBI 1 $447.00 Buy Options
225-250mm +/-0.011mm 0.01mm 145-218 B003UATEC2 1 $484.00 Buy Options
250-275mm +/-0.012mm 0.01mm 145-219 B003UATECM 1 $522.00 Buy Options
275-300mm +/-0.012mm 0.01mm 145-220 B003UATECW 1 $563.00 Buy Options

Key Features

  • Caliper-type jaws for making inside dimension (ID) measurements
  • Vernier scale in metric units for taking precise inside dimension (ID) measurements
  • Locking clamp to hold measurements in place
  • Satin chrome finish helps resist rust and reduce glare
  • Carbide-tipped measuring faces helps provide wear resistance

Product Description

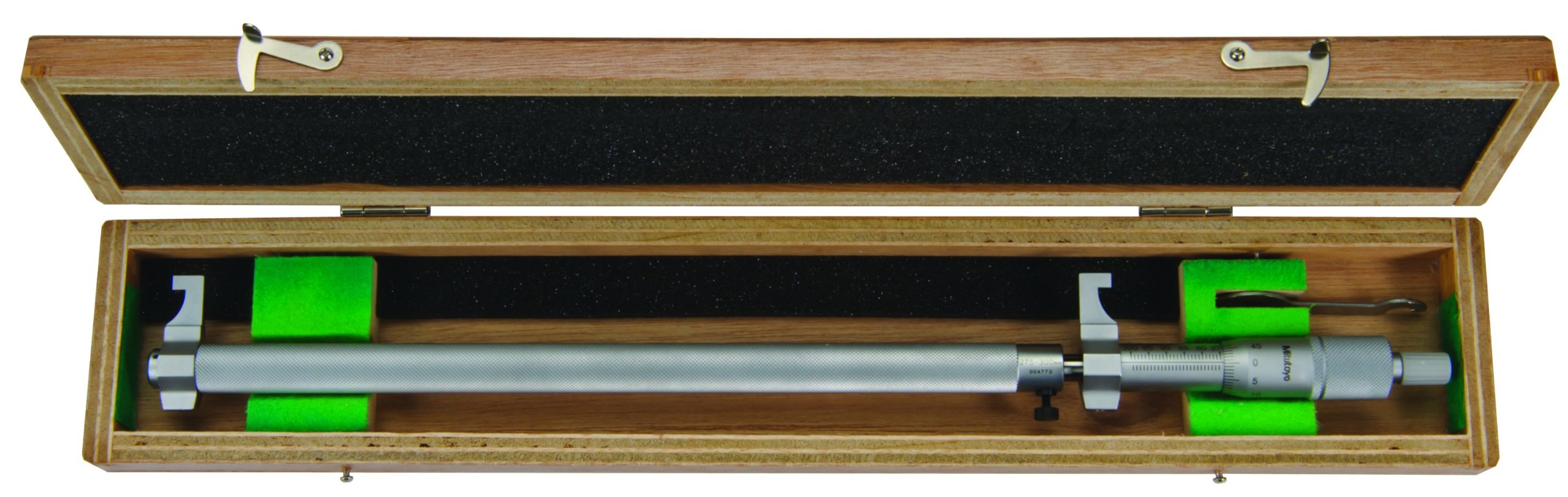

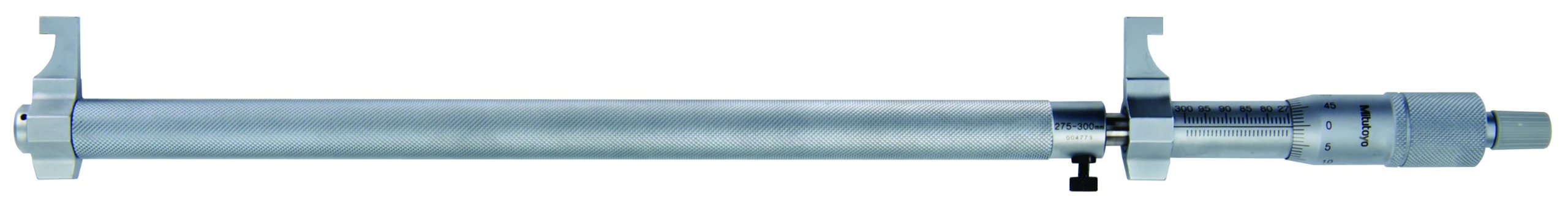

The 145 series vernier inside micrometer has caliper-type jaws and a vernier scale in metric units for making precise inside dimension (ID) measurements. The micrometer is made of high-grade tool steel for durability and has a satin chrome rust- and glare-resistant finish. The measuring faces are carbide-tipped for wear resistance. The vernier scale is graduated to 0.01mm. A locking clamp helps hold measurements in place. The micrometer comes with a fitted case for storage.

Micrometers are precision measuring instruments that use a calibrated screw to measure small distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
