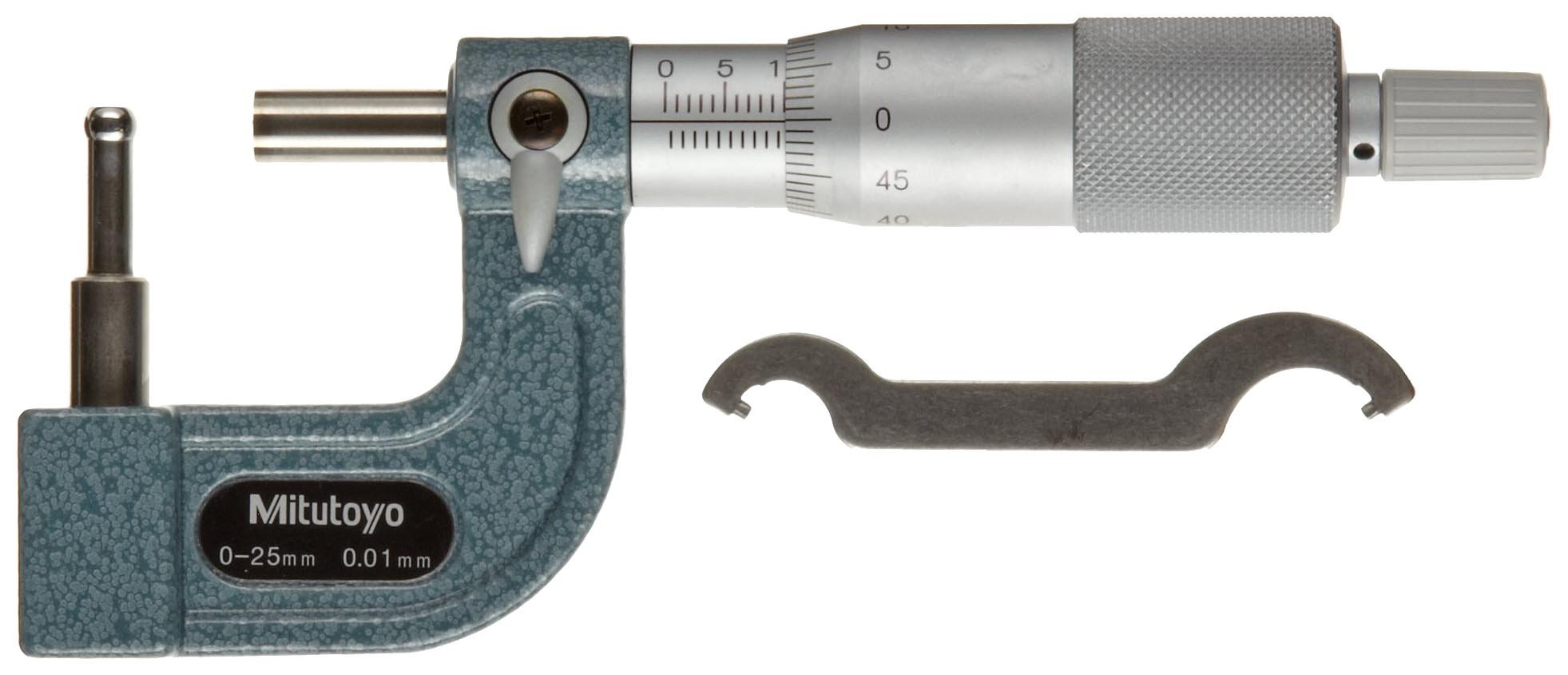

Mitutoyo 115-315 Tube Micrometer, Cylindrical Anvil, Ratchet Stop, 0-25mm Range, 0.01mm Graduation, +/-0.003mm Accuracy, 4.8mm Dia. Spherical Tip

Be the first to review this item

ASIN B003UATCH4

Product Specifications
Mfr Part #
115-315
Range
0-25mm
Gradient Spacing
0.01  millimeters
Accuracy
+/-0.003mm
EAN
4946368011189
Graduation
0.01mm
Number of Items
1
Range
0-25mm
Specifications
4.8mm Dia. Spherical Tip
Specification for this product family (See all  products)
Manufacturer Series Number
Tube Micrometers
Material Type
Carbide
Style Name
Vernier
Brand Name
Mitutoyo
System of Measurement
Metric
Price:
$139.00
Quantity:

In Stock (2)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 18? Order in-stock items in the next 21 hrs 54 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Vertical anvil (pin, spherical, or cylindrical) for measuring tubing wall thickness
  • Vernier scale in metric units for taking precise outside diameter (OD) measurements
  • Ratchet-stop mechanism helps provide uniform pressure for precise, repeatable measurements
  • Baked enamel finish for protection and durability of frame
  • Carbide facing on spindle and anvil provides wear resistance

Package Details

Shipping Weight: 0.5 pounds
Package Size: 5.4 x 2.6 x 1 inches

Product Description

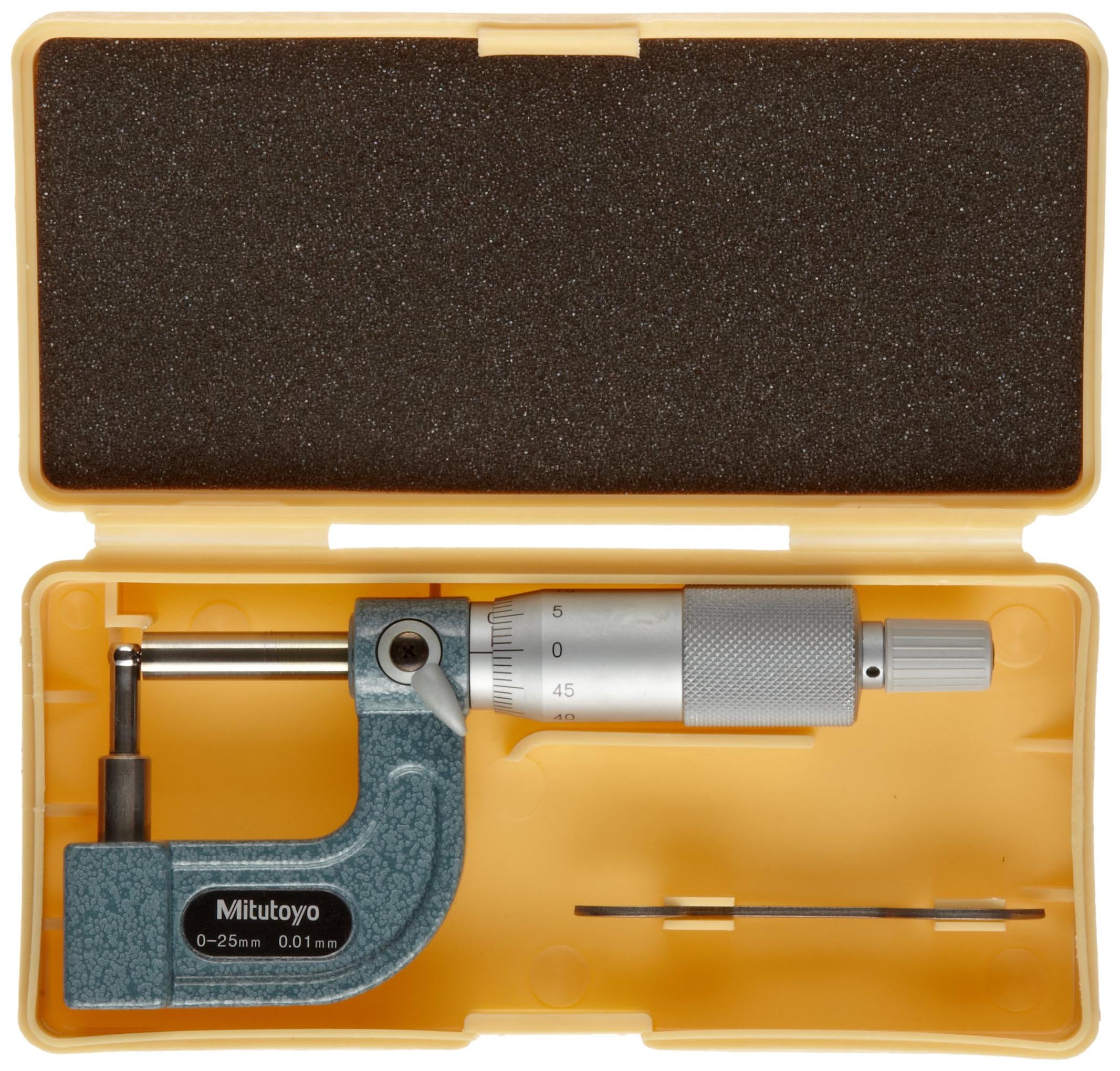

The Mitutoyo 111 series tube micrometer has a vertical anvil for measuring tubing wall thickness, and a vernier scale in metric units for taking precise outside diameter (OD) measurements. It also has a ratchet-stop mechanism to help provide uniform pressure for precise, repeatable measurement during adjustment. The anvil type may be pin, spherical, or cylindrical, depending on the model. The micrometer’s frame has a baked enamel finish for protection and durability. The vernier scale on the thimble and sleeve is graduated to 0.01mm with a satin chrome rust- and glare-resistant finish. The spindle and anvil are carbide-tipped for wear resistance. A spindle lock helps provide secure locking of the measurement position. The micrometer comes with a plastic case for storage.

Micrometers are precision measuring instruments that use a calibrated screw to measure small distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
