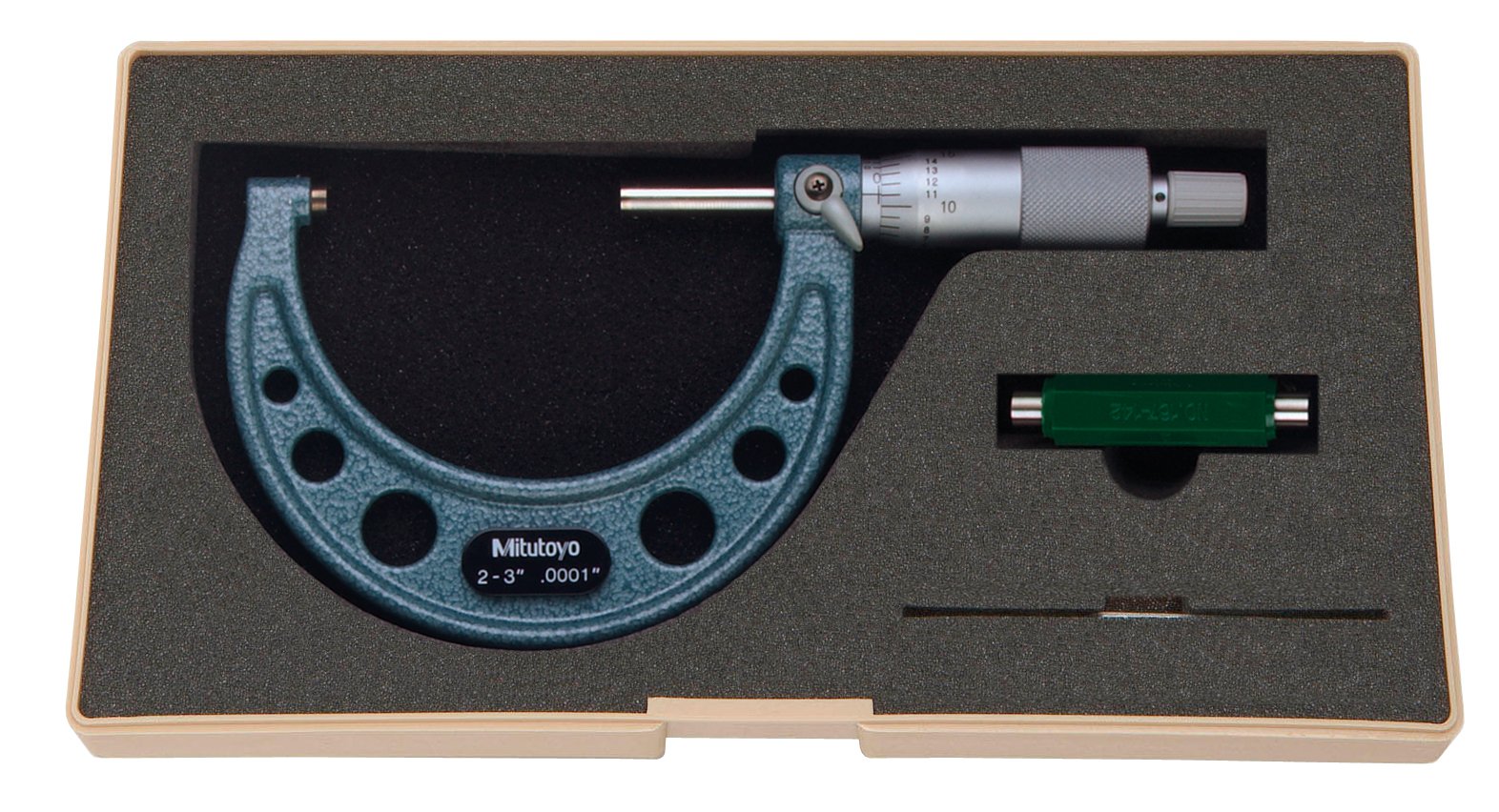

Mitutoyo 103-217 Outside Micrometer, Baked-enamel Finish, Ratchet Stop, 2-3" Range, 0.0001" Graduation, +/-0.0001" Accuracy

Be the first to review this item

ASIN B0006J42CW

Product Specifications
Part Number
103-217
Maximum Measurement
2-3"
UPC
603908021377 , 603908042556
EAN
0603908042556 , 0603908021377 , 4946368005416
Inside Depth
7.5  inches
Item Weight
0.69 pounds
Measurement Accuracy
+/-0.0001"
Number of Items
1
Range
2-3"
Resolution
0.0001"
Special Features
-
Specification for this product family (See all  products)
Manufacturer Series Number
Outside Micrometer
Material Type
Carbide
Style Name
Vernier
UNSPSC Code
41111601
Brand Name
Mitutoyo
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Jul 24? Order in-stock items in the next 1 hr and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Vernier scale in inch units for taking precise outside diameter (OD) measurements
  • Ratchet-stop mechanism helps provide uniform pressure for precise, repeatable measurements
  • Baked enamel finish for protection and durability of frame
  • Satin chrome finish on thimble and sleeve helps resist rust and reduce glare
  • Carbide facing on spindle and anvil provides wear resistance

Package Details

Shipping Weight: 0.9 pounds
Package Size: 7.5 x 4 x 1.5 inches

Product Description

The Mitutoyo 103 series outside micrometer has a vernier scale in inch units for taking precise outside diameter (OD) measurements, and a ratchet-stop mechanism for uniform pressure during adjustment. The micrometer’s frame has a baked enamel finish for protection and durability. The vernier scale on the thimble and sleeve is graduated to 0.001”, with a satin chrome rust- and glare-resistant finish. The spindle and anvil have flat measuring faces and are carbide-tipped for wear resistance. A spindle lock helps provide secure locking of the measurement position.

Micrometers are precision measuring instruments that use a calibrated screw to measure small distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
