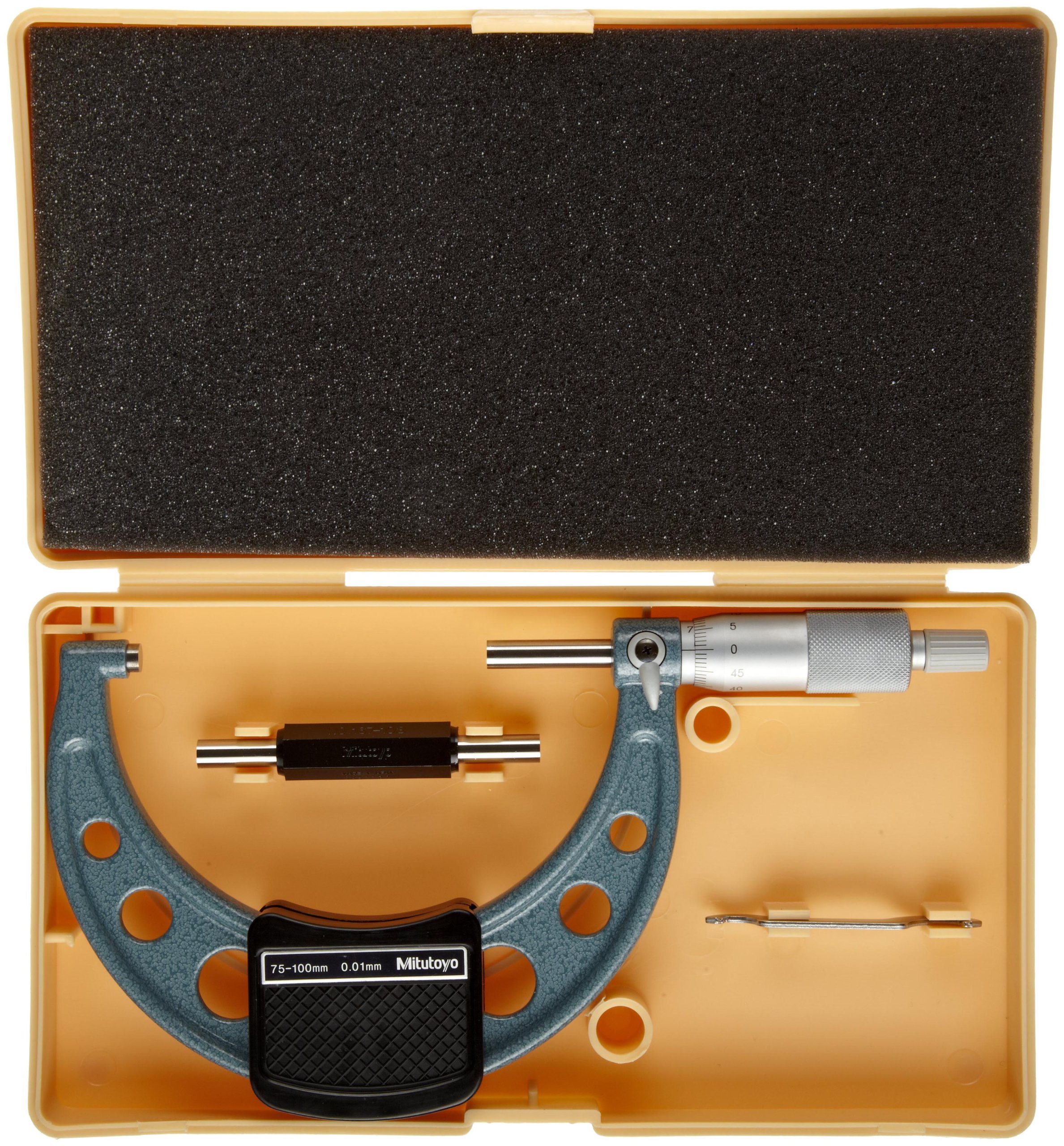

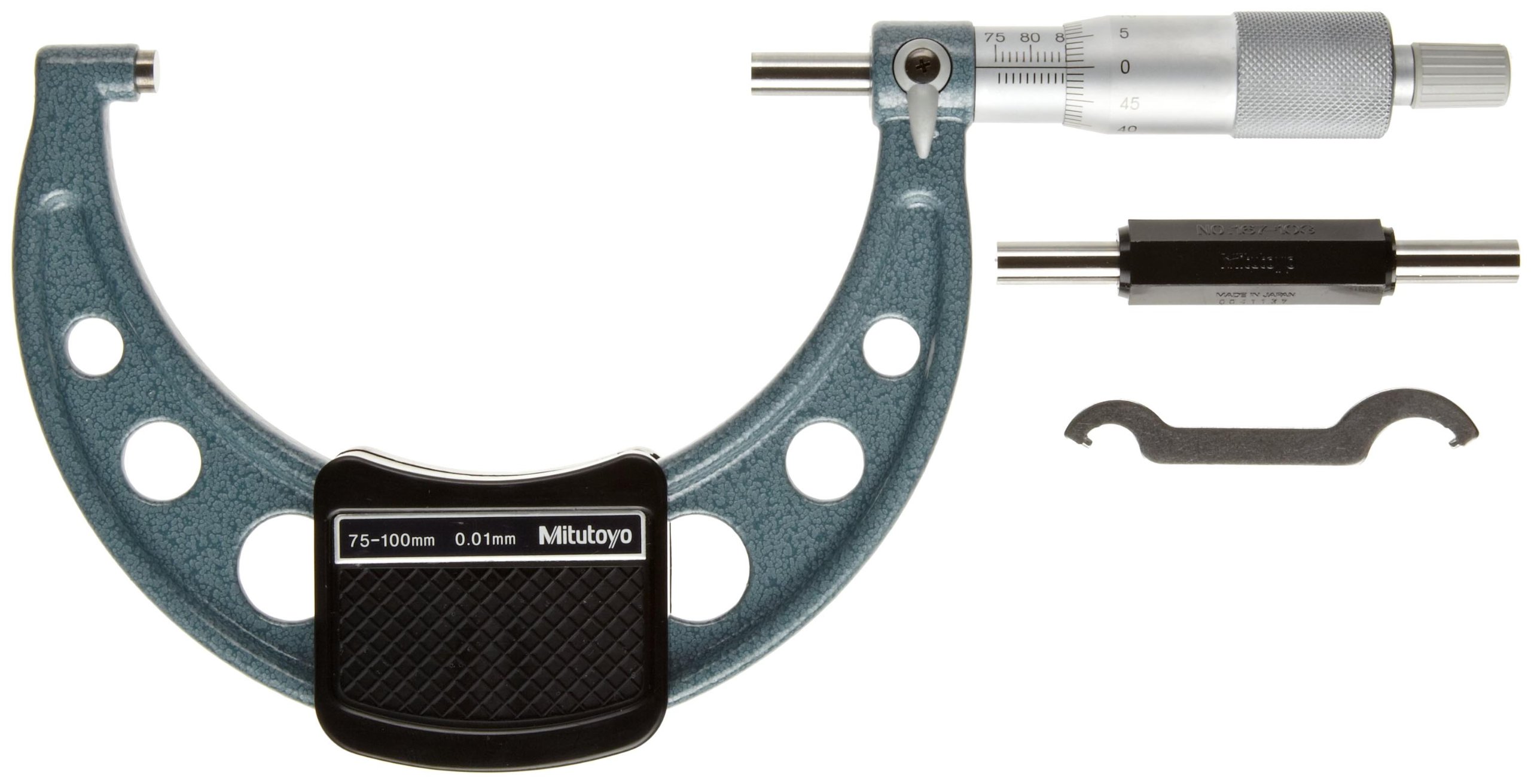

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Mitutoyo Outside Micrometer, Baked-enamel Finish, Ratchet Stop, Metric

Be the first to review this item

Product Specifications
Manufacturer Series Number
Outside Micrometer
Material Type
Carbide
UNSPSC Code
41111601
Brand Name
Mitutoyo
System of Measurement
Metric

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 1 day 4 hrs 44 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 20
Range Resolution Measurement accuracy Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-20 of 20
0-25mm 0.001mm +/-0.002mm 103-129 B003UATB70 yes $118.00 Buy Options
0-25mm 0.01mm +/-0.002mm 103-137 B0006J421I yes $76.85 Buy Options
100-125mm 0.01mm +/-0.003mm 103-141-10 B003B84SHE yes $165.00 Buy Options
125-150mm 0.01mm +/-0.003mm 103-142-10 B003B82OBQ yes $189.47 Buy Options
150-175mm 0.01mm +/-0.004mm 103-143-10 B003B82OES yes $225.00 Buy Options
175-200mm 0.01mm +/-0.004mm 103-144-10 B003B88X0M yes $242.00 Buy Options
225-250mm 0.01mm +/-0.005mm 103-146-10 B003BAY91M yes $275.00 Buy Options
25-50mm 0.001mm +/-0.002mm 103-130 B003UATB7A yes $122.00 Buy Options
25-50mm 0.01mm +/-0.002mm 103-138 B000TGF226 yes $116.48 Buy Options
250-275mm 0.01mm +/-0.005mm 103-147-10 B003BB4CRM yes $285.00 Buy Options
275-300mm 0.01mm +/-0.005mm 103-148-10 B003BAY91W yes $306.00 Buy Options
325-350mm 0.01mm +/-0.006mm 103-150 B003MUN5OS yes $347.98 Buy Options
350-375mm 0.01mm +/-0.006mm 103-151 B003MUQDOM yes $202.28 Buy Options
375-400mm 0.01mm +/-0.007mm 103-152 B001D7NWI6 yes $487.00 Buy Options
400-425mm 0.01mm +/-0.007mm 103-153 B003MUQG3A yes $424.76 Buy Options
425-450mm 0.01mm +/-0.007mm 103-154 B003MUOHWM yes $457.57 Buy Options
450-475mm 0.01mm +/-0.008mm 103-155 B003MUJ7W2 yes $505.14 Buy Options
475-500mm 0.01mm +/-0.008mm 103-156 B003MUPW5I yes $528.32 Buy Options
50-75mm 0.01mm +/-0.002mm 103-139-10 B003UATB84 yes $127.92 Buy Options
75-100mm 0.01mm +/-0.003mm 103-140-10 B003UATB8E yes $148.55 Buy Options

Key Features

  • Vernier scale in metric units for taking precise outside diameter (OD) measurements
  • Ratchet-stop mechanism helps provide uniform pressure for precise, repeatable measurements
  • Baked enamel finish for protection and durability of frame
  • Satin chrome finish on thimble and sleeve helps resist rust and reduce glare
  • Carbide facing on spindle and anvil provides wear resistance

Product Description

The Mitutoyo 103 series outside micrometer has a vernier scale in metric units for taking precise outside diameter (OD) measurements, and a ratchet-stop mechanism for uniform pressure during adjustment. The micrometer’s frame has a baked enamel finish for protection and durability. The vernier scale on the thimble and sleeve is graduated to 0.01mm, with a satin chrome rust- and glare-resistant finish. The spindle and anvil have flat measuring faces and are carbide-tipped for wear resistance. A spindle lock helps provide secure locking of the measurement position.

Micrometers are precision measuring instruments that use a calibrated screw to measure small distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
