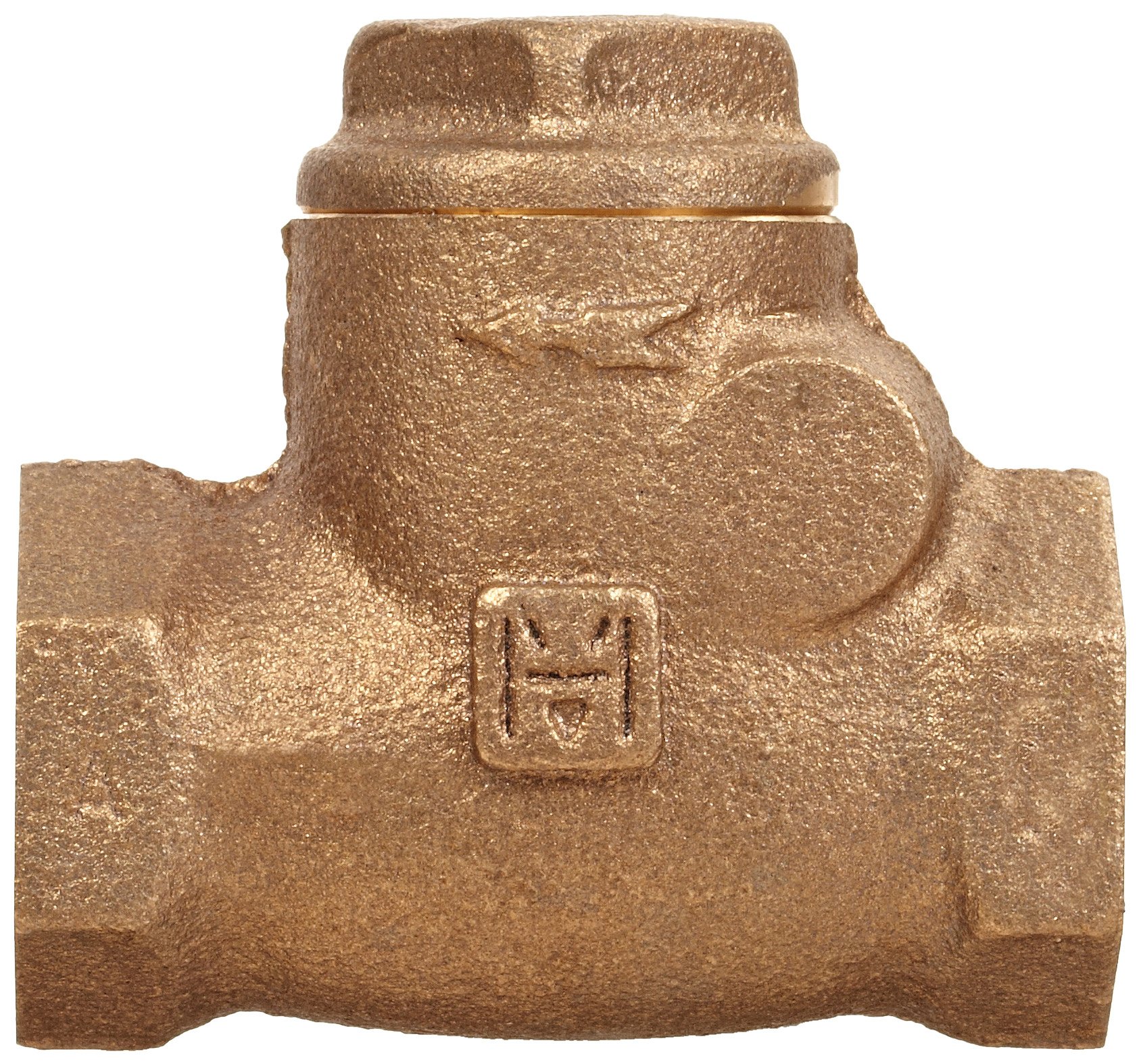

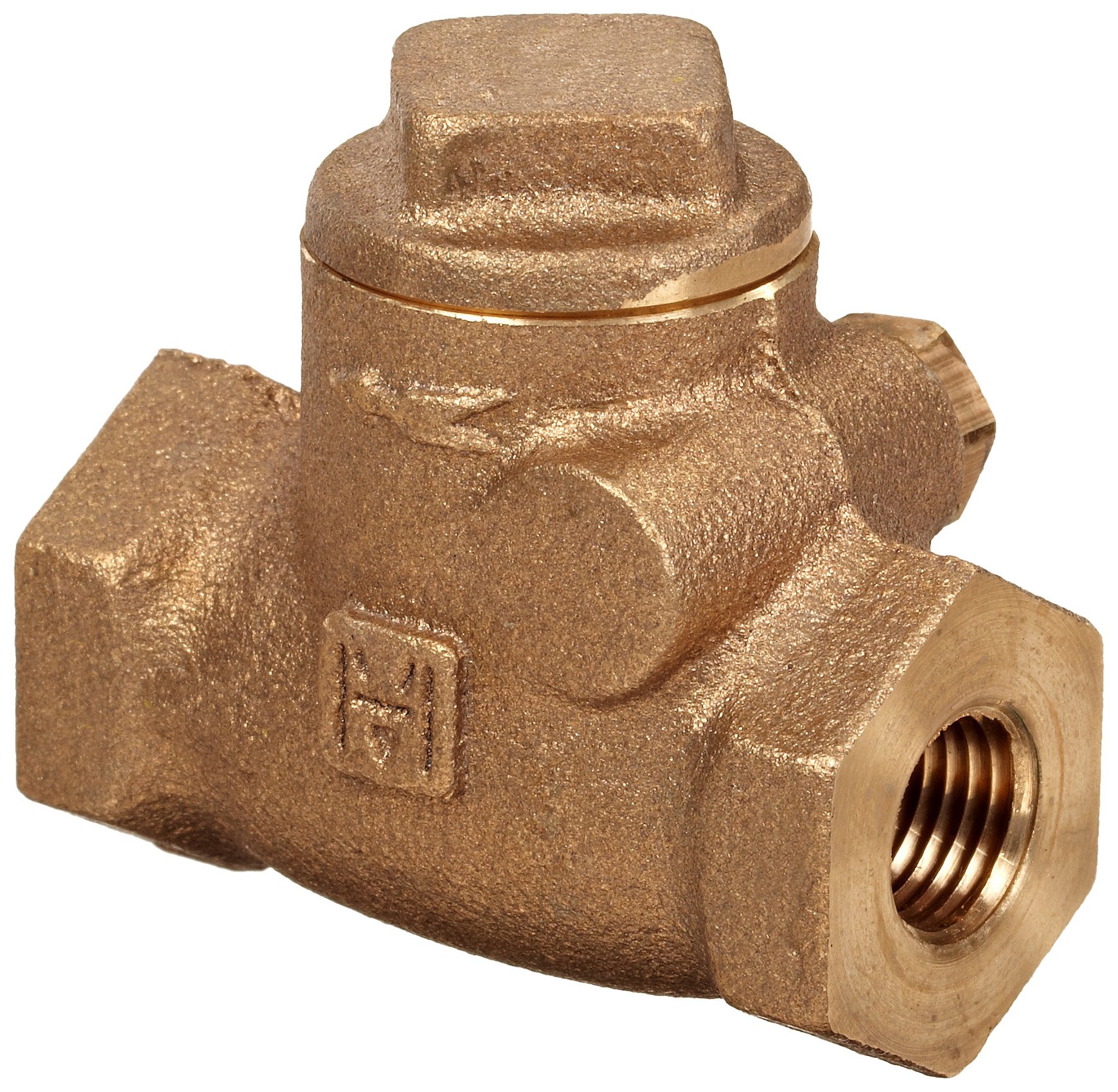

Milwaukee Valve UP509 Series Bronze Swing Check Valve, Potable Water Service, NPT Female

Be the first to review this item

Product Specifications
Manufacturer Series Number
UP509 Series
Specification Met
MSS SP-80 , AB 1953 , S 152
Material Type
Bronze
Maximum Pressure
300  PSI
Style Name
Threaded
Connector Type
NPT Female
Structure Description
Swing
Brand Name
Milwaukee Valve
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 17? Order in-stock items in the next 17 hrs 46 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Connection Size Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-8 of 8
1/4" 2.13" UP509 - 14 B006BG2T9M 10 $77.50 Buy Options
3/8" 2.13" UP509 - 38 B006BG2UPK 10 $70.54 Buy Options
1/2" 2.31" UP509 - 12 B006BG2SPW 10 $77.52 Buy Options
3/4" 2.63" UP509 - 34 B006BG2U00 6 $89.43 Buy Options
1" 3.25" UP509 - 100 B006BG2VBI 6 $122.38 Buy Options
1-1/4" 3.56" UP509 - 114 B006BG2WNK 4 $164.88 Buy Options
1-1/2" 4" UP509 - 112 B006BG2W44 4 $197.00 Buy Options
2" 4.75" UP509 - 200 B006BG2X3Y 2 $267.34 Buy Options

Key Features

  • Swing check valve suitable for potable water service restricts flow control to one direction, blocking reverse flow
  • Valve body made of ASTM B-584 bronze for strength and corrosion resistance
  • 300 pounds per square inch (gauge) (psig) rating for water, oil, and gas (WOG)
  • Cracking pressure of 0.5 psi
  • Female National Pipe Taper (NPT) threads on both ends for connecting to male threaded pipes

Product Description

The Milwaukee Valve UP509 series bronze swing check valve with female National Pipe Taper (NPT) threads on both ends is suitable for potable water service and is used for restricting fluid flow to one direction. It has a hinged disc that swings onto the seat of the valve to block reverse flow. The valve body is made of American Society of Testing and Materials (ASTM) B-584 bronze for strength and corrosion resistance. This valve has maximum pressure ratings of 300 pounds per square inch (gauge) (psig) for water, oil, and gas (WOG) and a cracking pressure of 0.5 psi. It has female NPT threads on both ends for connecting to male threaded pipes with tighter seals than straight threads. This valve is for use in water lines, processing plants, and agricultural applications and meets standard Manufacturers Standardization Society (MSS) SP-80 for quality assurance. The UP509 was designed in accordance with the requirements of California Assembly Bill 1953, Vermont Senate Bill S.152, and U.S. Senate Bill S3874 which limit the amount of lead in plumbing fixtures that come in contact with water intended for human consumption.

Check valves have two ports and restrict the flow of fluids and other loose materials through a pipe or passageway to one direction. Flow enters through one port and exits through the other, closing when flow reverses or stops. Two common types of check valves are ball cone valves and swing check valves. A ball cone valve utilizes a spring-loaded ball seated against a cone-shaped interior surface to stop the flow of fluid in a forward direction, and a swing check valve has a movable disc on a hinge to block reverse flow. Check valves are rated by their cracking pressure (the minimum upstream pressure required for the valve to operate), and they are used in various water, gas, air, and steam lines.

The Milwaukee Valve Company manufactures manual and actuated valves, controls, and control accessories. The company, founded in 1901, and headquartered in New Berlin, WI, meets International Organization for Standardization (ISO) 9001:2008 and 14001:2004 standards.
