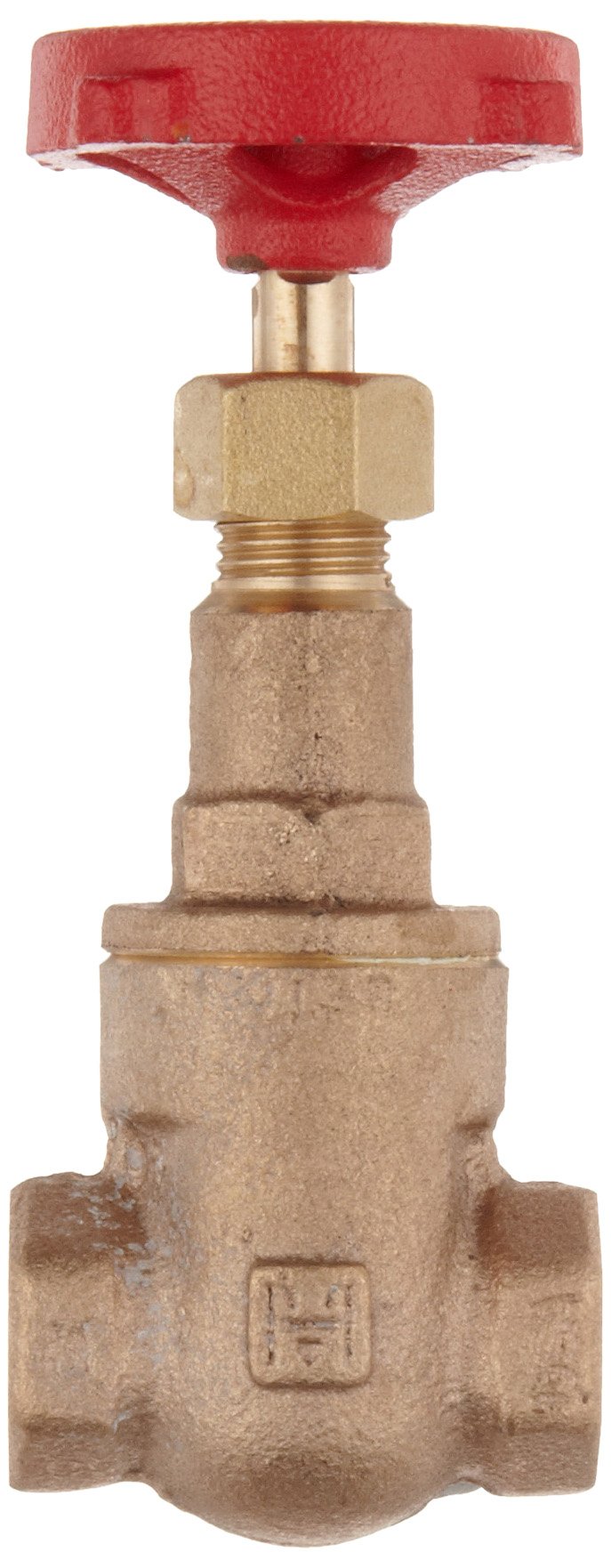

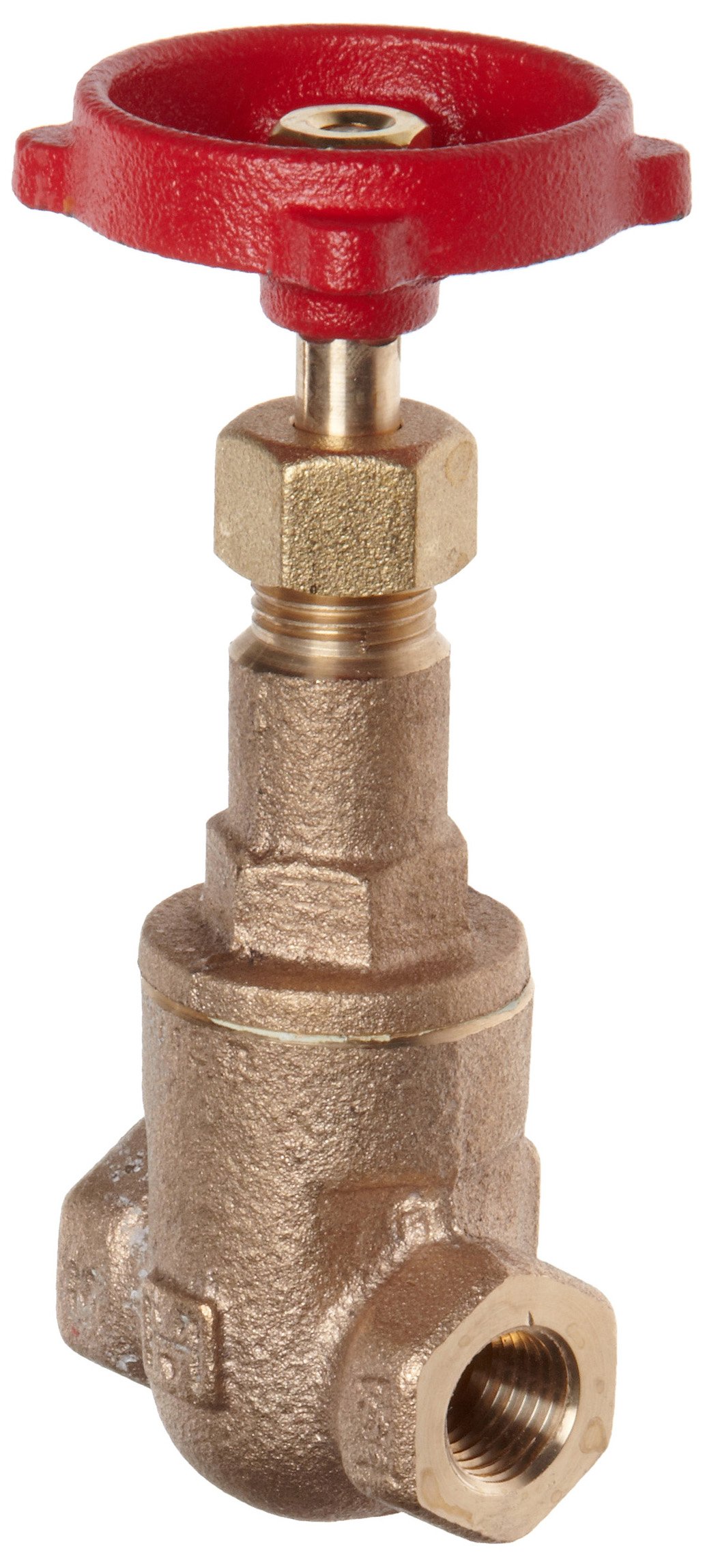

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Milwaukee Valve 148 Series Bronze Gate Valve, General Service, Class 125, Rising Stem, NPT Female

Be the first to review this item

Product Specifications
Internal Packing Material Type
Material Type
Operation Mode
Maximum Steam Pressure Description
125 pounds_per_square_inch
Structure Description
Rising Stem
Handle Type
Hand Wheel
Brand Name
Manufacturer Series Number
Maximum Pressure
200  PSI
Connector Type
NPT Female
Style Name
System of Measurement

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Mar 30? Order in-stock items in the next 1 day 3 hrs 4 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-11 of 11
Item length string Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All
Currently showing 1-11 of 11
1.75 inches 148 - 14 B0068TVRPE yes $33.19 Buy Options
1.81 inches 148 - 38 B0068TVNJO Usually ships in 1 to 2 months $32.22 Buy Options
2 inches 148 - 12 B0068TVQR8 yes $24.99 Buy Options
2.13 inches 148 - 34 B0068TVSXA yes $27.99 Buy Options
2.56 inches 148 - 100 B0068TVP3S yes $50.55 Buy Options
2.78 inches 148 - 114 B0068TVTHA yes $60.93 Buy Options
2.81 inches 148 - 112 B0068TVUC4 yes $81.97 Buy Options
3.31 inches 148 - 200 B0068TVUUQ yes $103.40 Buy Options
4.19 inches 148 - 212 B0068U923M yes $235.06 Buy Options
4.63 inches 148 - 300 B0068TVVYG yes $368.05 Buy Options
5.50 inches 148 - 400 B0068TVQ32 Usually ships in 1 to 2 months $1,080.14 Buy Options

Key Features

  • Made of bronze for higher strength and corrosion resistance than brass
  • Rising stem with inside screw lifts with the gate to signal visually when the valve is open
  • 200 pounds per square inch (gauge) (psig) for water, oil, and gas pressure (WOG) and 125 psig for saturated steam pressure
  • Female National Pipe Taper (NPT) threads for use with male threaded pipes
  • Top-mounted iron hand wheel for lowering and lifting the gate

Product Description

This class 125 Milwaukee Valve 148 series bronze gate valve has a rising stem and female National Pipe Taper (NPT) threads on both ends. The bronze construction, solid wedge gate, and threaded bonnet provide higher strength and resistance to corrosion than brass. It has a rising stem that moves up and down with the gate to offer a visual signal (when extended) that the valve is open. The stem design and graphite internal packing also prevent the stem threads from coming into contact with flow to avoid corrosion to extend valve life. The maximum pressure is 200 pounds per square inch (gauge) (psig) for water, oil, and gas pressure (WOG) and 125 psig for saturated steam pressure. It has female NPT threads on both ends for connecting to male threaded pipes. Mounted on top of the valve, a manually operated malleable iron hand wheel activates the inside screw mechanism, which lifts and lowers the wedge to start and stop the flow between the connected pipes. This class 125 valve meets Manufacturers Standardization Society (MSS) SP-80 standard (excluding the 4-inch model, as it has a split wedge and bolted bonnet and does not meet MSS SP-80) for quality assurance. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure. The valve is appropriate for use in general service in plumbing and heating systems.

Gate valves control flow in a piping system by lifting a wedge out of the path of steam, fluids, or gases. They are designed to block or permit flow, as the vibrations and force of flow repeatedly striking a partly lowered gate can damage the gate and seats. To accommodate different flows and pressure requirements, gates come in four types: solid wedge (appropriate for almost all liquid service), flexible wedge (appropriate for steam service), split wedge (appropriate for normal temperature, non-condensing gas and liquid service, including corrosive service), and parallel disk (appropriate for high and low pressure applications). Hand wheels or levers activate the screw mechanism in the valve’s bonnet, which comes in various designs, to open and close the gate. Union bonnets are preferable for building service piping, threaded-in (or screw-in) bonnets work well for lighter-duty usage, and bolted body-bonnet connections are used primarily in iron multi-turn valves. Most gate valves have either a rising stem, which moves up and down with the gate, or a non-rising stem, which remains fixed in place. When closed, the gate and its seats form tight planar sealing surfaces, ideal for linear liquid flow. Gate valves are used in air, gas, liquid, and steam applications.

The Milwaukee Valve Company manufactures manual and actuated valves, controls, and control accessories. The company, founded in 1901, and headquartered in New Berlin, WI, meets International Organization for Standardization (ISO) 9001:2008 and 14001:2004 standards.
