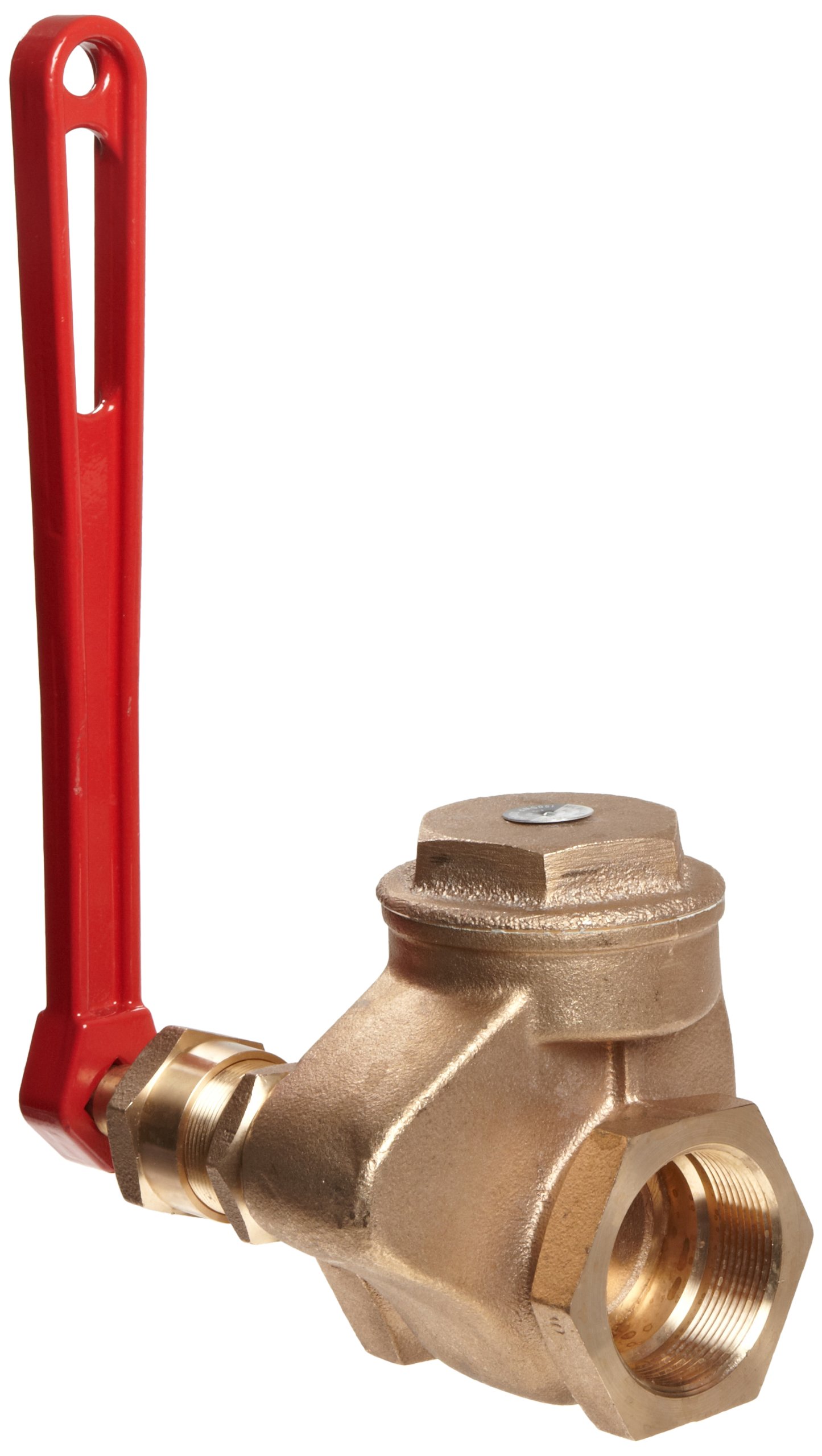

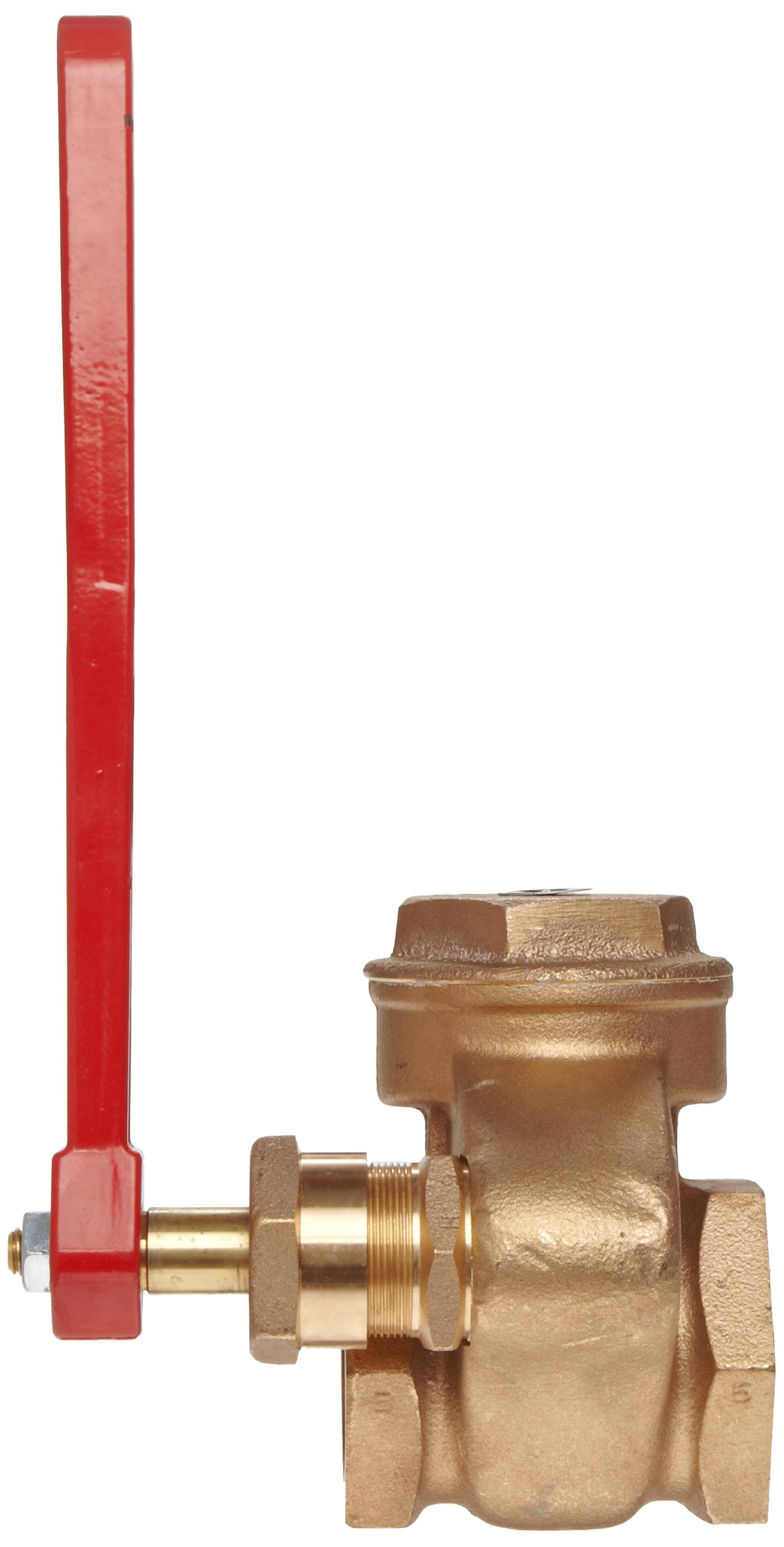

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Milwaukee Valve P901 Series Bronze Gate Valve, Class 150, Quick Opening Stem, Lever Handle, NPT Female

Be the first to review this item

Product Specifications
Internal Packing Material Type
Graphite
Material Type
Bronze
Operation Mode
Manual
Maximum Steam Pressure Description
150 pounds_per_square_inch
Structure Description
Quick Opening Stem
Handle Type
Lever Handle
Brand Name
Milwaukee
Manufacturer Series Number
P901
Maximum Pressure
300  PSI
Connector Type
NPT Female
UNSPSC Code
40141613
Style Name
Threaded
System of Measurement
Inch

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-6 of 6
Connection Size End-to-End Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-6 of 6
1/2"   P901 - 12 B0068TWXRA yes $258.57 Buy Options
3/4"   P901 - 34 B0068TWX3E yes $299.87 Buy Options
2" 3.75" P901 - 200 B0068TWUZA yes $575.26 Buy Options
2-1/2" 4.25" P901 - 212 B0068TWTS8 yes $1,180.00 Buy Options
3" 4.75" P901 - 300 B0068TWTBK yes $1,652.67 Buy Options
4"   P901 - 400 B0068TWS9S yes $3,392.62 Buy Options

Key Features

  • Made of bronze and brass for higher strength and corrosion resistance than steel
  • Brass double discs provide tight seal to keep fluid separated between pipes
  • Quick-opening stem with malleable iron lever handle for operation
  • Female National Pipe Taper (NPT) threads for use with male threaded pipes
  • 300 pounds per square inch (gauge) (psig) for water, oil, and gas pressure (WOG) and 150 psig for saturated steam pressure

Product Description

This class 150 Milwaukee P901 series bronze gate valve has a quick-opening stem with a lever handle and female National Pipe Taper (NPT) threads on both ends. The bronze construction of the gate valve and its brass double discs provide higher strength and resistance to corrosion than steel. The valve has a brass quick-opening stem that is manually operated by turning a malleable iron lever handle, which pushes the discs into the valve’s passage to stop flow between pipes. The pressure between the two discs forms a tight seal to stop potentially dangerous fluids from leaking and mixing. With the exception of the 4" valve that has an O-ring, this valve has graphite internal stem packing. The valve has female NPT threads on both ends for connecting to male threaded pipes. The maximum pressure of this class 150 valve is 300 pounds per square inch (gauge) (psig) for water, oil, and gas pressure (WOG) and 150 psig for saturated steam pressure. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure. The valve is appropriate for quick draining and steam blow-off use and other heating and plumbing applications.

Gate valves control flow in a piping system by lifting a gate out of the path of steam, fluids, or gases. They are designed to block or permit flow, as the vibrations and force of flow repeatedly striking a partly lowered gate can damage the gate and seats. To accommodate different flows and pressure requirements, gates come in four types: solid wedge (appropriate for almost all liquid service), flexible wedge (appropriate for steam service), split wedge (appropriate for normal temperature, non-condensing gas and liquid service, including corrosive service), and parallel disc (appropriate for high and low pressure applications). Hand wheels or levers activate the screw mechanism in the valve’s bonnet, which comes in various designs, to open and close the gate. Union bonnets are preferable for building service piping, threaded-in (or screw-in) bonnets work well for lighter-duty usage, and bolted body-bonnet connections are used primarily in iron multi-turn valves. Most gate valves have either a rising stem, which moves up and down with the gate, or a non-rising stem, which remains fixed in place. When closed, the gate and its seats form tight planar sealing surfaces, ideal for linear liquid flow. Gate valves are used in air, gas, liquid, and steam applications.

The Milwaukee Valve Company manufactures manual and actuated valves, controls, and control accessories. The company, founded in 1901, and headquartered in New Berlin, WI, meets International Organization for Standardization (ISO) 9001:2008 and 14001:2004 standards.
