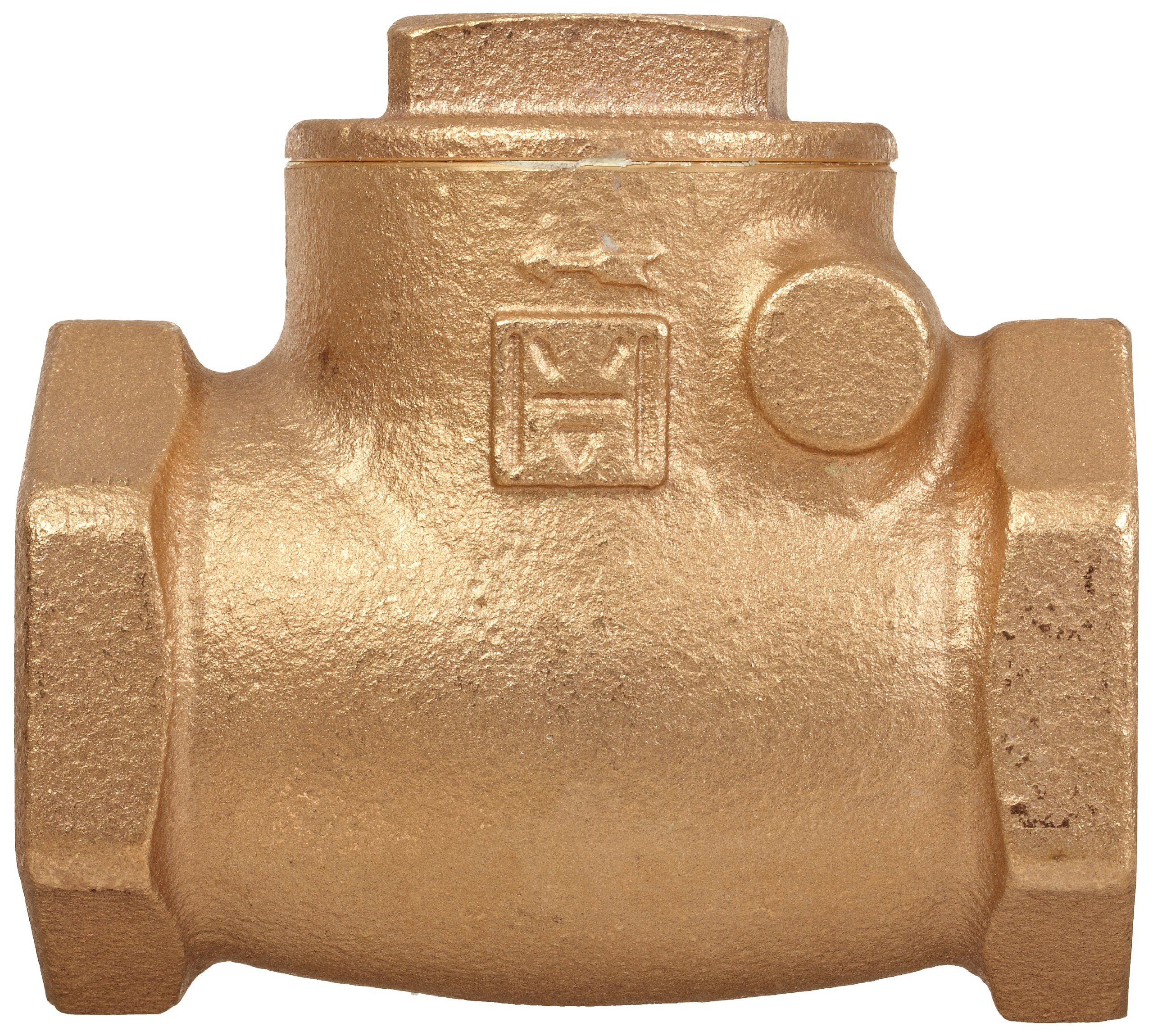

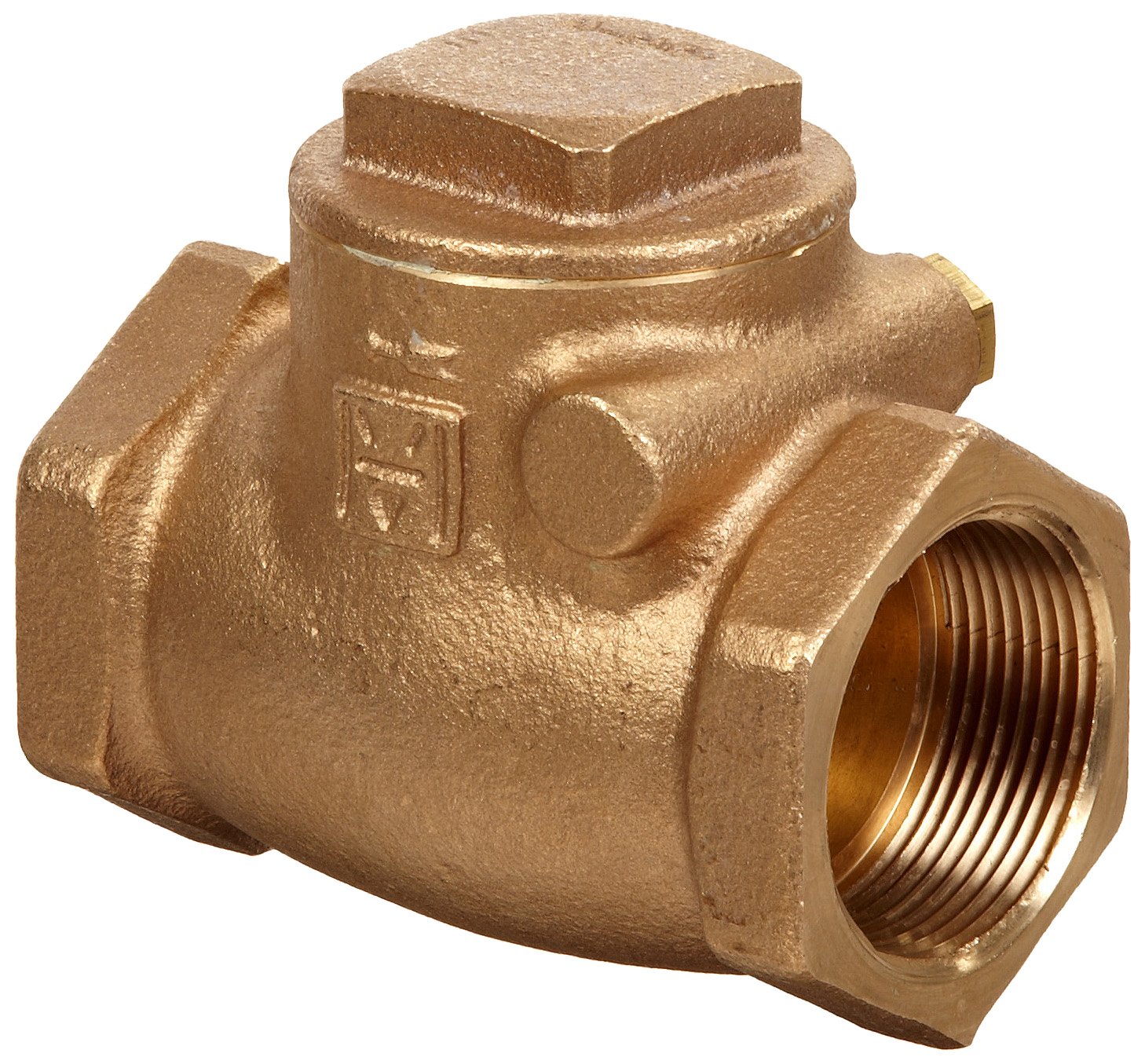

Milwaukee Valve 515 Series Bronze Swing Check Valve, Class 150, NPT Female

Be the first to review this item

Product Specifications
Material Type
Bronze
Maximum Steam Pressure Description
150 pounds_per_square_inch
Structure Description
Swing
Brand Name
Milwaukee
Manufacturer Series Number
515 Series
Specification Met
MSS SP-80
Maximum Pressure
300  PSI
Connector Type
NPT Female
Style Name
Threaded
UNSPSC Code
40141600
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 5 hrs 6 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Item length string Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-8 of 8
2.13 inches 515 - 14 B006BG1WJ0 yes $45.33 Buy Options
2.13 inches 515 - 38 B006BG1Z6U yes $37.79 Buy Options
2.31 inches 515 - 12 B006BG1VKU yes $48.15 Buy Options
2.63 inches 515 - 34 B006BG1Y0M yes $62.77 Buy Options
3.25 inches 515 - 100 B006BG20B4 yes $77.55 Buy Options
3.56 inches 515 - 114 B006BG21XQ yes $101.96 Buy Options
4 inches 515 - 112 B006BG211I yes $135.78 Buy Options
4.75 inches 515 - 200 B006BG22XA yes $92.19 Buy Options

Key Features

  • Swing check valve restricts flow control to one direction, blocking reverse flow
  • Valve body made of ASTM B-62 bronze for strength and corrosion resistance
  • 300 pounds per square inch (gauge) (psig) rating for water, oil, and gas (WOG) and 150 for steam working pressure (SWP)
  • Cracking pressure of 0.5 psi
  • Female National Pipe Taper (NPT) threads on both ends for connecting to male threaded pipes

Product Description

The Milwaukee Valve 515 series bronze swing check valve with female National Pipe Taper (NPT) threads on both ends is a class 150 valve used for restricting fluid flow to one direction. It has a hinged disc that swings onto the seat of the valve to block reverse flow. The valve body is made of American Society of Testing and Materials (ASTM) B-62 bronze for strength and corrosion resistance. This valve has maximum pressure ratings of 300 pounds per square inch (gauge) (psig) for water, oil, and gas (WOG) and 150 psig for steam working pressure (SWP), and a cracking pressure of 0.5 psi. It has female NPT threads on both ends for connecting to male threaded pipes with tighter seals than straight threads. This class 150 check valve is for use in water lines, processing plants, and agricultural applications and meets standard MSS SP-80 for quality assurance. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure.

Check valves are used to restrict the flow of fluids and other loose materials through a pipe or passageway in one direction only. They have two ports – one for the fluid to enter the valve and one for the fluid to exit. They remain open when flow is moving in the correct direction and close when flow reverses or stops. Two common types of check valves are ball cone valves and swing check valves. Ball cone valves utilize a spring-loaded ball seated against a cone-shaped interior surface to stop the flow of fluid in a forward direction. A swing check valve has a movable disc on a hinge, blocking reverse flow. Check valves are rated by their cracking pressure (the minimum upstream pressure required for the valve to operate). Check valves are primarily used in water, gas, air, and steam lines.

The Milwaukee Valve Company manufactures manual and actuated valves, controls, and control accessories. The company, founded in 1901, and headquartered in New Berlin, WI, meets International Organization for Standardization (ISO) 9001:2008 and 14001:2004 standards.
