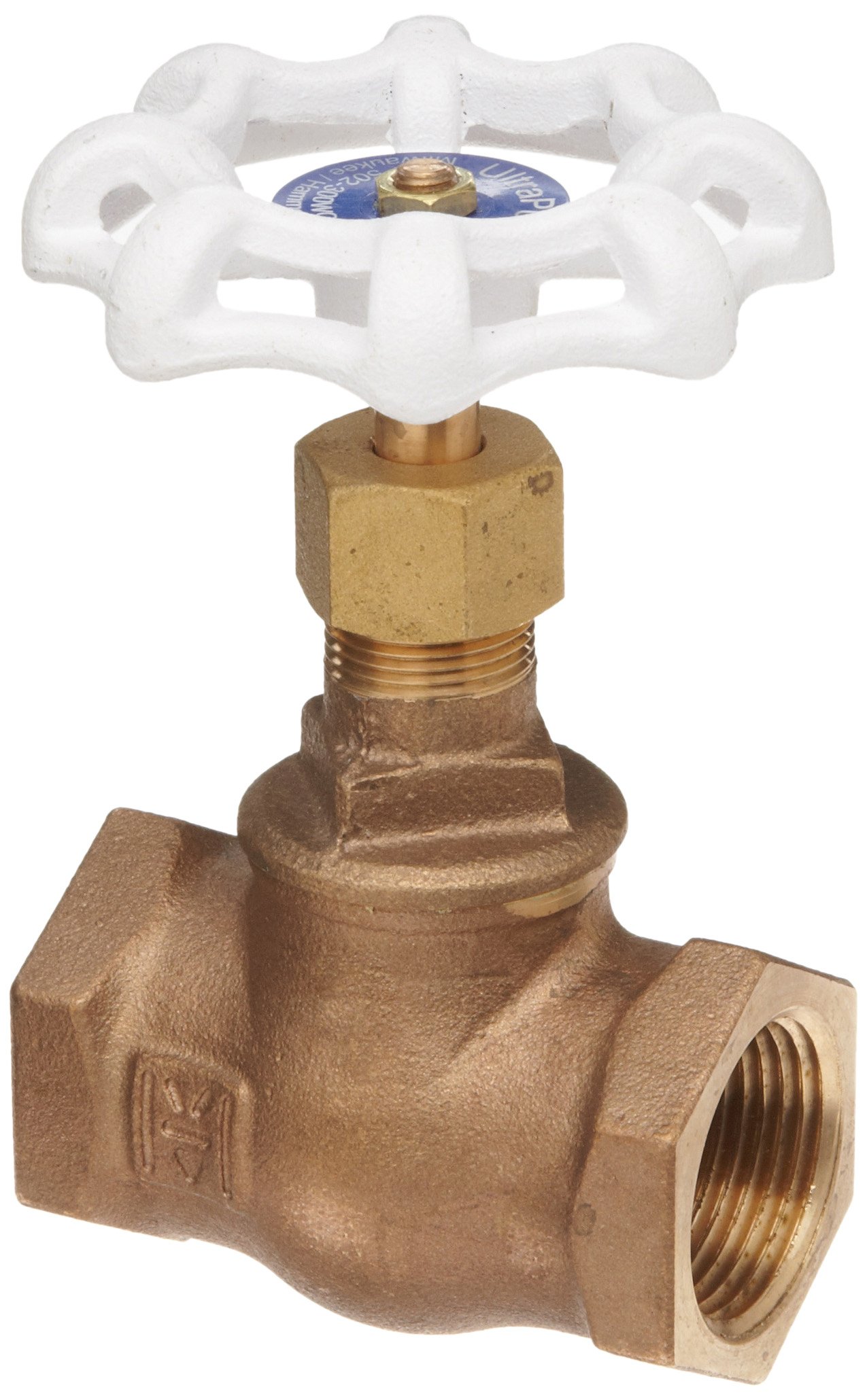

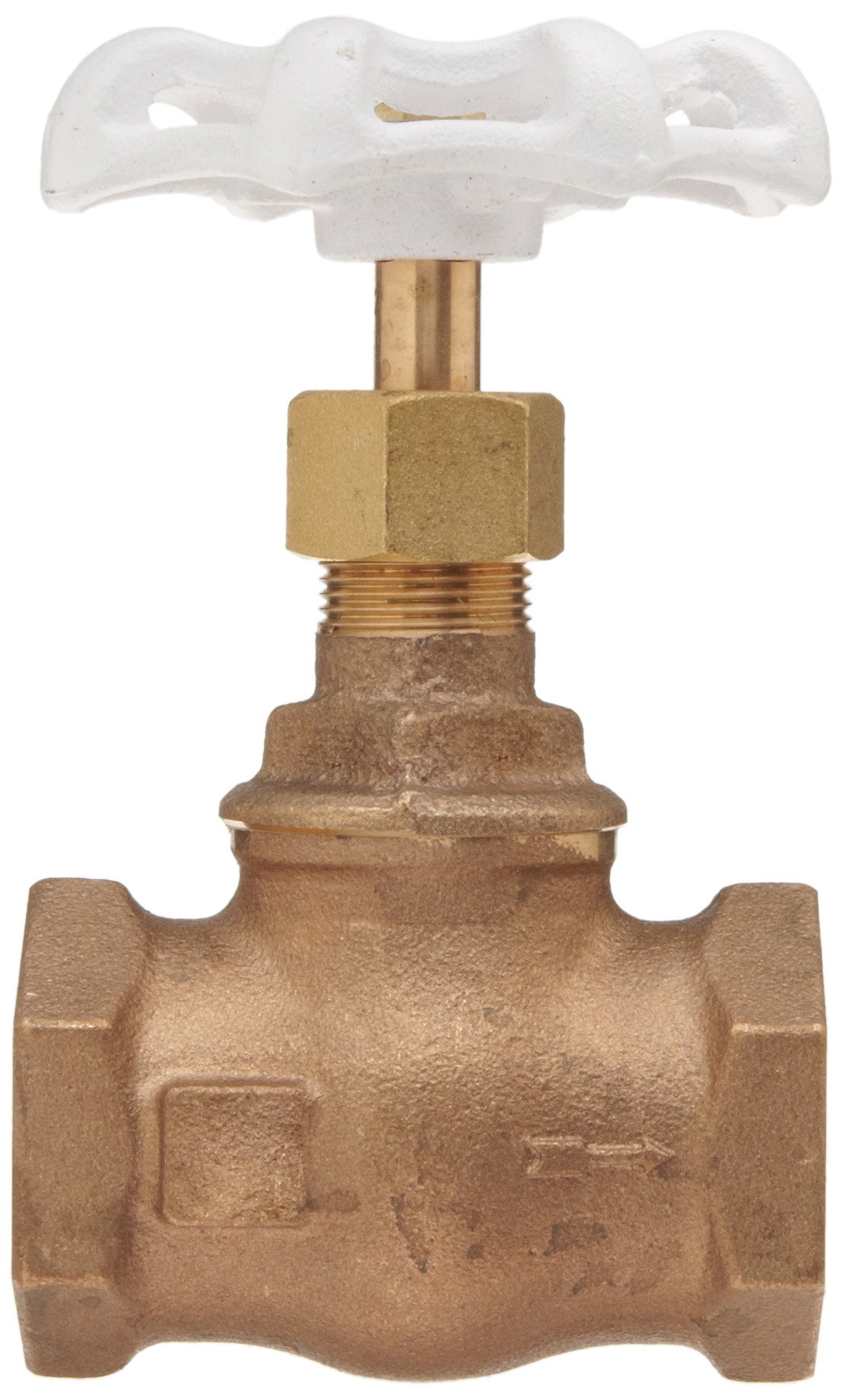

Milwaukee Valve UP502 Series Bronze Globe Valve, Potable Water Service, Inline, Threaded Bonnet, NPT Female

Be the first to review this item

Product Specifications
Internal Packing Material Type
Graphite
Item Shape
Inline
Material Type
Bronze
Structure Description
Threaded Bonnet
Handle Type
Hand Wheel
Brand Name
Milwaukee
Manufacturer Series Number
UP502
Specification Met
MSS SP-80
Maximum Pressure
300  PSI
Connector Type
NPT Female
UNSPSC Code
40141611
Style Name
Threaded
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Sep 18? Order in-stock items in the next 23 hrs 30 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Connection Size End-to-End Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-8 of 8
1/4" 1.63" UP502 - 14 B006X4ZUF2 yes $87.71 Buy Options
3/8" 1.81" UP502 - 38 B006X4ZYNU Usually ships in 2 to 4 weeks $77.23 Buy Options
1/2" 2.31" UP502 - 12 B006X4ZSKY yes $85.64 Buy Options
3/4" 2.56" UP502 - 34 B006X4ZWFU yes $105.23 Buy Options
1" 2.94" UP502 - 100 B006X500YW yes $133.70 Buy Options
1-1/4" 3.38" UP502 - 114 B006X504I4 Usually ships in 2 to 4 weeks $164.32 Buy Options
1-1/2" 3.69" UP502 - 112 B006X502KO Usually ships in 2 to 4 weeks $213.15 Buy Options
2" 4.44" UP502 - 200 B006X506AU Usually ships in 2 to 4 weeks $317.82 Buy Options

Key Features

  • Inline globe valve with rising stem, threaded bonnet, and lead-free construction for on/off actuation and flow control (throttling) in a pipeline
  • Bronze valve body and disc for strength and corrosion resistance
  • Pounds per square inch (gauge) (psig) rating of 300 for water, oil, and gas (WOG)
  • Threaded bonnet for reduced risk of leakage
  • Female National Pipe Taper (NPT) threads on both ends for connecting to male threaded pipes

Product Description

This Milwaukee Valve UP502 series inline bronze globe valve has a threaded bonnet, lead-free construction for use with potable water, rising stem, bronze disc, and female National Pipe Taper (NPT) threads on both ends, and is used to control flow (throttling) in a pipeline or water plumbing system. The valve body and disc are constructed of American Society for Testing and Material (ASTM) B584 bronze for strength and corrosion resistance. This valve has maximum pressure ratings of 300 pounds per square inch (gauge) (psig) for water, oil, and gas (WOG). It has a threaded bonnet for tight assembly and reduced risk of leakage, and female NPT threads on both ends for connecting to male threaded pipes. This valve meets standard Manufacturers Standardization Society (MSS) SP-80 for quality assurance and is designed in accordance with the requirements of California Assembly Bill 1953, Vermont Senate Bill 152, and U.S. Senate Bill S3874 which limit the amount of lead in plumbing fixtures that come in contact with water intended for human consumption. This rising stem globe valve is for use in various pipeline or water plumbing systems.

Globe valves control flow rates in a piping system by the lift of a vertical stem and disk, which must be turned to open and close the valve. A seated disc extends into the center of the valve to act as a plug to restrict or open the flow path, depending on how tightly the valve stem is turned. The stem on globe valves can be either rising (moves up as the valve opens) to indicate if the flow is on or off, or non-rising (stem height remains constant when the valve is either open or closed) for use in small spaces. Globe valves are used in various water, gas, air, and steam piping systems that require frequent throttling operations.

The Milwaukee Valve Company manufactures manual and actuated valves, controls, and control accessories. The company, founded in 1901, and headquartered in New Berlin, WI, meets International Organization for Standardization (ISO) 9001:2008 and 14001:2004 standards.
