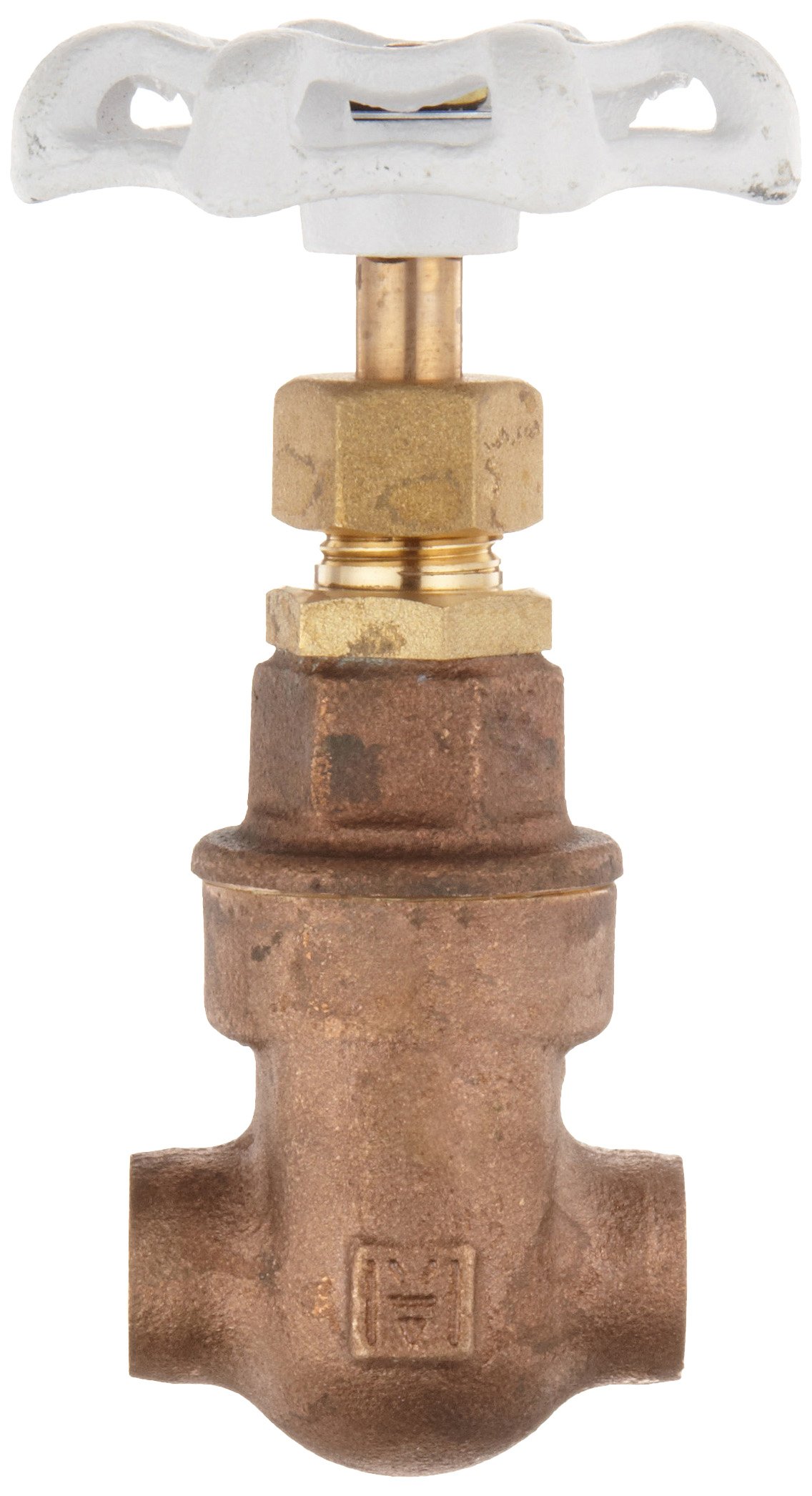

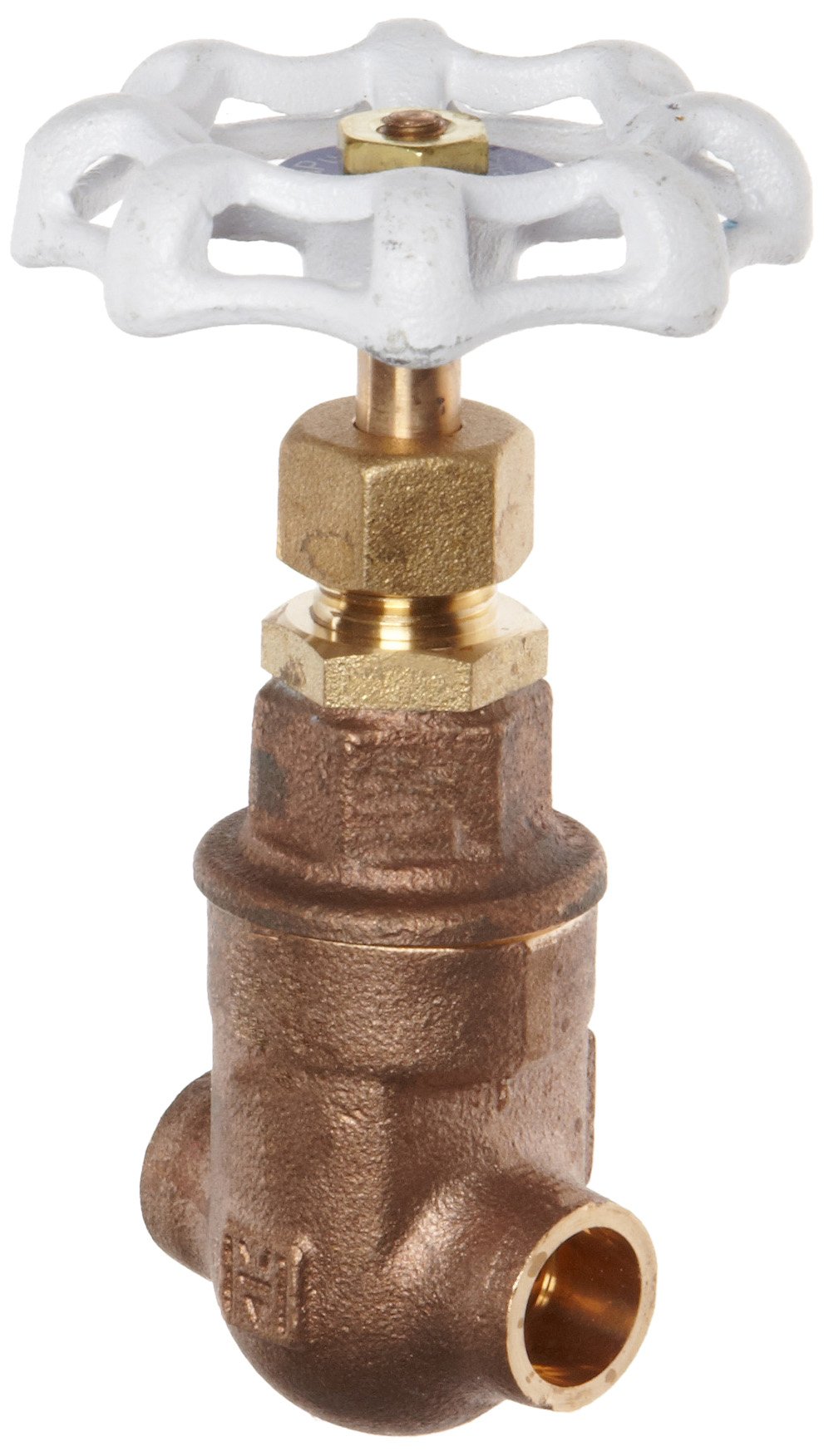

Milwaukee Valve UP115 Series Bronze Gate Valve, Potable Water Service, Non-Rising Stem, Solder End

Be the first to review this item

Product Specifications
Internal Packing Material Type
Material Type
Operation Mode
Structure Description
Non-Rising Stem
Handle Type
Hand Wheel
Brand Name
Manufacturer Series Number
Specification Met
MSS SP-80 , AB 1953 , S 152
Maximum Pressure
300  PSI
Connector Type
Solder End
Style Name
System of Measurement

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 28? Order in-stock items in the next 1 day 19 hrs 21 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-7 of 7
Item length string Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All
Currently showing 1-7 of 7
1.88 inches UP115 - 12 B0068TX842 Usually ships in 1 to 2 months $48.57 Buy Options
2.5 inches UP115 - 34 B0068TX7AC yes $60.94 Buy Options
3 inches UP115 - 100 B0068TX6K8 yes $79.09 Buy Options
3.25 inches UP115 - 114 B0068TX5YA yes $118.82 Buy Options
3.63 inches UP115 - 112 B0068TX5EA yes $130.87 Buy Options
3/8 inches UP115 - 38 B0068TX8RY yes $51.90 Buy Options
4.31 inches UP115 - 200 B0068TX4QE yes $188.15 Buy Options

Key Features

  • Made of bronze for higher strength and corrosion resistance than brass
  • Contains less than 0.25 percent lead by weighted average on wetted surfaces for potable water service
  • Non-rising stem stays fixed in place when gate is raised or lowered for low clearance use
  • 300 pounds per square inch (gauge) (psig) for water, oil, and gas pressure (WOG)
  • Solder end connections on both ends for a semi-permanent connection to a piping system

Product Description

This Milwaukee Valve UP115 Ultra Pure series bronze gate valve has a non-rising stem, solder end connections, and it is lead-free for potable water plumbing systems. The lead-free bronze construction, solid wedge gate, and threaded bonnet provide higher strength and resistance to corrosion than brass. It has a non-rising stem that stays fixed in place when the gate is raised or lowered for low clearance or underground use, and the graphite internal packing helps prevent the valve’s stem from leaking. The maximum pressure is 300 pounds per square inch (gauge) (psig) for water, oil, and gas pressure (WOG). It has solder end connections for a semi-permanent connection to a piping system. Mounted on top of the valve, a manually operated malleable iron hand wheel activates the inside screw mechanism, which lifts and lowers the gate to start and stop the flow between the connected pipes. The valve is appropriate for use in plumbing systems that convey or dispense water intended for cooking or human consumption.

This gate valve is certified to contain no more than 0.25 percent lead by weighted average on its wetted surfaces, and complies with California AB1953, Vermont Act 193, Maryland HB372, and federal public law 111-380 for use with potable water services. The valve meets Manufacturers Standardization Society (MSS) SP-80 and National Sanitation Foundation/American National Standards Institute (NSF/ANSI) 372 standards for quality assurance.

Gate valves control flow in a piping system by lifting a gate out of the path of steam, fluids, or gases. They are designed to block or permit flow, as the vibrations and force of flow repeatedly striking a partly lowered gate can damage the gate and seats. To accommodate different flows and pressure requirements, gates come in four types: solid wedge (appropriate for almost all liquid service), flexible wedge (appropriate for steam service), split wedge (appropriate for normal temperature, non-condensing gas and liquid service, including corrosive service), and parallel disc (appropriate for high and low pressure applications). Hand wheels or levers activate the screw mechanism in the valve’s bonnet, which comes in various designs, to open and close the gate. Union bonnets are preferable for building service piping, threaded-in (or screw-in) bonnets work well for lighter-duty usage, and bolted body-bonnet connections are used primarily in iron multi-turn valves. Most gate valves have either a rising stem, which moves up and down with the gate, or a non-rising stem, which remains fixed in place. When closed, the gate and its seats form tight planar sealing surfaces, ideal for linear liquid flow. Gate valves are used in air, gas, liquid, and steam applications.

The Milwaukee Valve Company manufactures manual and actuated valves, controls, and control accessories. The company, founded in 1901, and headquartered in New Berlin, WI, meets International Organization for Standardization (ISO) 9001:2008 and 14001:2004 standards.
