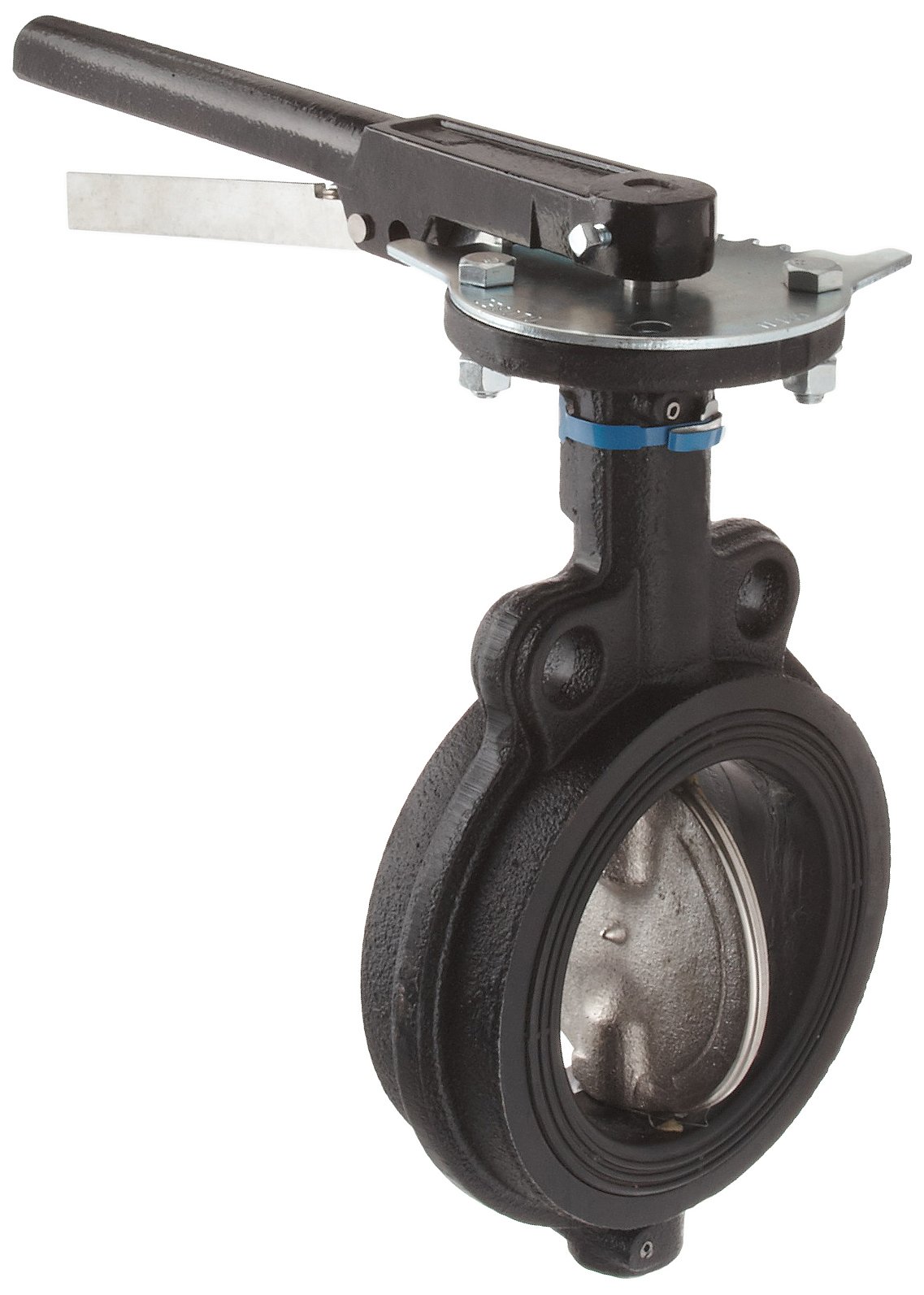

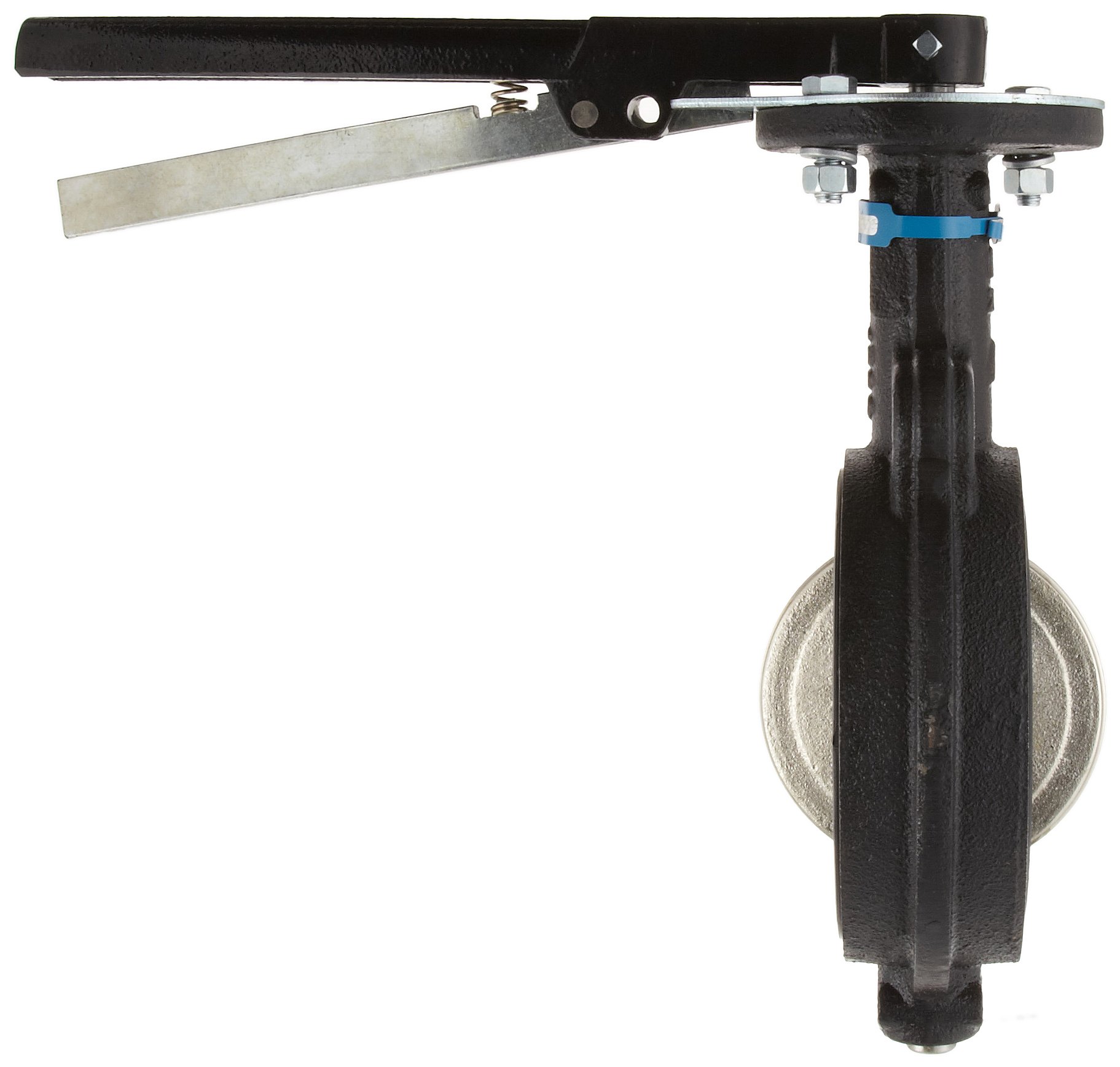

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Milwaukee Valve MW222B Series Cast Iron Butterfly Valve, Wafer Style, Nickel Plated Ductile Iron Disc, Buna-N Seat, Lever Handle, Flanged

Be the first to review this item

Product Specifications
Seat Material Type
Buna-N
Material Type
Cast Iron
Structure Description
Wafer Style
Handle Type
Lever Handle
Brand Name
Milwaukee
Manufacturer Series Number
MW222B
Upper Temperature Range
180  Degrees Fahrenheit
Specification Met
MSS SP-67 , API-609
Maximum Pressure
200  PSI
Connector Type
Flanged
UNSPSC Code
40141656
Style Name
Flanged
LowerTemperature Range
10  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 22? Order in-stock items in the next 11 hrs and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-6 of 6
2" B006X5IRMO Usually ships in 1 to 2 months $141.91 Buy Options
2-1/2" B006X5IWCE yes $143.23 Buy Options
3" B006X5J138 yes $151.55 Buy Options
4" B006X5J55M yes $199.11 Buy Options
5" B006X5J8M2 Usually ships in 1 to 2 months $260.11 Buy Options
6" B006X5JCLO Usually ships in 1 to 2 months $317.61 Buy Options

Key Features

  • Wafer-style design for a seal against two-way pressure to prevent backflow in single-direction systems
  • Made of cast iron for higher corrosion resistance than steel with Buna-n rubber seats and seals that provide increased water, oil, and chemical resistance
  • Ductile-iron lever handle for manual flow control
  • 200 pounds per square inch (psi) rating for water, oil, and gas (WOG)
  • Flanged connections for bolting to pipes

Product Description

This cast iron Milwaukee Valve MW222B series wafer-style butterfly valve has Buna-n rubber seats and seals, a nickel-plated ductile-iron disc, a lever handle, and flanged connections. Made of cast iron for higher corrosion resistance than steel, this wafer-style valve fits between two pipe flanges and is designed to retain a seal against two-way pressure to prevent backflow in single-direction systems. It has Buna-n rubber seats and seals to provide increased water, oil, and chemical resistance, and the ductile-iron lever handle provides manual flow control. The disc is made of nickel-plated ductile iron for durability and resistance to wear. The maximum pressure is 200 pounds per square inch (psi) for use with water, oil, and gas (WOG), and the working temperature range is 10 to 180 degrees F. This valve has flanged connections for bolting to pipes for greater ease in installation and maintenance than welded connections. It meets Manufacturers Standardization Society (MSS) SP-67 and American Petroleum Institute (API) 609 standards for quality assurance, and the United States Coast Guard approves it for use in Category A service. This butterfly valve is for use in applications including agricultural and turf irrigation, food and beverage industry, pulp and paper industry, oil and gas systems, chemical plants, wastewater treatment, and water distribution.

Butterfly valves are used to regulate flow between pipes, tubes, and hoses by rotating a lens-shaped disc in the center of the valve and are suited for high-capacity, low-pressure applications. When the valve is fully opened, the disc face is parallel to the inlet and outlet of the valve, and when the valve is closed, the disc face is perpendicular to the opening of the valve. Butterfly valves may have a handle or lever that aligns with the disc position (open or closed) for manual flow control. They are primarily used in applications including agriculture, water treatment, fire protection, compressed air or gas, and vacuum service.

The Milwaukee Valve Company manufactures manual and actuated valves, controls, and control accessories. The company, founded in 1901, and headquartered in New Berlin, WI, meets International Organization for Standardization (ISO) 9001:2008 and 14001:2004 standards.
