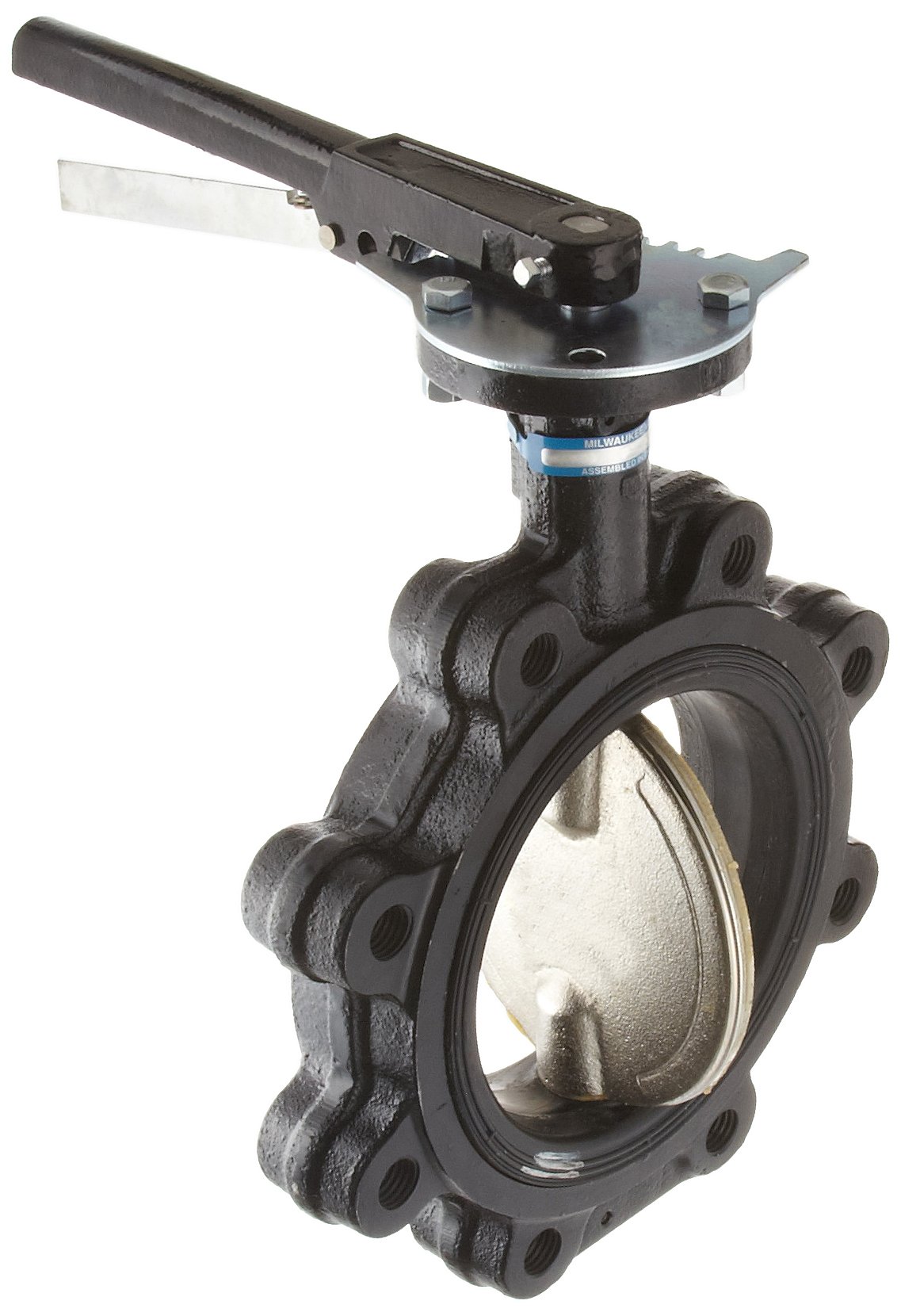

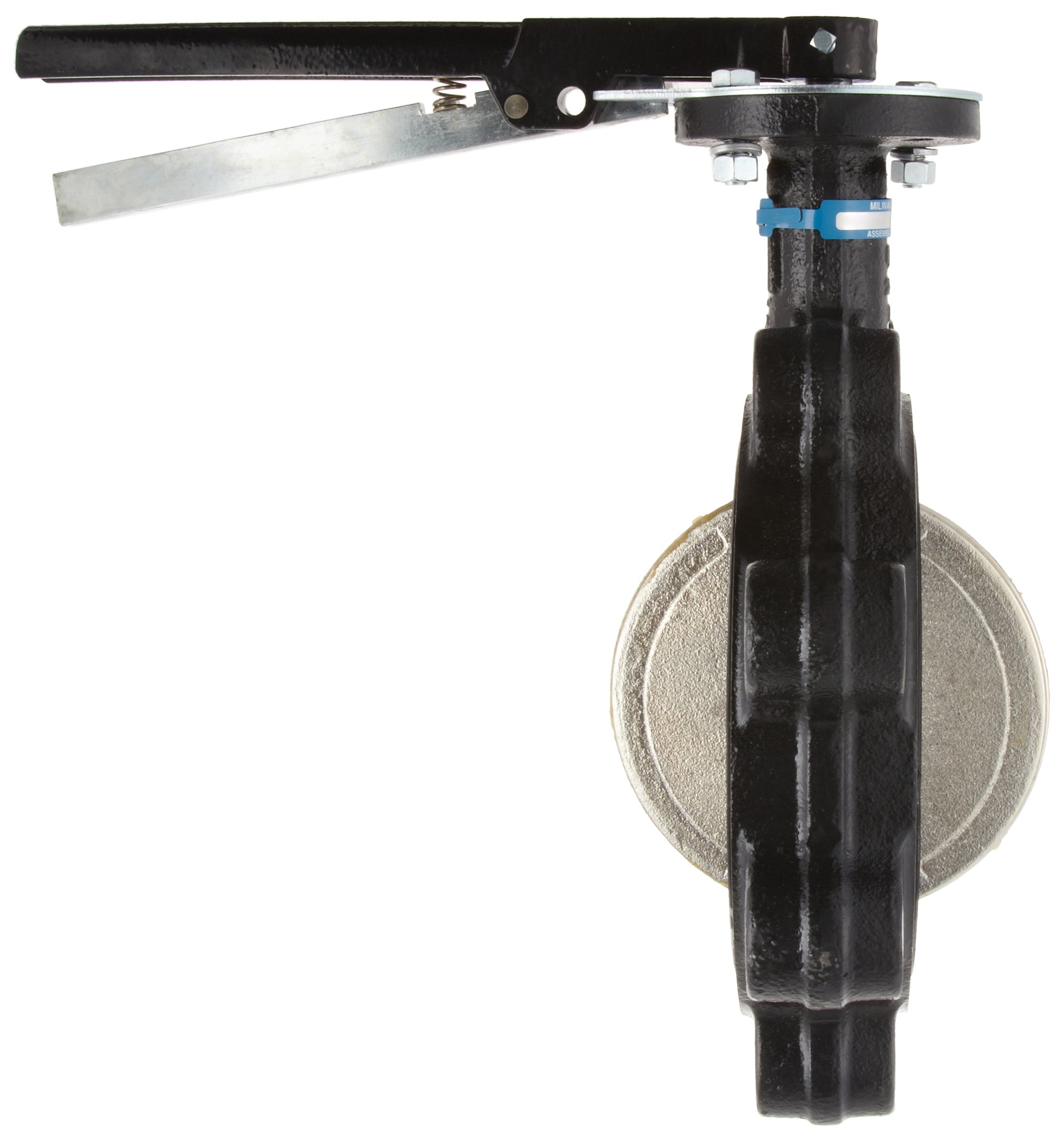

Milwaukee Valve ML222B Series Cast Iron Butterfly Valve, Lug Style, Nickel Plated Ductile Iron Disc, Buna-N Seat, Lever Handle, Flanged

Be the first to review this item

Product Specifications
Seat Material Type
Buna-N
Material Type
Cast Iron
Structure Description
Lug Style
Handle Type
Lever Handle
Brand Name
Milwaukee Valve
Manufacturer Series Number
ML222B
Upper Temperature Range
180  Degrees Fahrenheit
Specification Met
MSS SP-67 , API-609
Maximum Pressure
200  PSI
Connector Type
Flanged
Style Name
Flanged
LowerTemperature Range
10  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Apr 17? Order in-stock items in the next 17 hrs 45 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Connection Size Height Bolt Hole Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-6 of 6
2" 9.69" 4 ML222B D 2" B006X5GF5A 1 $175.45 Buy Options
2-1/2" 10.44" 4 ML222B D 2 1/2" B006X5GJCO 1 $174.26 Buy Options
3" 11.13" 4 ML222B D 3" B006X5GOHY 1 $185.60 Buy Options
4" 12.38" 8 ML222B D 4" B006X5GSBG 1 $232.25 Buy Options
5" 13.6" 8 ML222B D 5" B006X5GWFS Temporarily out of stock. Order now and we'll deliver when available. $273.17 Buy Options
6" 14.69" 8 ML222B D 6" B006X5H23O 1 $374.15 Buy Options

Key Features

  • Lug-style design for end-of-line service and removal of downstream piping
  • Made of cast iron for higher corrosion resistance than steel with Buna-n seats and seals that provide increased water, oil, and chemical resistance
  • Ductile-iron lever handle for manual flow control
  • 200 pounds per square inch (psi) rating for bidirectional dead-end service
  • Flanged connections surround the body on both sides for bolting to pipes

Product Description

The Milwaukee Valve ML222B series lug-style butterfly valve with a lever handle is made of cast iron and has Buna-n rubber seats and seals, a nickel-plated ductile-iron disc, and flanged connections. This lug-style valve is secured between two pipe flanges by a separate set of threaded bolts for each flange and is suitable for end-of-line service and removal or replacement of downstream piping. The ductile-iron lever handle rotates the disc in the valve seat to fully open, regulate, or stop flow through the valve. The disc is made of nickel-plated ductile iron for durability and resistance to wear, and the Buna-n seats and seals provide increased resistance to water, oil, and chemicals. The maximum pressure for bidirectional dead-end service is 200 pounds per square inch (psi), and the working temperature range is 10 to 180 degrees F. This valve has flanged connections surrounding the body on both sides for bolting to pipes and for greater ease in installation and maintenance than welded connections. It meets Manufacturers Standardization Society (MSS) SP-67 and American Petroleum Institute (API) 609 standards for quality assurance, and the United States Coast Guard approves it for use in Category A service. This valve is for use in applications including agricultural and turf irrigation, food and beverage industry, pulp and paper industry, oil and gas systems, chemical plants, wastewater treatment, and water distribution.

Butterfly valves are used to regulate flow between pipes, tubes, and hoses by rotating a lens-shaped disc in the center of the valve and are suited for high-capacity, low-pressure applications. When the valve is fully opened, the disc face is parallel to the inlet and outlet of the valve, and when the valve is closed, the disc face is perpendicular to the opening of the valve. Butterfly valves may have a handle or lever that aligns with the disc position (open or closed) for manual flow control. They are primarily used in applications including agriculture, water treatment, fire protection, compressed air or gas, and vacuum service.

The Milwaukee Valve Company manufactures manual and actuated valves, controls, and control accessories. The company, founded in 1901, and headquartered in New Berlin, WI, meets International Organization for Standardization (ISO) 9001:2008 and 14001:2004 standards.
