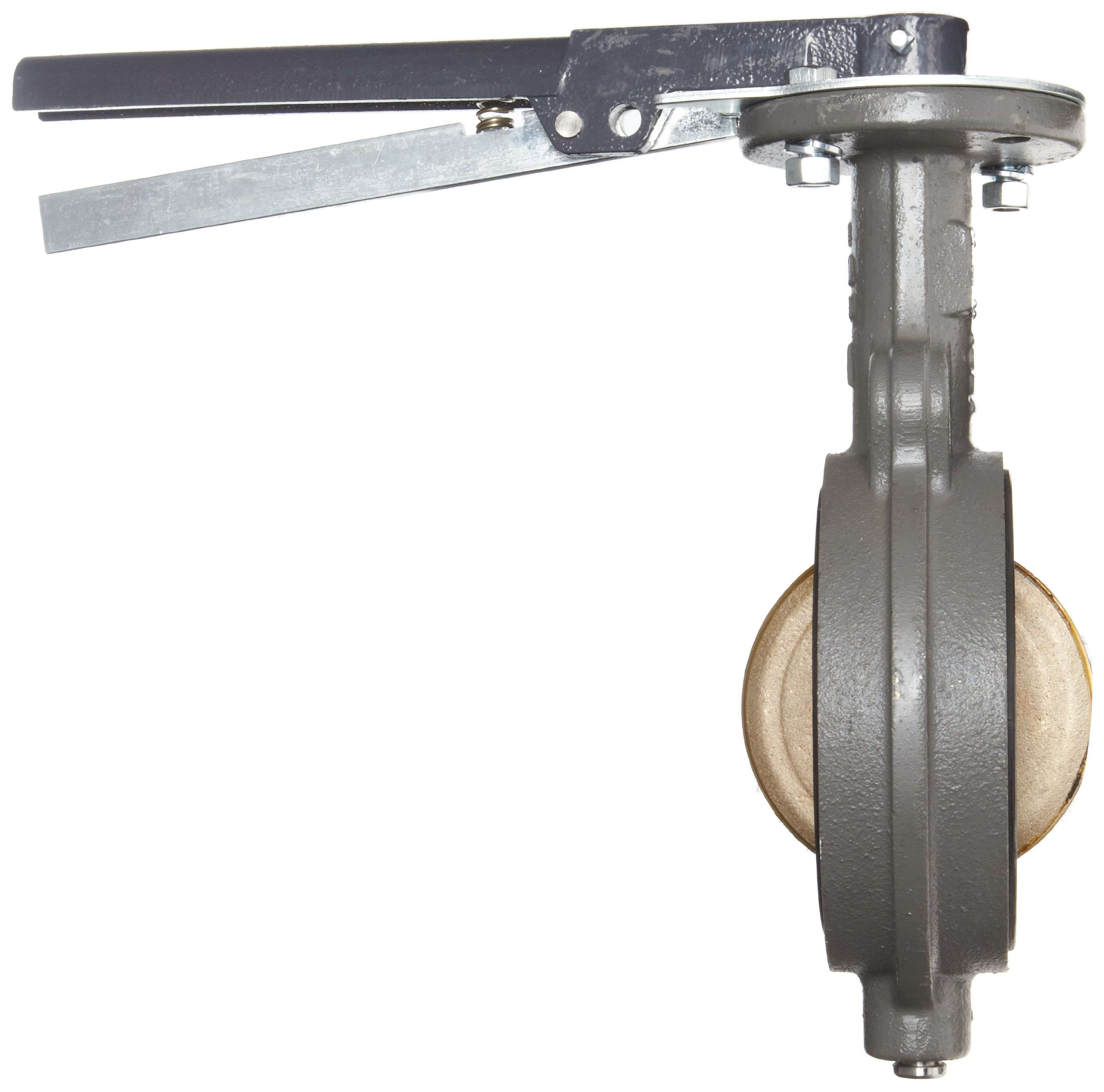

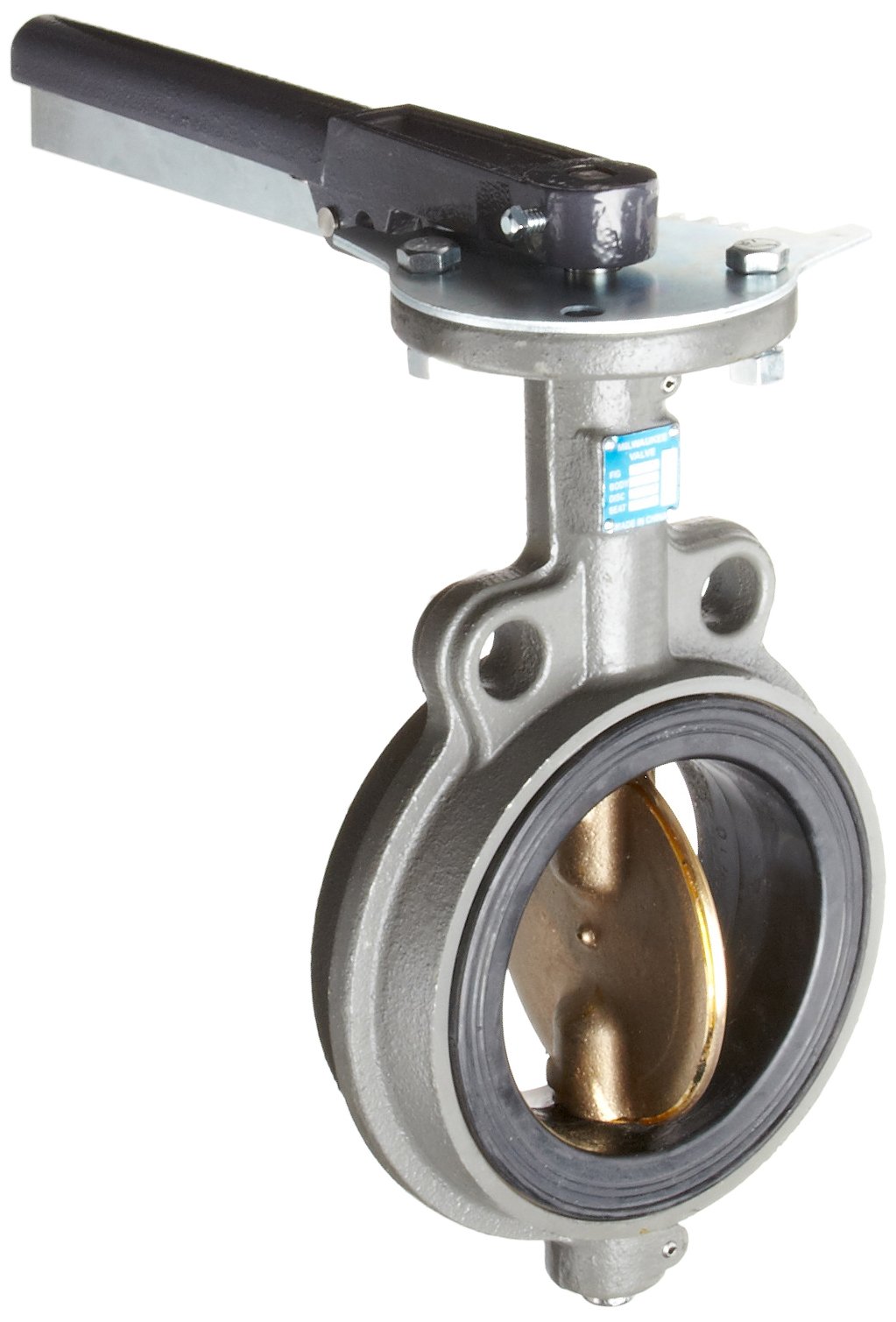

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Milwaukee Valve CW223E Series Cast Iron Butterfly Valve, Wafer Style, Aluminum/Bronze Disc, EPDM Seat, Lever Handle, Flanged

Be the first to review this item

Product Specifications
Seat Material Type
EPDM
Material Type
Cast Iron
Structure Description
Wafer Style
Handle Type
Lever Handle
Brand Name
Milwaukee
Manufacturer Series Number
CW223E
Upper Temperature Range
250  Degrees Fahrenheit
Specification Met
MSS SP-67 , API-609
Maximum Pressure
200  PSI
Connector Type
Flanged
UNSPSC Code
40141656
Style Name
Flanged
LowerTemperature Range
-30  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 1 day 16 hrs 50 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-6 of 6
2" B006X5FQ4G yes $123.31 Buy Options
2-1/2" B006X5G9Y2 yes $138.55 Buy Options
3" B006X5FULA yes $142.30 Buy Options
4" B006X5FXNA yes $169.25 Buy Options
5" B006X5G2QC yes $193.21 Buy Options
6" B006X5G5HS yes $225.29 Buy Options

Key Features

  • Wafer-style design for a seal against two-way pressure to prevent backflow in single-direction systems
  • Made of cast iron for higher corrosion resistance than steel with EPDM rubber seats and seals that provide increased water and chemical resistance
  • Ductile-iron lever handle for manual flow control
  • 200 pounds per square inch (psi) rating for water, oil, and gas (WOG)
  • Flanged connections for bolting to pipes

Product Description

This cast iron Milwaukee Valve CW223E series wafer-style butterfly valve has ethylene propylene diene monomer (EPDM) seats and seals, an aluminum-bronze disc, a lever handle, and flanged connections. Made of cast iron for higher corrosion resistance than steel, this wafer-style valve fits between two pipe flanges and is designed to retain a seal against two-way pressure to prevent backflow in single-direction systems. It has EPDM seats and seals to provide increased water and chemical resistance, and the ductile-iron lever handle provides manual flow control. The disc is made of aluminum bronze, which has better corrosion resistance than stainless steel. The maximum pressure is 200 pounds per square inch (psi) for use with water, oil, and gas (WOG), and the working temperature range is -30 to 250 degrees F. This valve has flanged connections for bolting to pipes for greater ease in installation and maintenance than welded connections. It meets Manufacturers Standardization Society (MSS) SP-67 and American Petroleum Institute (API) 609 standards for quality assurance, and the United States Coast Guard approves it for use in Category A service. This butterfly valve is for use in applications including agricultural and turf irrigation, food and beverage industry, pulp and paper industry, oil and gas systems, chemical plants, wastewater treatment, and water distribution.

Butterfly valves are used to regulate flow between pipes, tubes, and hoses by rotating a lens-shaped disc in the center of the valve and are suited for high-capacity, low-pressure applications. When the valve is fully opened, the disc face is parallel to the inlet and outlet of the valve, and when the valve is closed, the disc face is perpendicular to the opening of the valve. Butterfly valves may have a handle or lever that aligns with the disc position (open or closed) for manual flow control. They are primarily used in applications including agriculture, water treatment, fire protection, compressed air or gas, and vacuum service.

The Milwaukee Valve Company manufactures manual and actuated valves, controls, and control accessories. The company, founded in 1901, and headquartered in New Berlin, WI, meets International Organization for Standardization (ISO) 9001:2008 and 14001:2004 standards.
