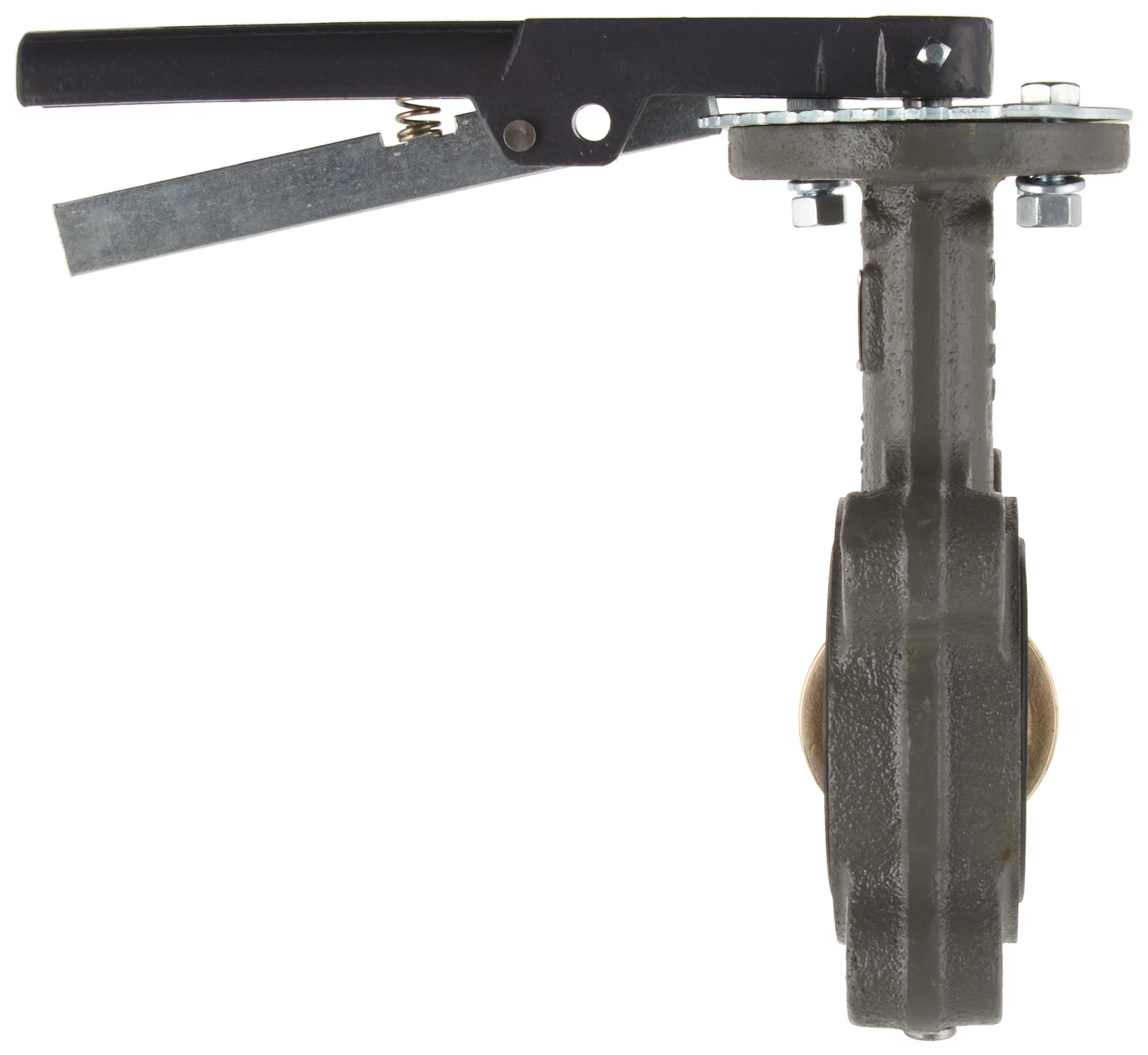

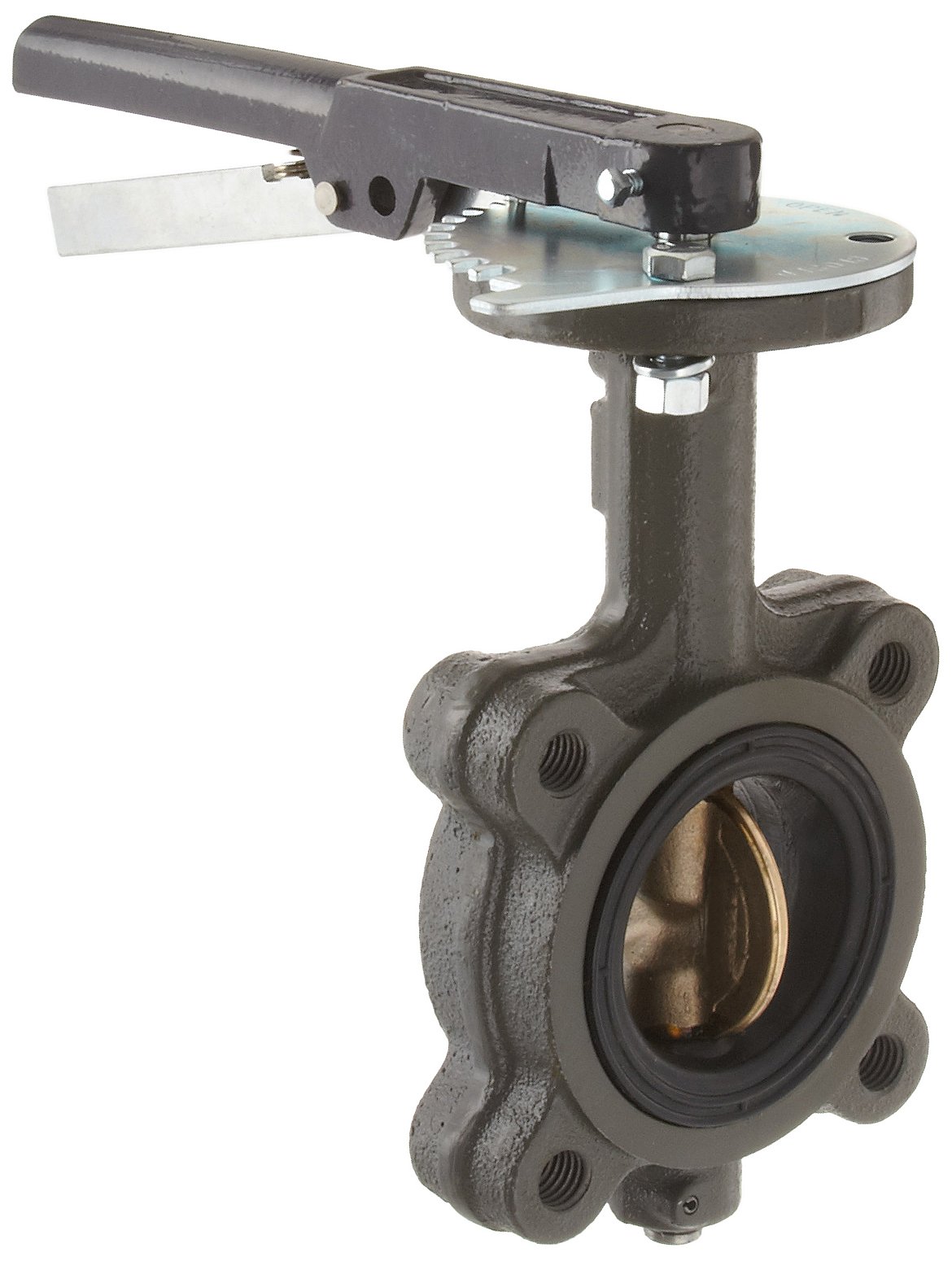

Milwaukee Valve CL223E Series Cast Iron Butterfly Valve, Lug Style, Aluminum/Bronze Disc, EPDM Seat, Lever Handle, Flanged

Be the first to review this item

Product Specifications
Seat Material Type
EPDM
Material Type
Cast Iron
Structure Description
Lug Style
Handle Type
Lever Handle
Brand Name
Milwaukee
Manufacturer Series Number
CL223E
Upper Temperature Range
250  Degrees Fahrenheit
Specification Met
MSS SP-67 , API-609
Maximum Pressure
200  PSI
Connector Type
Flanged
UNSPSC Code
40141656
Style Name
Flanged
LowerTemperature Range
-30  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 1 day 7 hrs 21 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-6 of 6
2" B006X5ECOG yes $142.00 Buy Options
2-1/2" B006X5F15K yes $162.71 Buy Options
3" B006X5EMB4 yes $162.66 Buy Options
4" B006X5EPTS yes $193.65 Buy Options
5" B006X5ETG2 yes $240.91 Buy Options
6" B006X5EWYG yes $253.78 Buy Options

Key Features

  • Lug-style design for end-of-line service and removal of downstream piping
  • Made of cast iron for higher corrosion resistance than steel with EPDM rubber seats and seals that provide increased water and chemical resistance
  • Ductile-iron lever handle for manual flow control
  • 200 pounds per square inch (psi) rating for bidirectional dead-end service
  • Flanged connections surround the body on both sides for bolting to pipes

Product Description

The Milwaukee Valve CL223E series lug-style butterfly valve with a lever handle is made of cast iron and has ethylene propylene diene monomer (EPDM) seats and seals, an aluminum-bronze disc, and flanged connections. This lug-style valve is secured between two pipe flanges by a separate set of threaded bolts for each flange and is suitable for end-of-line service and removal or replacement of downstream piping. The ductile-iron lever handle rotates the disc in the valve seat to fully open, regulate, or stop flow through the valve. The disc is made of aluminum bronze, which has better corrosion resistance than stainless steel, and the EPDM rubber seats and seals provide increased resistance to water and chemicals. The maximum pressure for bidirectional dead-end service is 200 pounds per square inch (psi), and the working temperature range is -30 to 250 degrees F. This valve has flanged connections surrounding the body on both sides for bolting to pipes and for greater ease in installation and maintenance than welded connections. It meets Manufacturers Standardization Society (MSS) SP-67 and American Petroleum Institute (API) 609 standards for quality assurance, and the United States Coast Guard approves it for use in Category A service. This valve is for use in applications including agricultural and turf irrigation, food and beverage industry, pulp and paper industry, oil and gas systems, chemical plants, wastewater treatment, and water distribution.

Butterfly valves are used to regulate flow between pipes, tubes, and hoses by rotating a lens-shaped disc in the center of the valve and are suited for high-capacity, low-pressure applications. When the valve is fully opened, the disc face is parallel to the inlet and outlet of the valve, and when the valve is closed, the disc face is perpendicular to the opening of the valve. Butterfly valves may have a handle or lever that aligns with the disc position (open or closed) for manual flow control. They are primarily used in applications including agriculture, water treatment, fire protection, compressed air or gas, and vacuum service.

The Milwaukee Valve Company manufactures manual and actuated valves, controls, and control accessories. The company, founded in 1901, and headquartered in New Berlin, WI, meets International Organization for Standardization (ISO) 9001:2008 and 14001:2004 standards.
