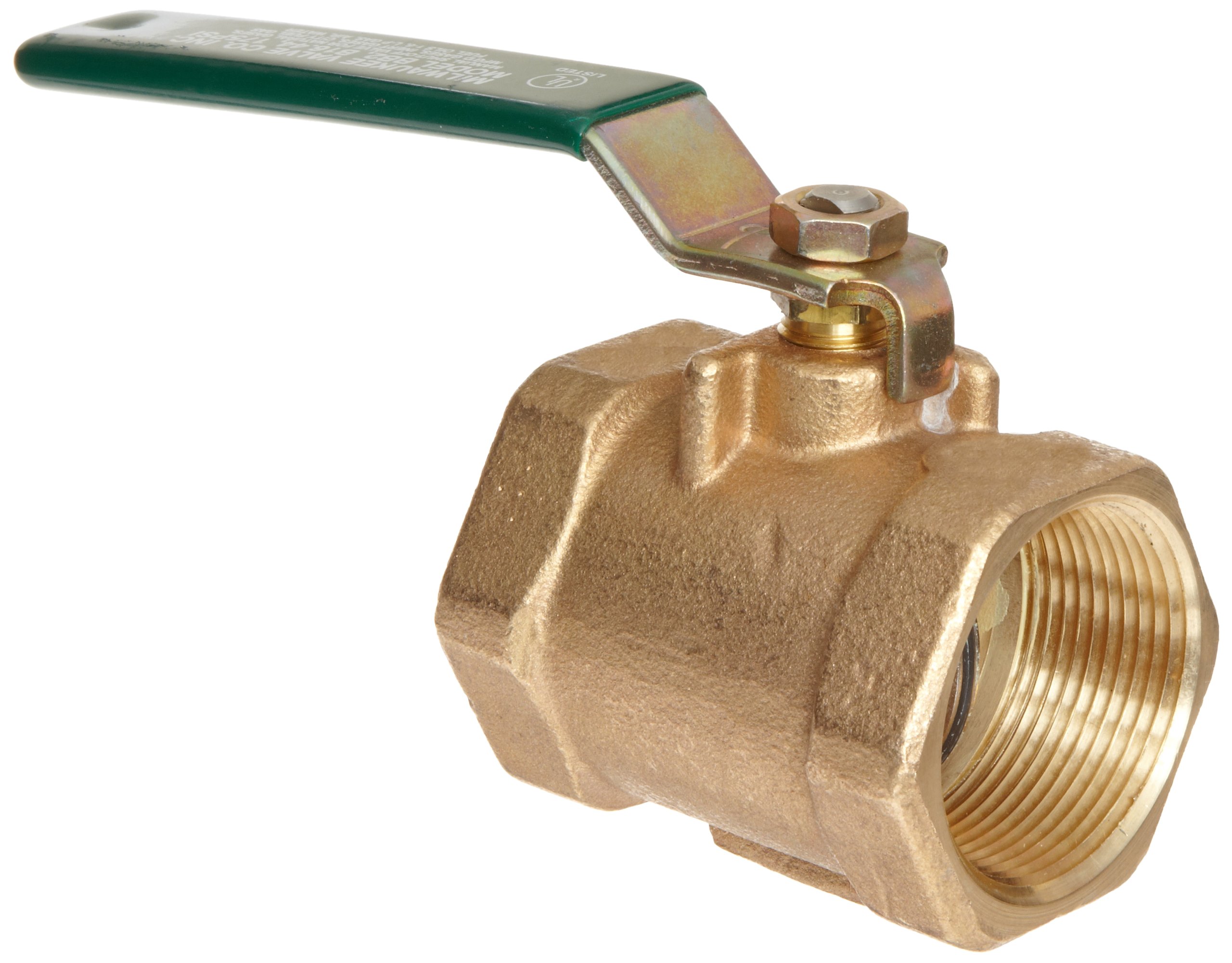

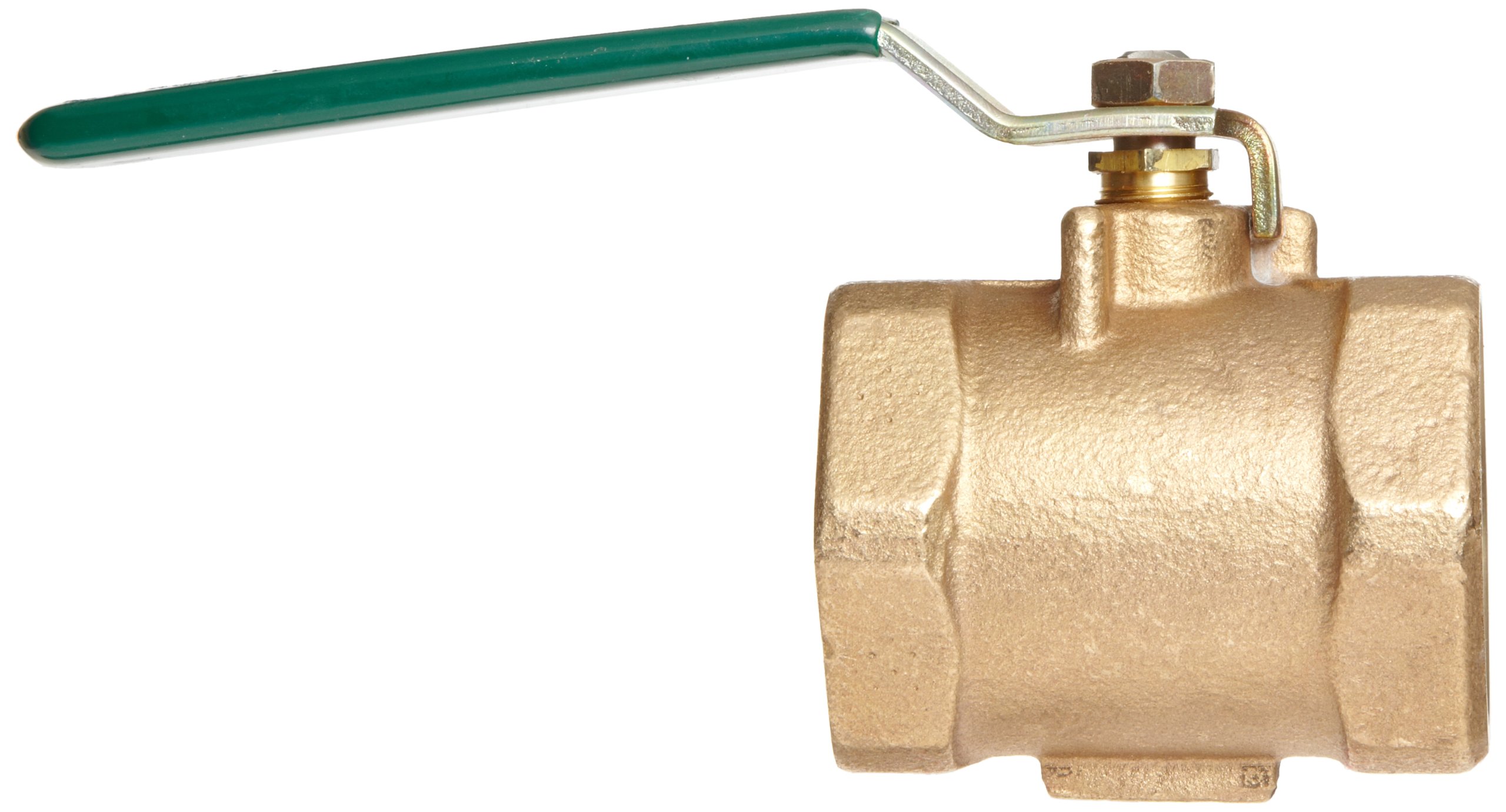

Milwaukee Valve BB2-100 Series Bronze Butterfly Valve, Unibody, Stainless Steel 304 Disc, Lever Handle, NPT Female

Be the first to review this item

Product Specifications
Internal Packing Material Type
Seal Material Type
Material Type
Construction Type
Full Port
Structure Description
Handle Type
Lever Handle
Brand Name
Manufacturer Series Number
Upper Temperature Range
275  Degrees Fahrenheit
Specification Met
Maximum Pressure
175  PSI
Connector Type
NPT Female
Style Name
LowerTemperature Range
30  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 21? Order in-stock items in the next 1 day 19 hrs and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-8 of 8
Item length string Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All
Currently showing 1-8 of 8
2 inches BB2-100 - 34 B006X4S7WA yes $17.35 Buy Options
2.13 inches BB2-100 - 100 B006X4SFLS yes $28.70 Buy Options
2.25 inches BB2-100 - 14 B006X4S658 yes $19.23 Buy Options
2.38 inches BB2-100 - 12 B006X4S3HO yes $20.46 Buy Options
2.38 inches BB2-100 - 38 B006X4SDK6 yes $20.46 Buy Options
2.63 inches BB2-100 - 114 B006X4SJPU yes $45.65 Buy Options
2.88 inches BB2-100 - 112 B006X4SH9I yes $50.20 Buy Options
3.25 inches BB2-100 - 200 B006X4SMFC yes $74.64 Buy Options

Key Features

  • Made of bronze for higher strength and corrosion resistance than brass
  • Full port for higher operating efficiency and decreased friction than standard ports
  • 175 pounds per square inch (psi) rating for water, oil, and gas (WOG)
  • Unibody (one-piece construction) valve for reduced possibility of valve leakage
  • Female National Pipe Taper (NPT) threads form a tighter seal than straight threads

Product Description

The Milwaukee Valve BB2-100 series unibody butterfly valve is made of bronze with a stainless steel 304 disc, and it has a lever handle and female National Pipe Taper (NPT) threaded connections on both ends. This bronze valve, which is higher strength and more corrosion resistant than brass, is full port for reduced friction; its inner diameter is the same as the inner diameter of the pipe it connects to enable maximum operating efficiency. The one-piece construction reduces the possibility of leakage and it has female NPT threaded connections on both ends that create tighter seals than straight threads. The maximum pressure is 175 pounds per square inch (psi) for use with water, oil, and gas (WOG), and the working temperature range is 30 to 275 degrees F. The zinc-plated steel lever handle with a vinyl sleeve rotates the stainless steel 304 disc in the valve seat to fully open, throttle, or stop flow through the valve. This valve is for use in applications including natural gas and liquid propane shutoff, fuel oil and oil systems, HVAC, and both liquid and vacuum service.

Butterfly valves are used to regulate flow between pipes, tubes, and hoses by rotating a lens-shaped disc in the center of the valve and are suited for high-capacity, low-pressure applications. When the valve is fully opened, the disc face is parallel to the inlet and outlet of the valve, and when the valve is closed, the disc face is perpendicular to the opening of the valve. Butterfly valves may have a handle or lever that aligns with the disc position (open or closed) for manual flow control. They are primarily used in applications including agriculture, water treatment, fire protection, compressed air or gas, and vacuum service.

The Milwaukee Valve Company manufactures manual and actuated valves, controls, and control accessories. The company, founded in 1901, and headquartered in New Berlin, WI, meets International Organization for Standardization (ISO) 9001:2008 and 14001:2004 standards.
