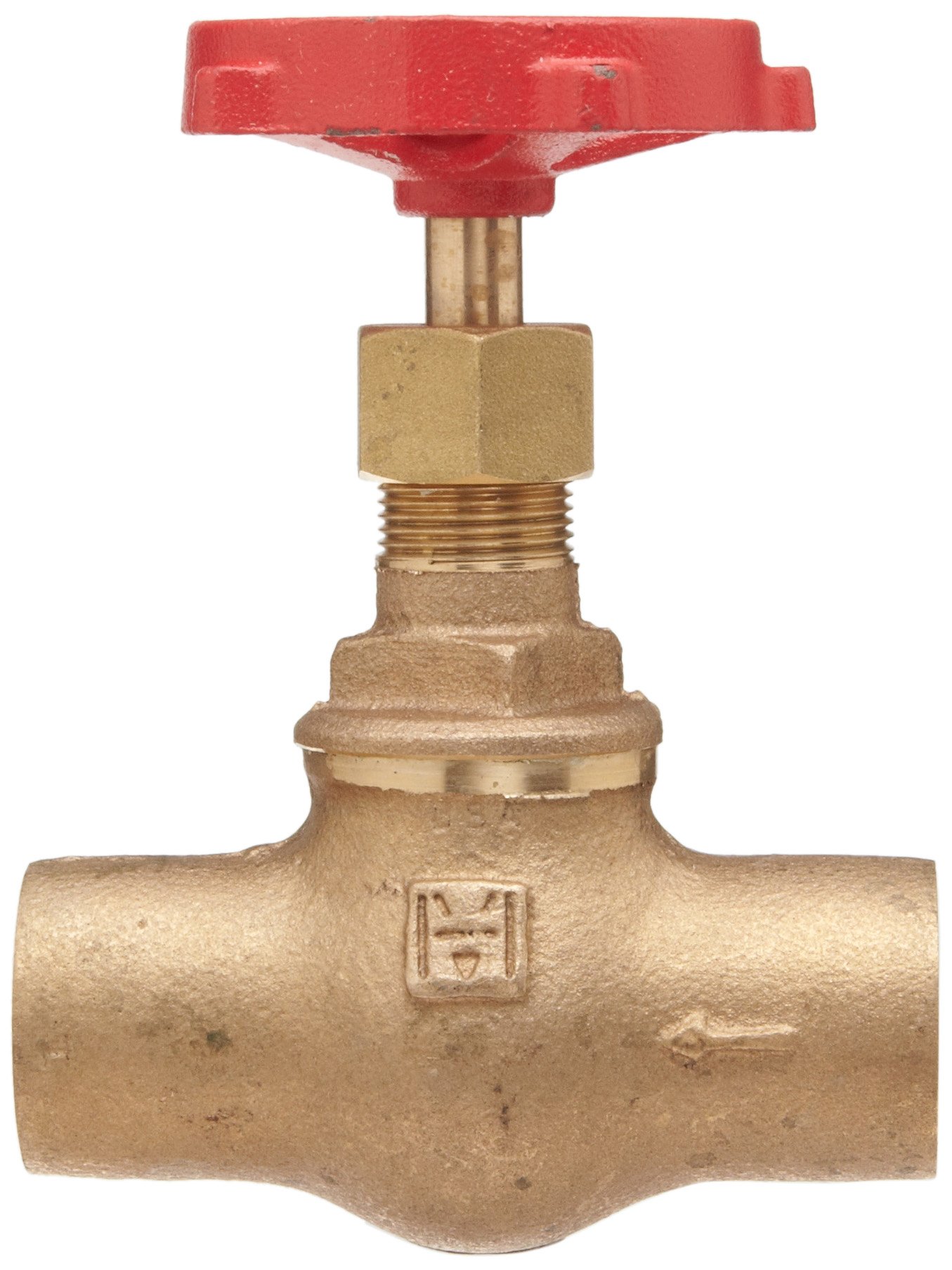

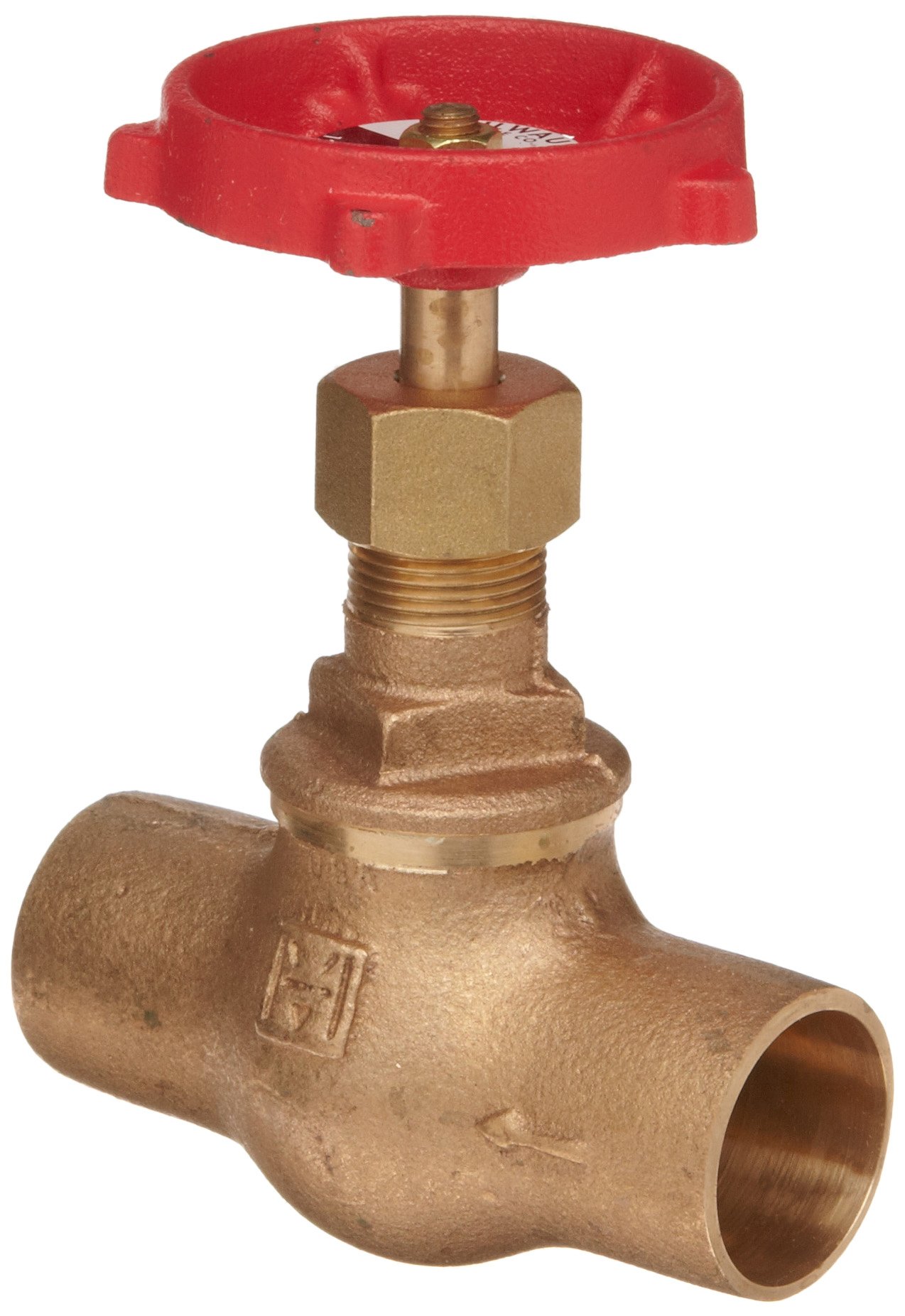

Milwaukee Valve 1502 Series Bronze Globe Valve, Class 125, Inline, Threaded Bonnet, Solder End
Be the first to review this item
Product Specifications
- Brand Name
- Milwaukee Valve
- Connector Type
- Solder End
- Handle Type
- Hand Wheel
- Internal Packing Material Type
- Graphite
- Item Shape
- Inline
- Manufacturer Series Number
- 1502
- Material Type
- Bronze
- Maximum Pressure
- 200 PSI
- Maximum Steam Pressure Description
- 125 pounds_per_square_inch
- Specification Met
- MSS SP-80
- Structure Description
- Threaded Bonnet
- Style Name
- Solder
- System of Measurement
- Inch
These items ship for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 28? Order in-stock items in the next 16 hours 55 minutes and choose One-Day Shipping at checkout.
Key Features
- Inline globe valve with rising stem and threaded bonnet for on/off actuation and flow control (throttling) in a pipeline
- Bronze valve body and disc for strength and corrosion resistance
- Pounds per square inch (gauge) (psig) rating of 200 for water, oil, and gas (WOG) and 125 psig for steam working pressure (SWP)
- Threaded bonnet for reduced risk of leakage
- Solder end connections for semi-permanent connections to tubing
Product Description
This class 125 Milwaukee Valve 1502 series inline bronze globe valve has a threaded bonnet, rising stem, bronze disc, and solder end connections on both ends, and is used to control flow (throttling) in a pipeline or water plumbing system. The valve body and disc are constructed of American Society for Testing and Material (ASTM) B62 bronze for strength and corrosion resistance. This valve has maximum pressure ratings of 200 pounds per square inch (gauge) (psig) for water, oil, and gas (WOG) and 125 psig for steam working pressure (SWP). It has a threaded bonnet for tight assembly and reduced risk of leakage, and solder end connections for semi-permanent, yet reversible, connections to tubing. This class 125 valve meets standard Manufacturers Standardization Society (MSS) SP-80 for quality assurance. Class is a standard relating to tolerance, construction, dimension, and wall thickness, but it is not a direct measurement of maximum working pressure. This rising stem globe valve is for use in various pipeline or water plumbing systems.
Globe valves control flow rates in a piping system by the lift of a vertical stem and disk, which must be turned to open and close the valve. A seated disc extends into the center of the valve to act as a plug to restrict or open the flow path, depending on how tightly the valve stem is turned. The stem on globe valves can be either rising (moves up as the valve opens) to indicate if the flow is on or off, or non-rising (stem height remains constant when the valve is either open or closed) for use in small spaces. Globe valves are used in various water, gas, air, and steam piping systems that require frequent throttling operations.
The Milwaukee Valve Company manufactures manual and actuated valves, controls, and control accessories. The company, founded in 1901, and headquartered in New Berlin, WI, meets International Organization for Standardization (ISO) 9001:2008 and 14001:2004 standards.
