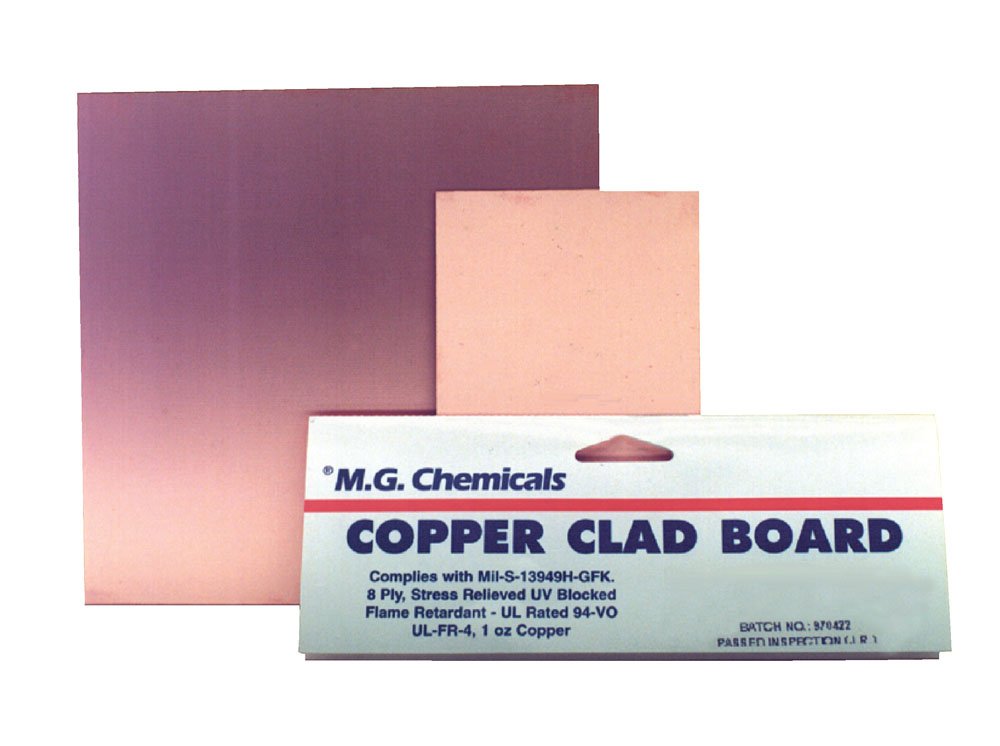

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

MG Chemicals 500 Series Copper Clad Prototyping Board with 1 oz Copper

Be the first to review this item

Product Specifications
Manufacturer Series Number
500
UNSPSC Code
32130000
Brand Name
MG Chemicals

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Nov 28? Order in-stock items in the next 20 hrs 22 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-15 of 15
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-15 of 15
1/16" Copper Thick, 1 Side, 10" Length x 8" Width B008OAFIRI yes $11.95 Buy Options
1/16" Copper Thick, 1 Side, 12" Length x 12" Width B008OAFKUS yes $15.75 Buy Options
1/16" Copper Thick, 1 Side, 36" Length x 24" Width B005T8F03A yes $79.95 Buy Options
1/16" Copper Thick, 1 Side, 48" Length x 36" Width B008OAFLUC yes $143.00 Buy Options
1/16" Copper Thick, 1 Side, 5" Length x 3" Width B008OAFM56 yes $3.45 Buy Options
1/16" Copper Thick, 1 Side, 6" Length x 4" Width B008OAFML0 yes $4.65 Buy Options
1/16" Copper Thick, 1 Side, 6" Length x 6" Width B008OAFN14 yes $5.75 Buy Options
1/16" Copper Thick, 1 Side, 9" Length x 6" Width B008OAFNH8 yes $8.65 Buy Options
1/16" Copper Thick, 2 Side, 12" Length x 12" Width B008OAFNWS yes $19.20 Buy Options
1/16" Copper Thick, 2 Side, 5" Length x 3" Width B008OAFOUO yes $4.75 Buy Options
1/16" Copper Thick, 2 Side, 6" Length x 6" Width B008OAFP94 yes $7.15 Buy Options
1/32" Copper Thick, 1 Side, 6" Length x 4" Width B008OAFTLI yes $4.75 Buy Options
1/32" Copper Thick, 1 Side, 9" Length x 6" Width B005T8JSDS yes $8.75 Buy Options
1/32" Copper Thick, 2 Side, 6" Length x 4" Width B008OAFUP8 yes $5.25 Buy Options
1/32" Copper Thick, 2 Side, 9" Length x 6" Width B005T8LY7Q yes $9.45 Buy Options

Key Features

  • 1/16" FR4 laminate with 1 oz copper per square foot
  • This flame retardant laminate is translucent in color and made of continuous woven glass cloth impregnated with epoxy resin
  • Developed specifically for the circuit processing industries' requirements
  • Complies with UL #E214381
  • Measures 10" length by 8" width

Product Description

This MG Chemicals 500 series prototyping board is a translucent laminate for making printed circuit boards (PCB) by transferring artwork from a transparency using exposure to light, followed by developing and etching. It has a fiberglass (FR4) substrate impregnated with epoxy resin for rigidity and resistance to flame, with 1 ounce of copper per square foot (1.34 mm thick) for light to moderate current. The material blocks ultraviolet light for protection during automated optical inspection (AOI). It complies with Underwriters Laboratories (UL) #E214381 for materials used in the fabrication of printed wiring boards and is Restriction of Hazardous Substances (RoHS) compliant. This PCB laminate is suitable for prototypes, small production runs, and student training.

MG Chemicals manufactures chemical products for the electronics industry. The company, founded in 1955 and headquartered in Surrey, BC, Canada, meets International Organization for Standardization (ISO) standard 9001.
