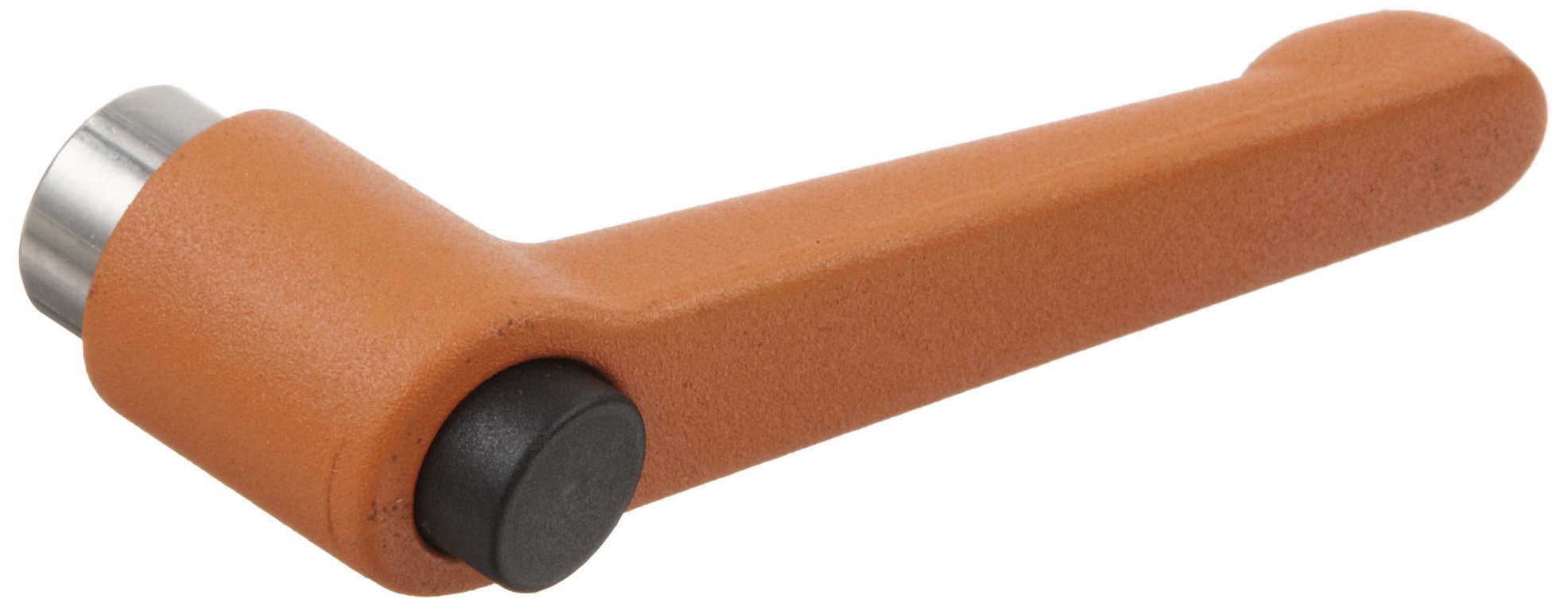

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Die Cast Zinc Metric Adjustable Handle with Black Push Button, S/S Threaded Hole

Be the first to review this item

Product Specifications
Exterior Finish
Smooth
Mounting Type
Threaded Hole
Material Type
Zinc
Style Name
Push Button
Handle Type
angled
UNSPSC Code
31162801
Brand Name
Small Parts

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 21? Order in-stock items in the next 14 hrs 41 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-13 of 13
Thread Size Thread Length Handle Length Hub Height Handle Height Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-13 of 13
M3 x 0.5 8 mm 45 millimeters 24.5 mm 35 mm 2 B007IXEJ22 yes $15.99 Buy Options
M3 x 0.5 8 mm 30 millimeters 24.5 mm 30.5 mm 2 B007IXEGSO yes $15.99 Buy Options
M4 x 0.7 8 mm 30 millimeters 24.5 mm 30.5 mm 2 B007IXEH6U yes $15.99 Buy Options
M4 x 0.7 8 mm 45 millimeters 24.5 mm 35 mm 2 B007IXEJO0 yes $16.08 Buy Options
M5 x 0.8 8 mm 30 millimeters 24.5 mm 30.5 mm 2 B007IXEIE6 yes $15.99 Buy Options
M5 x 0.8 8 mm 45 millimeters 24.5 mm 35 mm 2 B007IXEKEO yes $16.08 Buy Options
M6 x 1.0 10 mm 63 millimeters 31 mm 45 mm 2 B007IXEL7K yes $16.56 Buy Options
M6 x 1.0 8 mm 30 millimeters 24.5 mm 30.5 mm 2 B007IXEIS2 yes $16.44 Buy Options
M6 x 1.0 8 mm 45 millimeters 24.5 mm 35 mm 2 B007IXEKP8 yes $16.08 Buy Options
M8 x 1.25 14 mm 78 millimeters 36 mm 55 mm 1 B007IOI3J6 yes $13.73 Buy Options
M8 x 1.25 10 mm 63 millimeters 31 mm 45 mm 1 B007IOI2NS yes $10.76 Buy Options
M8 x 1.25 14 mm 78 millimeters 36 mm 34 mm 1 B007IP019U yes $15.43 Buy Options
M10 x 1.5 14 mm 78 millimeters 36 mm 55 mm 1 B007IOI38M yes $13.87 Buy Options

Key Features

  • Metric
  • Tapped type
  • Zinc die-cast adjustable levers with stainless steel components
  • Handle: Zinc die-cast

Product Description

Zinc die-cast adjustable levers with stainless steel components. GN 303.1 adjustable hand levers with push button have proven to be ideal wherever parts have to be clamped in a confined space or in a particular lever position. The insert is connected to the lever via serrations which can be easily be disengaged. Pulling the lever upwards, disengages the serrations, allowing it to be swivelled to the ideal clamping position. When releasing the lever, the serrations automatically re-engage. The releasing button is a design element and allows for effortless release action. However, this design is limited to applications that do not require the lever to be disassembled. Screw for push button: stainless steel, European standard 1.4305. Black smooth nylon plastic push button. Orange, smooth finish lever.
