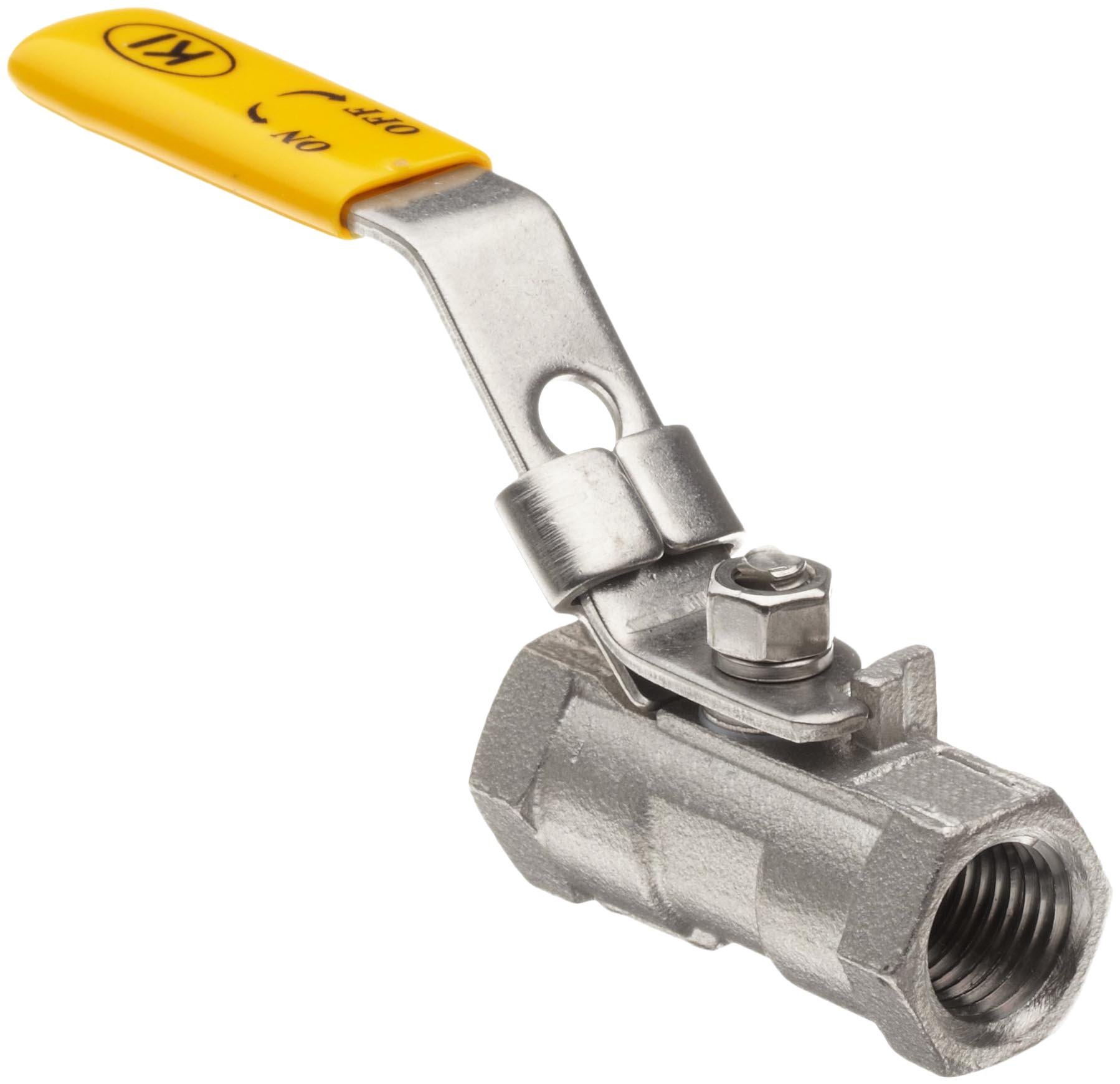

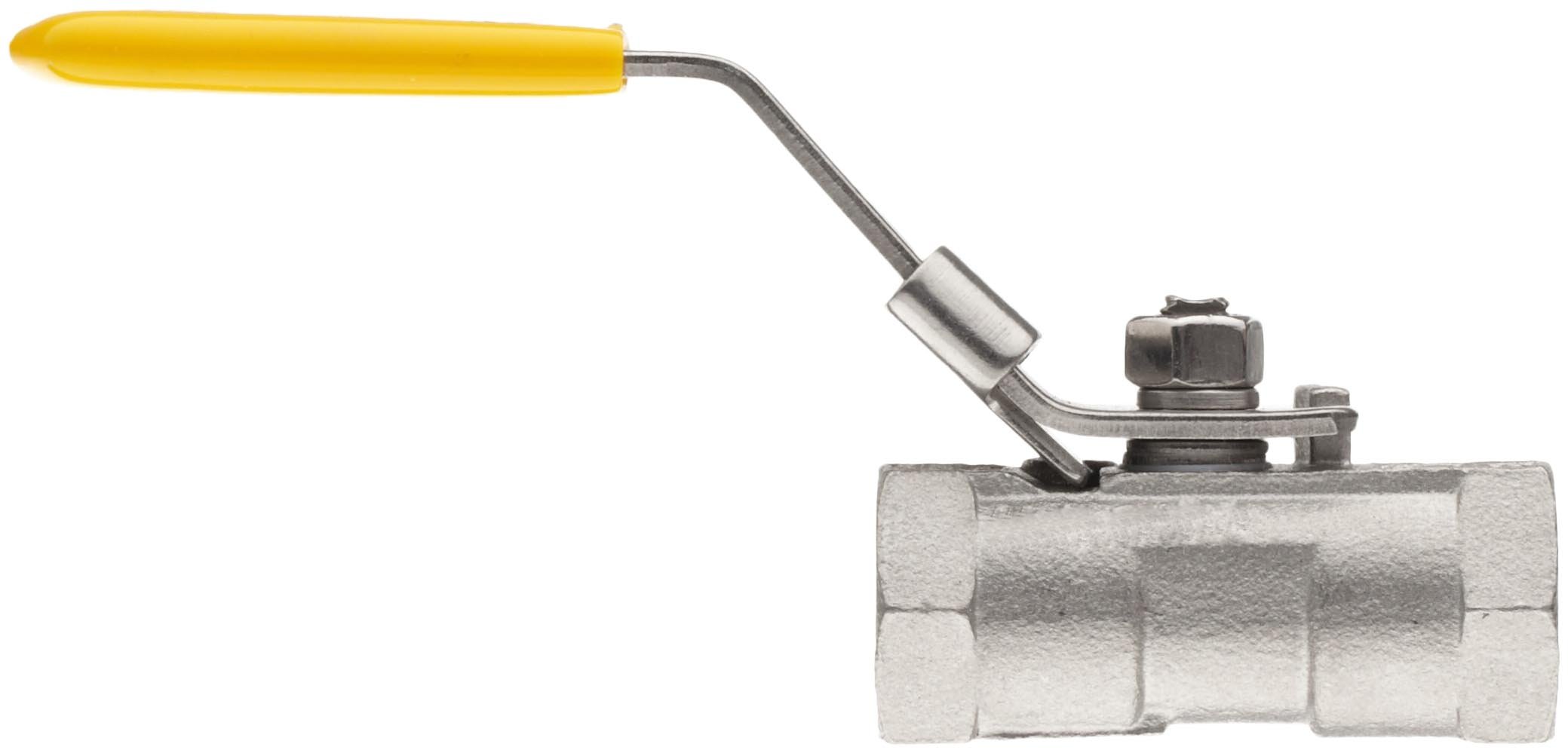

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Merit Brass Stainless Steel 316 Ball Valve, Unibody, Lever, NPT Female

Be the first to review this item

Product Specifications
Item Shape
Inline
Seat Material Type
PTFE
Material Type
Stainless Steel
Operation Mode
Manual
Maximum Steam Pressure Description
200 pounds_per_square_inch
Structure Description
Unibody
Handle Type
Lever
Brand Name
Merit Brass
Manufacturer Series Number
V108
Upper Temperature Range
400  Degrees Fahrenheit
Ball Material Type
Stainless Steel 316
Specification Met
ASTM A351
Grade
316
Maximum Pressure
800  PSI
Connector Type
NPT Female
UNSPSC Code
40141607
System of Measurement
Inch
LowerTemperature Range
0  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 1 day 23 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-3 of 3
Item length string Number of items Part number ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-3 of 3
3.23 inches 1 KV108-20 B0054L014K yes $34.68 Buy Options
3.47 inches 1 KV108-24 B0054L01X6 yes $46.13 Buy Options
4.09 inches 1 KV108-32 B0054L02X0 yes $61.31 Buy Options

Key Features

  • Made of stainless steel 316 for strength and resistance to corrosion
  • Lever handle with vinyl sleeve for manual on/off control
  • Unibody construction for reduced possibility of valve leakage
  • Pounds per square inch (gauge) (psig) rating of 800 for water, oil, and gas (WOG) applications
  • Female National Pipe Taper (NPT) threads for use with male threaded pipes

Product Description

The Merit Brass one-piece unibody ball valve is made of stainless steel 316 and has a lever handle and female National Pipe Taper (NPT) threaded connections on both ends. This stainless steel 316 valve, which is higher strength and more corrosion resistant than stainless steel 304, has a lever handle with a vinyl sleeve for manual on/off control. The unibody construction and polytetrafluoroethylene (PTFE) reinforced seats and seals reduce the risk of valve leakage. The maximum pressure is 800 pounds per square inch (gauge) (psig) for use with water, oil, and gas (WOG) and the working temperature range is 0 - 400 degrees Fahrenheit. The valve is inline for connecting two pipes going in the same direction and has NPT threads on both ends for creating tighter seals than straight threads. This ball valve is standard (or reduced or regular) port for reduced valve size and cost and is for use with water lines, processing plants, and agricultural applications.

Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball’s position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.

Merit Brass manufactures pipe nipples following ISO 9001 standards for quality assurance. The company, family-owned since 1937 and headquartered in Cleveland, OH, distributes pipe fittings in the United States and Canada.
