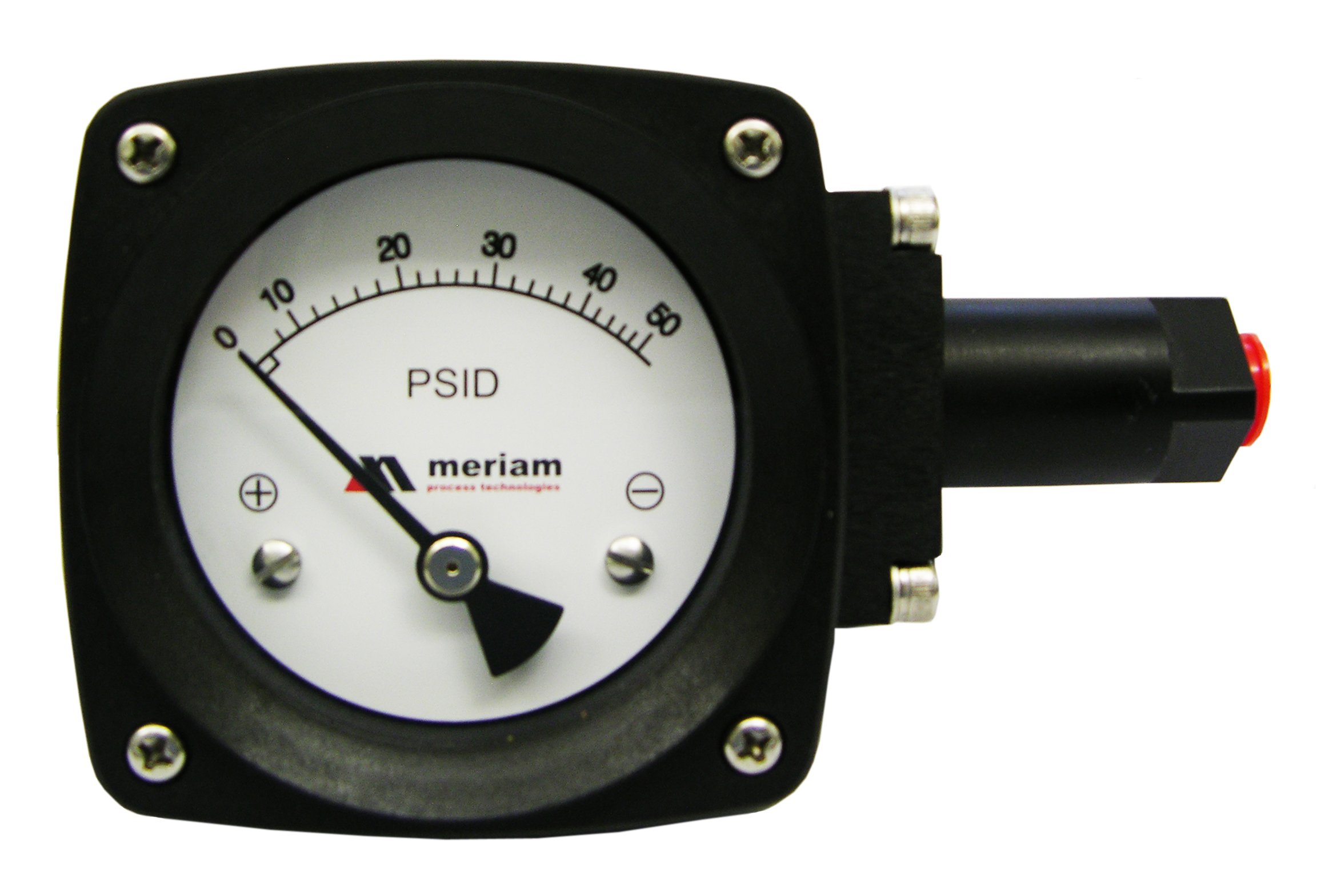

Meriam 300 Series Aluminum Convoluted Diaphram Gauge with Buna-N Seal, 0-5 psid Range, 4.5" Dial, +/- 2% Accuracy, 1/4" NPT Female Connection
Be the first to review this item
ASIN B0094KD62Q
Specifications for this item
- Brand Name
- Meriam
- Case
- 42
- Mfr Part #
- Z300DGC-5
- Number of Items
- 1
- Scale
- Dial
- Special Features
- 0-5 psid
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 21? Order in-stock items in the next 1 day 3 hours 58 minutes and choose One-Day Shipping at checkout.
Key Features
- Engineered polymer case material
- Piston sensing element
- Buna-N Seal
- Direct, front flange, 2" pipe and surface mounting
- Up to the maximum working pressure from high side
Package Details
Shipping Weight:
1.75 pounds
Package Size:
7.9 x 5.9 x 3.4 inches
Product Description
Migration: no migration; zero leakage from high to low port. First marking on the scale: 15 percent of FSD. Sensing element: diaphragm. Wetted parts: diaphragm, body material, SS spring, ceramic magnet. Case material: engineered polymer. Dial size: 2.5 (square), 4.5" (round). Mounting: direct, front flange, 2" pipe and surface mounting. Maximum working pressure: 1500 psi / 100 Bar. Maximum process temperature: 200 degree F. Seals: Buna-N. Lens: Plexiglass (acrylic). Connection: 1/4" NPT(F) Std. Porting: In-line. Over range protection: Up to the maximum from high and low side. Protecting for gauge and switch: NEMA-4/IP65. Applications includes: Filter monitoring, pump performance, level measurement, Flow, flow direction, pressure monitoring, Flow rate, strainer monitoring, condition monitoring of heating/cooling system, Air filter and collector/bag filter monitoring, collector/bag filter monitoring, blower performance.
